Commercial JuggerNaut® Condenser Fan Motors



JuggerNaut motors are well suited for use in commercial condenser fan applications where high operating temperatures are commonly found. These motors feature inverter duty wire and non-conductive grease bearing, which help reduce motor failure caused by the electrical current often found when used in conjunction with variable frequency drives (VFD). These motors must be mounted within the airflow of the fan for proper cooling.

Three phase, TEAO, ODP, OAO, footed and footless, AC designs are available.












Features:

  • 70°C max ambient temperature
  • Inverter duty
  • Quick-connect design
  • Automatic reset thermal protector
  • Non-conductive grease bearing
  • Double sealed ball bearings
  • Shaft slinger
  • VCD Voltage Change Device
  • Class F insulation

Benefits:

  • 70°C ambient temperature for high temperature operating conditions.
  • Inverter duty wire for use with variable frequency drives.
  • Quick-connect design.
  • Automatic reset thermal protector protects against motor overload and automatically resets.
  • Non-conductive bearing grease to reduce conduction of bearing currents.
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provides extra-long life.
  • Shaft slinger keeps water and dirt out of motor in vertical, shaft up installations.
  • VCD Voltage Change Device to quickly change voltage on the spot.
  • UL and CSA recognized Class F insulation for 70°C (158°F) max ambient conditions provides longer motor life.

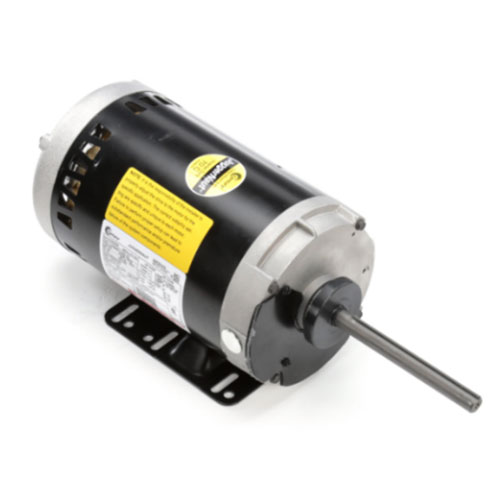

JuggerNaut

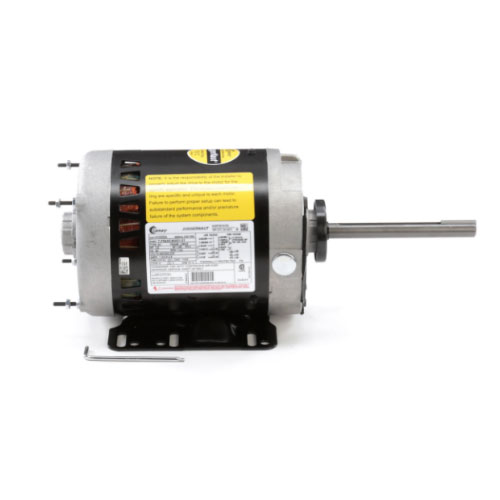

JuggerNaut

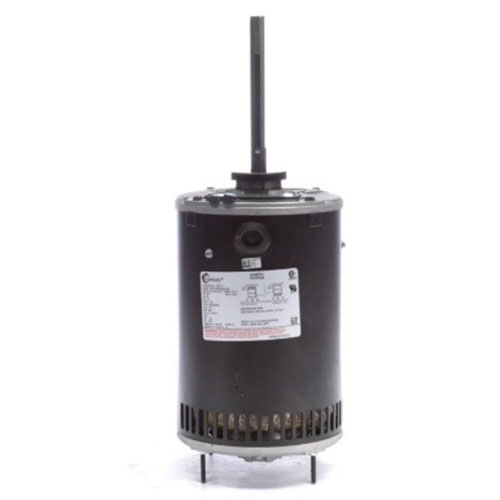

JuggerNaut



THERE’S A JUGGERNAUT® CONDENSER FAN MOTOR FOR EVERY APPLICATION

Century JuggerNaut Pro Motor

Three phase - Removable Base or Belly Band

Nidec® VariTough Motor

 Baldor® Motor  Dayton® Motor
 Model  Enclosure  HP  RPM  Voltages  Frame  Model  Enclosure  Model Enclosure   Model  Enclosure
 H1055A-PRO  OAO  1/2  1140  460/200-230  56HZ  -  -  -  -  -  -
 H1056A-PRO  OAO  3/4  1140  460/200-230  56HZ  -  -  -  -  -  -
 H1053A-PRO  OAO  1  850  460/208-230  56HZ  -  -  -  -  -  -
 H1050A-PRO  OAO  1  1140  460/208-230  56HZ  1818VG  OAO  -  -  20RK80 (belly band)  OAO
 H1054A-PRO  OAO  1.5  850  460/208-230  56HZ  1832VG  OAO  -  -  20RK81 (belly band, ambient temp 60 deg.)  OAO
 H1051A-PRO  OAO  1.5  1140  460/208-230  56HZ  1819VG  OAO  -  -  20RK80 (belly band)  OAO
 H1052A-PRO  OAO  2  1140  460/208-230  56HZ  8987VG  OAO  -  -  20RK80 (belly band)  OAO



Century JuggerNaut Pro Motor

Three phase - Rigid Base

Nidec® VariTough Motor

 Baldor® Motor  Dayton® Motor
 Model  Enclosure  HP  RPM  Voltages  Frame  Model  Enclosure  Model Enclosure   Model  Enclosure
 H1050RB-PRO  OAO  1  1140  460/208-230  56HZ  1820VG  OAO  -  -  20RK85  OAO
 H1053RB-PRO  OAO  1  850  460/208-230  56HZ  1833VG  OAO  -  -  20RK84  OAO
 H1051RB-PRO  OAO  1.5  1140  460/208-230  56HZ  1821VG  OAO  -  -  20RK87  OAO
 H1054RB-PRO  OAO  1.5  850  460/208-230  56HZ  1831VG  OAO  -  -  20RK86 (belly band)  OAO
 H1052RB-PRO  OAO  2  1140  460/208-230  56HZ  1822VG  OAO  -  -  20RK88  OAO



Century JuggerNaut Pro Motor

Three phase - Removable Base or Belly Band

Nidec® VariTough Motor

 Baldor® Motor  Dayton® Motor
 Model  Enclosure  HP  RPM  Voltages  Frame  Model  Enclosure  Model Enclosure   Model  Enclosure
 H1055AV1  OAO  1/2  1140  460/200-230  56HZ  -  - CFM3136A (belly band)/M3539-TP(belly band) ODP  -  -
 H1056AV1  OAO  3/4  1140  460/200-230  56HZ  -  - CFM3146A (belly band) ODP  -  -
 H1053AV1  OAO  1  850  460/208-230  56HZ  -  -  -  -  -  -
 H1050AV1  OAO  1  1140  460/208-230  56HZ  1818VG  OAO  CFM3156A (belly band) ODP  24PR72 (belly band)
 OAO
 H1054AV1  OAO  1.5  850  460/208-230  56HZ  1832VG  OAO  -  -  24PR73 (belly band, ambient temp 60 deg.)  OAO
 H1051AV1  OAO  1.5  1140  460/208-230  56HZ  1819VG  OAO  CFM3166A (belly band) ODP  24PR74 (belly band)  OAO
 H1052AV1  OAO  2  1140  460/208-230  56HZ  8987VG  OAO  -  -  24PR75 (belly band)  OAO



Century JuggerNaut Pro Motor

Three phase - Rigid Base

Nidec® VariTough Motor

 Baldor® Motor  Dayton® Motor
 Model  Enclosure  HP  RPM  Voltages  Frame  Model  Enclosure  Model Enclosure   Model  Enclosure
 H1050RBV1  OAO  1  1140  460/208-230  56HZ  1820V  OAO  -  -  24PR78  OAO
 H1053RBV1  OAO  1  850  460/208-230  56HZ  1833V  OAO  -  -  24PR77  OAO
 H1051RBV1  OAO  1.5  1140  460/208-230  56HZ  1821V  OAO  -  -  24PR80  OAO
 H1054RBV1  OAO  1.5  850  460/208-230  56HZ  1831V  OAO  -  -  24PR79 (belly band)  OAO
 H1052RBV1  OAO  2  1140  460/208-230  56HZ  1822V  OAO  -  -  24PR81  OAO
