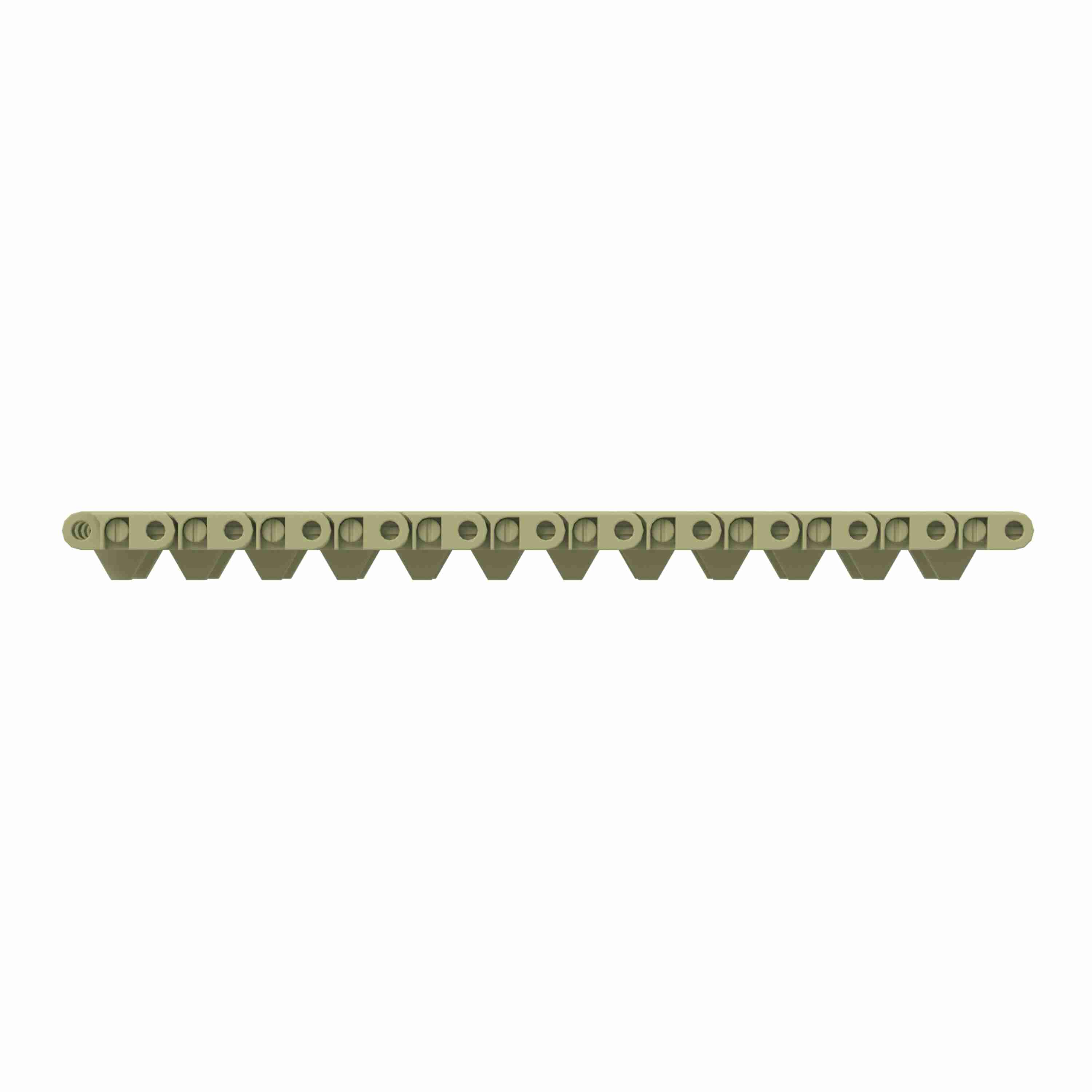

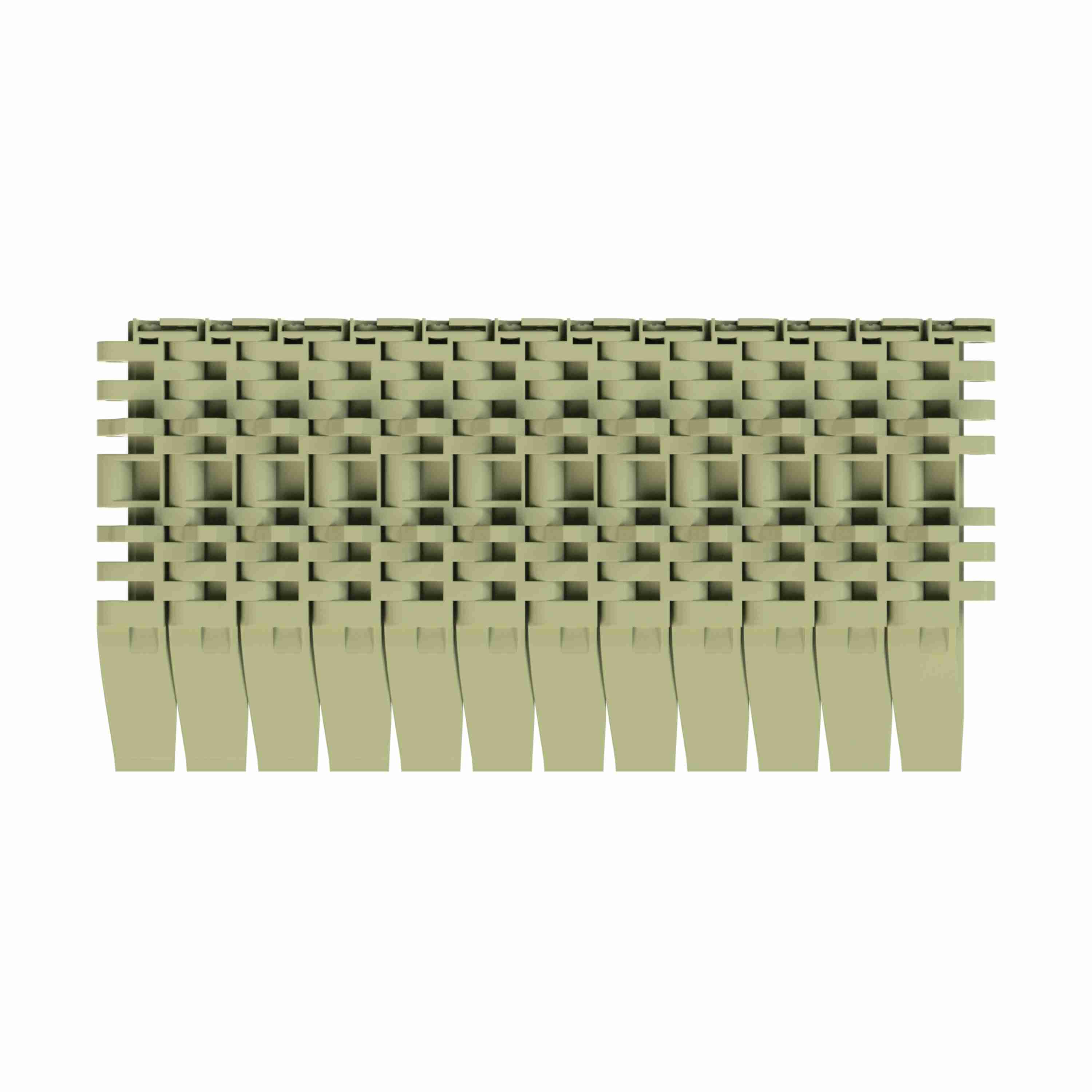

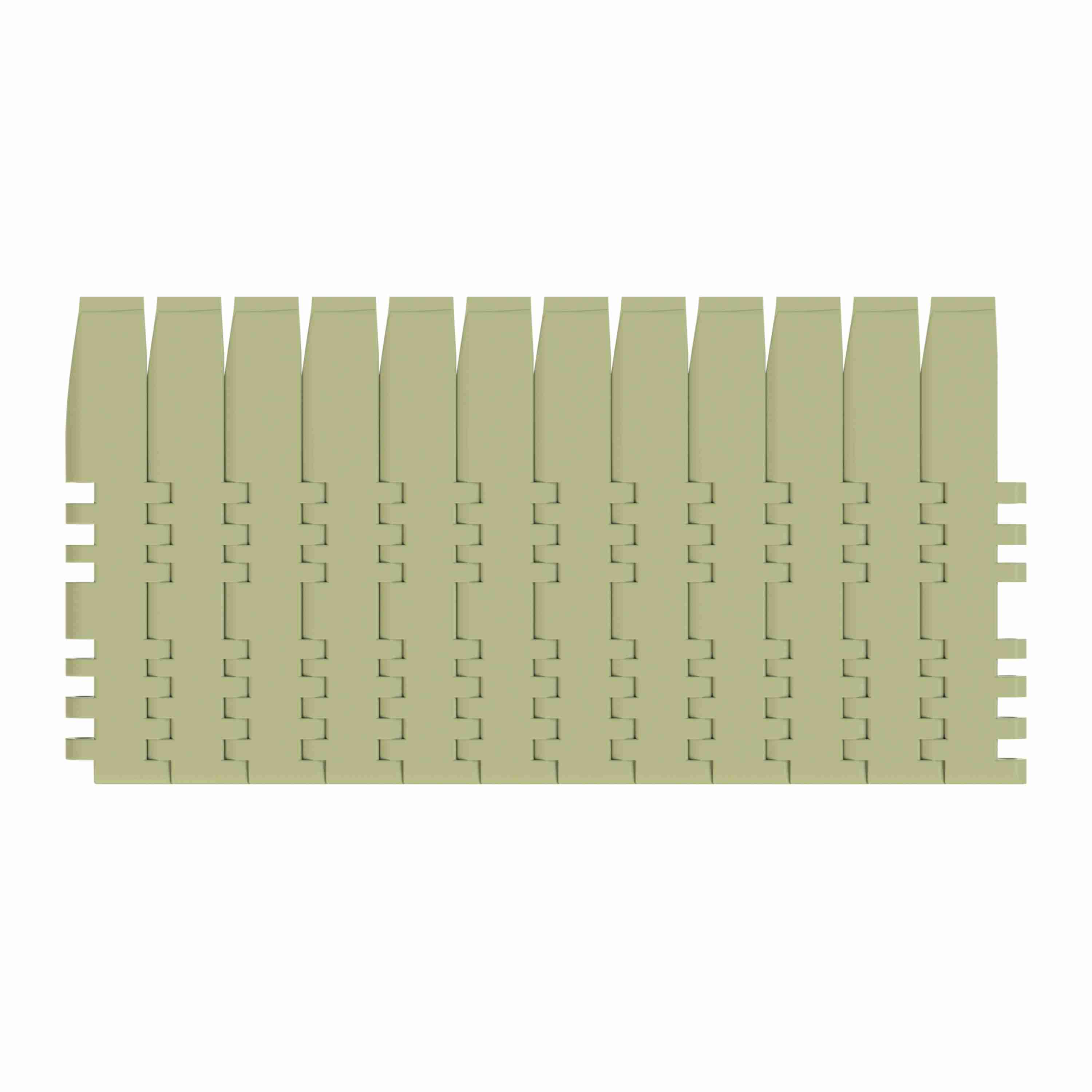

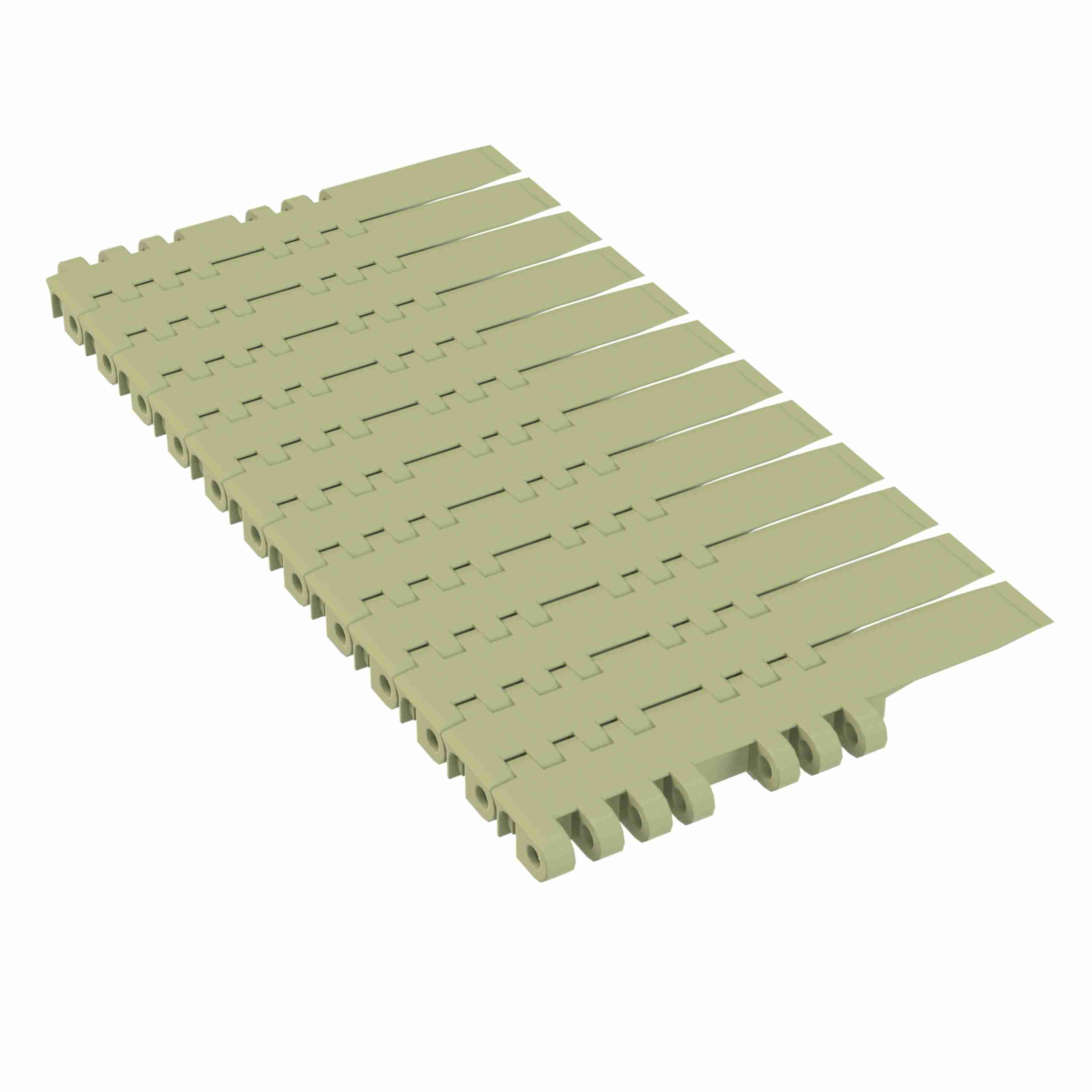

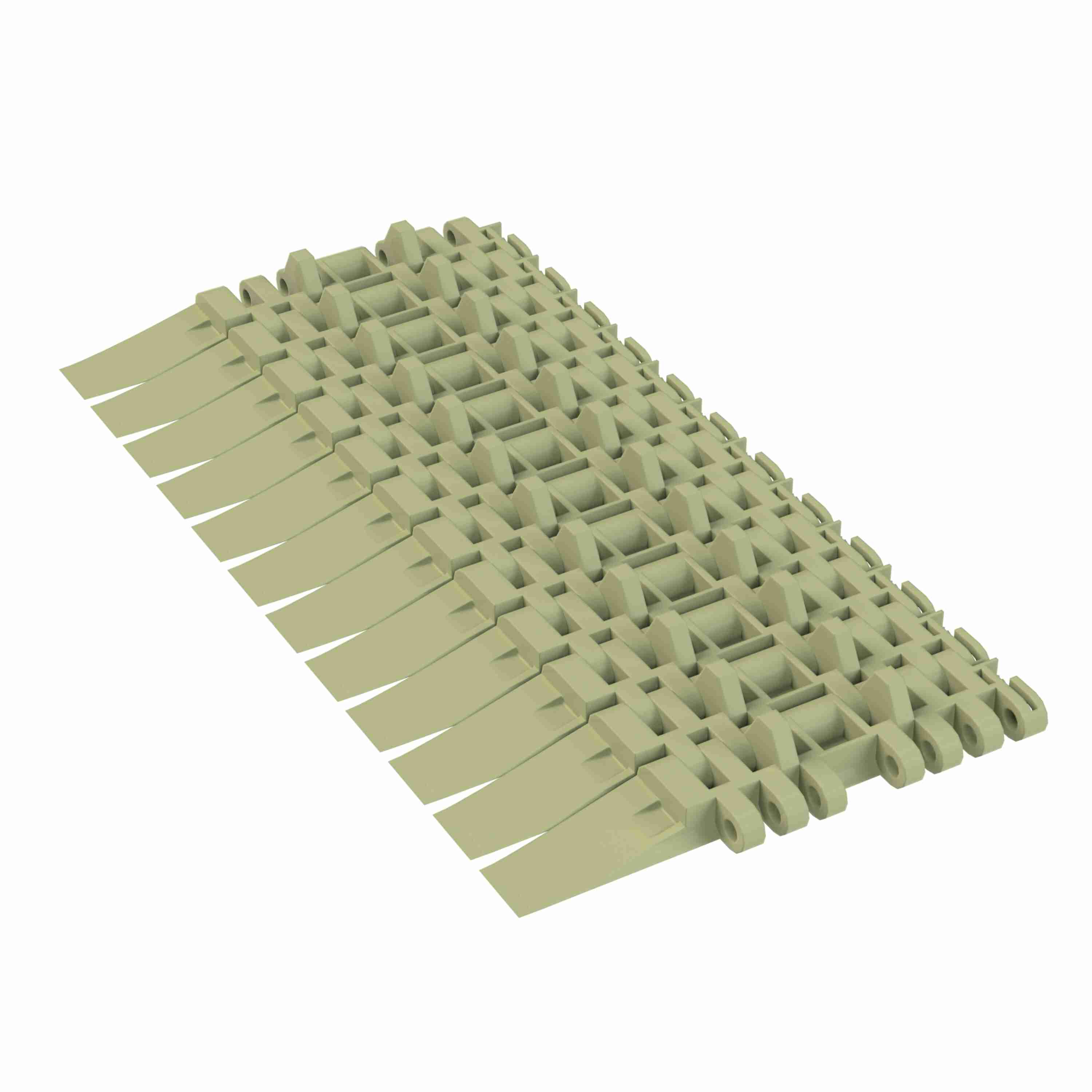

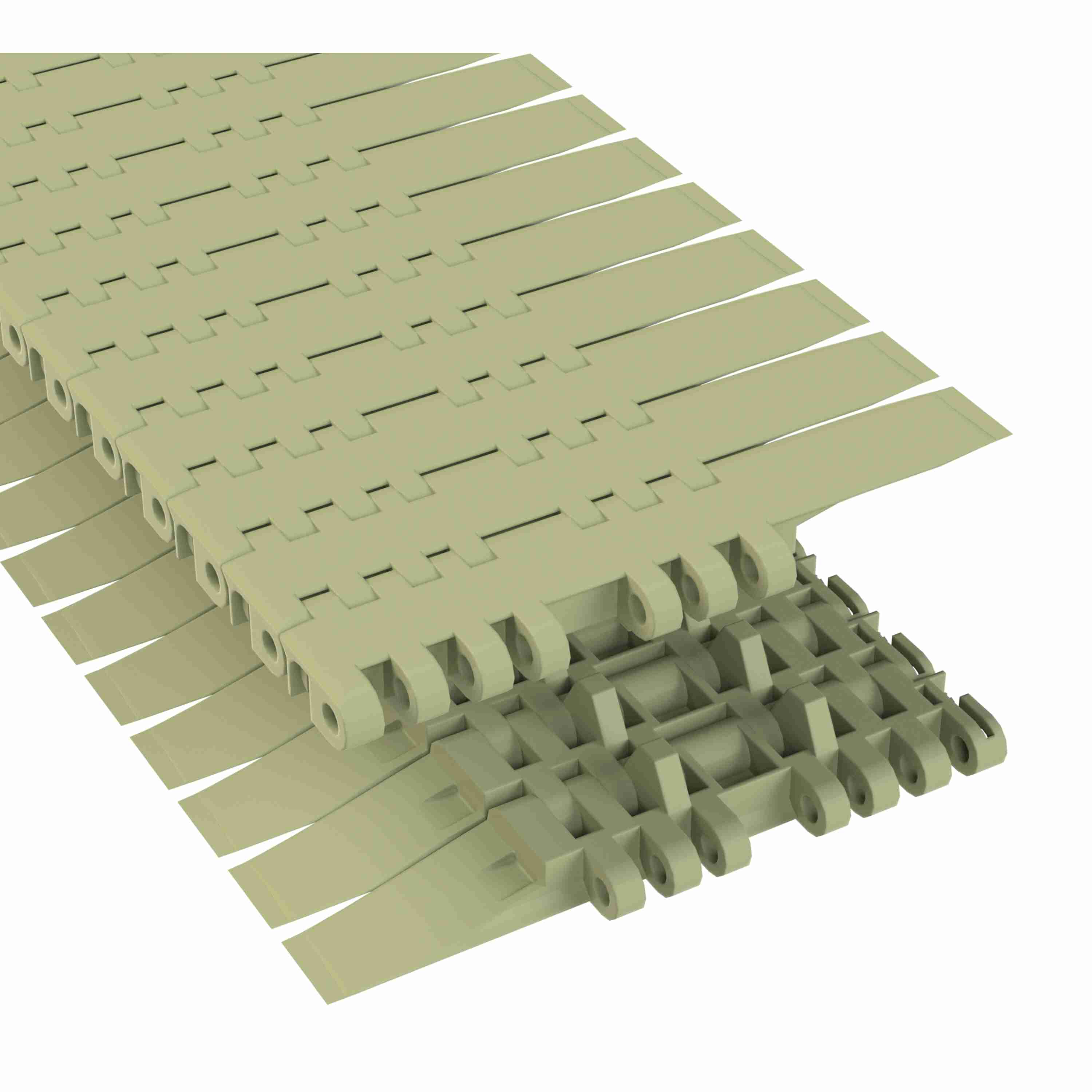

Rexnord 7705DTS Straight Running DTS®, Material: Green Abrasion Resistant Polyamide, Width: 4.5in, Pitch: 1in - 81431301
Part #:10191713
Catalog #:81431301
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | DTS® | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Material Description: | Green Abrasion Resistant Polyamide | Direction: | RH |
| Product Type: | Straight Running | Belt Thickness (in): | 0.5 in |
| Number of Positrack: | 2 | Chain Pitch (mm): | 25.4 mm |
| Chain Width (mm): | 114.3 mm | Chain Strength (lb): | 1,025 lb |
| Chain Material: | WX | Belt Thickness (mm): | 12.7 mm |
| Rod/Pin Material: | Acetal | Positrack Location: | Center |
| Chain Number: | 7705DTS | Positrack: | True |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 1 in |
| Series: | MatTop 7700 Series Chain | Chain Strength (N): | 4,551 N |
| Chain Width (in): | 4.5 in | Open Area (%): | 3 % |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
