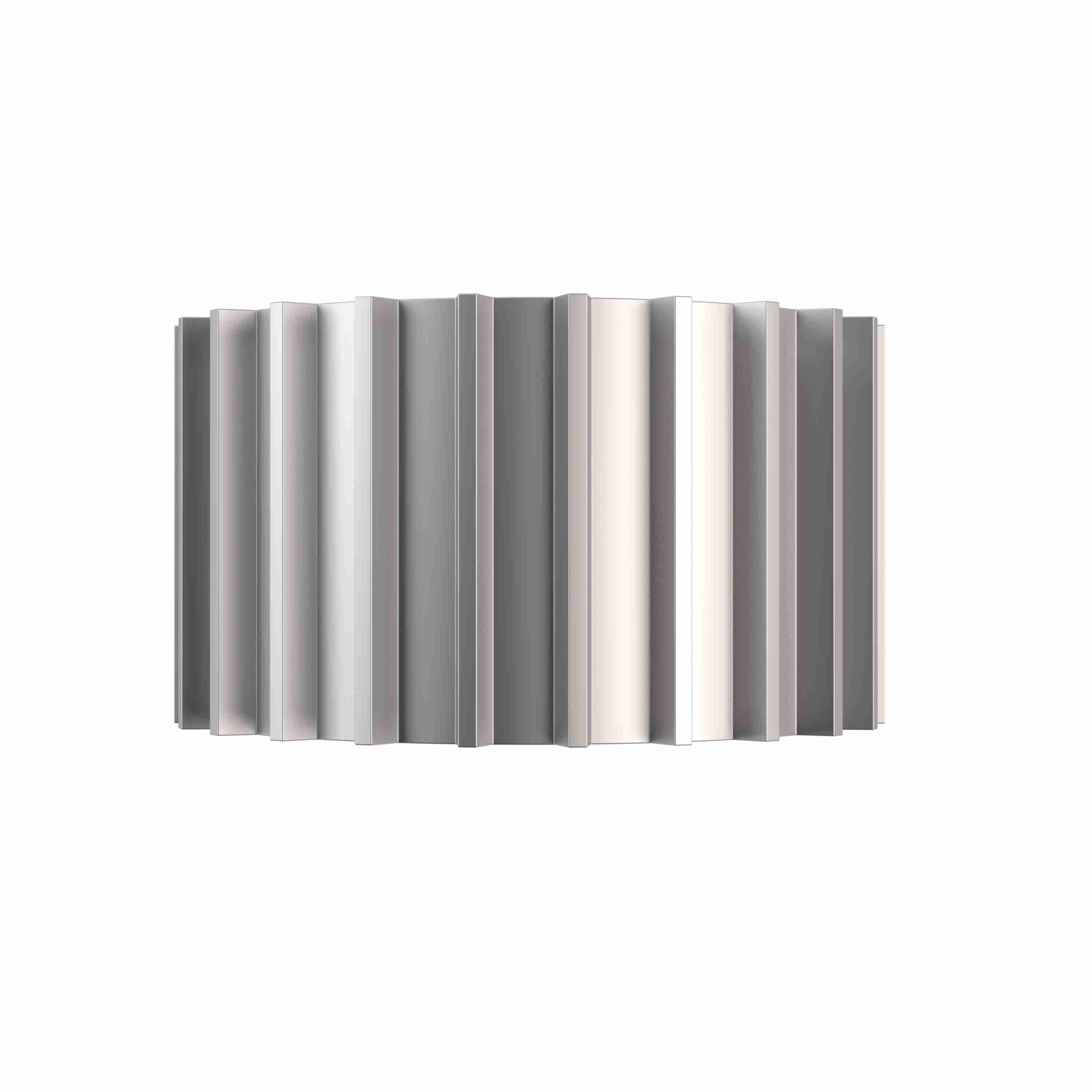

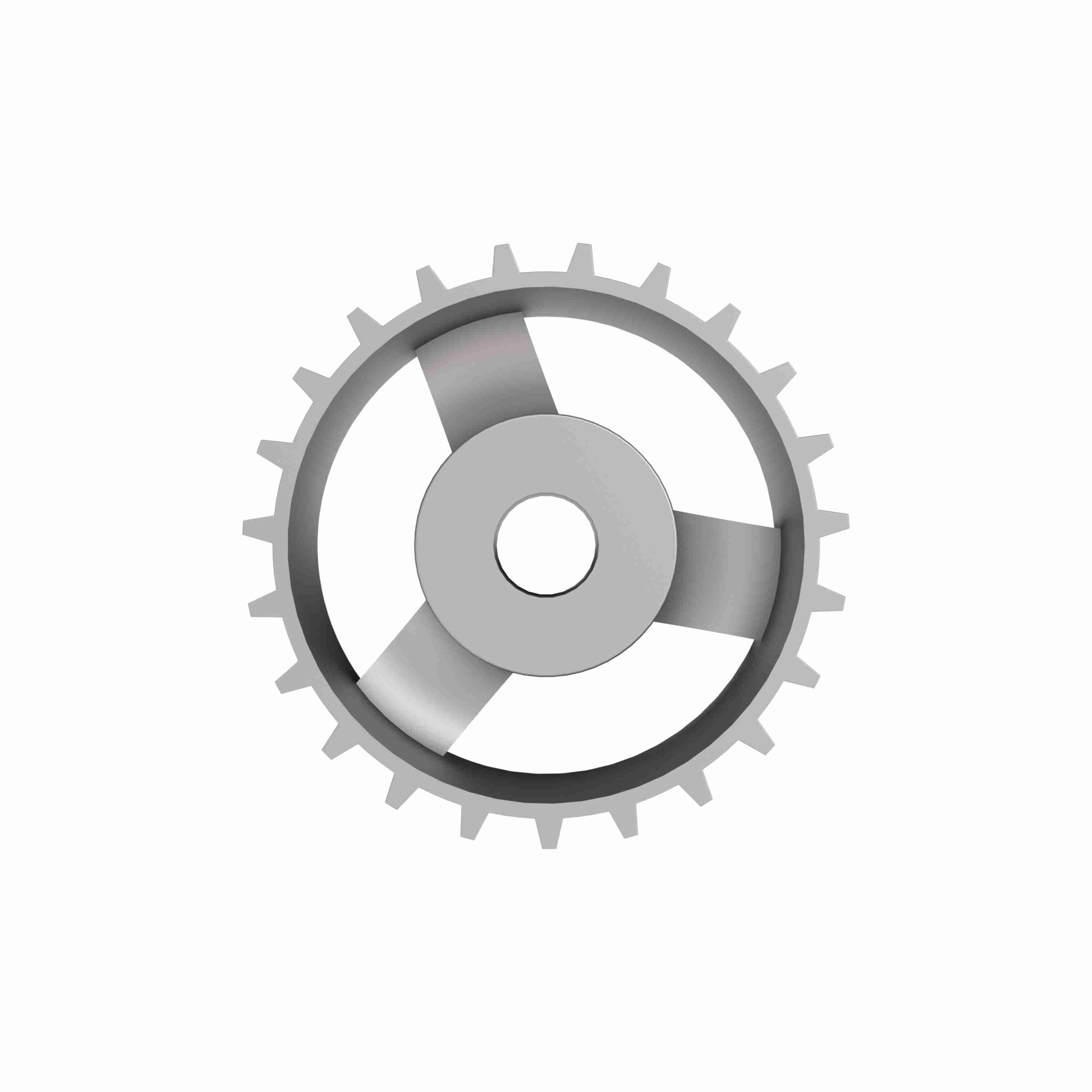

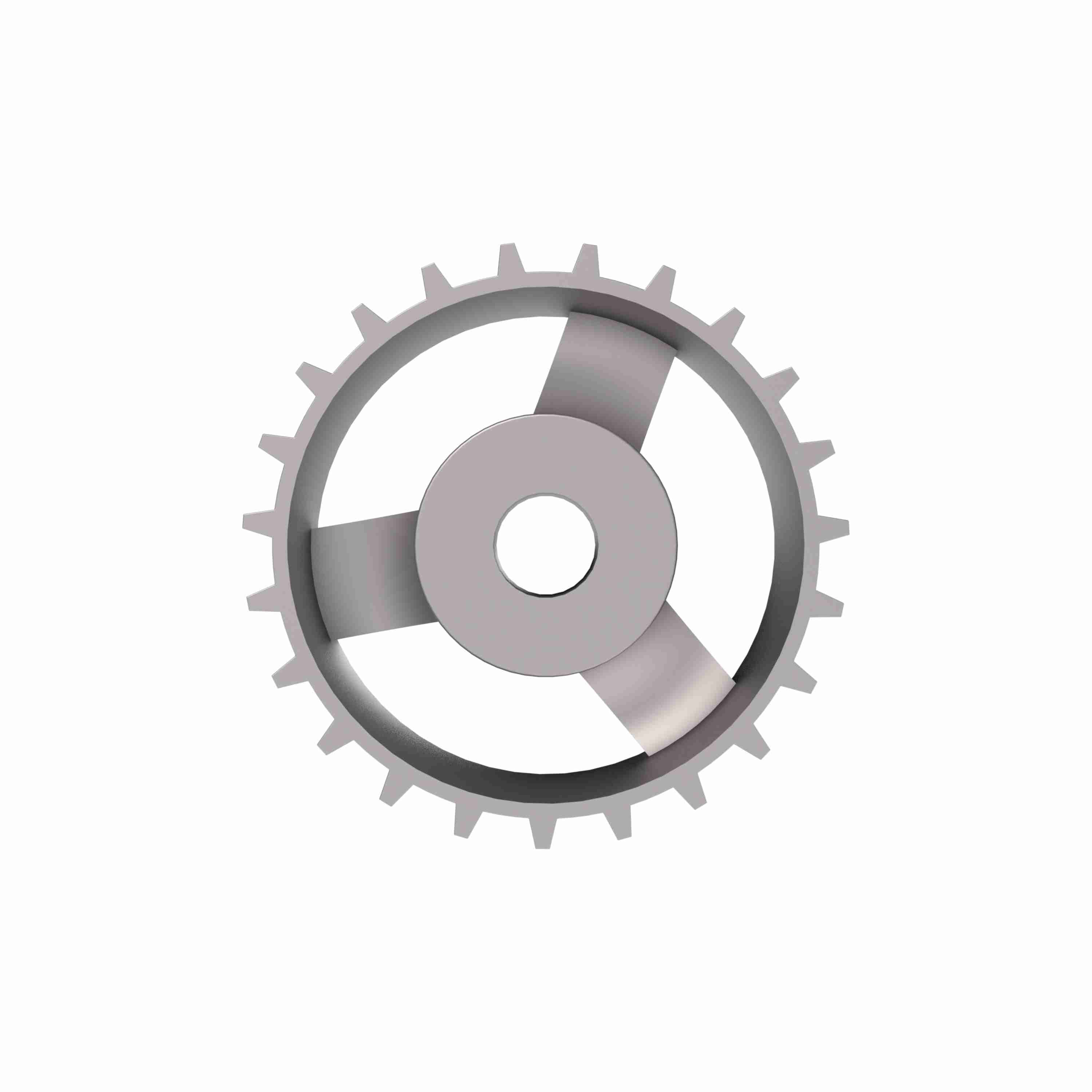

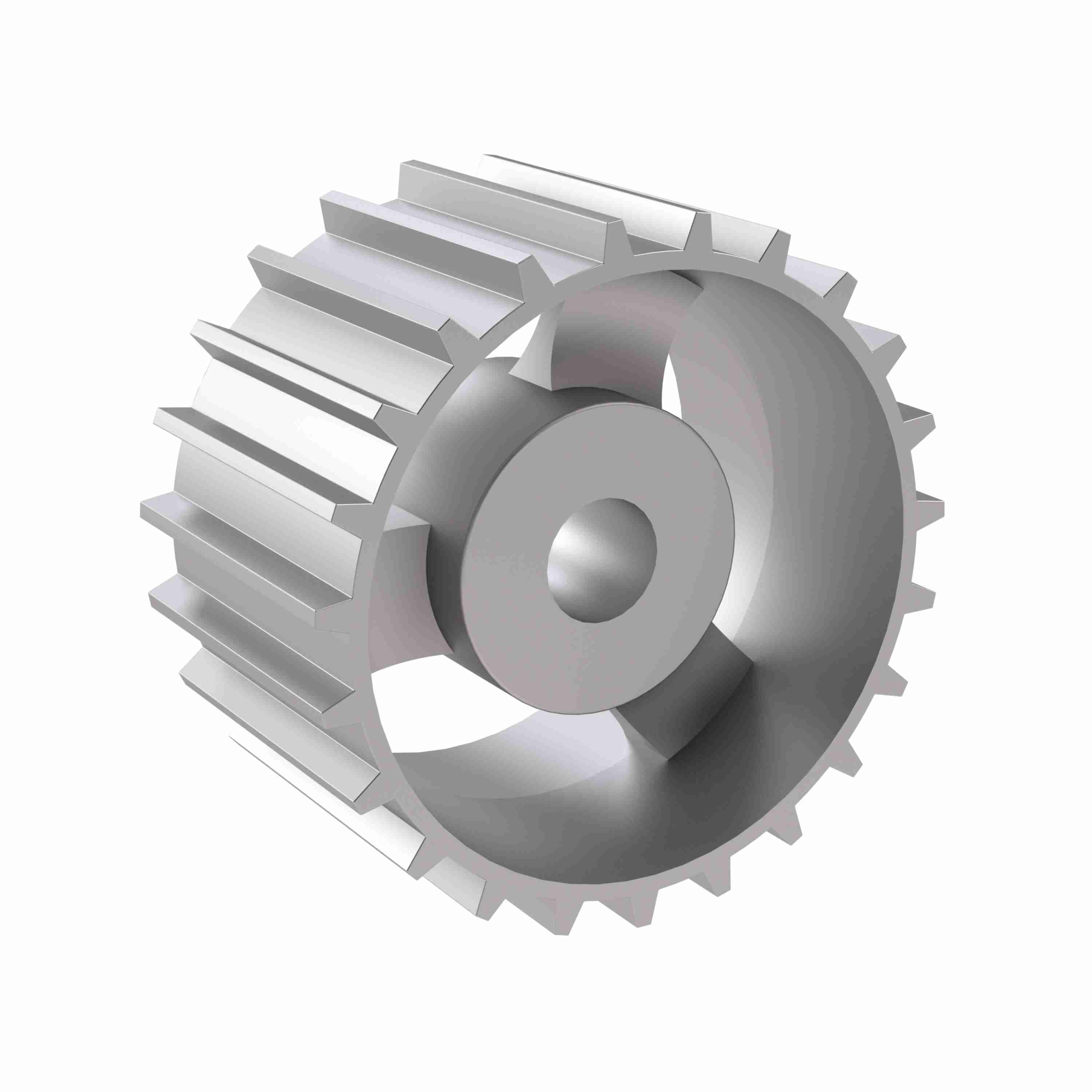

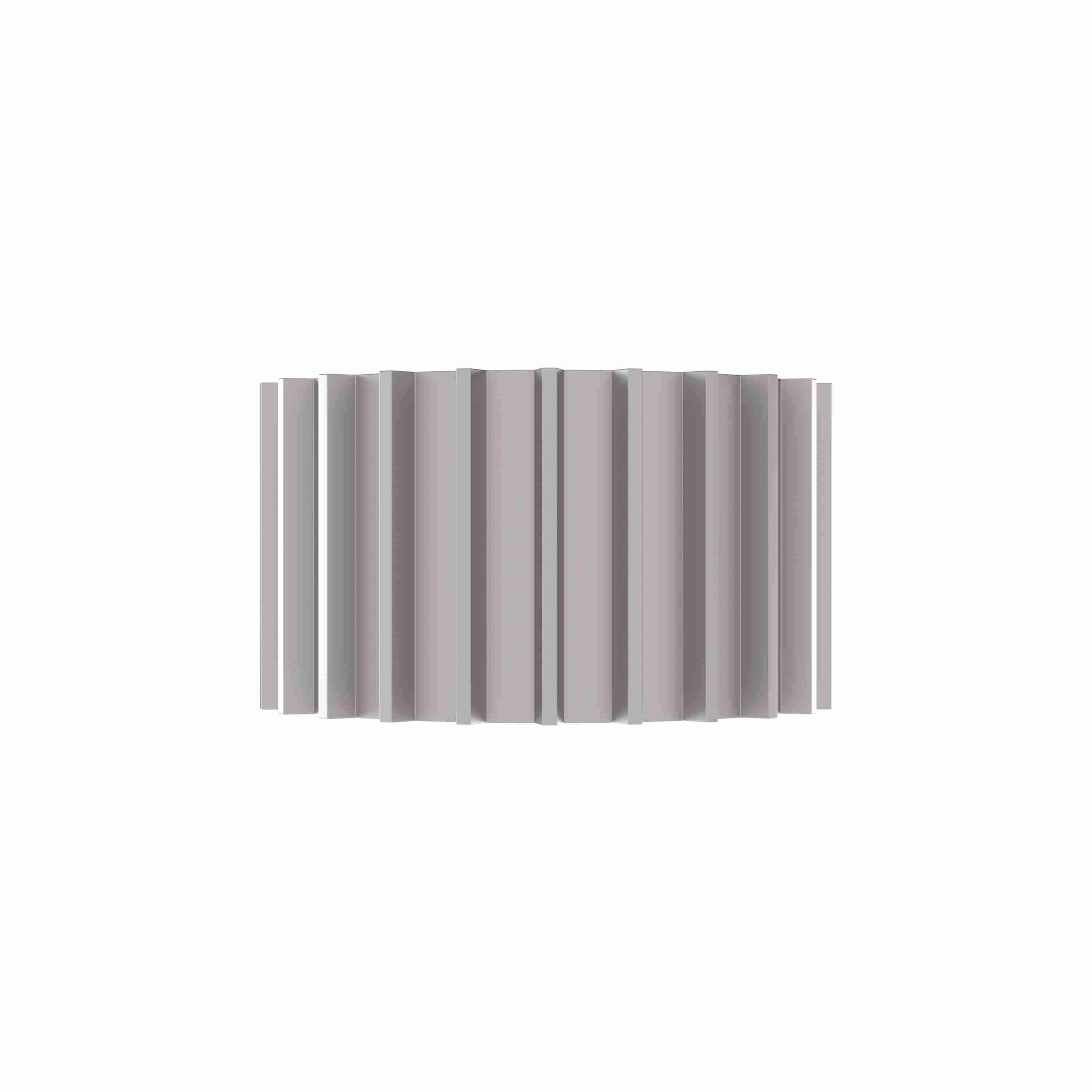

Rexnord 821 Series Solid One Piece Cast Iron Sprocket with 23 Teeth and a 1in Round Rough Stock Bore (RSB) - 401-211-2
Part #:10027421
Catalog #:401-211-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Pitch Diameter (mm): | 139.9 |
| Bore Type: | Rough Stock Bore (RSB) | Pitch Diameter (in): | 5.508 |
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Product Group: | TableTop® |
| Number of Teeth: | 23 | Number of Keyways: | 0 |
| Product Line: | Chain and Belt Sprockets | Body Style: | Arm |
| Sprocket Series: | 821 | Bore Diameter (in): | 1 in |
| Material: | Cast Iron | Chain Number: | 821 |
| Number of Set Screws: | None |
General Specifications
| UPC: | 698210637552 | Weight: | 3.76 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 3.13 IN | HTC: | 8483408000 |
| Country of Origin: | United States of America |
