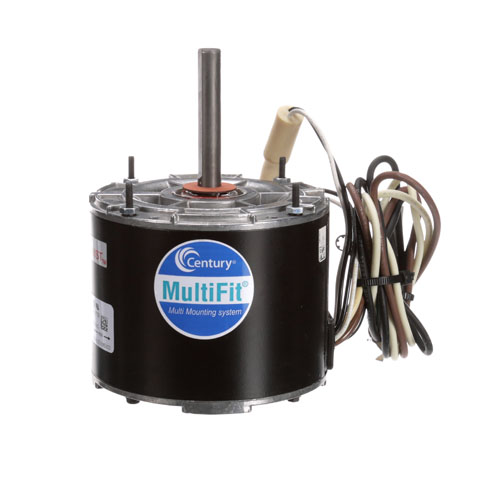

MultiFit® Motors
MultiFit motors' combination of a Multi-Mounting System™ feature and a 3-in-1™ multi-horsepower motor design will save the busy HVAC contractor valuable time and money, while adding versatility to their replacement motor inventory. Why stock dozens of 42-frame, PSC, condenser fan motors when three MultiFit motors are all you need?
Features
- Multi-Mounting System™ feature
- New 60/70°C design
- Single speed multi-horsepower design
- Energy-efficient PSC design
- Double sealed ball bearings for dependable long life
- Totally enclosed
- Water-resistant rubber grommet at lead opening
- All-angle mount
Benefits
- Replace motors with a 4.33, 4.42 and 4.62 inch mounting bolt circle (BC)
- Replace hundreds of 1/4-1/12 horsepower OEM motors
MultiFit® motor’s Multi-Mounting System™ feature will replace all the common 42-frame bolt circle (BC) patterns in HVAC applications. Three MultiFit 3-in-1™ multi-horsepower motor models, 1625 RPM and 1075 RPM, replace hundreds of 1/4, 1/5, 1/6, 1/8, 1/10 or 1/12 horsepower OEM motors. The energy-efficient PSC motors are installed with one simple connection - no capacitors to switch or complicated wiring diagrams to follow.
These totally enclosed condenser fan motors operate in 60 or 70⁰C ambient at 1625 RPM and 1075 RPM, 208-230 volt, and are constructed with double sealed ball bearings, water-resistant reversing plugs, and extra mounting accessories - for quick and easy mounting. MultiFit motor's versatility gives the contractor an array of replacement horsepower configurations, rotation settings, and mounting position options.
What is the Value of Having the Part You Need on the Truck?
- Reduce unnecessary trips to the distributor and long drive times to get a replacement
- Eliminate temporary motor substitutions
- Get the job done the same day with the right part
- Reduce truck stocking costs
- Get more jobs done in the same day
Built to Last
- Now available in 70°C design
- Double sealed ball bearings
- Water resistant rubber grommet at lead opening
- Water resistant reversing plug
3-in-1™ Design
Class F Insulation 60/70°C (140/158°F) Max Ambient
| Stock Number | Replaces HP | Volts | Amps | RPM | Speeds | Frame Size | Rotation | Capacitor | Shell Length | Shaft | Wt. |
| 9722* | 1/8, 1/10, 1/12 | 208-230 | 0.9 | 1075 | 1 | 42 | Reversible | 5MFD/440V | 4.27" | 1/2"x3" | 9.8 |
| 9723* | 1/4, 1/5, 1/6 | 208-230 | 2.0 | 1075 | 1 | 42 | Reversible | 7.5MFD/440V | 4.77" | 1/2"x3" | 12.0 |
| 9724* | 1/4, 1/5, 1/6 | 208-230 | 1.7 | 1625 | 1 | 42 | Reversible | 5MFD/440V | 4.77" | 1/2"x3" | 12.0 |
*Ball Bearing
