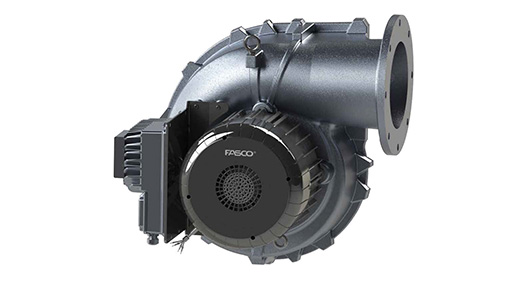

Gas Pre-mix Blowers
FASCO’s line of gas pre-mix combustion blowers brings forward-thinking technology to a marketplace continually demanding increasing efficiency and air delivery control. FASCO’s air moving products are powered by axial flux ECM technology. Combined with state-of-the-art electronics, FASCO gives OEMs a significant competitive advantage. Consumers see improved air performance and reduced energy consumption. As a result, our gas pre-mix combustion blowers are powering countless commercial and industrial heating applications around the world.
Targeted Applications
- Boilers, Water Heaters
- Paint Ovens
- Driers
- Humidifiers
- Hydrogen Fuel Cells
- Coffee Roasters
- Gas Heating Appliances (typically high efficiency commercial boiler applications with suggested burn rate ranging from 400K – 13.6 million Btu/Hr (120kW to 4MW))
Features
- High-efficiency axial flux motor design
- 100% calibrated and tested at factory
- Sealed, cast aluminum blower housing
- Inlet air bolt pattern option for Honeywell, Dungs or Polidoro gas equipment
- Non-sparking aluminum impeller
- Sealed ball bearings
- Patented bearing arc prevention
- Blak Box® diagnostics on-board
- Patented high efficiency motor and electronics package
- Real time monitoring of blower parameters via MODBUS adapter
Specifications
- Max ambient 65° C
- Models available in 120V, 208-240V and 380-480V
- cRUus recognized, electronically protected
- ErP 2015 and RoHS compliant
- Variable speed for high modulation ratios
- PWM command: 6-43 VDC, 100-6000Hz
- 0-10V analog
- Serial communication possible
- Hall output: 3 pulses/rev, programmable 2-36 pulses optional
Benefits
- Improved cooling using patented electronics cooling design
- Reduced motor length and weight reduction versus the competition
- Replaceable, water resistant electronics
- Custom programmable for each application
