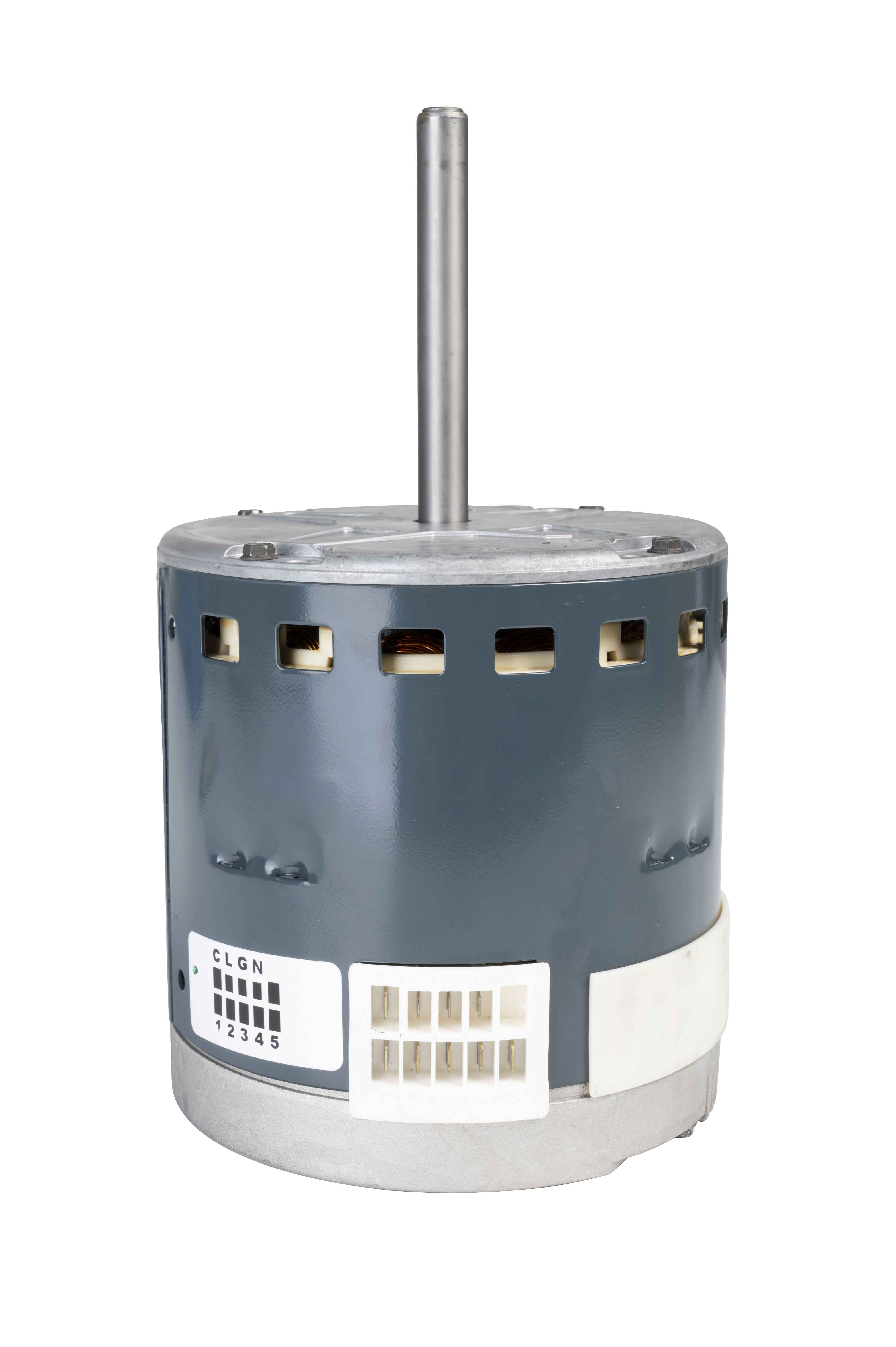

Endura Pro II
Blends the optimized feature set of the Endura Pro II with the system-level complexity reduction of a 460V motor for constant torque applications
Features
- Brushless DC motor
- Designed for direct-drive blower
- Up to five selectable constant torque settings controlled by 24V AC inputs
- Same Connector Block as an Endura Pro
- Moisture-resistant electronic encapsulation for superior durability in elevated humidity conditions
- Conducted EMI meets FCC Class A limits
- New Energy-Riter™ and Energy-Programmer™ programming software
- Employs the latest Regal Rexnord™ Genteq® sinusoidal drive and spoked rotor technology for quiet, efficient, and precise operation
- Revised die-cast control enclosure for increased flexibility
- UL and cUL Recognized Component certification
Specifications
- 48-Frame ECM
- 1/2, 3/4, 1.0 HP
- 600-1100 rpm
- 460V
- 1 Phases
- Constant Torque
- (5) 24VAC Inputs, PWM
- Up to 80% Efficiency
- 6kV Surge Protection
- Potting Encapsulant and Selective Conformal Coating
- 1/4" Quick Connect Terminal Block
- Open Air-Over Enclosure
- Indoor Intended Location
- Latest Blakbox® Diagnostic Tool
Key Applications
High voltage, Single Phase Light Commercial HVAC Units, including:
- Package Water Source Heat Pumps
- Wall-Mount Package Units
- Unit Ventilators
- Condensers
End Market
- Commercial Buildings
- Schools
- Hospitality
- Multi-family and more
