Gearmotors
AC Gearmotors Parallel Shaft
LEESON® Parallel Shaft AC Gearmotors are designed for reliability and longevity. Models range between 10 and 1100 inch-pounds, and are available off-the-shelf from our warehouses.
All parallel shaft gearmotors are interchangeable with major brands of gearmotors.
AC Gearmotors Right Angle Shaft
LEESON® Right Angle AC Gearmotors are rugged to meet the needs of industrial applications thanks to their high torque adaptability.
DC Gearmotors Parallel Shaft
LEESON®Parallel Shaft DC Gearmotors are designed for reliability and longevity. Models range between 10 and 1100 inch-pounds, and are available off-the-shelf from our warehouses.
All parallel shaft gearmotors are interchangeable with major brands of gearmotors.
DC Gearmotors Right Angle Shaft
LEESON® Right Angle DC Gearmotors are rugged and adaptable to meet the needs of industrial applications.
Featured Content

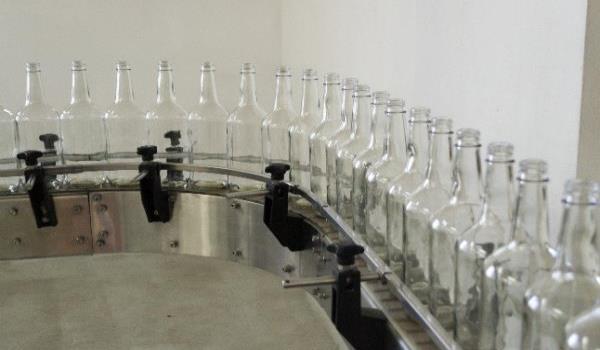

How to Choose a Gearmotor
When Tasked with choosing a new gearmotor, spending time researching and planning on the front end can lead to a big payoff in terms of overall efficiency and cost savings throughout the lifetime of the motor.
Designed For Heavy-Duty Service
An industrial strength gearing and motor package, designed for reliability and long-life in the toughest applications.
Dependable - DC SCR motors are rated for continuous duty over a 60:1 motor speed range at constant torque on unfiltered, DC full-wave SCR input. Low voltage gearmotors are designed for battery power or can be used with a low voltage controller. Single phase AC motors are permanent split capacitor or capacitor start types. Three phase and inverter duty models are also available from stock. All motors are continuous duty rated with machined fits and ball bearings for demanding industrial and commercial applications.
Pressure - cast aluminum gearboxes - Machined and integrally fitted to the motor. Precision gearing results in minimum noise, maximum load carrying capability. Parallel shaft models combine strength of bronze worm wheels with steel worm shafts.
Oversized brushes on DC motors - Longer life between maintenance cycles and easily accessible via brush covers on sides of motor.
Hardened Steel Output Shafts - With keyway, or with keyway flat, for installation ease.
Reversible Output Shaft On Right-Angle Gearmotors - Easily field convertible from left-hand standard to right-hand output for mounting flexibility.
| Baldor ABB Product | LEESON Product |
|---|---|
| Catalog Number | Catalog Number |
| GM25022 | M1145136.00 |
| GCP24020 | 096002.00 |
| GPP7455 | M1135110.00 |
| GPP7450 | M1135113.00 |
| GMP3332 | 096014.00 |
| IDGM2500 | M1145131.00 |
| MVM3458C | 192028.00 |
| GM3345 | M1145116.00 |
| GLP3338 | 096052.00 |
| GC3320 | M1145038.00 |
| GC24305 | M1125082.00 |
| Baldor ABB Product | LEESON Product |
|---|---|
| Catalog Number | Catalog Number |
| GC24306 | M1125083.00 |
| GC24308 | M1125081.00 |
| GC24309 | M1125083.00 |
| GC24311 | M1125084.00 |
| GC3322 | M1145040.00 |
| GCP24022 | 096003.00 |
| GCP3315 | 096010.00 |
| GL3326 | M1145038.00 |
| GL3327 | M1145039.00 |
| GL3328 | M1145040.00 |
| GC24313 | M1125080.00 |
| Baldor ABB Product | LEESON Product |
|---|---|
| Catalog Number | Catalog Number |
| GL3329 | M1145041.00 |
| IDGMP24005 | 096070.00 |
| IDGMP24010 | 096069.00 |
| IDGMP25006 | 096070.00 |
| IDGMP25008 | 096070.00 |
| IDGMP25011 | 096069.00 |
| IDGMP25023 | 096068.00 |
| IDGMP25031 | 096067.00 |
| IDGMP25033 | 096067.00 |
| 33E747W309G1 | 096014.00 |
| GC24307 | M1125080.00 |
Baldor is believed to be a trademark or trade name of ABB ASEA Brown Boveri and is not owned or controlled by Regal Rexnord Corporation.
Product Cross Reference Tool
