SST Duck™ Motor
Features

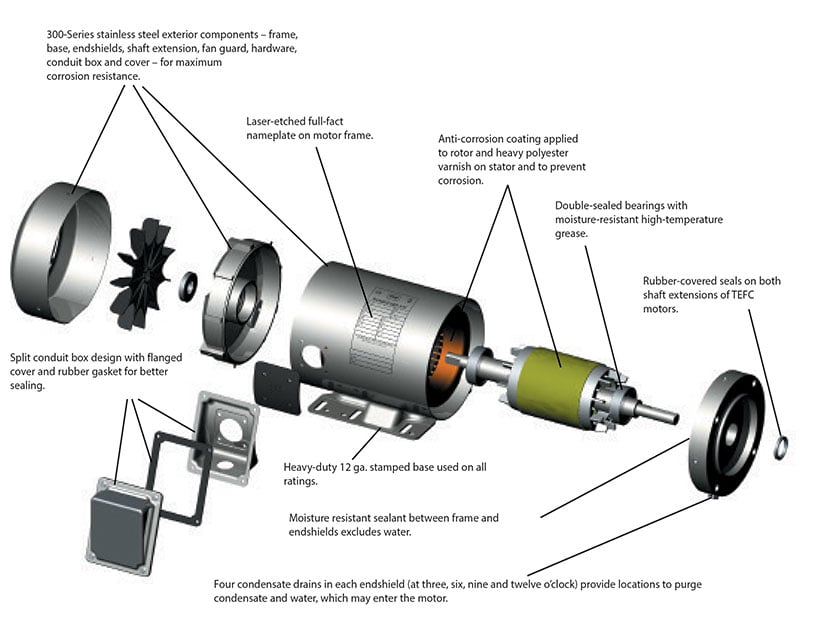

- 300-series all stainless-steel exterior
- Moisture-resistant interior coating
- Full-fact nameplate is laser etched in the motor frame
- Buna-N gaskets and Viton® shaft seals on both ends
- Four condensate drains for all mounting orientations
- Meet IP55 enclosure protection
- NEMA® Premium—140 Frame and higher
- Inverter-rated IRIS® insulation system—1HP and higher
Benefits
- All stainless-steel exterior for maximum corrosion resistance
- Moisture-resistant interior coating inhibits corrosion
- Laser etched nameplate won’t fade during severe washdowns
- Buna-N gaskets and Viton® shaft seals on both ends
- Drains for all mounting orientations enable flexible installations
- The exclusive IRIS® Inverter-rated insulation system provides extra protection and long life, especially in inverter-driven applications
- Viton is a trademark of Chemours Company. All Rights Reserved.
Related Documents
Associated Models
- 191558.00
- 191475.00
- 191567.00
- 191491.00
- 191479.00
- 191490.00
- 191487.00
- 191477.00
- 191492.00
- 191565.00
- 191209.00
- 191489.00
- 191417.00
- 191949.00
- 191507.00
- 191421.00
- 191480.00
- 191528.00
- 191478.00
- 191488.00
- 191207.00
- 191568.00
- 191481.00
- 191486.00
- 194005.00
- 194007.00
- 194003.00
- 191950.00
- 194001.00
- 191508.00
- 191482.00
- 191204.00
- 191483.00
- 191205.00
- 191208.00
- 191476.00
- 191542.00
- 194002.00
- 191474.00
- 191201.00
The SST Duck™ motors are built with all stainless steel external components to prevent corrosion and well-sealed against moisture and condensation to protect internal components. The Washguard® SST all-stainless steel motors are able to withstand the severe washdown environments found in the food and beverage processing, and chemical processing industries.
Single and three phase, rigid base, C Face footed and footless motors are available for applications in wet or severe washdown environments.
One-year warranty.
Three-year warranty on Premium Efficient designs.
