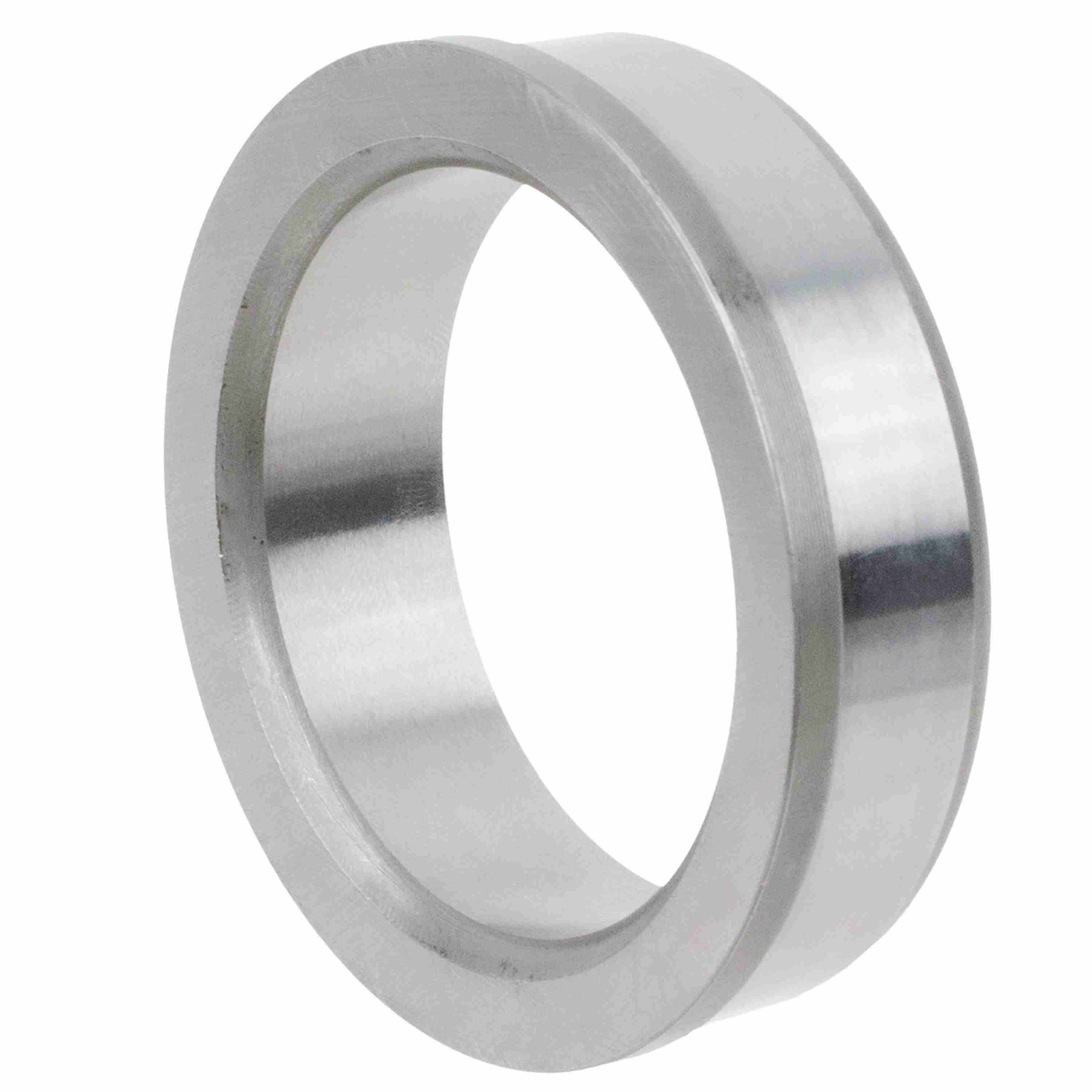

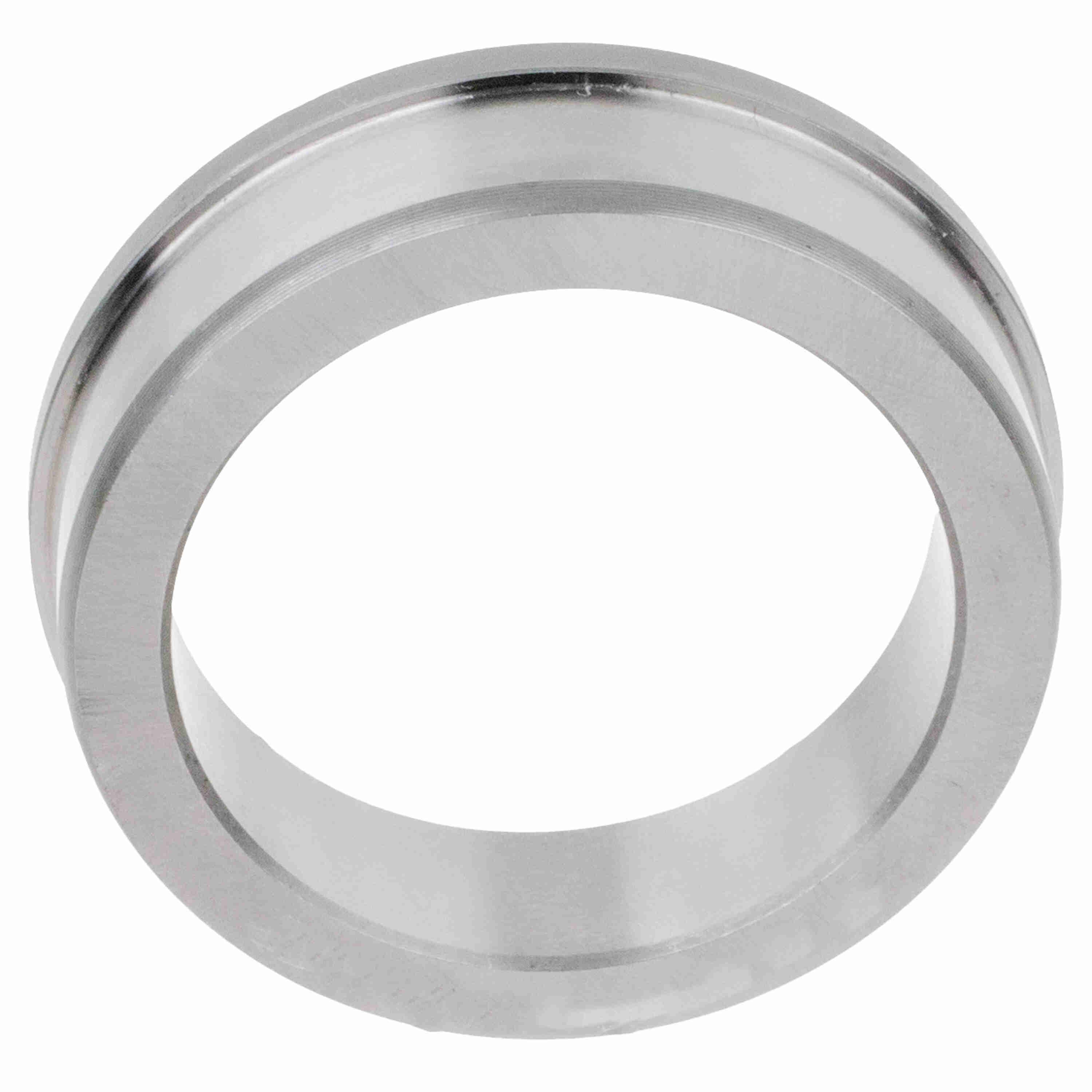

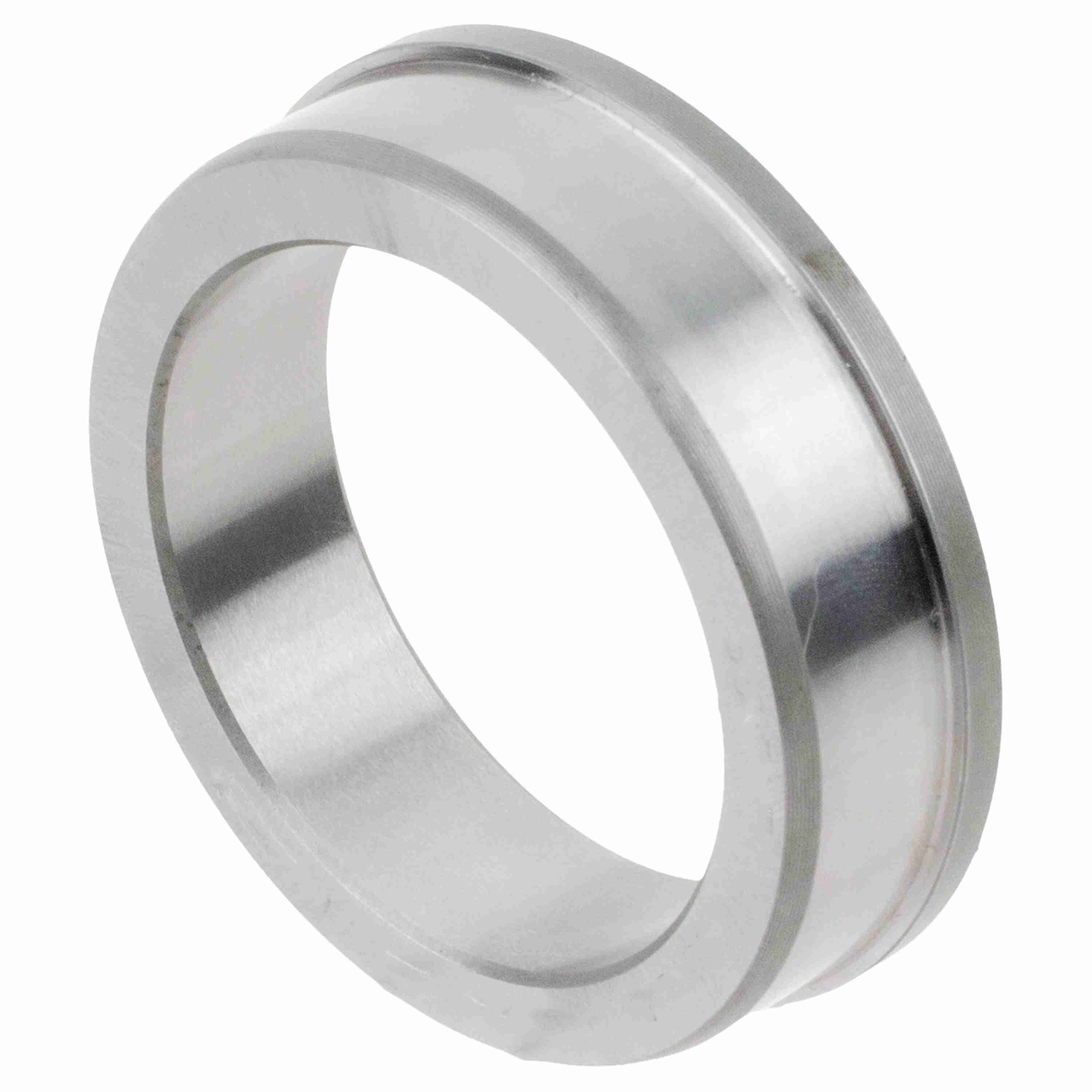

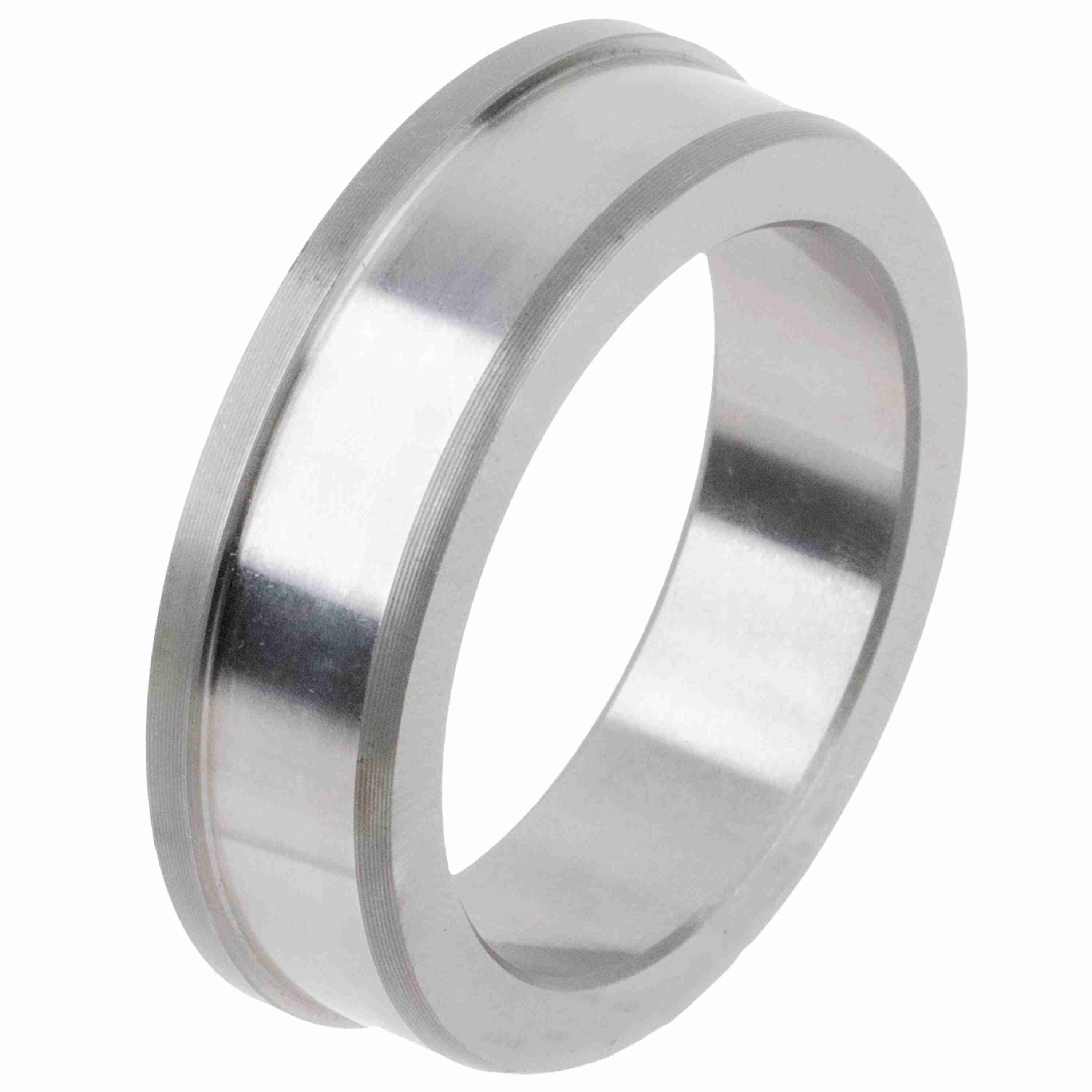

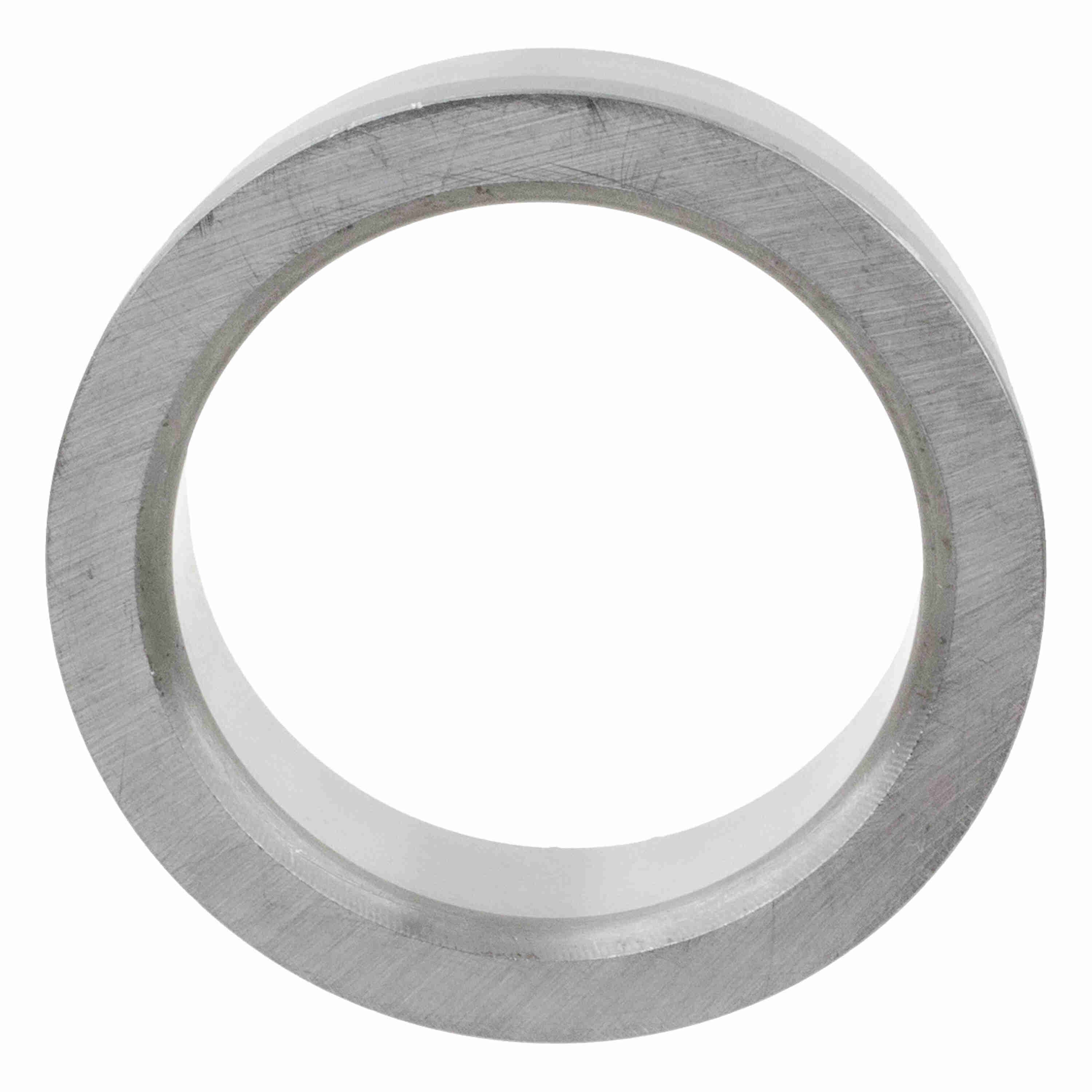

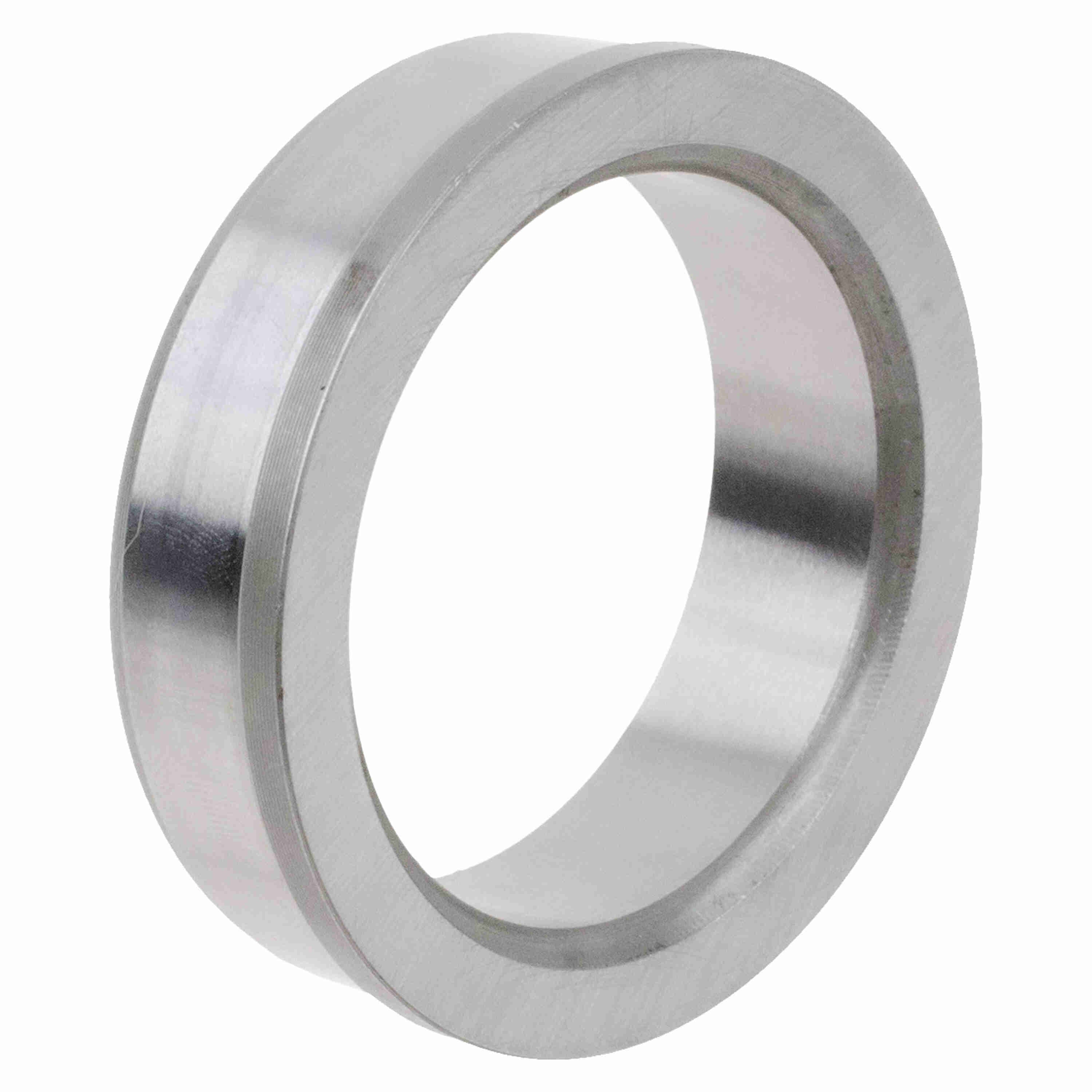

Link-Belt MR5211 Inner Rings Cylindrical Roller Bearings - MR5211
Part #:10474774
Catalog #:MR5211
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 55 mm |
Technical Specifications
| Maximum Speed (RPM): | CALL ENG rpm | Bearing Series: | 5200 |
| Vibration Frequency Roller Spin: | CALL ENG cps | Bearing Brand: | LINK-BELT CYLINDRICAL |
| Basic Bearing Number: | 5211 | C Dynamic Load Rating (lb): | CALL ENG lb |
| Retainer Type: | SEE DESCRIPTION | Inner Ring Rib Outside Diameter (mm): | 70.74 mm |
| Inner Ring Raceway Outside Diameter (mm): | 66.9 mm | Inner Ring Bore Radius (mm): | 2.03 mm |
| Co Static Load Rating (lb): | CALL ENG lb | Ring Width Series: | Wide (5) |
| Series Weight: | Light (2) | Mounted Clearance: | SEE DESCRIPTION |
| Shaft Locking: | Direct Shaft Mount | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Series: | Series 5200 Inner Rings | Inner Ring Type: | Single Rib (R) |
| Product: | Series 5200 Inner Rings | Service Instructions: | BR3-013 LB CYLINDRICAL |
| Bearing Type: | CYLINDRICAL ROLLER BRG | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Bearing Width (mm): | 33.34 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
General Specifications
| UPC: | 662327473884 | Weight: | 0.68 LB |
| HTC: | 8482992560 | Country of Origin: | Mexico |
