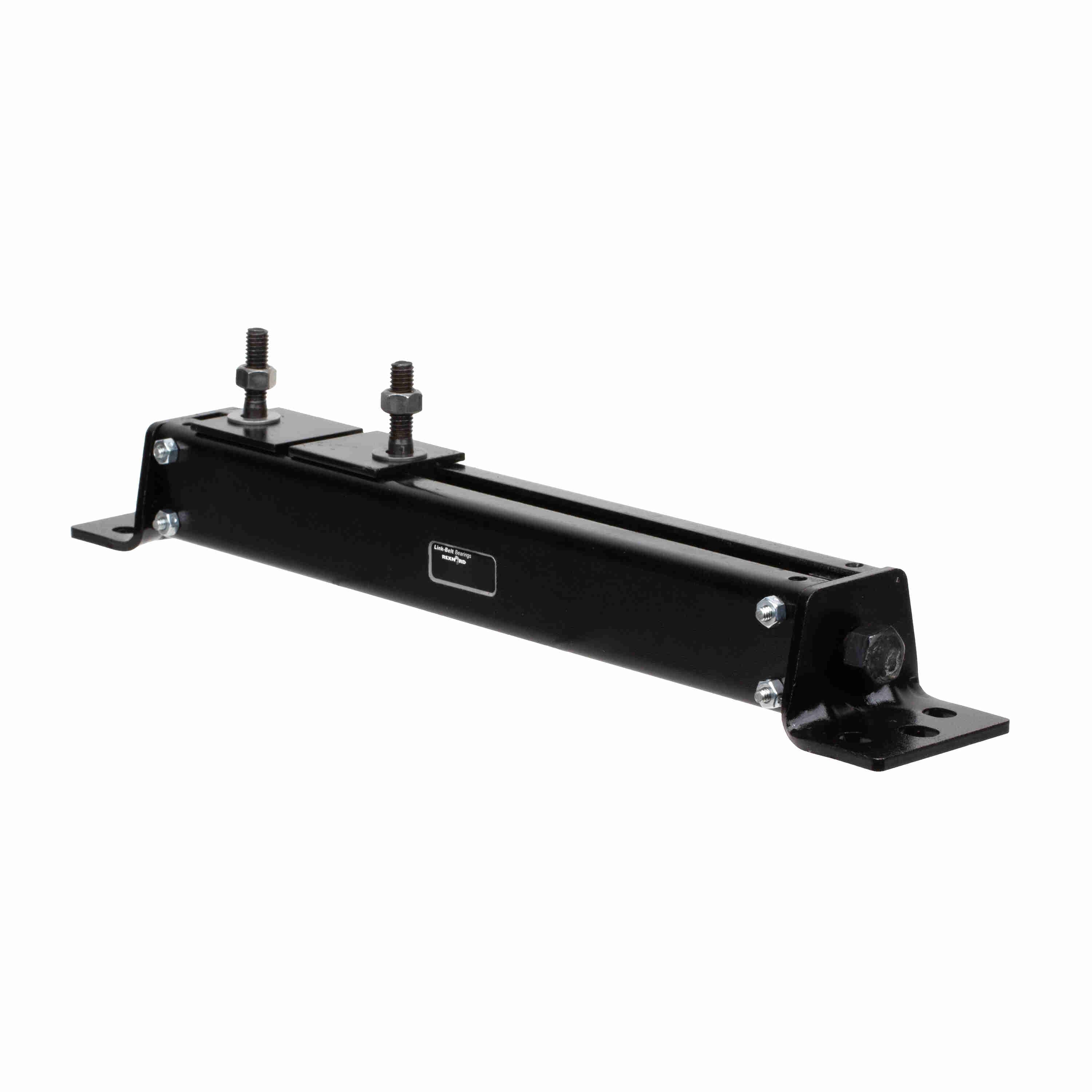

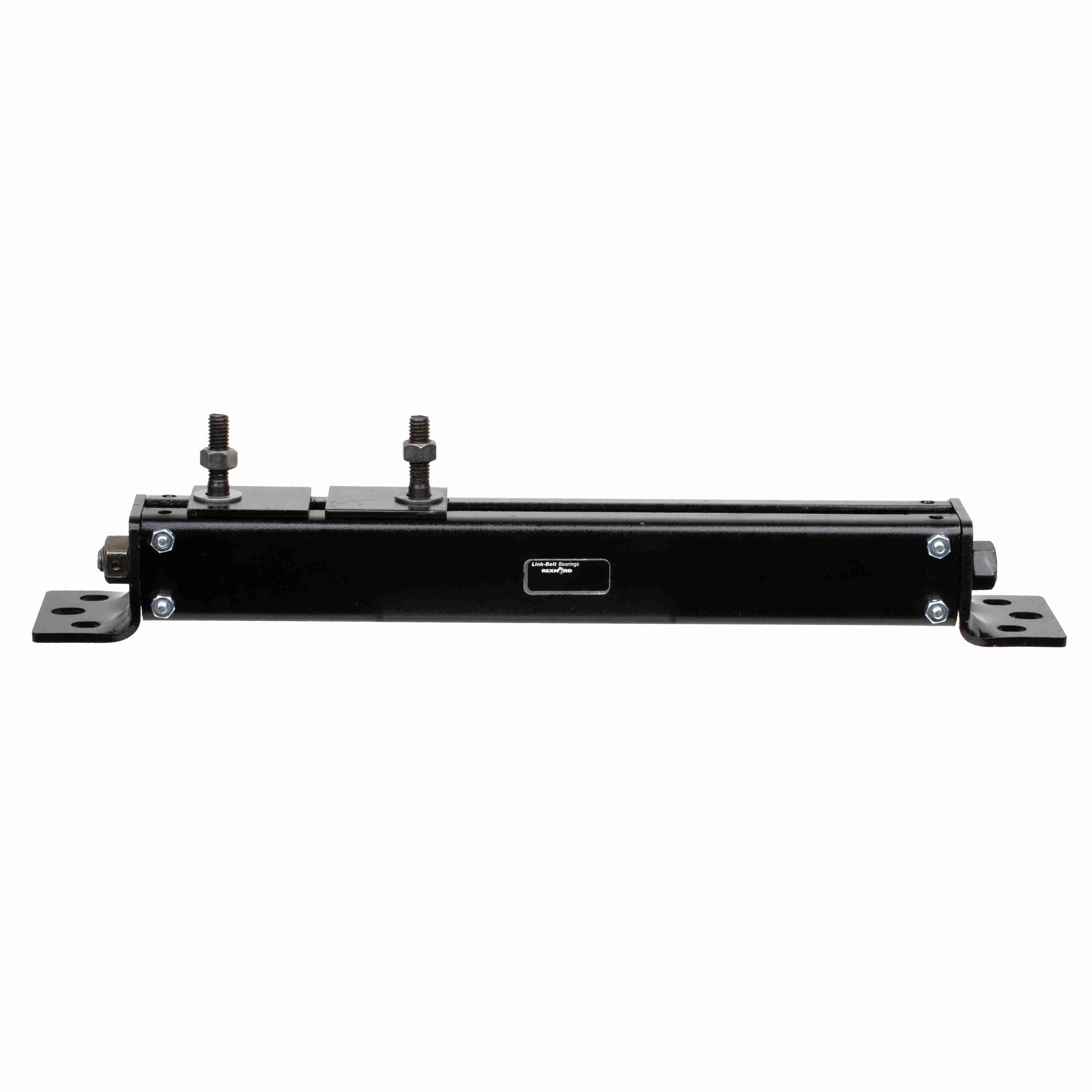

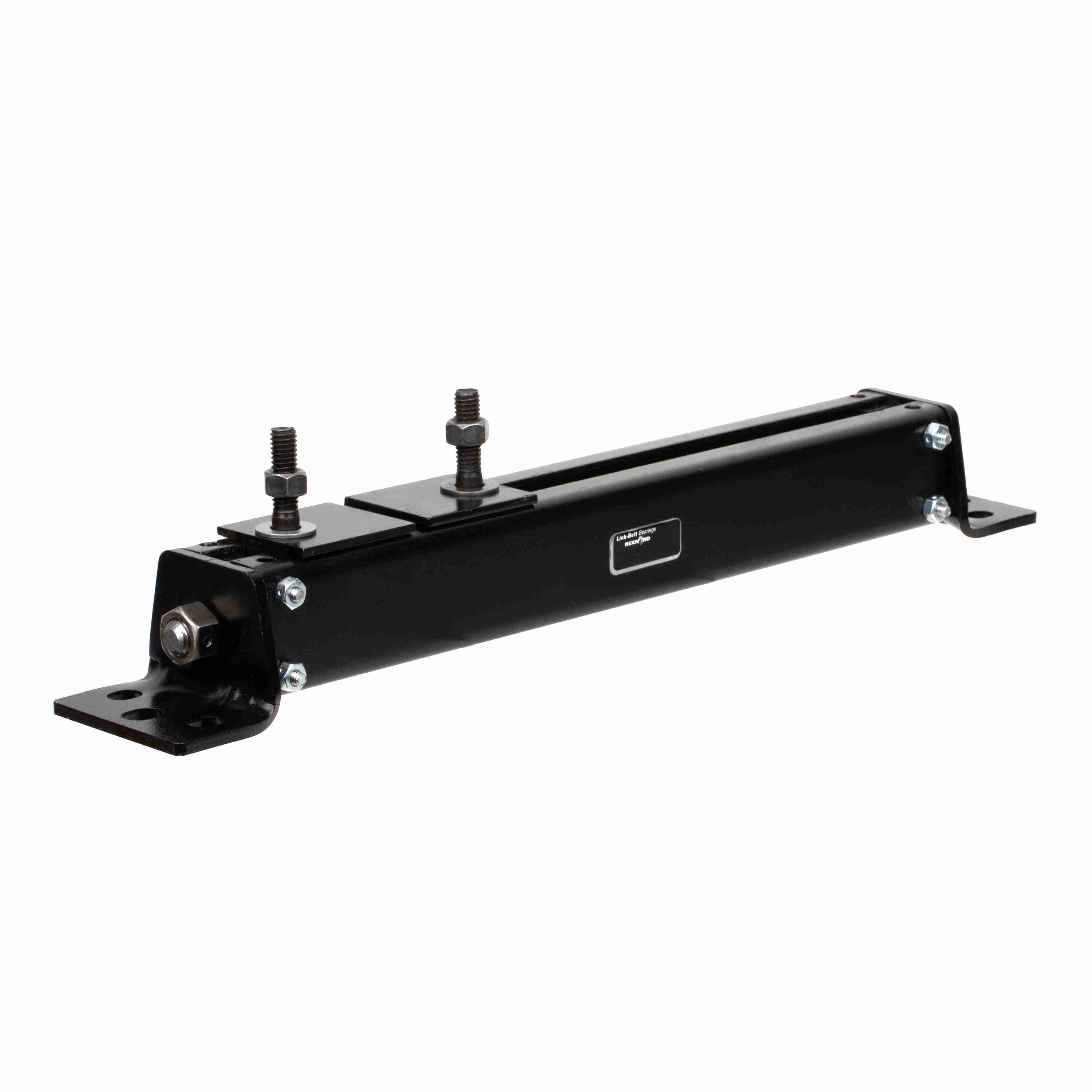

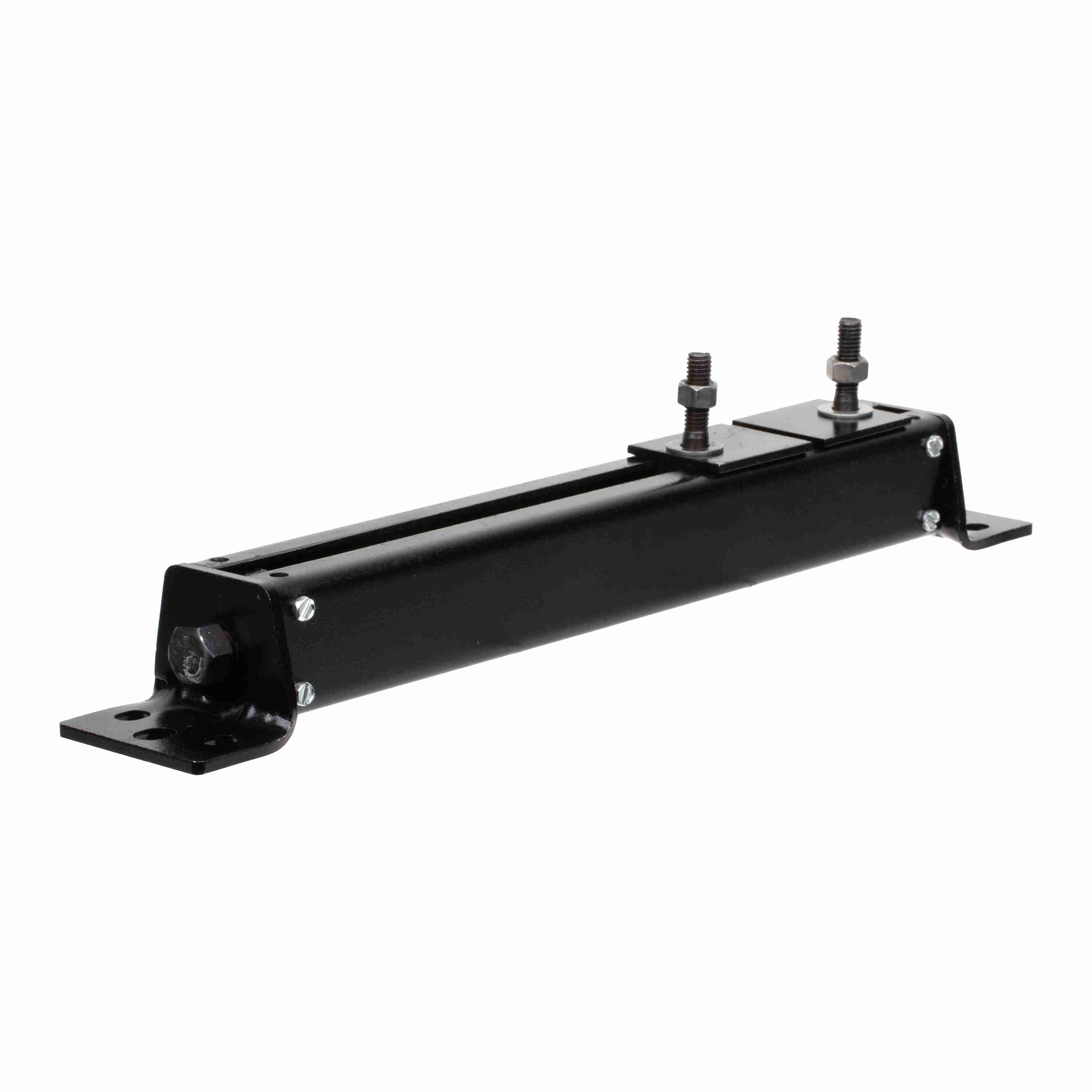

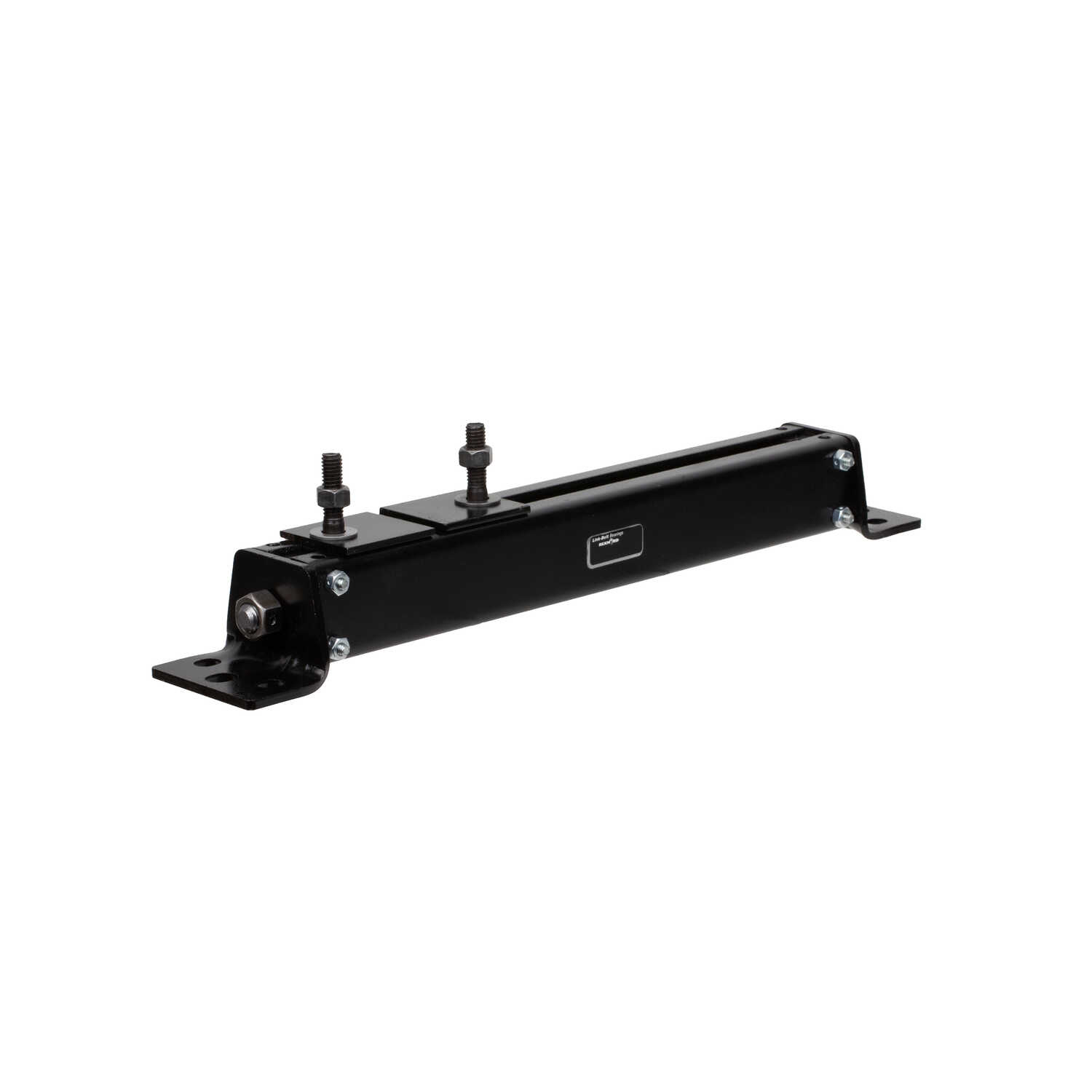

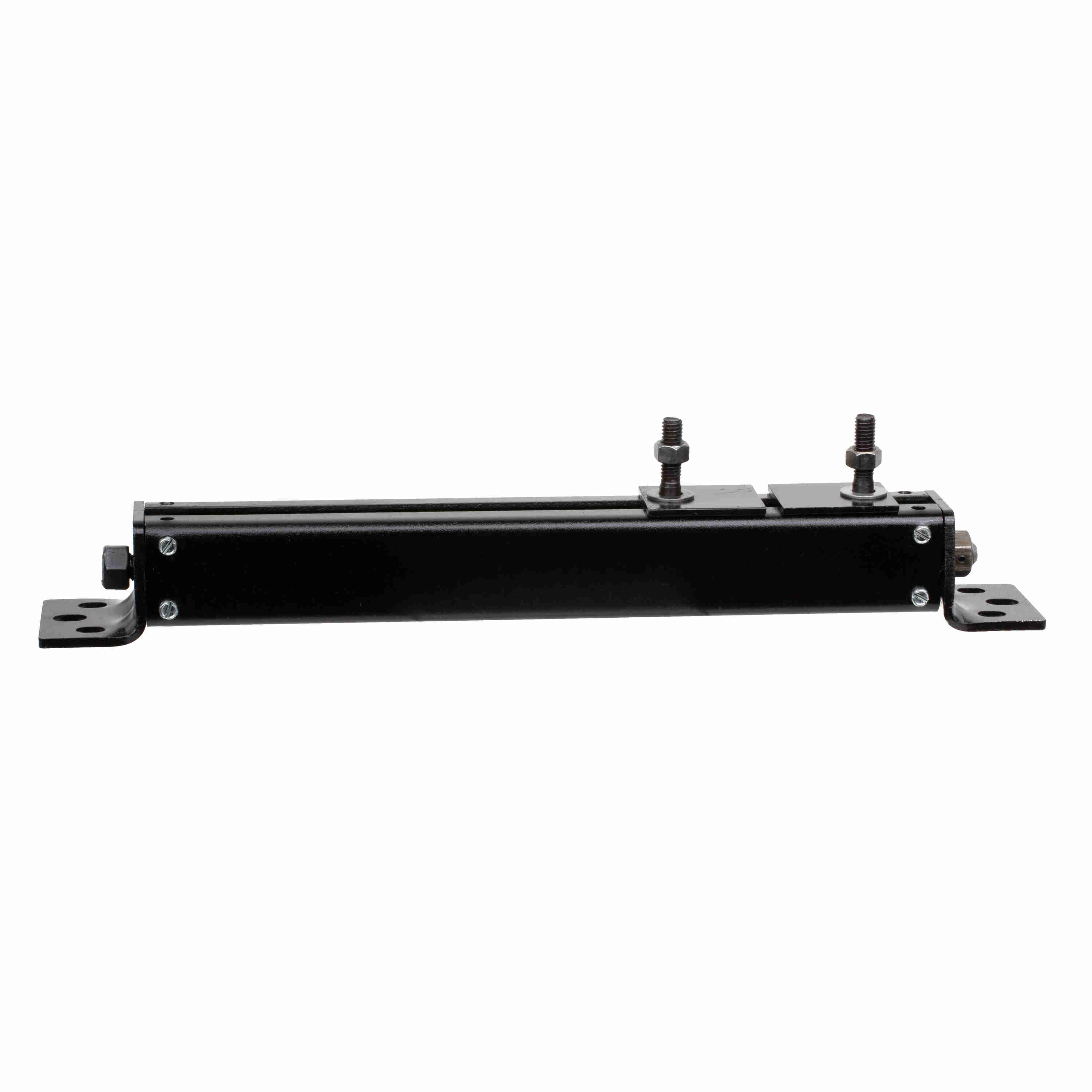

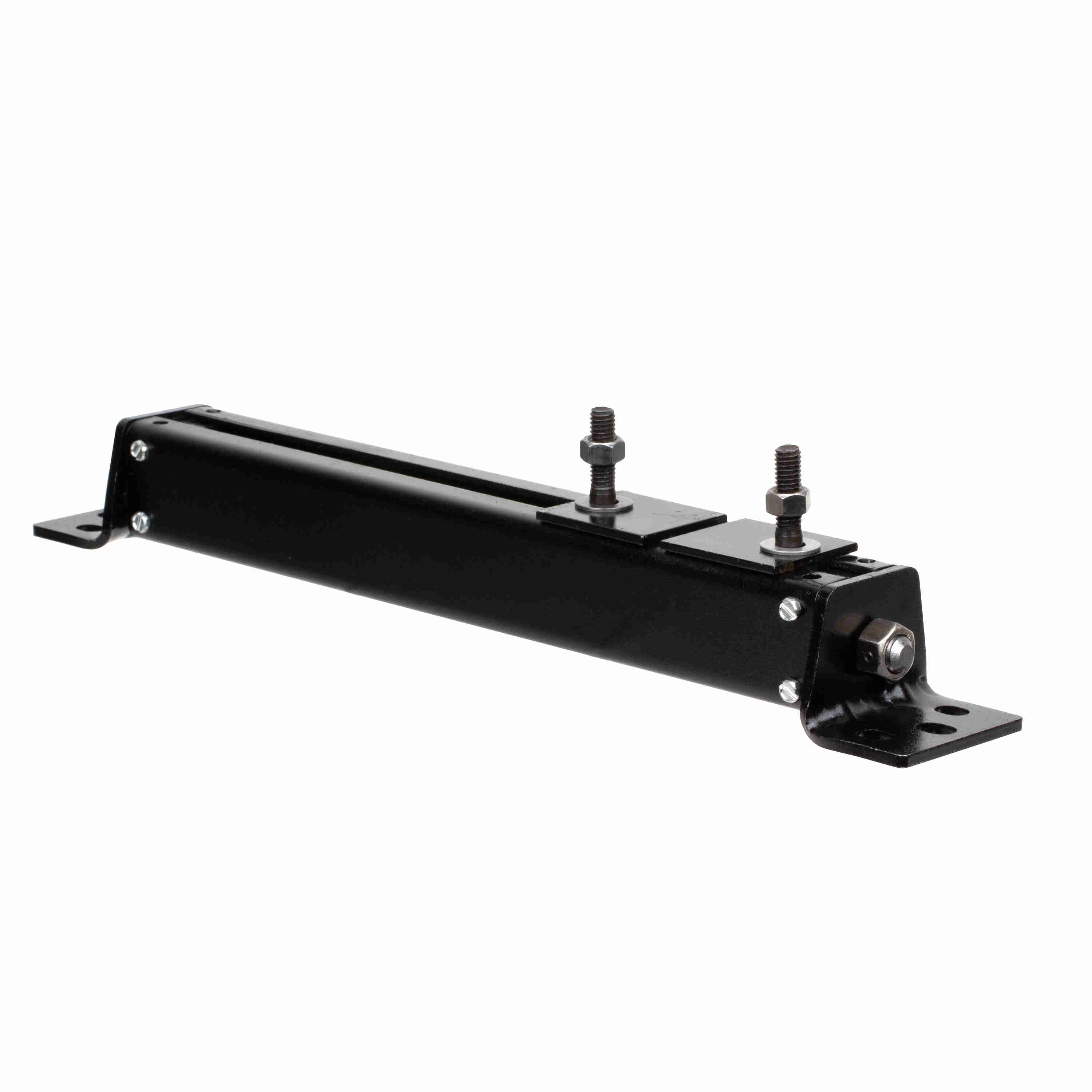

Link-Belt LC16 Take-up Frames Bearing Parts & Kits - LC16
Part #:10425849
Catalog #:LC16
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Frame Bolt Hole Spacing Between Paired Mounting Bolts (in): | 15 1/4 in | Take-up Frame Assembly Type: | Conveyor Take-Up Light Duty |
| Distance from Mounting Surface to Top of Frame (in): | 2 1/8 in | Size Code: | 205 |
| Frame Bolt Hole Spacing in Width Direction (in): | 1 5/8 in | Maximum Mounting Plate Bolt Hole Spacing (in): | 5 15/16 in |
| Frame Length (in): | 17 in | Frame Bolt Hole Spacing (in): | 16 in |
| Frame Mounting Pad Length (in): | 1 3/4 in | Mounting Pad Height (in): | 3/16 in |
| Frame Type: | Top Mount Protected Screw | Mounting Bolt Size (in): | 5/16 in |
| Travel Length (in): | 6 in | Minimum Mounting Plate Bolt Hole Spacing (in): | 3 in |
| Bearing Type: | NO BEARING | Mounting Pad Width (in): | 1 3/4 in |
| Distance from Frame Bolt Hole Center to Bearing Centerline (in): | 5 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Product: | LC Take-up Frames | Series: | LC Take-up Frames |
| Distance From Frame Mounting Surface to Rod Centerline (in): | 1 1/16 in | Frame Material: | Welded Steel |
| Frame Pad Width (in): | 2 5/8 in |
General Specifications
| UPC: | 662327050917 | Weight: | 5.25 LB |
| Country of Origin: | Mexico |
