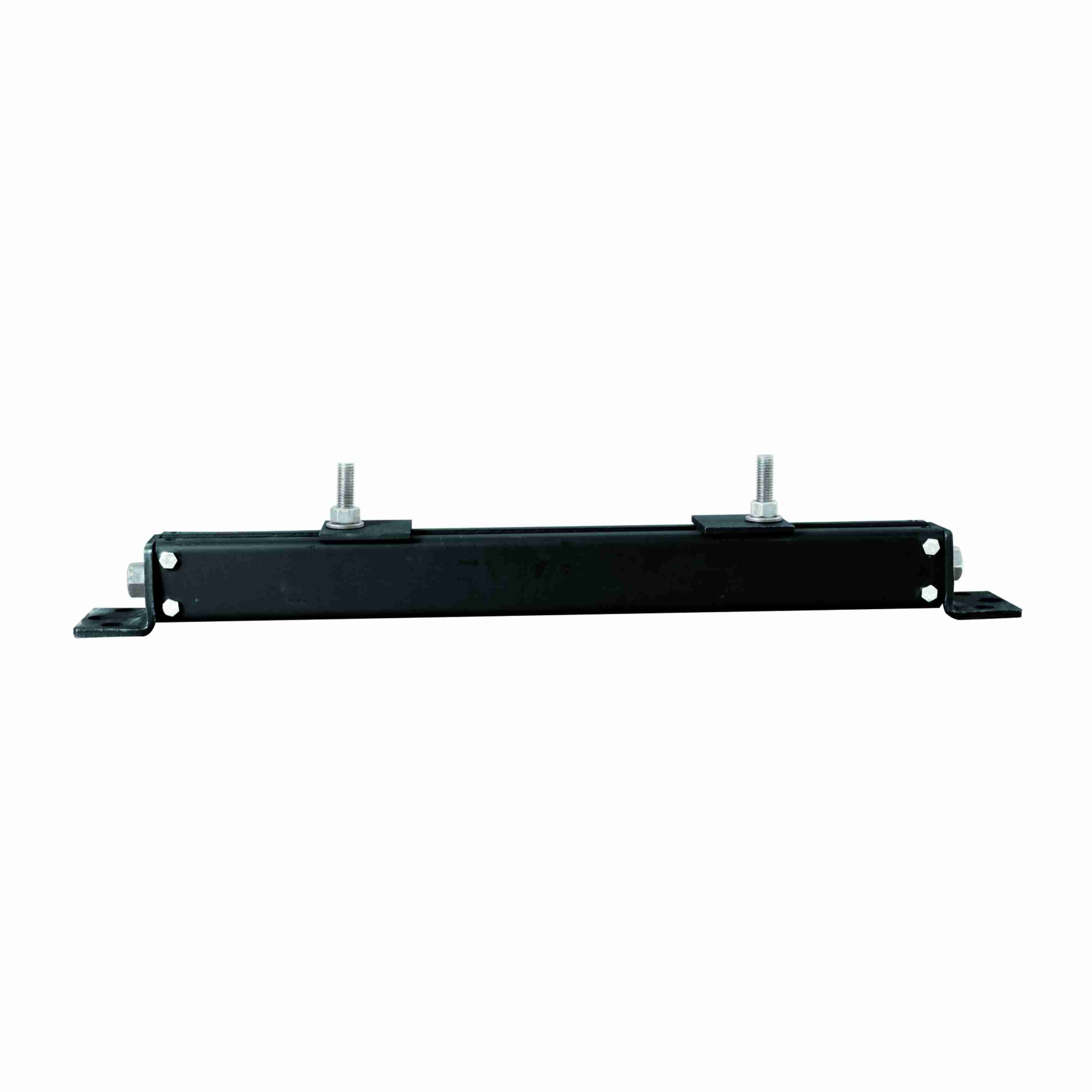

Link-Belt LC318 Take-up Frames Bearing Parts & Kits - LC318
Part #:10424269
Catalog #:LC318
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Frame Type: | Top Mount Protected Screw | Frame Mounting Pad Length (in): | 2 3/4 in |
| Mounting Pad Height (in): | 5/16 in | Maximum Mounting Plate Bolt Hole Spacing (in): | 9 in |
| Frame Bolt Hole Spacing Between Paired Mounting Bolts (in): | 33 1/16 in | Travel Length (in): | 18 in |
| Minimum Mounting Plate Bolt Hole Spacing (in): | 4 1/4 in | Frame Pad Width (in): | 4 in |
| Mounting Bolt Size (in): | 1/2 in | Bearing Type: | NO BEARING |
| Take-up Frame Assembly Type: | Conveyor Take-Up Light Duty | Distance From Frame Mounting Surface to Rod Centerline (in): | 1 5/8 in |
| Frame Material: | Welded Steel | Frame Length (in): | 35 9/16 in |
| Distance from Mounting Surface to Top of Frame (in): | 3 5/16 in | Size Code: | 211/212 |
| Product: | LC Take-up Frames | Mounting Pad Width (in): | 3 in |
| Series: | LC Take-up Frames | Frame Bolt Hole Spacing (in): | 34 5/16 in |
| Distance from Frame Bolt Hole Center to Bearing Centerline (in): | 8 5/32 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Frame Bolt Hole Spacing in Width Direction (in): | 2 3/4 in |
General Specifications
| UPC: | 662327050986 | Weight: | 26.54 LB |
| HTC: | 8483902000 | Country of Origin: | Mexico |
