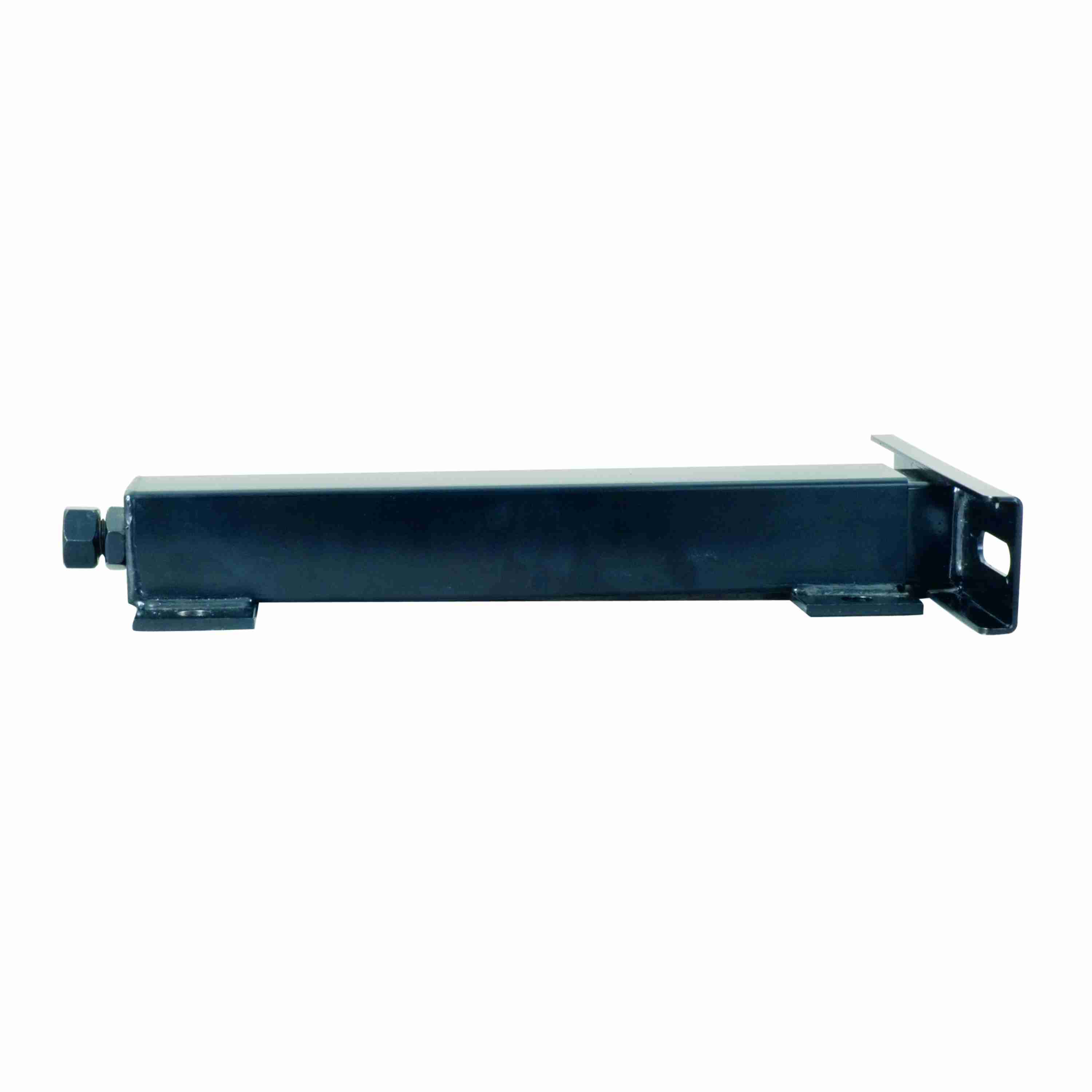

Link-Belt TP2509 Take-up Frames Bearing Parts & Kits - TP2509
Part #:10429298
Catalog #:TP2509
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Frame Bolt Hole Spacing in Width Direction (in): | 3 in | Minimum Mounting Plate Bolt Hole Spacing (in): | 3 13/16 in |
| Bearing Housing Material: | STEEL | Centerline of Frame to Bottom of Mounting Pad (in): | 4 in |
| Frame Material: | Mild Steel | Bearing Type: | NO BEARING |
| Product: | TP Take-up Frames | Travel Length (in): | 9 in |
| Mounting Plate Bolt Size (in): | 1/2 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Frame Bolt Hole Spacing (in): | 10 3/8 in | Distance from Frame Bolt Hole Center to Mounting Plate Face (in): | 1 7/8 in |
| Mounting Pad Height (in): | 1/4 in | Frame Type: | T-Frame Protected Screw for Pillow Block Mounting |
| Adjusting Screw Thread Size (in): | 3/4 - 10 NC in | Housing Coating: | POWDER COATED |
| Take-up Frame Assembly Type: | T-Frame Protected Screw Take-Up for Pillow Block Mounting | Maximum Mounting Plate Bolt Hole Spacing (in): | 5 11/16 in |
| Series: | TP Take-up Frames | Mounting Pad Width (in): | 2 1/32 in |
| Adjusting Screw Square Drive (in): | 1/2 in | Mounting Plate Width (in): | 1 1/8 in |
| Bearing Housing: | TUFR TELESCOPING PB 9IN | Frame Length (in): | 14 1/2 in |
| Mounting Plate Length (in): | 7 in | Mounting Bolt Size (in): | 1/2 in |
General Specifications
| UPC: | 662327983192 | Weight: | 8.40 LB |
