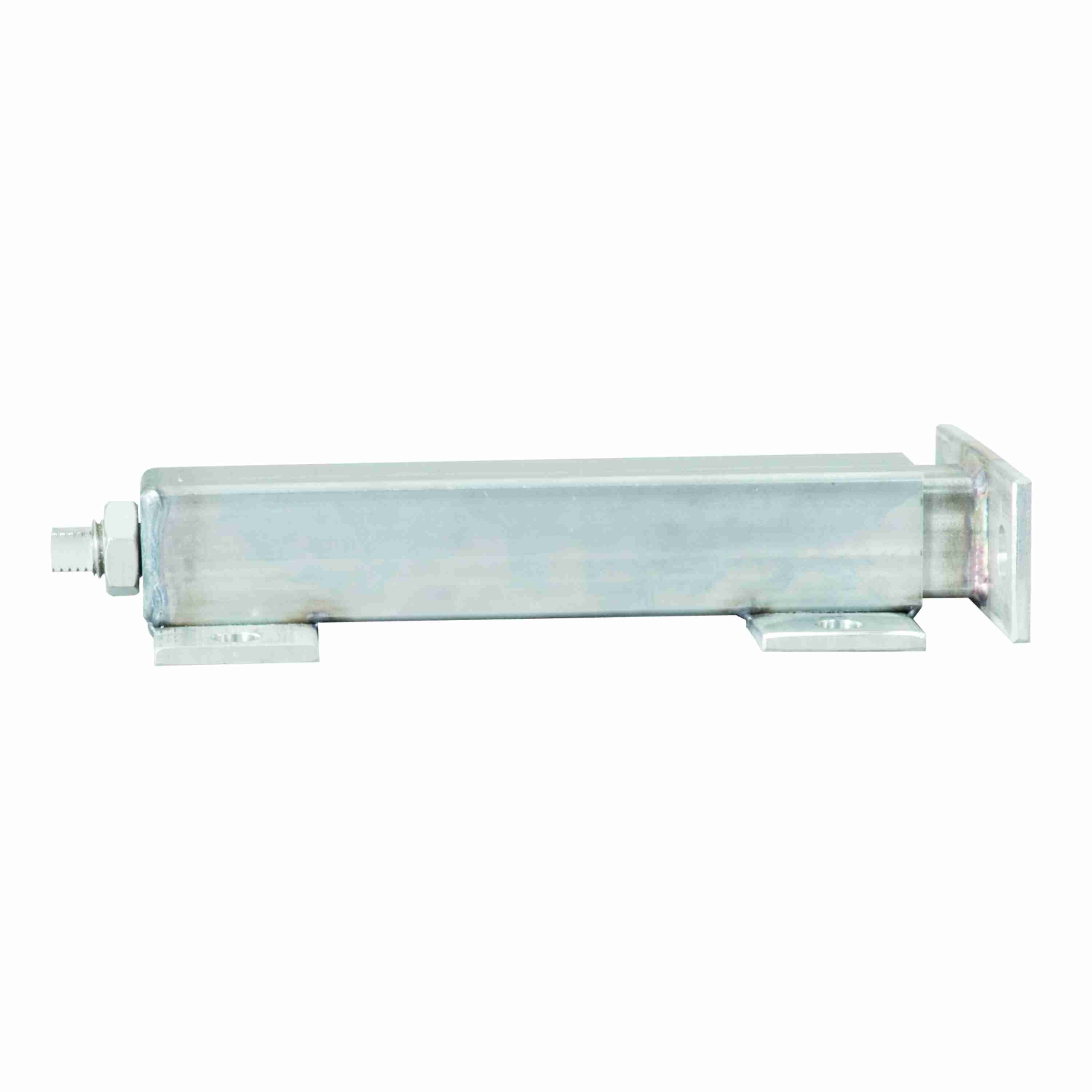

Link-Belt TSP3006 Take-up Frames Bearing Parts & Kits - TSP3006
Part #:10417340
Catalog #:TSP3006
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Mounting Bolt Size (in): | 5/8 in | Distance from Frame Bolt Hole Center to Mounting Plate Face (in): | 2 1/4 in |
| Mounting Pad Height (in): | 1/4 in | Take-up Frame Assembly Type: | T-Frame Protected Screw Take-Up for Pillow Block Mounting |
| Frame Bolt Hole Spacing (in): | 6 1/8 in | Mounting Plate Width (in): | 1 1/2 in |
| Frame Bolt Hole Spacing in Width Direction (in): | 4 in | Product: | TSP Take-up Frames |
| Adjusting Screw Thread Size (in): | 7/8 - 9 NC in | Frame Length (in): | 11 1/8 in |
| Series: | TSP Take-up Frames | Mounting Pad Width (in): | 2 27/32 in |
| Frame Material: | Stainless Steel | Maximum Mounting Plate Bolt Hole Spacing (in): | 8 11/16 in |
| Travel Length (in): | 6 in | Mounting Plate Length (in): | 10 in |
| Mounting Plate Bolt Size (in): | 5/8 in | Frame Type: | T-Frame Protected Screw for Pillow Block Mounting |
| Minimum Mounting Plate Bolt Hole Spacing (in): | 5 9/16 in | Adjusting Screw Square Drive (in): | 1/2 in |
| Centerline of Frame to Bottom of Mounting Pad (in): | 5 1/4 in |
General Specifications
| UPC: | 662327983369 | Weight: | 11.40 LB |
