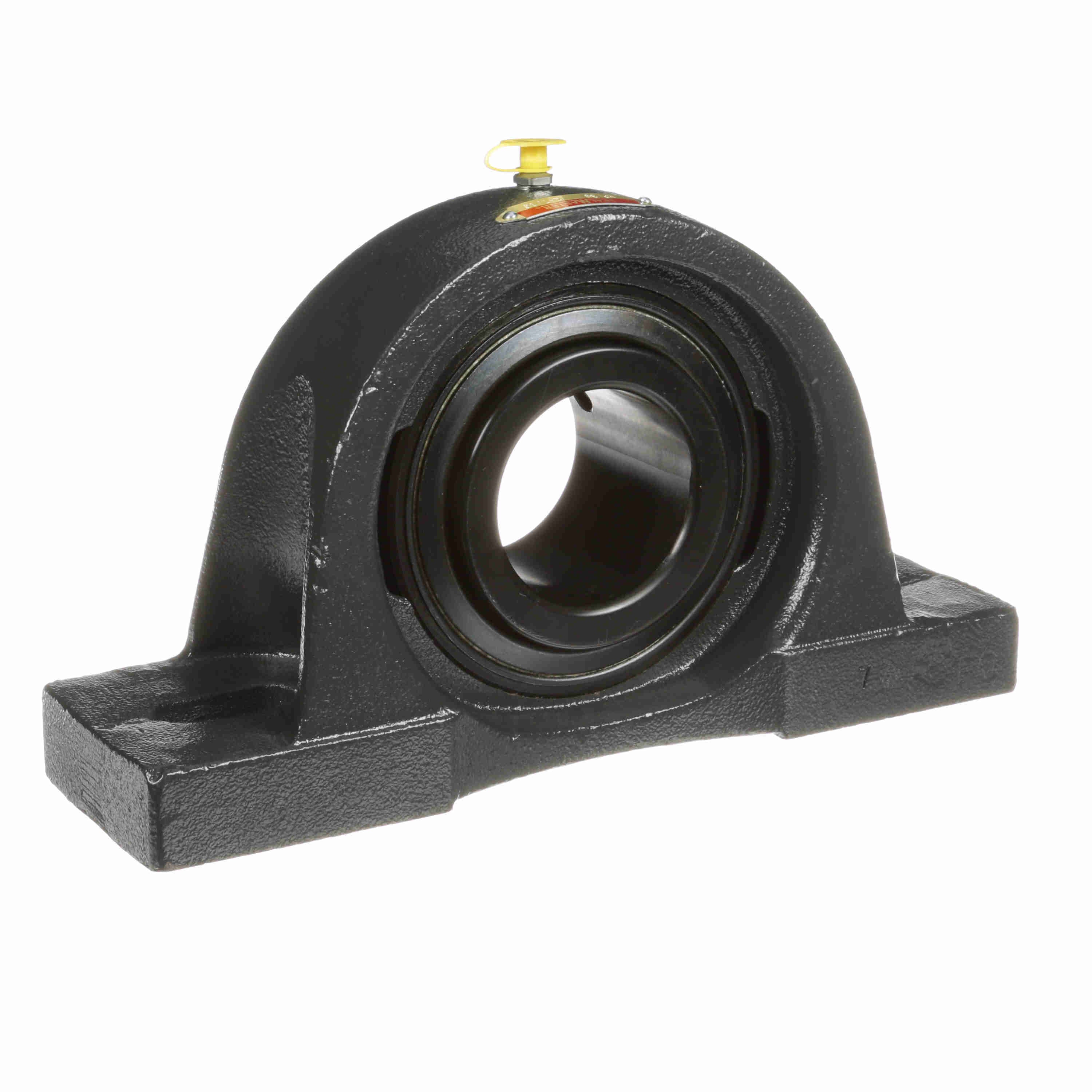

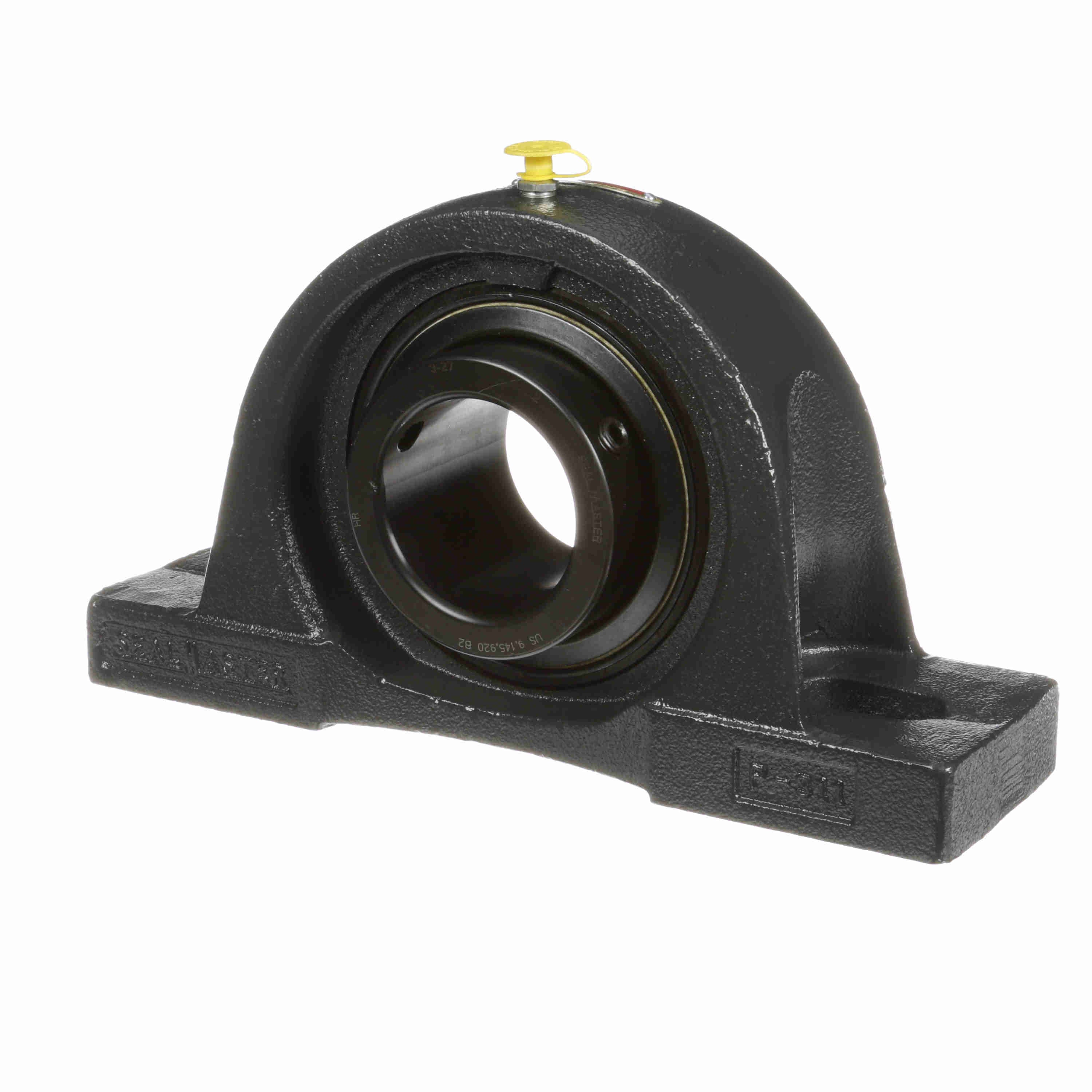

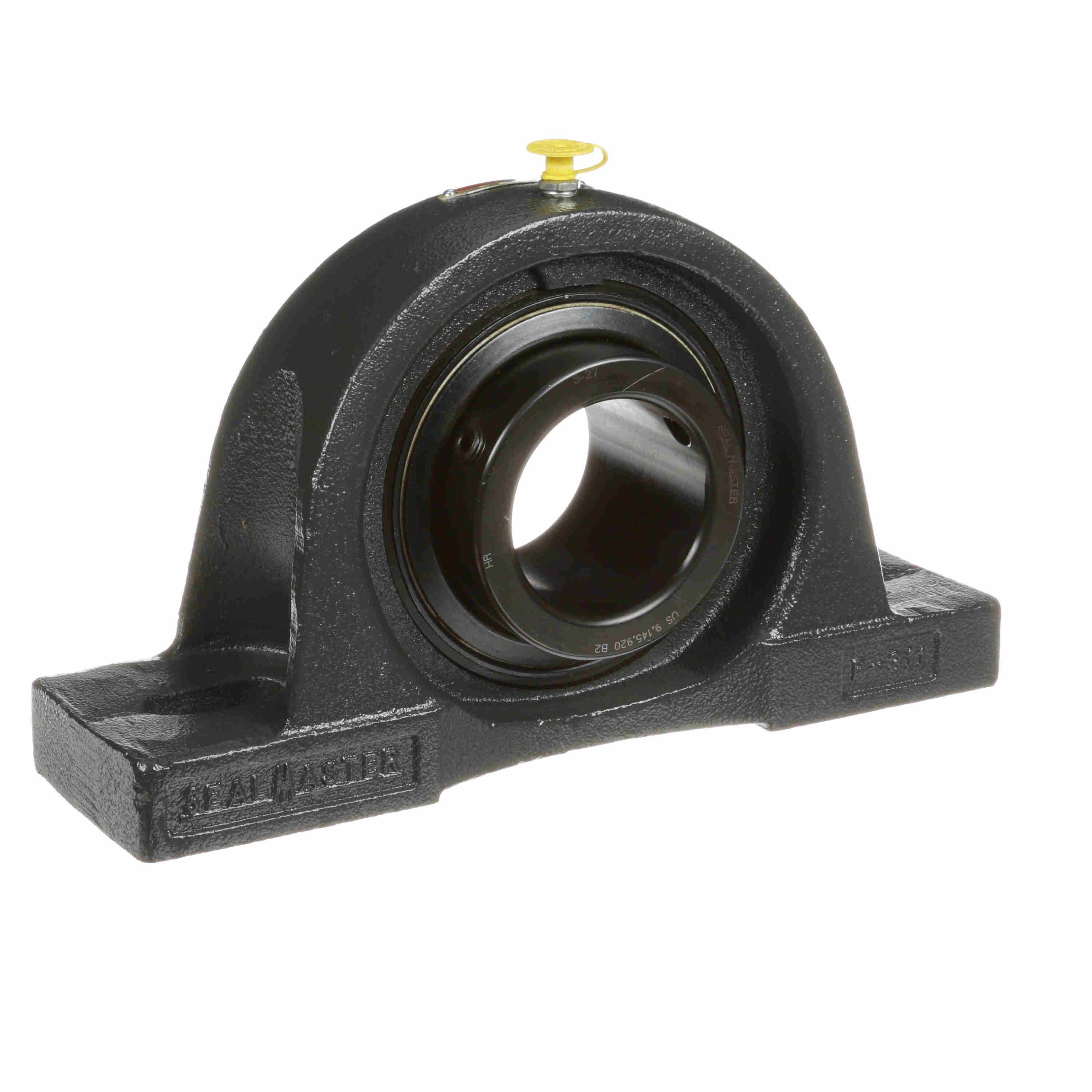

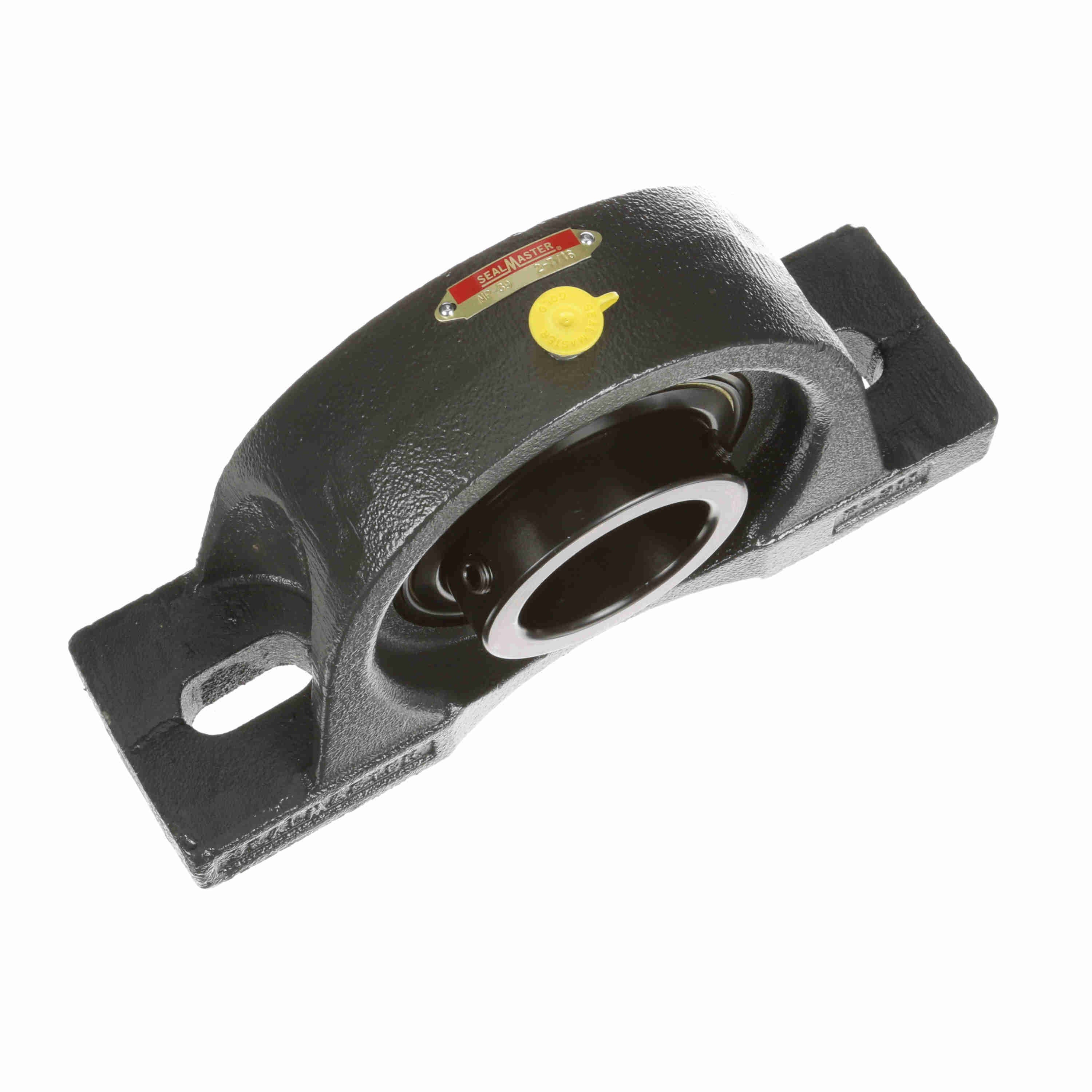

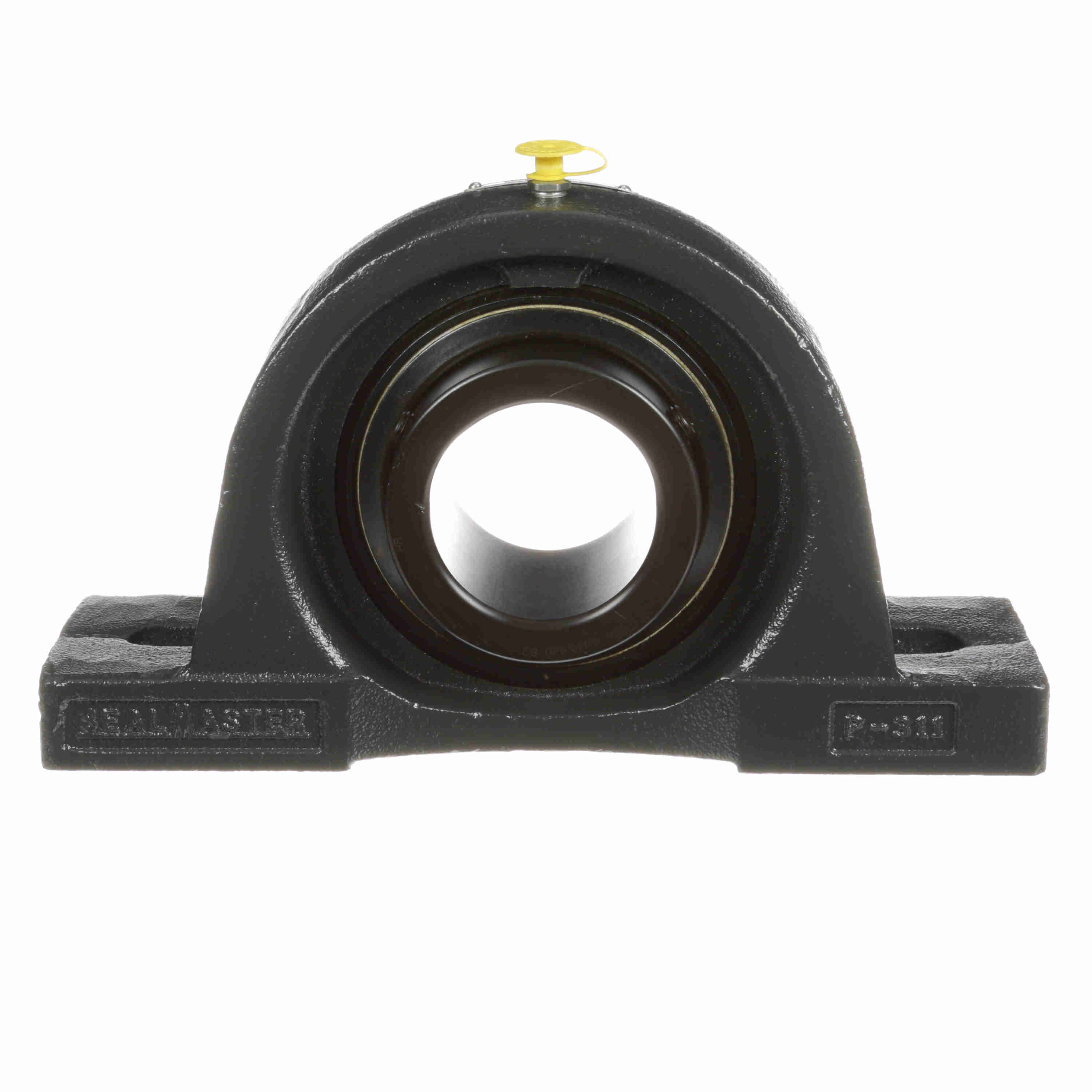

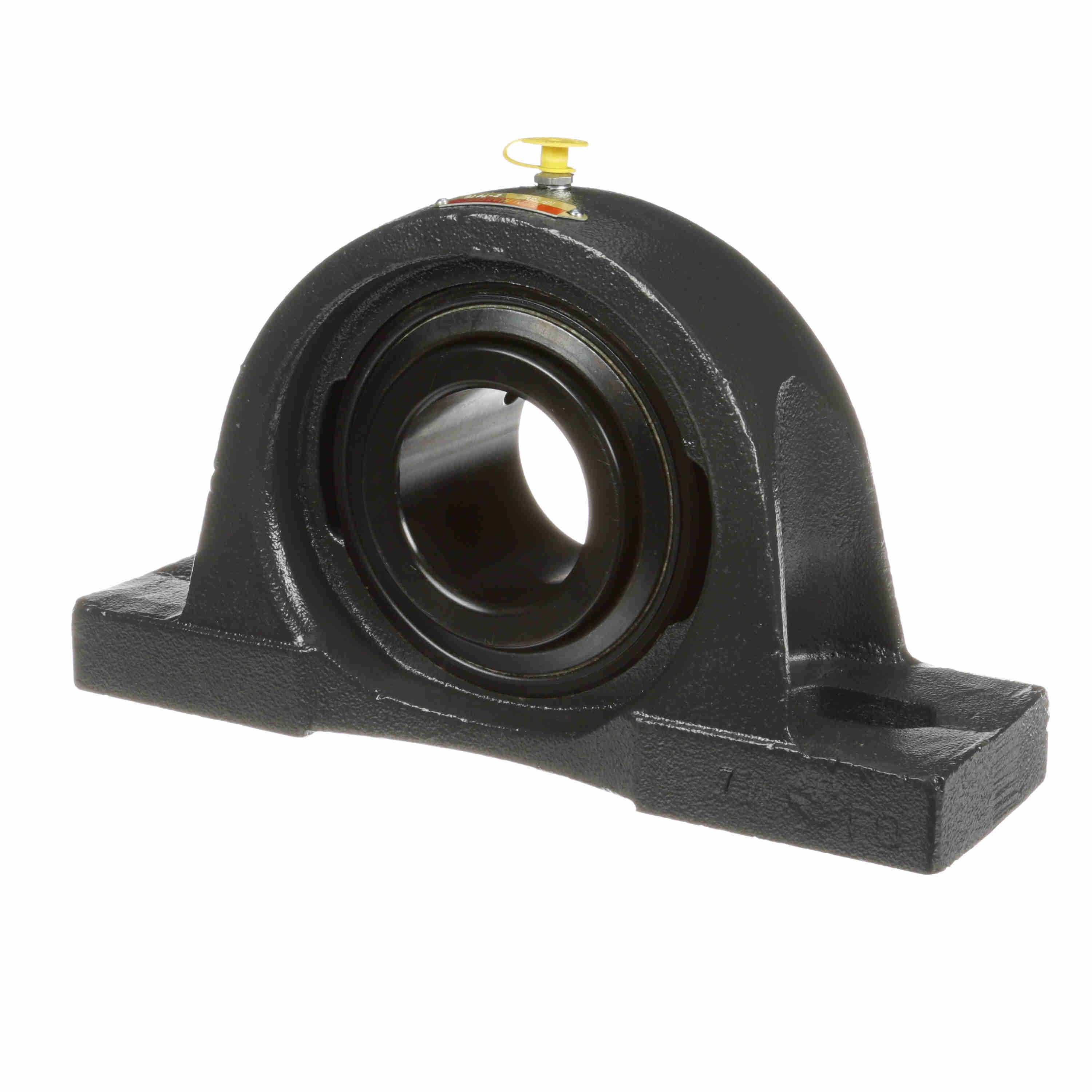

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - MP-42
Part #:701878
Catalog #:MP-42
KEY FEATURES
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 3.25 in | Overall Length (in): | 11.25 in |
| Base Width (in): | 3.25 in | Overall Height (in): | 6.25 in |
| Bolt Size (in): | 3/4 in | Bore Diameter (in): | 2.625 in |
| Foot Height (in): | 1.06 in | Base to Center Height (in): | 3.0000 in |
| Length Through Bore (in): | 2.748 in | Bolt Spacing Max (in): | 8.88 in |
| Bolt Spacing Min (in): | 7.13 in | Centerline to Outermost Bearing Face (in): | 1.688 in |
| Bolt Spacing (in): | 8 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Housing Color: | Black | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Cage Material: | Brass |
| Seal Type: | Felt Labyrinth Seal | Housing Type: | Pillow Block, Two Bolt |
| Housing Style: | Pillow Block | Setscrew Torque (in-lbs): | 350-450 in/lbs |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Housing Coating: | Powder Coated | Base Length (in): | 11.25 in |
| Max Operating Temperature (F): | 220 °F | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Outer Ring Defect: | 0.0684 cps | Bearing Insert Finish: | Black Oxide |
| Insert: | 2-210 | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Inner Ring Outside Diameter (in): | 3.438 in | Bearing Type: | Medium Duty |
| Lubricant: | Lithium Complex NLGI 2 Grease | Maximum Speed (RPM): | 2500 rpm |
| Fixed vs. Expansion: | Fixed | Size Code: | 2-211 |
| Vibration Frequency Roller Spin: | 0.0451 cps | Bearing Insert Material: | 52100 Bearing Steel |
| Static Load Rating (lb): | 10,063 lb | Dynamic Load Rating (lb): | 13,971 lb |
| Vibration Frequency Inner Ring Defect: | 0.0982 cps | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Housing Material: | Cast Iron | Shaft Locking Type: | Set Screw |
| Cage Type: | Land Riding Retainer | End Cap Available: | No |
| Radial Clearance: | Standard |
General Specifications
| UPC: | 662461013908 | Weight: | 21.50 LB |
| Packaged Length: | 12.38 IN | Packaged Width: | 7.13 IN |
| Packaged Height: | 3.56 IN | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
