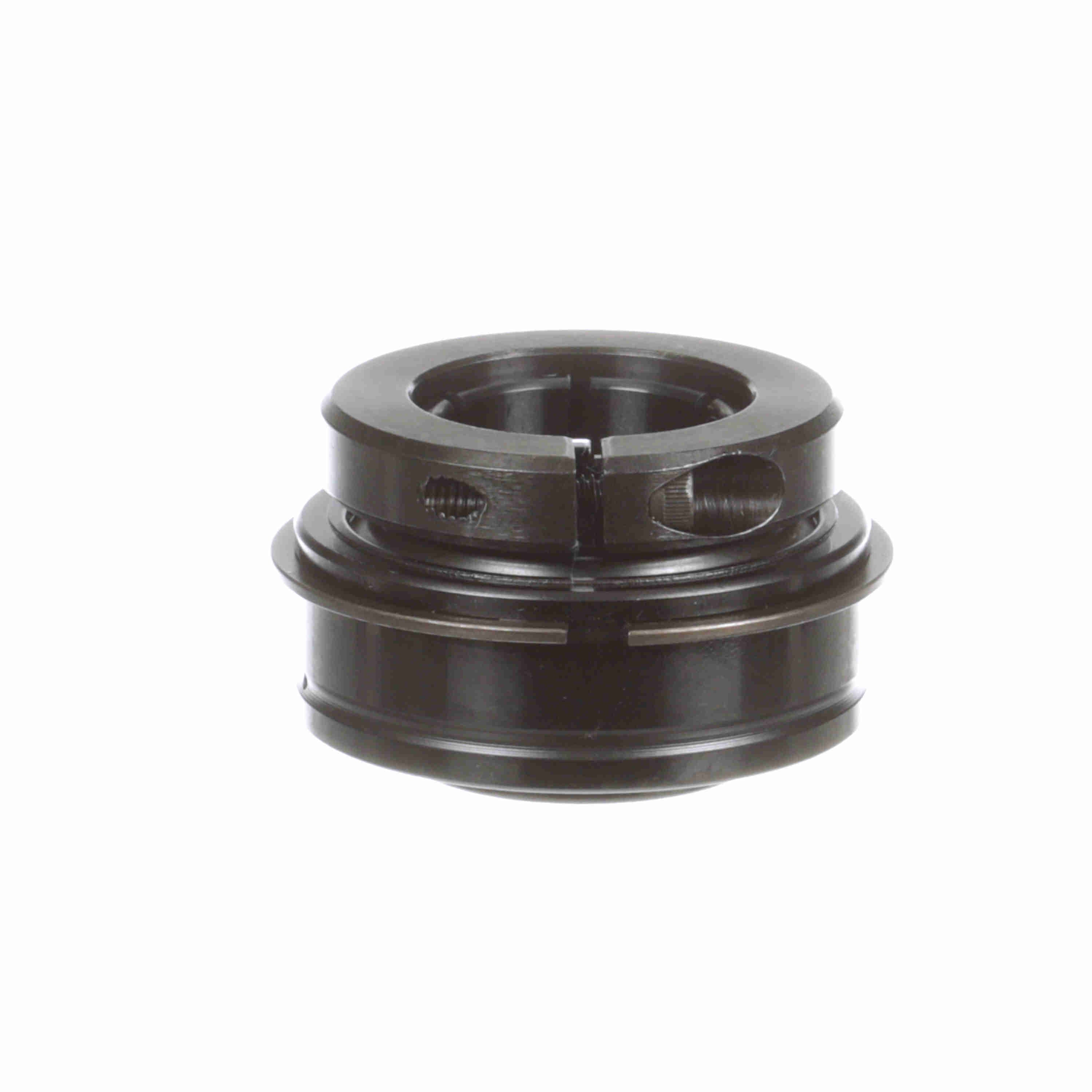

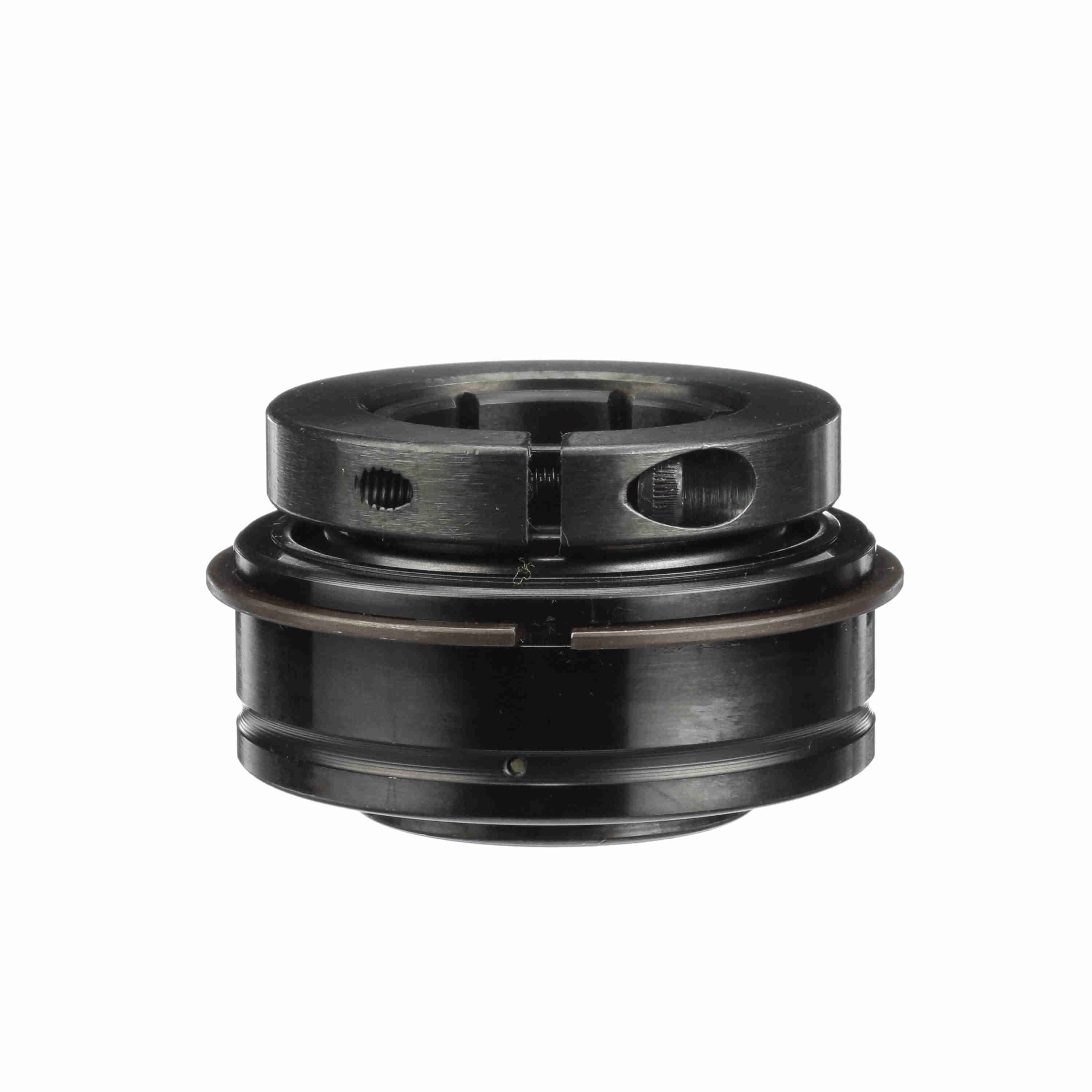

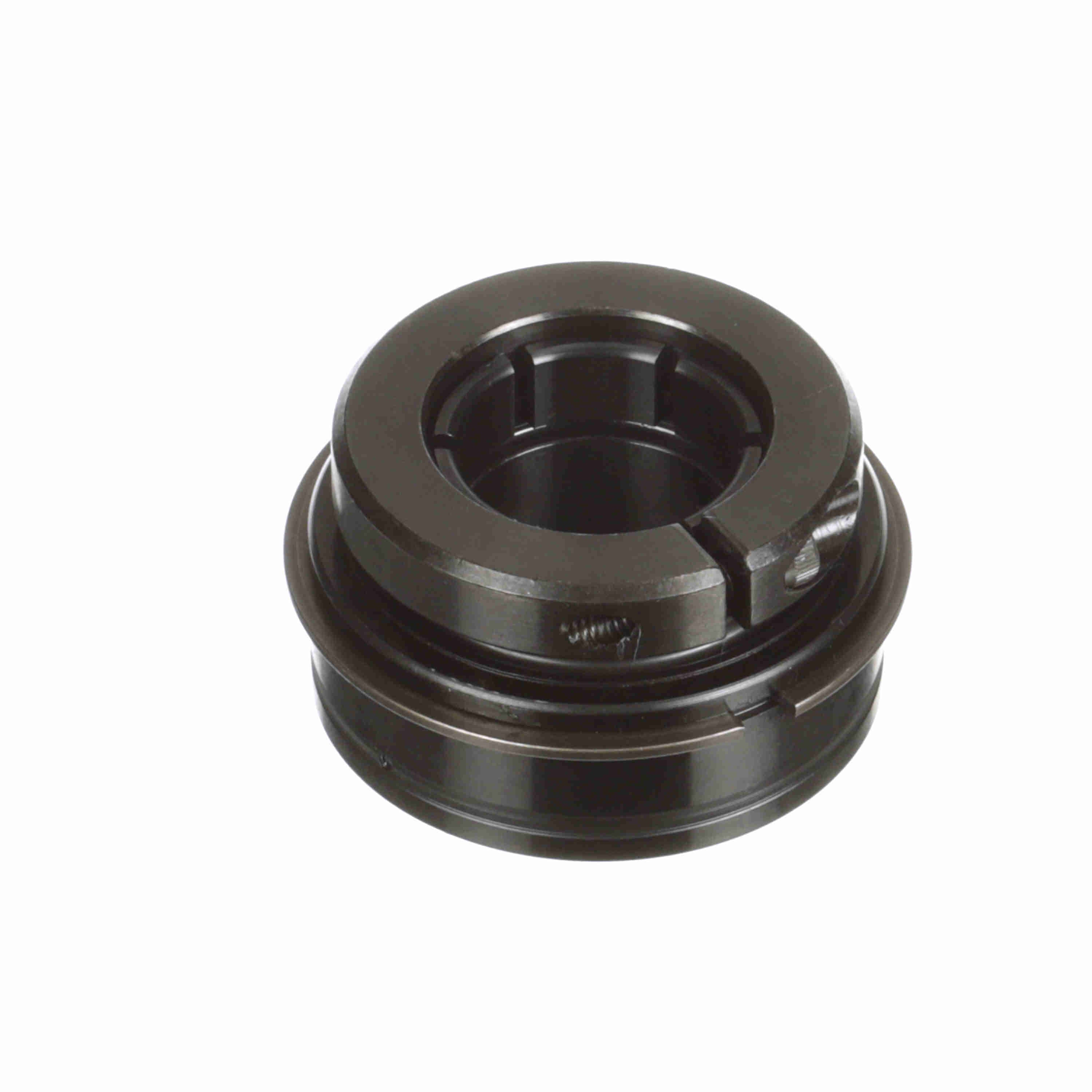

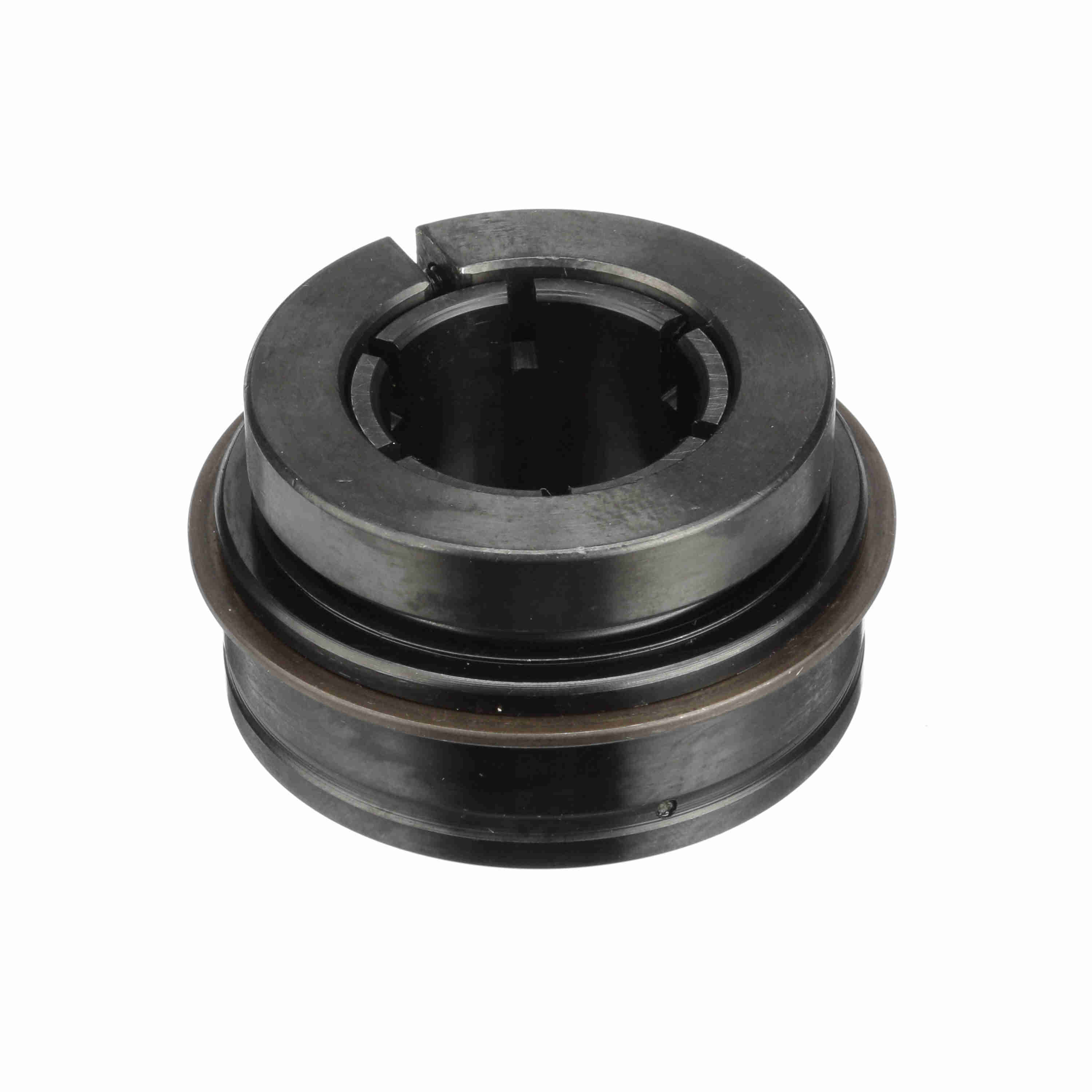

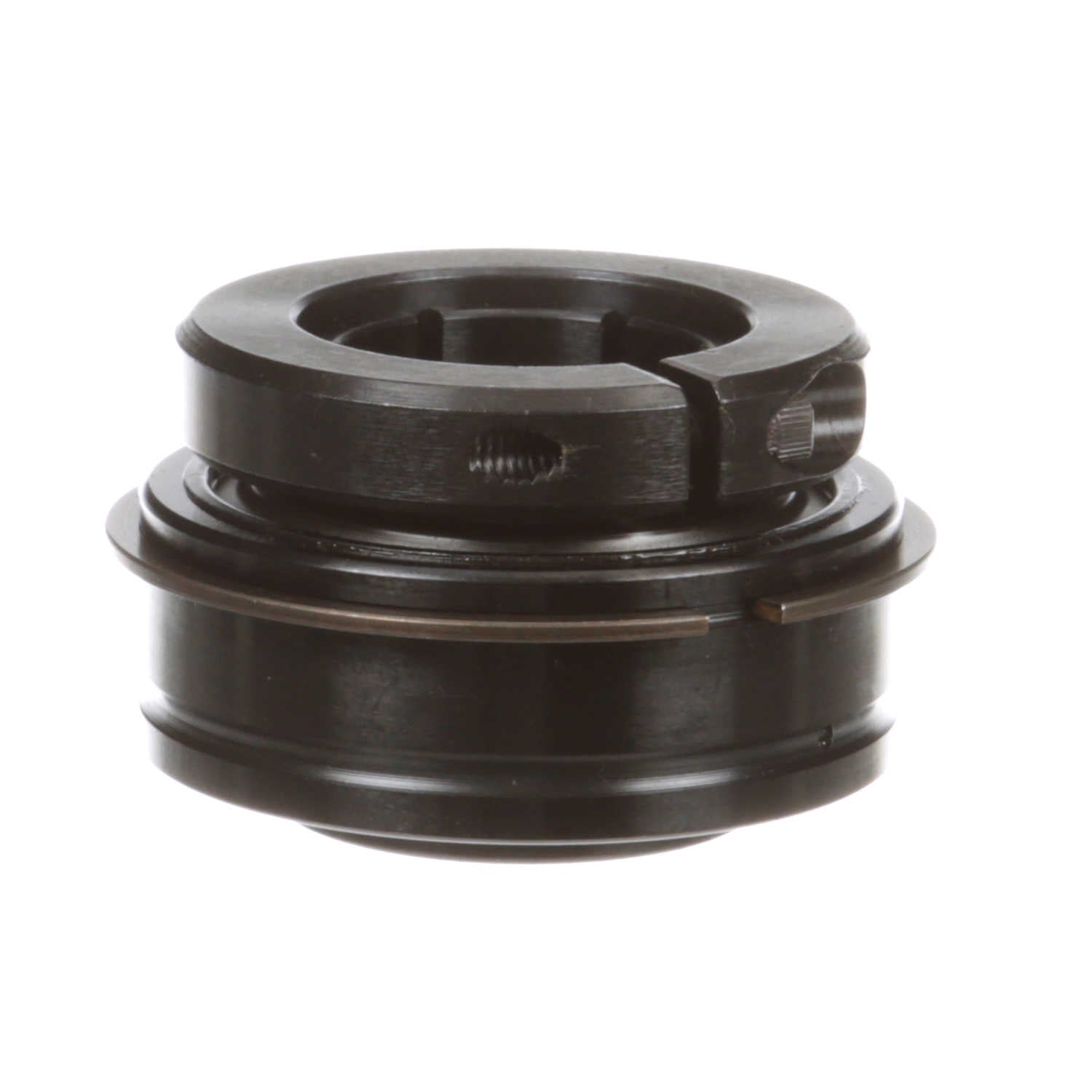

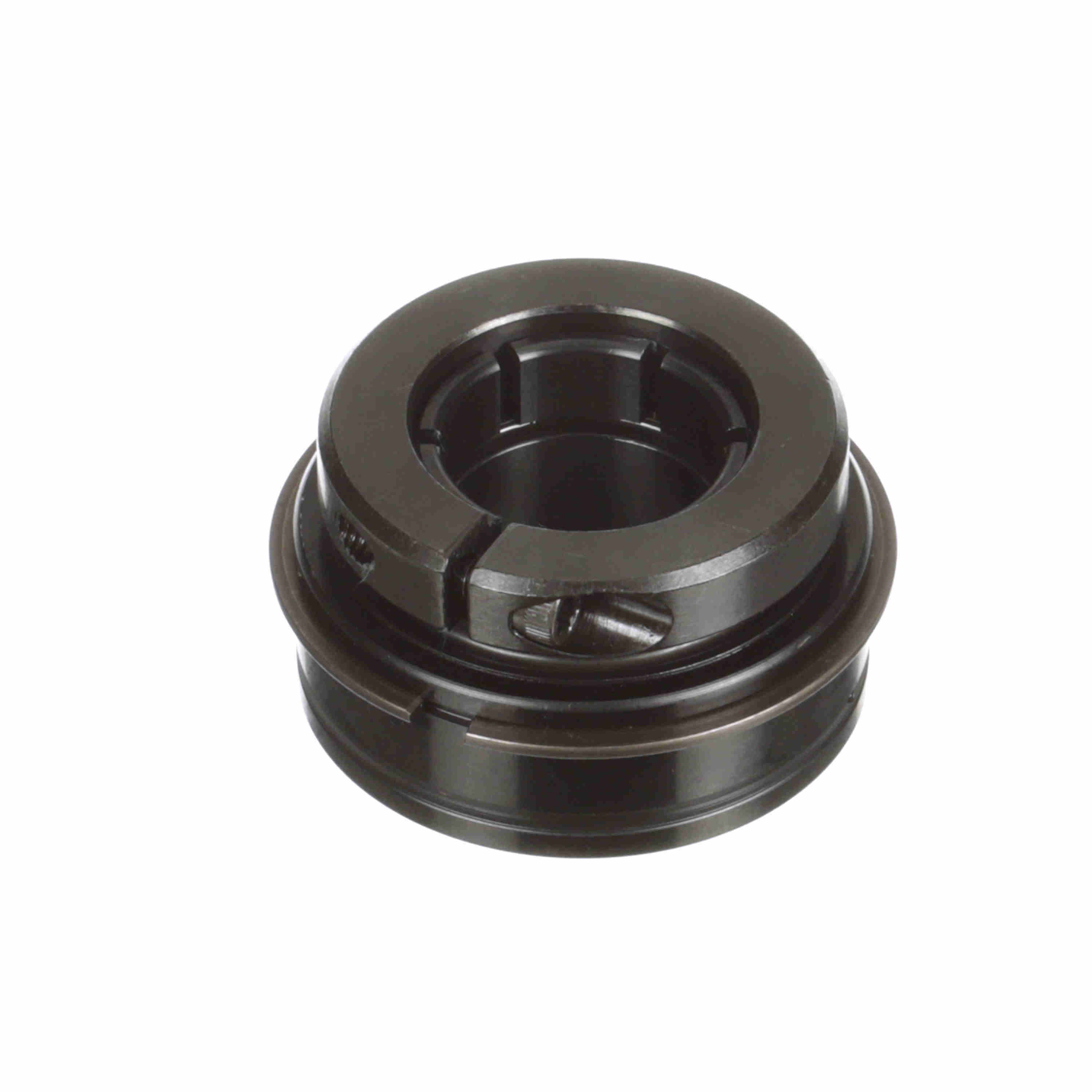

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - ER-19TC
Part #:705956
Catalog #:ER-19TC
KEY FEATURES
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.56 in | Bore Size (in): | 1.1875 in |
| Inner Ring OD (in): | 1.594 in | Outer Race Width (in): | 0.875 in |
| Collar OD (in): | 2.23 in | Centerline to Front Face (in): | 0.938 in |
| Outer Race OD (in): | 2.4409 in | Outer Race OD (mm): | 62 mm |
| Length Through Bore (in): | 1.56 in | Outer Race Width (mm): | 22.2 mm |
Technical Specifications
| Bore Shape: | Straight | Measure Units: | Inch |
| Housing Type: | Insert (ER Style) | Torx Cap Screw: | 10-24 UNC |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel |
| Seal Type: | Single Lip Contact Seal | Internal Clearance: | Standard |
| Expansion: | No | Misalignment: | None |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Tapered Lands |
| Bearing Insert Coating: | Black Oxide | Misalignment Type: | Static Only |
| End Cap: | No | Cage Material: | PPS - Polyphenylene Sulfide |
| Precision Rating: | ABEC 1 | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | Maximum Operating Temperature (F): | 220 °F |
| Series: | Unmounted Replacement Bearings | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Vibration Frequency Roller Spin: | 0.0385 cps | Inner Ring Fillet Radius (in): | 0.04 in |
| Size Code: | 2-13 | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Speed (rpm): | 5450 rpm | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 100 in/lbs | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Duty/Status: | Standard |
| Locking Type: | Concentric | Vibration Frequency Fundamental Train: | 0.0066 cps |
| Cage Type: | Land Riding Retainer | Dynamic Load Rating (lb): | 4,381 lb |
| Static Load Rating (lb): | 2,567 lb |
General Specifications
| UPC: | 662461034194 | Weight: | 1.05 LB |
| Packaged Length: | 2.75 IN | Packaged Width: | 1.56 IN |
| Packaged Height: | 2.75 IN | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
