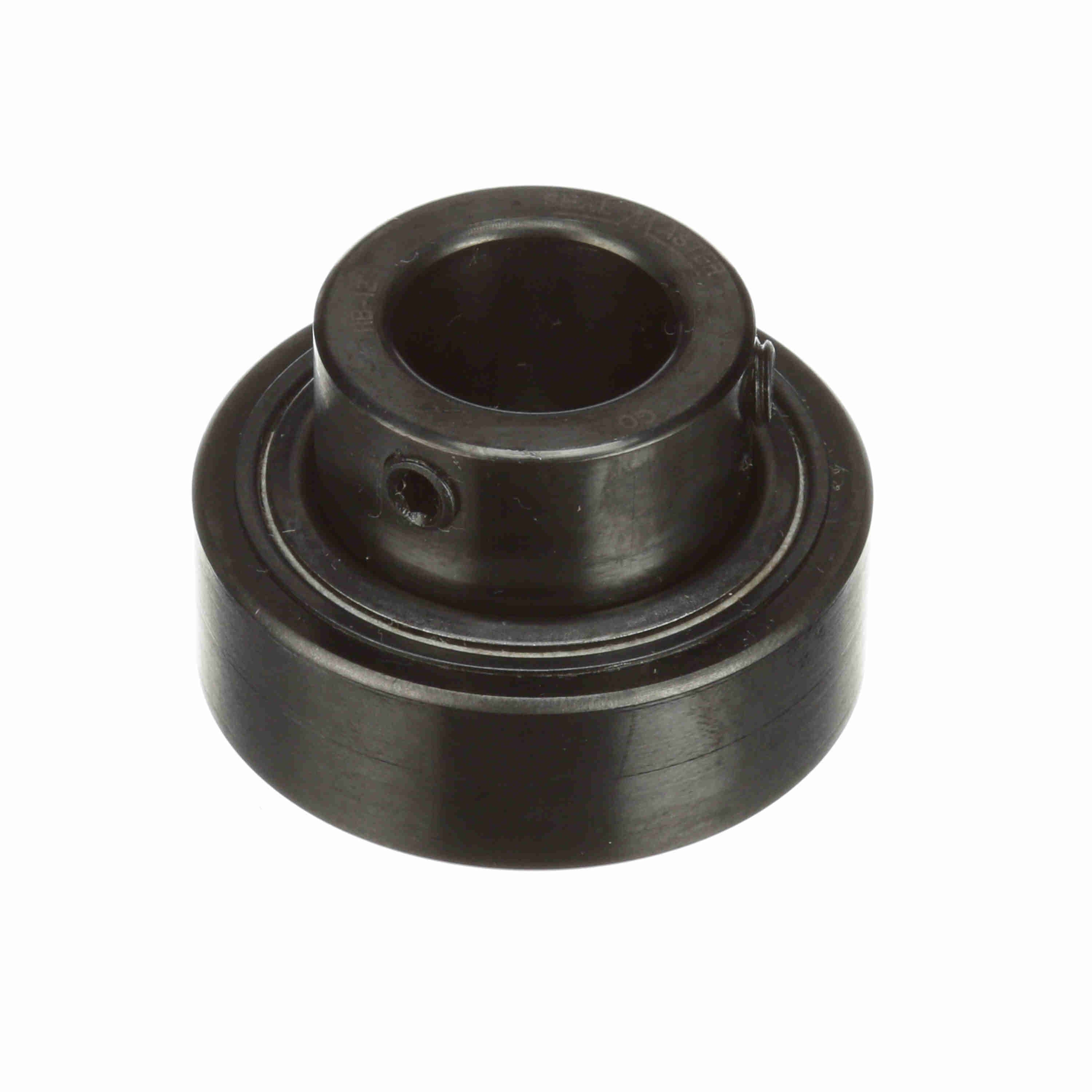

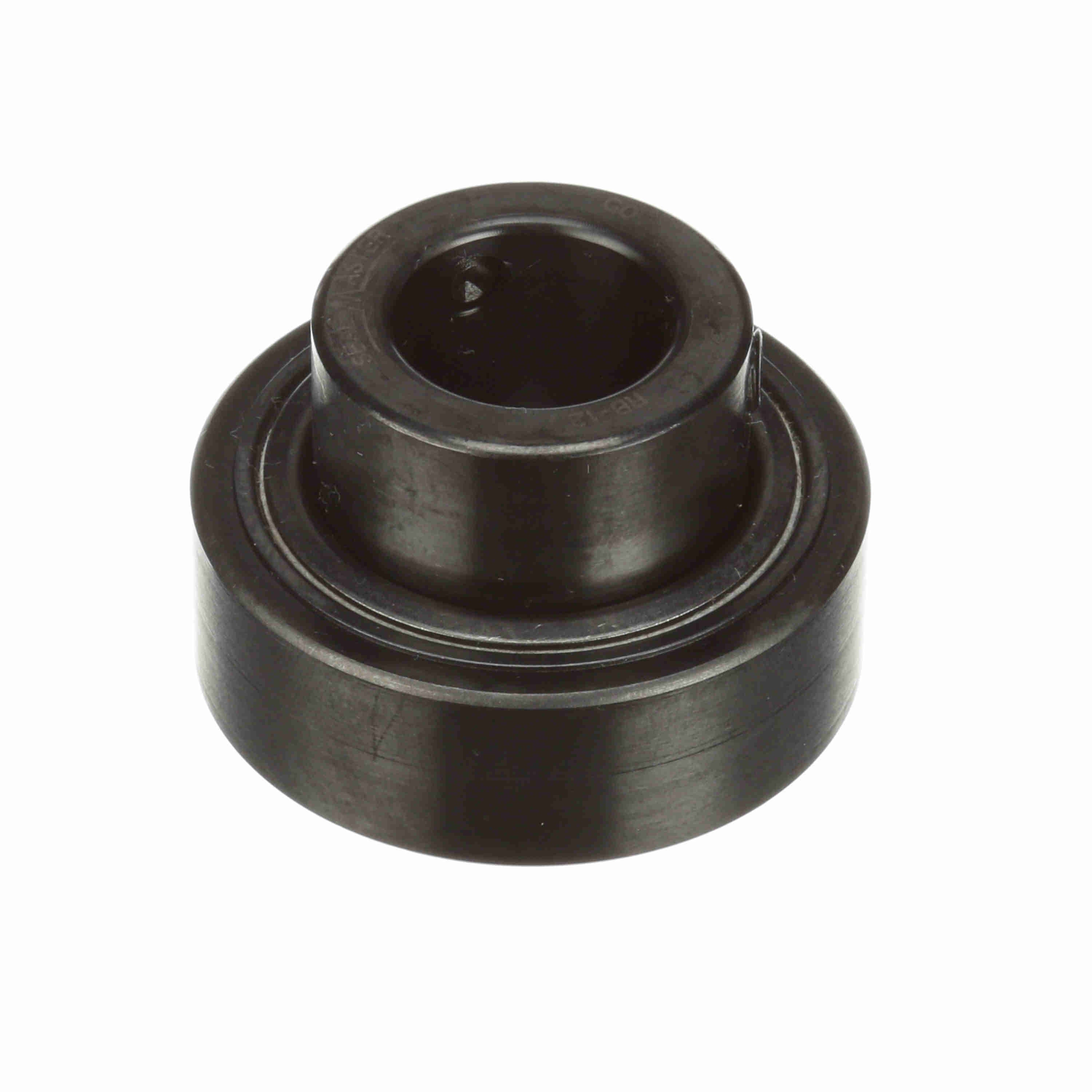

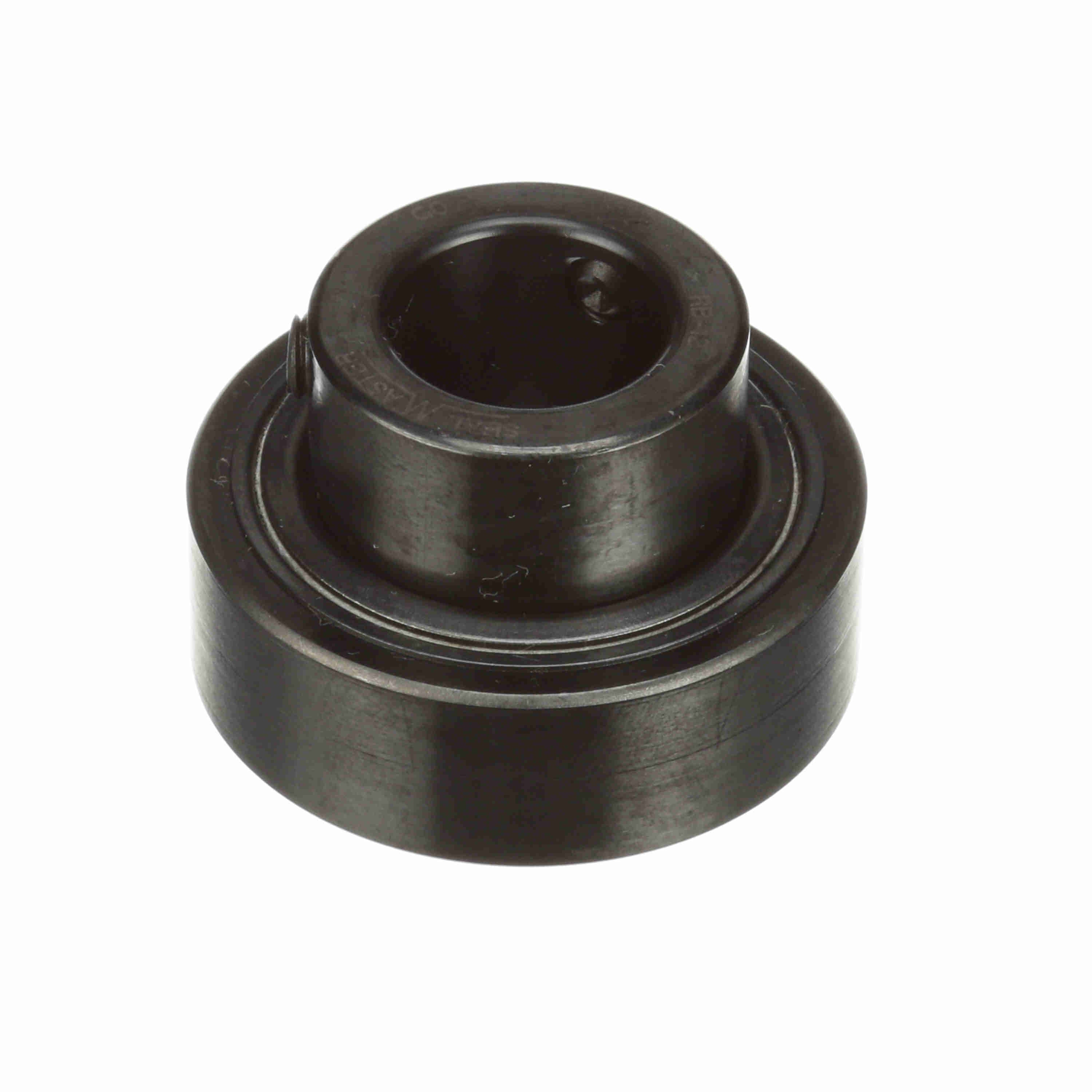

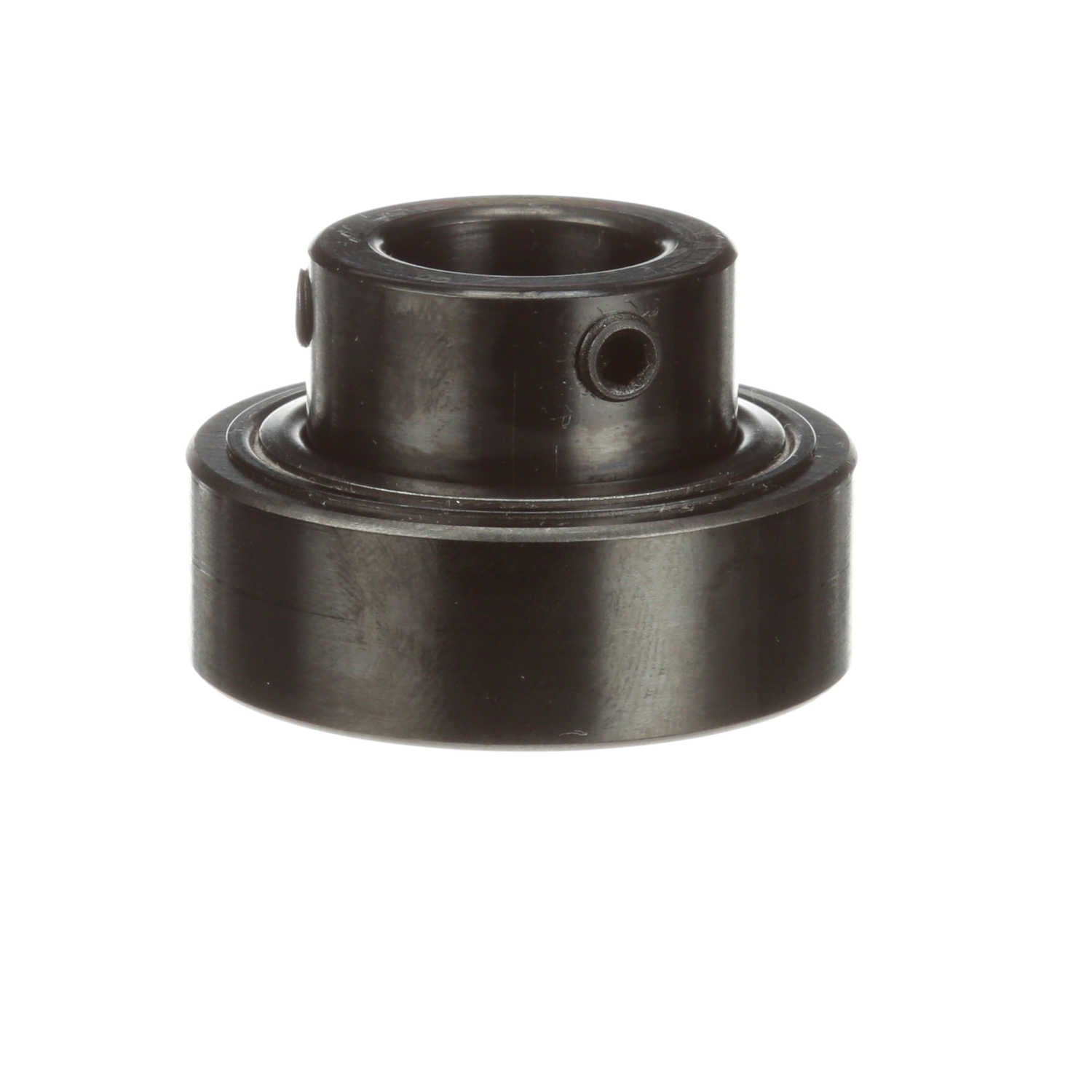

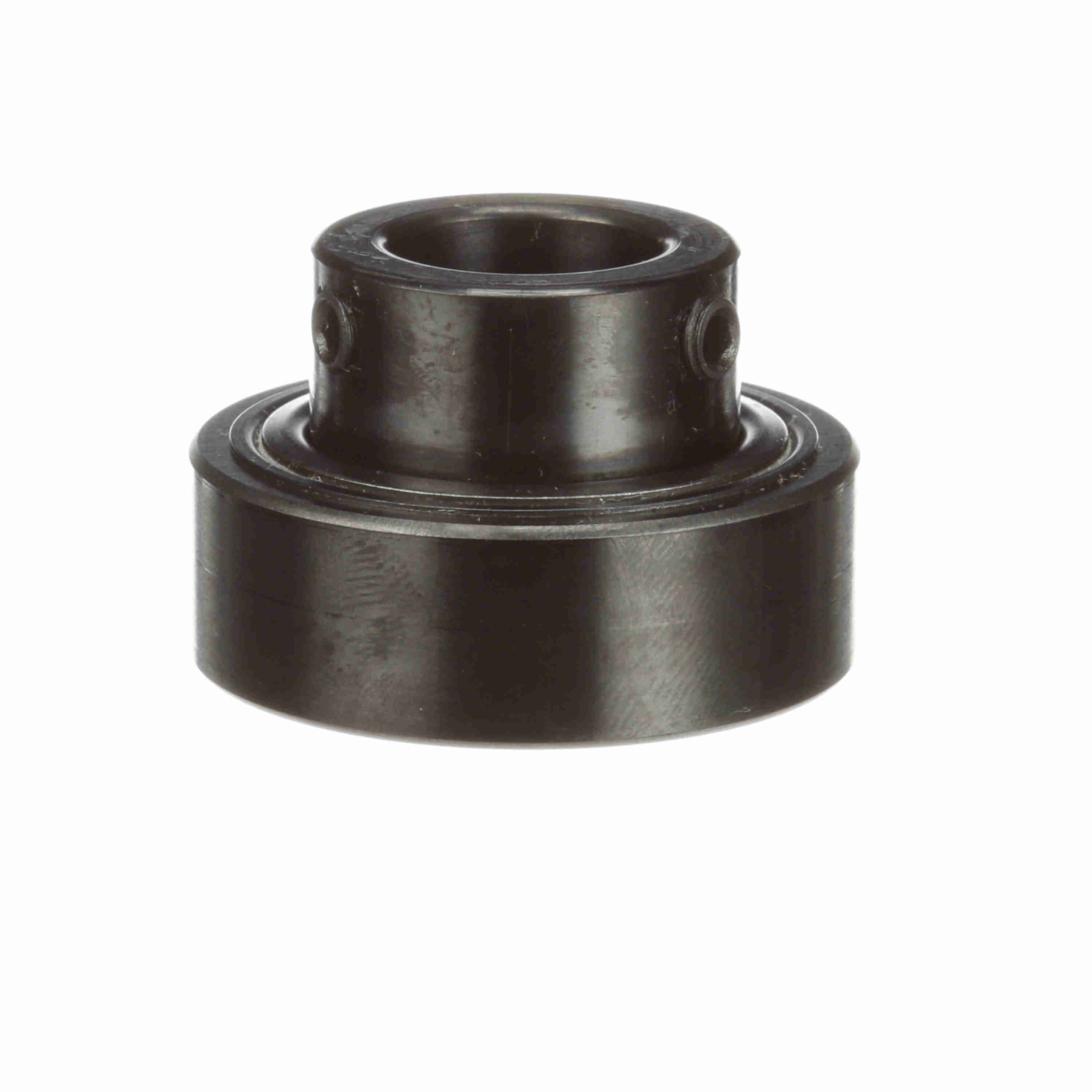

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - RB-12
Part #:701139
Catalog #:RB-12
KEY FEATURES
- Cylindrical O.D. wide inner ring bearing insert with no lubrication holes
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.281 in | Bore Size (in): | 0.7500 in |
| Outer Race Width (in): | 0.625 in | Inner Ring OD (in): | 1.188 in |
| Inner Race Length (in): | 1.281 in | Outer Race OD (in): | 1.85 in |
| Centerline to Front Face (in): | 0.875 in |
Technical Specifications
| Bore Shape: | Straight | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Radius: | 0.04 | Rolling Element: | Ball Bearing |
| Housing Type: | Insert Only | Set Screw Thread: | 1/4-28 |
| Measure Units: | Inch | Misalignment: | None |
| Radial Dynamic Load Capacity (lb): | 2,611 lb | Internal Clearance: | Standard |
| Speed (Max) (RPM): | 7300 rpm | Replaceable Insert: | No |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 1,444 lb |
| Precision Rating: | ABEC 1 | Cage Material: | Molded Nylon |
| Series: | RB | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Set Screw | Type of Seal: | Felt Labyrinth Seal |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| Fixed vs. Expansion: | No | Ability to Relubricate: | No |
| Duty/Series: | Standard | Retainer Type: | Land Riding Retainer |
General Specifications
| UPC: | 662461009284 | Weight: | 0.44 LB |
| Packaged Length: | 2.38 IN | Packaged Width: | 1.44 IN |
| Packaged Height: | 2.38 IN | HTC: | 8482.10.5048 |
| Country of Origin: | Mexico |
