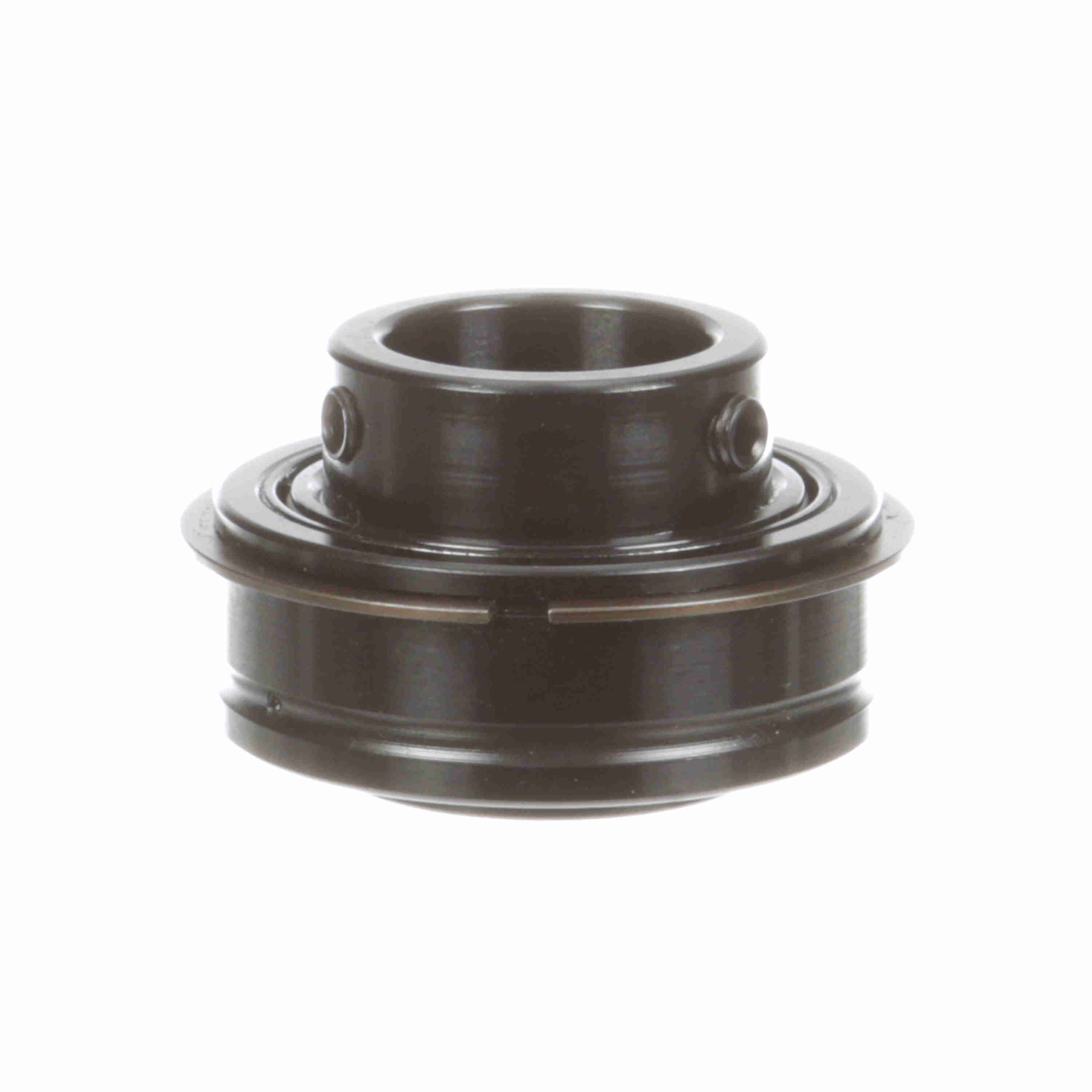

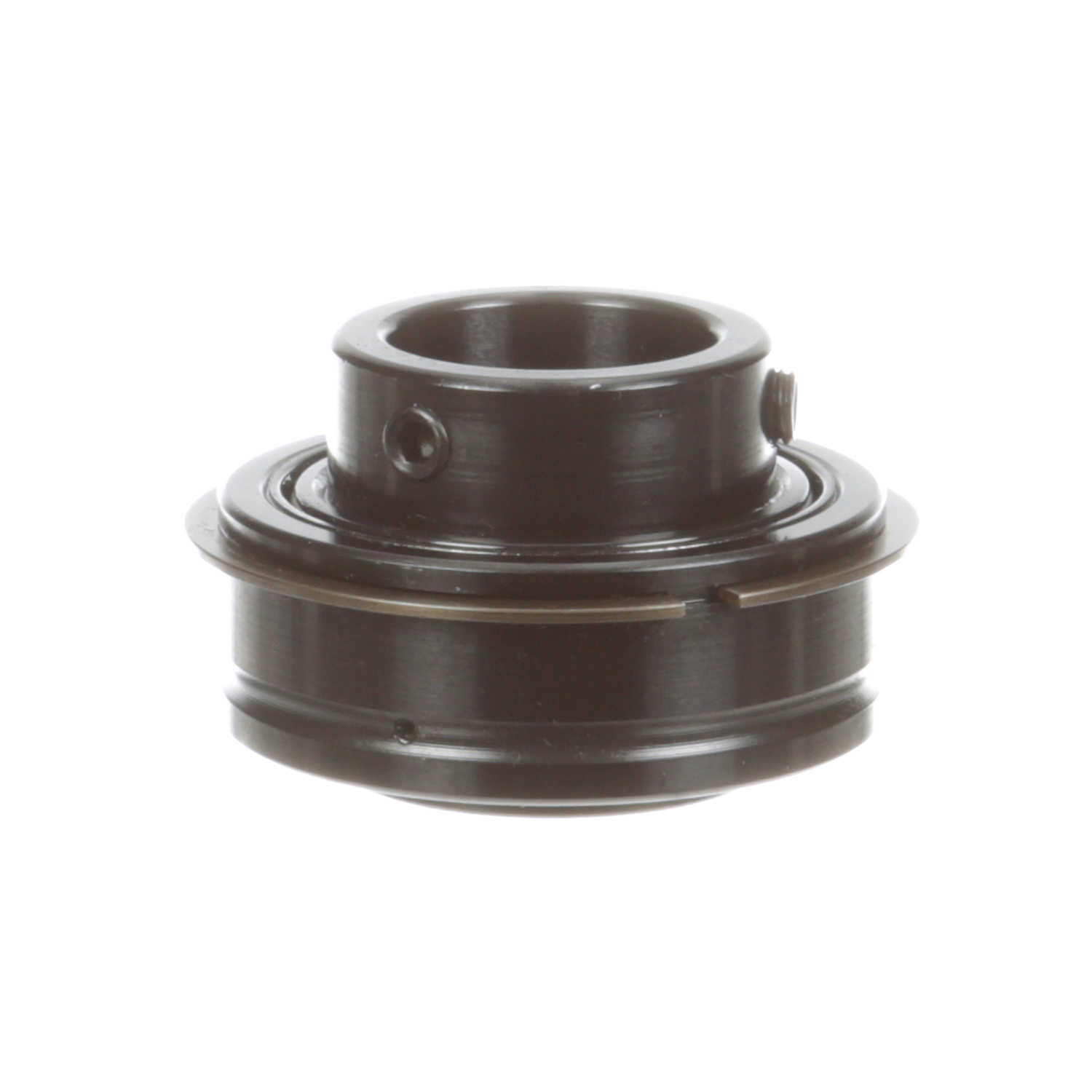

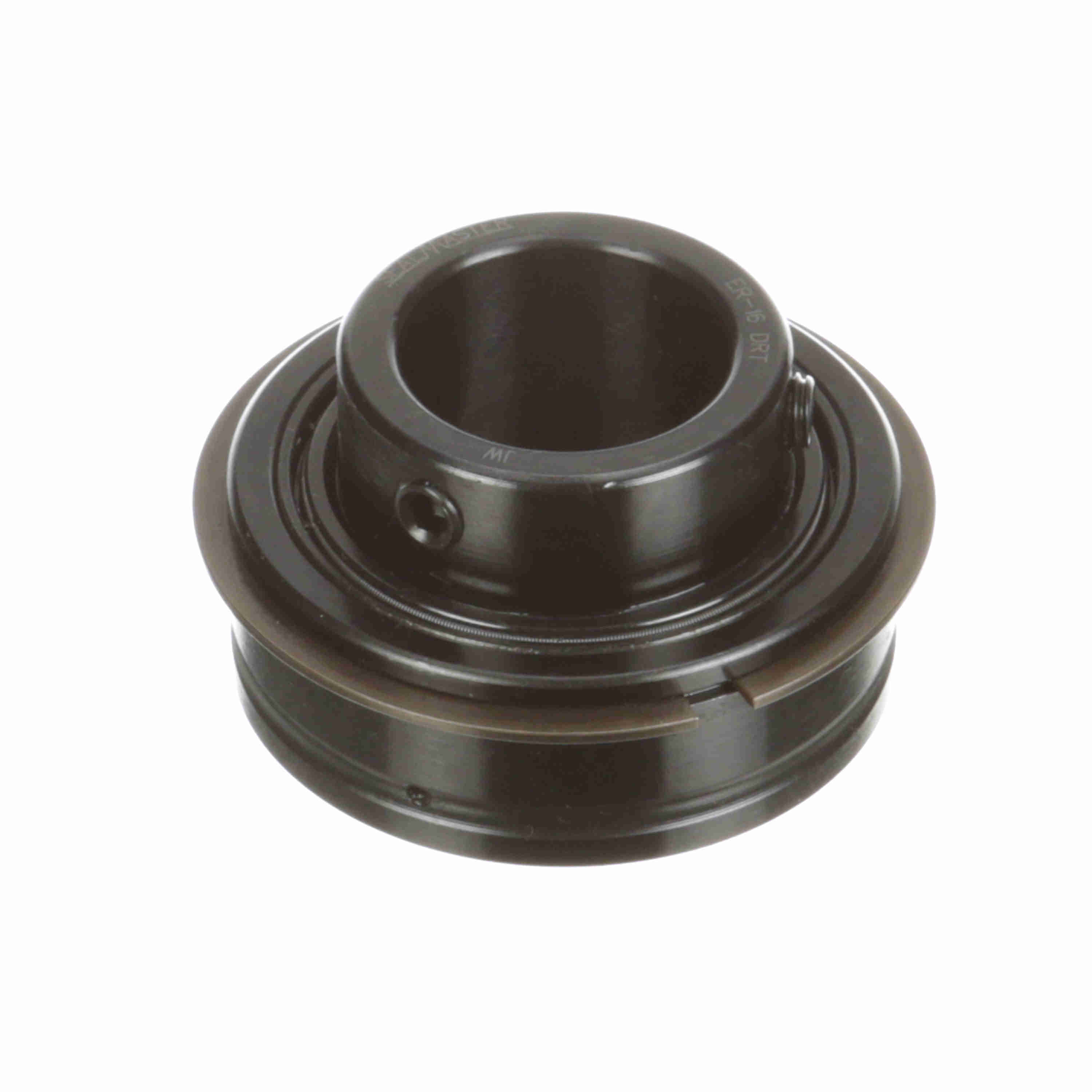

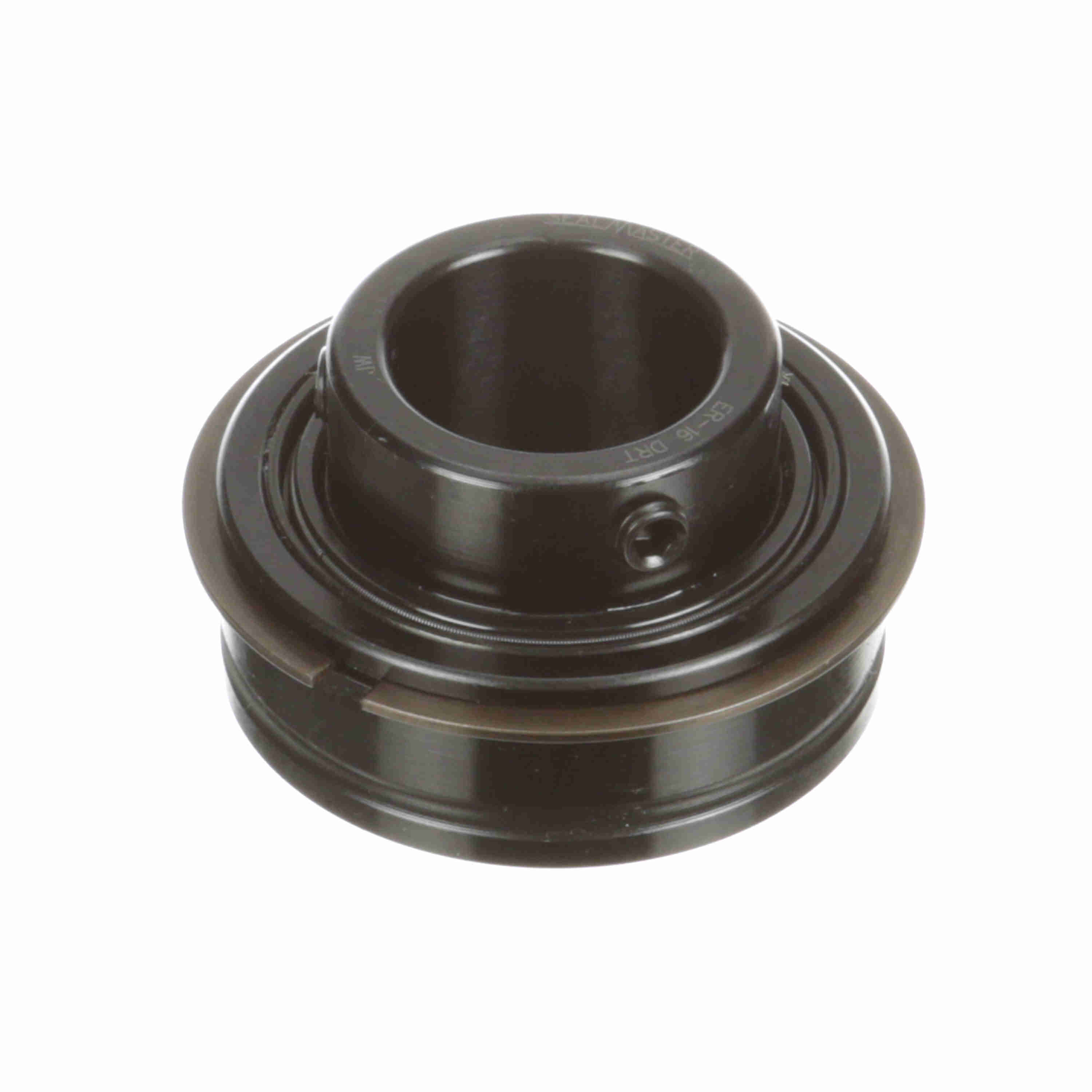

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Contamination - ER-16 DRT
Part #:711931
Catalog #:ER-16 DRT
KEY FEATURES
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Multiple seal and 100% grease fill for harsh environments
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.38 in | Bore Size (in): | 1 in |
| Outer Race OD (mm): | 52 mm | Inner Ring OD (in): | 1.375 in |
| Outer Race OD (in): | 2.0472 in | Outer Race Width (in): | 0.75 in |
| Centerline to Front Face (in): | 0.859 in | Collar OD (in): | 1.98 in |
| Length Through Bore (in): | 1.375 in | Outer Race Width (mm): | 19.1 mm |
Technical Specifications
| Housing Type: | Insert (ER Style) | Measure Units: | Inch |
| Seal Type: | Multi-Lip Contact Seal | Torx Cap Screw: | 10-24 UNC |
| Insert Material: | 52100 Bearing Steel | Bore Shape: | Straight |
| Set Screw Thread: | 10-24 UNC | Rolling Element: | Ball Bearing |
| Expansion: | No | Internal Clearance: | Standard |
| Misalignment: | None | Outer Ring Land Profile: | Tapered Lands |
| End Cap: | No | Options: | High Contamination |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide |
| Misalignment Type: | Static Only | Cage Material: | PPS - Polyphenylene Sulfide |
| Precision Rating: | ABEC 1 | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | Inner Ring Fillet Radius (in): | 0.04 in |
| Maximum Operating Temperature (F): | 220 °F | Vibration Frequency Outer Ring Defect: | 0.0682 cps |
| Size Code: | 2-015 | Locking Type: | Set Screw |
| Vibration Frequency Inner Ring Defect: | 0.0985 cps | Series: | Unmounted Replacement Bearings |
| Vibration Frequency Roller Spin: | 0.0442 cps | Duty/Status: | Standard |
| Setscrew Torque (in-lbs): | 70 in/lbs | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Ability to Relubricate: | Yes | Maximum Speed (rpm): | 550 rpm |
| Inner Race Heat Treat Method: | Zone-Hardened | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Cage Type: | Land Riding Retainer | Static Load Rating (lb): | 1,651 lb |
| Dynamic Load Rating (lb): | 2,801 lb |
General Specifications
| UPC: | 662461342398 | Weight: | 0.68 LB |
| Packaged Length: | 2.38 IN | Packaged Width: | 1.44 IN |
| Packaged Height: | 2.38 IN | HTC: | 8482.10.5048 |
| Country of Origin: | Mexico |
