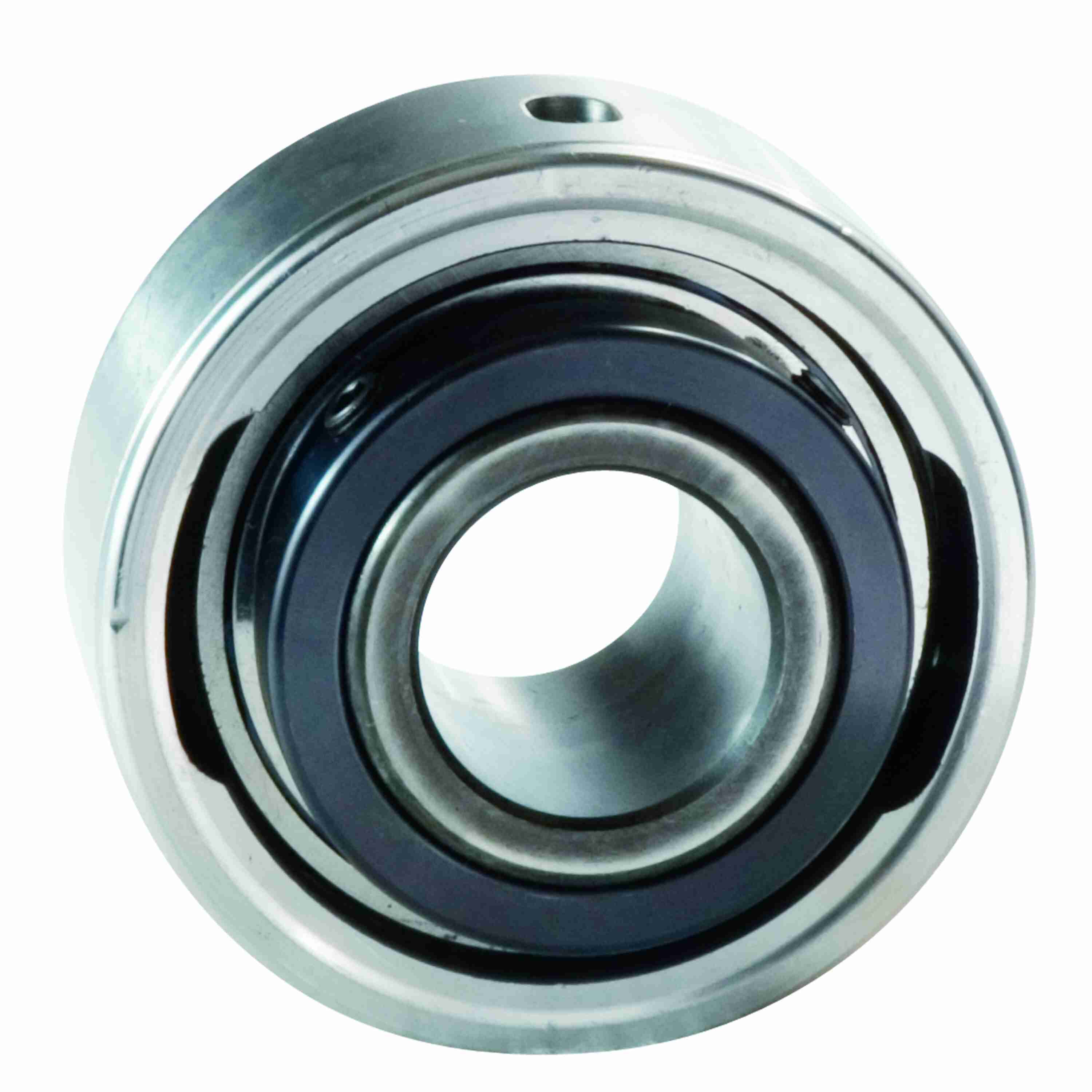

Link-Belt CEU320 Cartridge Blocks Ball Bearings - CEU320
Part #:10434742
Catalog #:CEU320
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.75 in | Bore Diameter (in): | 1.25 in |
| Overall Length (in): | 3.75 in | Length Through Bore (in): | 2.1 in |
| Overall Width (in): | 2.1 in | Centerline to Outermost Bearing Face (in): | 1.25 in |
Technical Specifications
| Bore Shape: | Straight | Housing Type: | Cartridge, Cylindrical |
| Cage Material: | Molded fiber glass reinforced nylon | Rolling Element: | Ball Bearing |
| Housing Style: | Cartridge Block | Misalignment Type: | Static Only |
| Housing Construction: | One Piece | Outside Diameter (in): | 3.75 |
| Outer Ring Land Profile: | Standard | Seal Type: | Clearance Seal with Flinger |
| Locking Collar Outside Diameter (in): | 2.54 in | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Inner Ring Outside Diameter (in): | 1.946 in |
| Size Code: | 323 | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Lubricant: | Lithium Complex NLGI 2 Grease | Max Operating Temperature (F): | 225 °F |
| Radial Clearance: | C3 STANDARD | Max Operating Temperature (C): | 107 °C |
| Expansion Capability (in): | 0.19 in | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Dynamic Load Rating (lb): | 7,490 lb | End Cap: | U3236C |
| Vibration Frequency Inner Ring Defect: | 0.0823 cps | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Housing Material: | Steel | Fixed vs. Expansion: | Expansion |
| Bearing Type: | Heavy Duty | Vibration Frequency Roller Spin: | 0.0335 cps |
| Static Load Rating (lb): | 4,290 lb | Cage Type: | Ball Riding Retainer |
| Insert: | UG320L | End Cap Available: | Yes |
| Locking Device Kit: | U3235S | Expansion Lock Plug: | 3198B |
| Maximum Speed (RPM): | 7550 rpm | Vibration Frequency Outer Ring Defect: | 0.0510 cps |
| Grease Fitting Thread Size: | 1/4-28 | Shaft Locking Type: | Set Screw |
| Bearing Insert Material: | 52100 Bearing Steel | Housing Width (in): | 1.5 in |
General Specifications
| UPC: | 662327734428 | Weight: | 3.53 LB |
| Packaged Length: | 4.00 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 84833080 |
