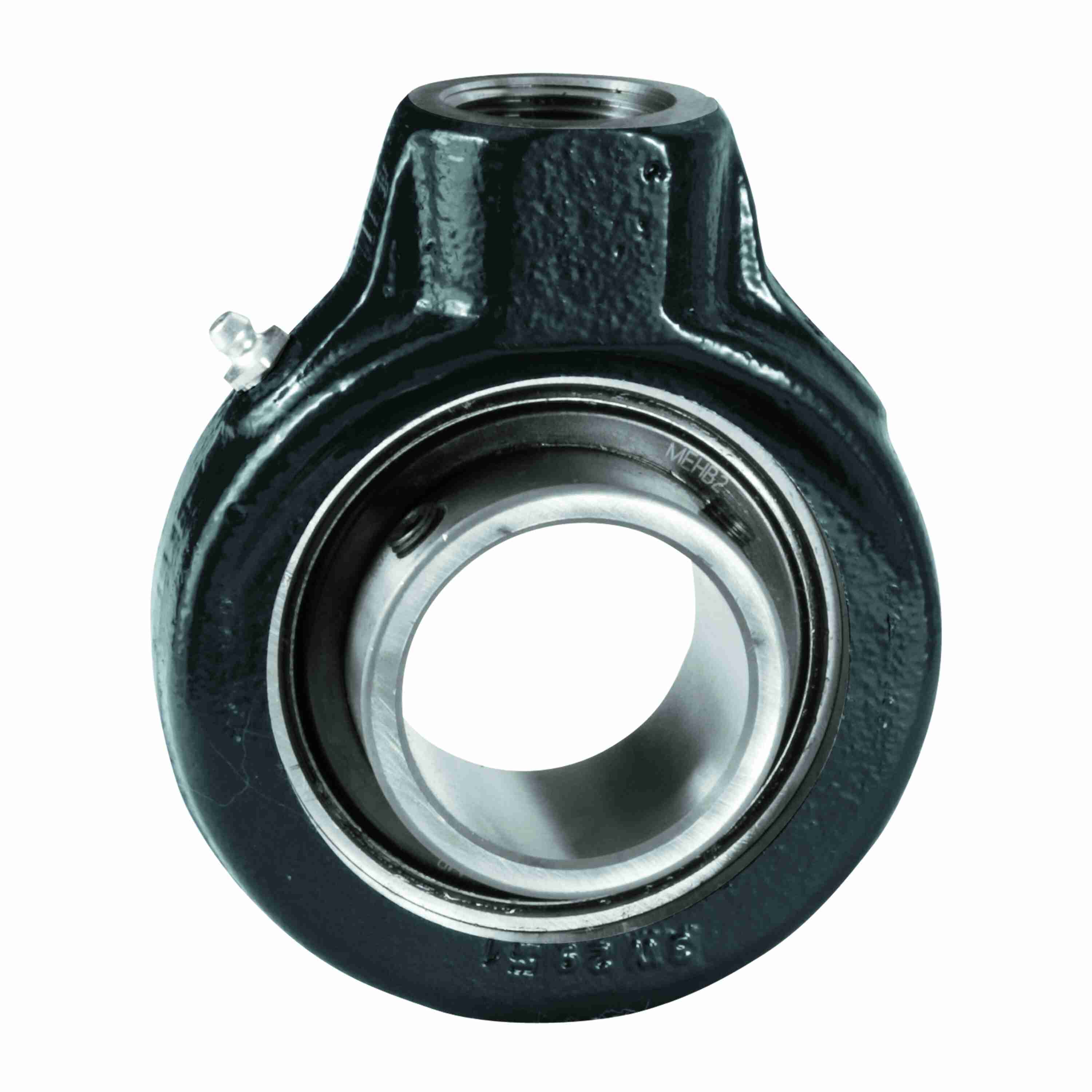

Link-Belt EHBS224E Hanger Units Ball Bearings - EHBS224E
Part #:10429842
Catalog #:EHBS224E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Thread Depth (in): | 0.63 in | Base to Center Height (in): | 2.875 in |
| Bore Diameter (in): | 1.5 in | Thread Size: | 3/4-14 |
| Overall Length (in): | 4 in | Length Through Bore (in): | 1.656 in |
| Base Width (in): | 1.66 in | Overall Height (in): | 4.88 in |
| Overall Width (in): | 1.66 in | Centerline to Outermost Bearing Face (in): | 1.17 in |
Technical Specifications
| Bore Shape: | Straight | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Housing Type: | Hanger Unit |
| Housing Construction: | One Piece | Cage Material: | Molded fiber glass reinforced nylon |
| Seal Type: | Single Lip Contact Seal | Housing Style: | Hanger Block |
| Rolling Element: | Ball Bearing | Housing Color: | Black |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Ability to Relubricate: | Yes |
| Bearing Insert Material: | 52100 Bearing Steel | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Housing Coating: | Powder Coated | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Fixed vs. Expansion: | Fixed | Static Load Rating (lb): | 4,460 lb |
| Lubricant: | Lithium Complex NLGI 2 Grease | Maximum Speed (RPM): | 4500 rpm |
| Bearing Type: | Intermediate Duty | Inner Ring Outside Diameter (in): | 2.084 in |
| Shaft Locking Type: | Set Screw | Cage Type: | Ball Riding Retainer |
| Insert: | SG224ELPA | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Roller Spin: | 0.0367 cps | Housing Material: | Cast Iron |
| Vibration Frequency Fundamental Train: | 0.0065 cps | Vibration Frequency Inner Ring Defect: | 0.0912 cps |
| Max Operating Temperature (C): | 107 °C | End Cap Available: | No |
| Vibration Frequency Outer Ring Defect: | 0.0588 cps | Size Code: | 208 |
| Radial Clearance: | C3 STANDARD | Dynamic Load Rating (lb): | 7,330 lb |
| Max Operating Temperature (F): | 225 °F | Housing Width (in): | 1.34 in |
General Specifications
| UPC: | 662864874731 | Weight: | 3.40 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
