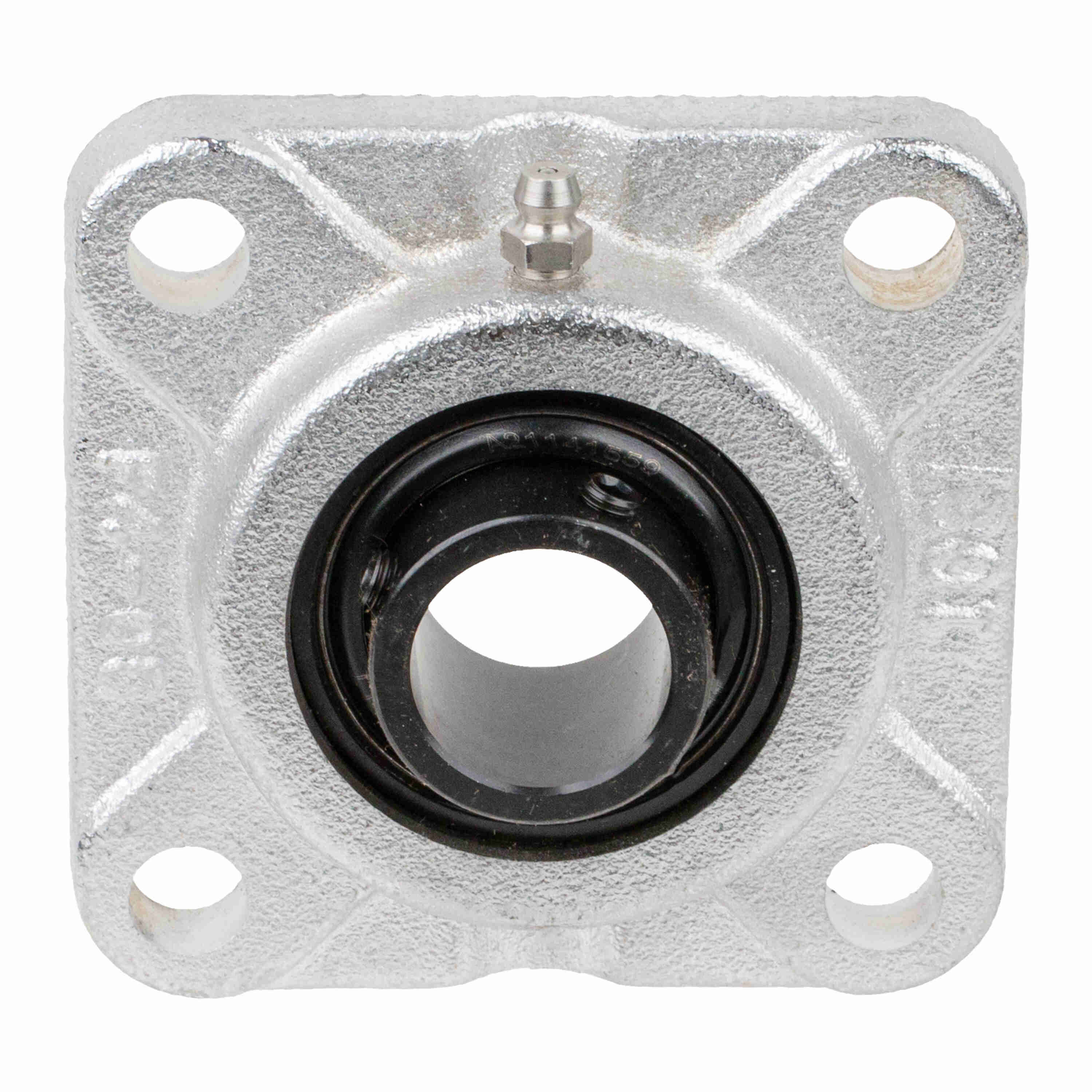

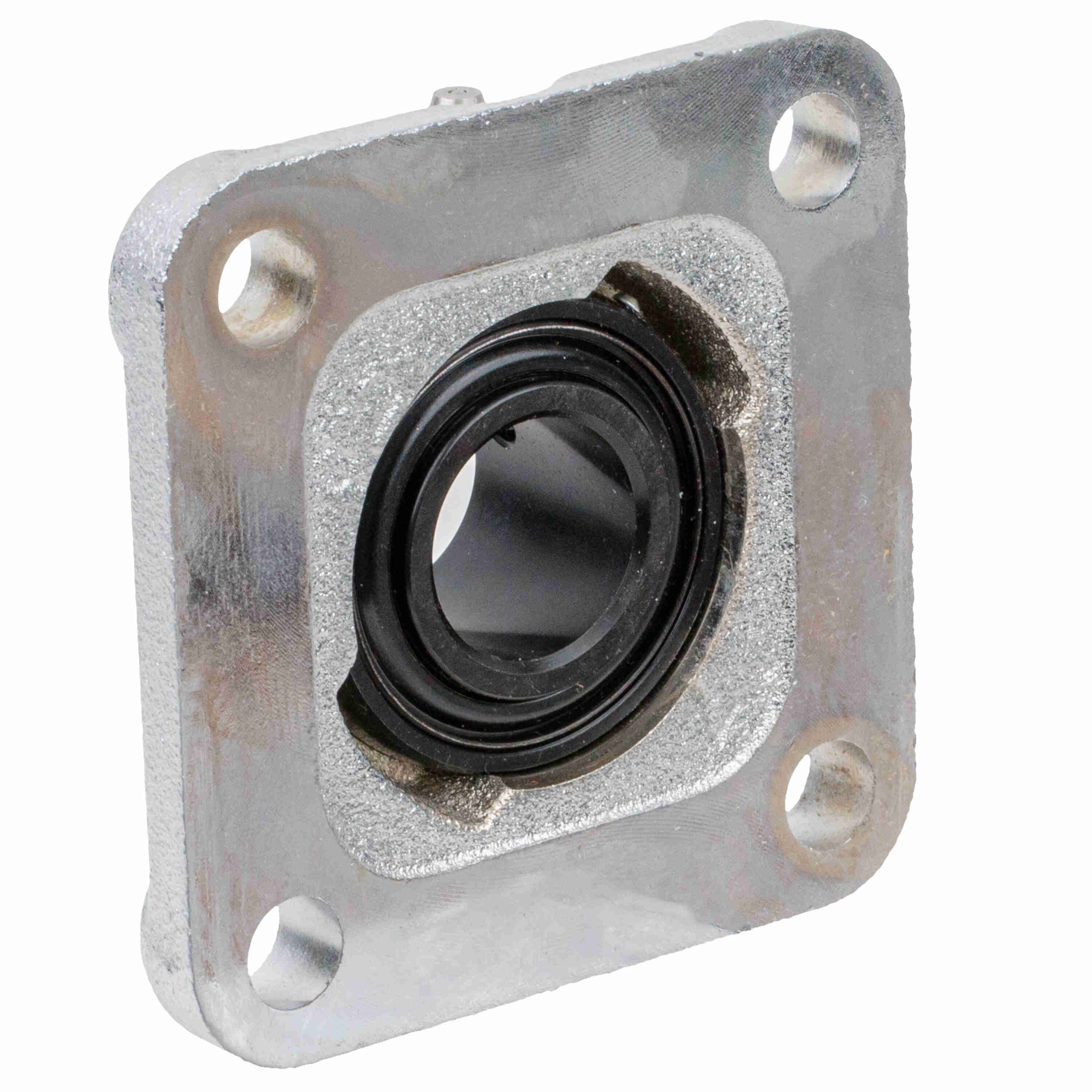

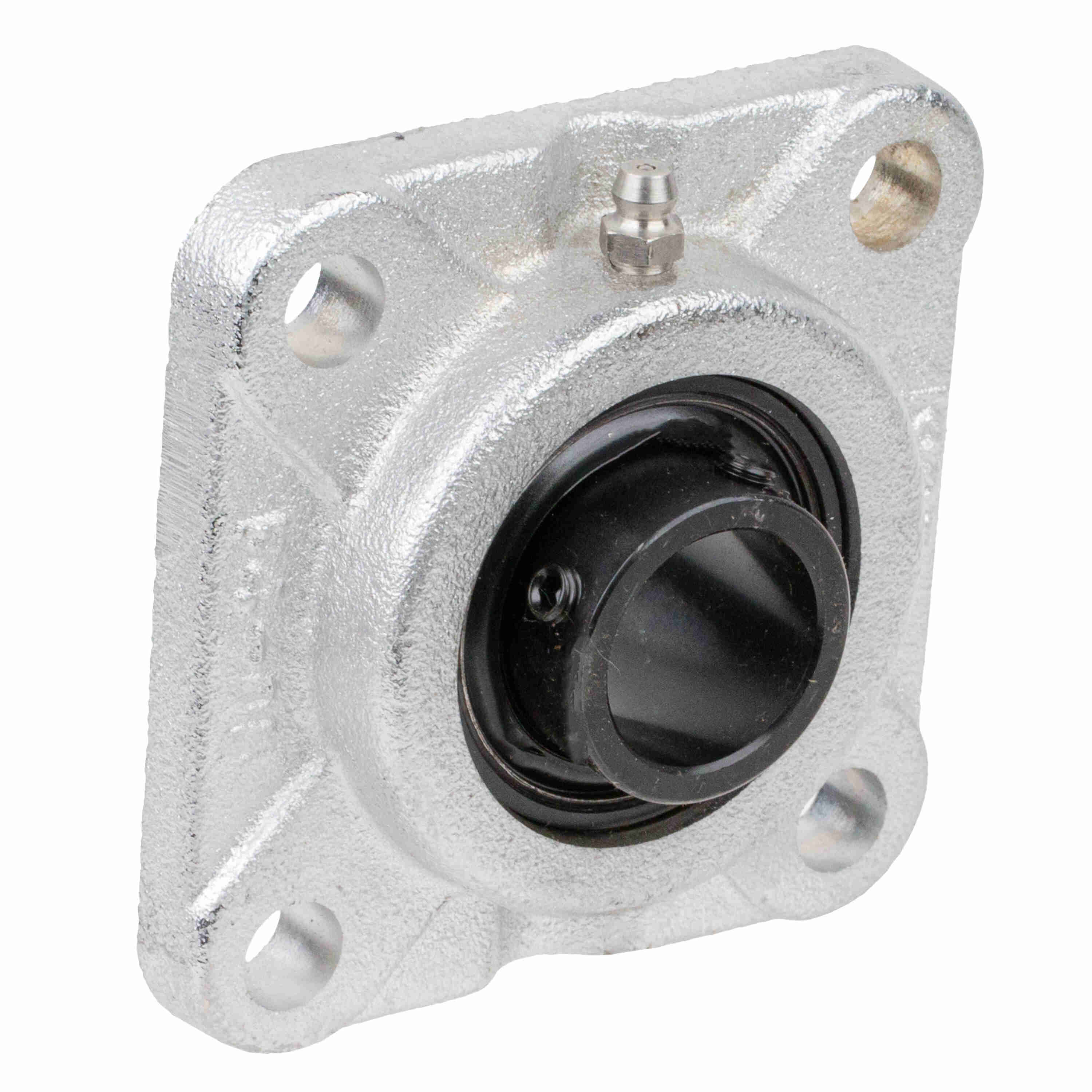

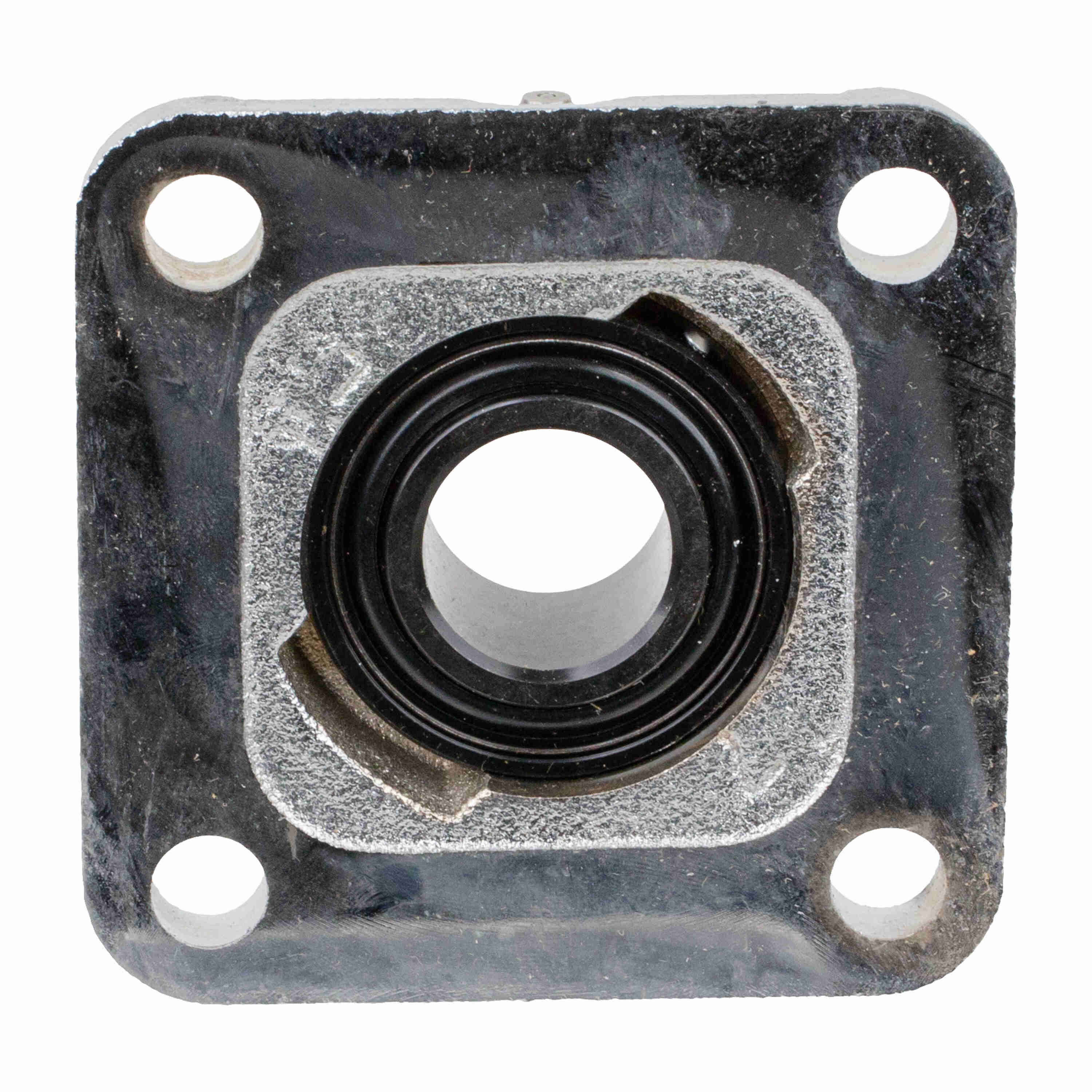

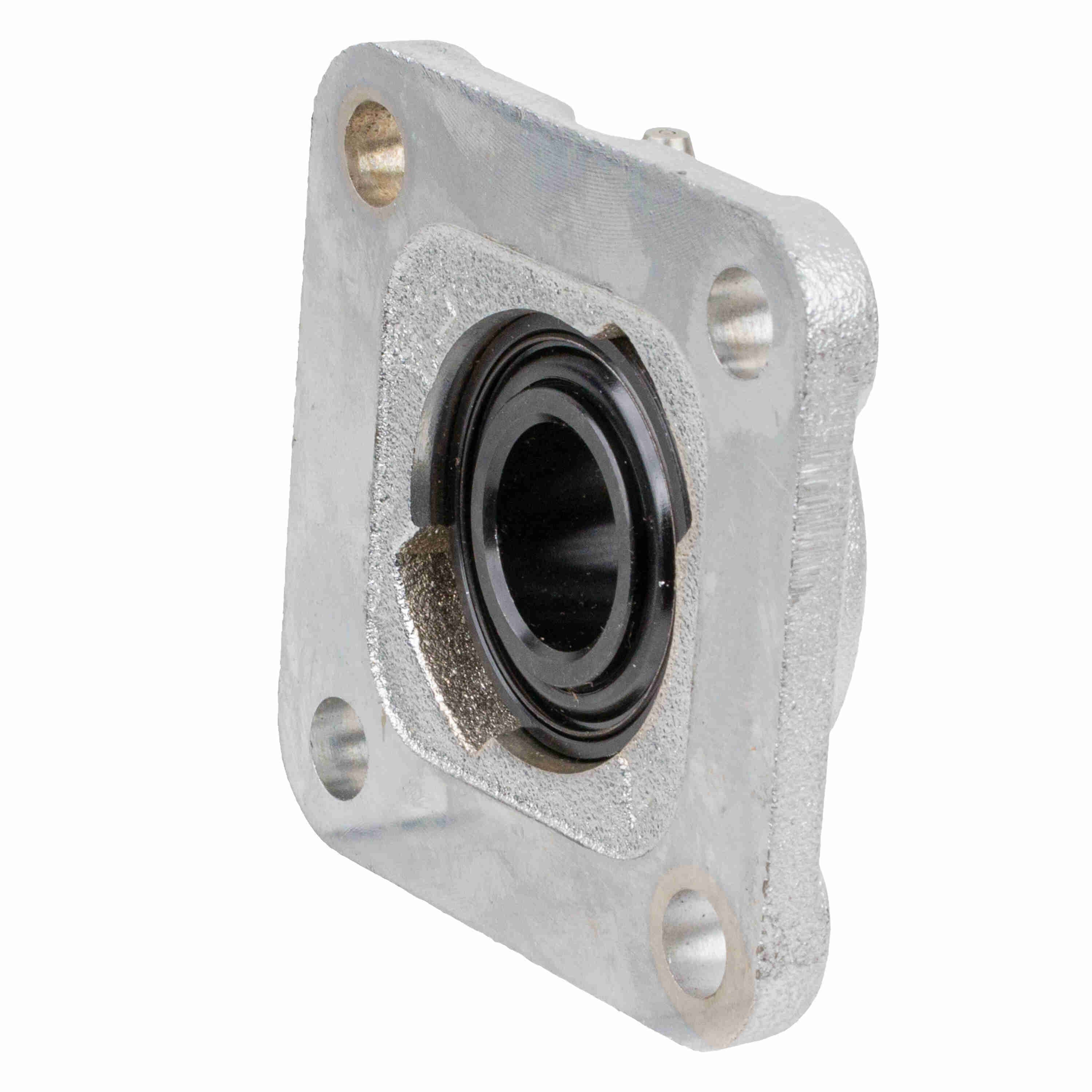

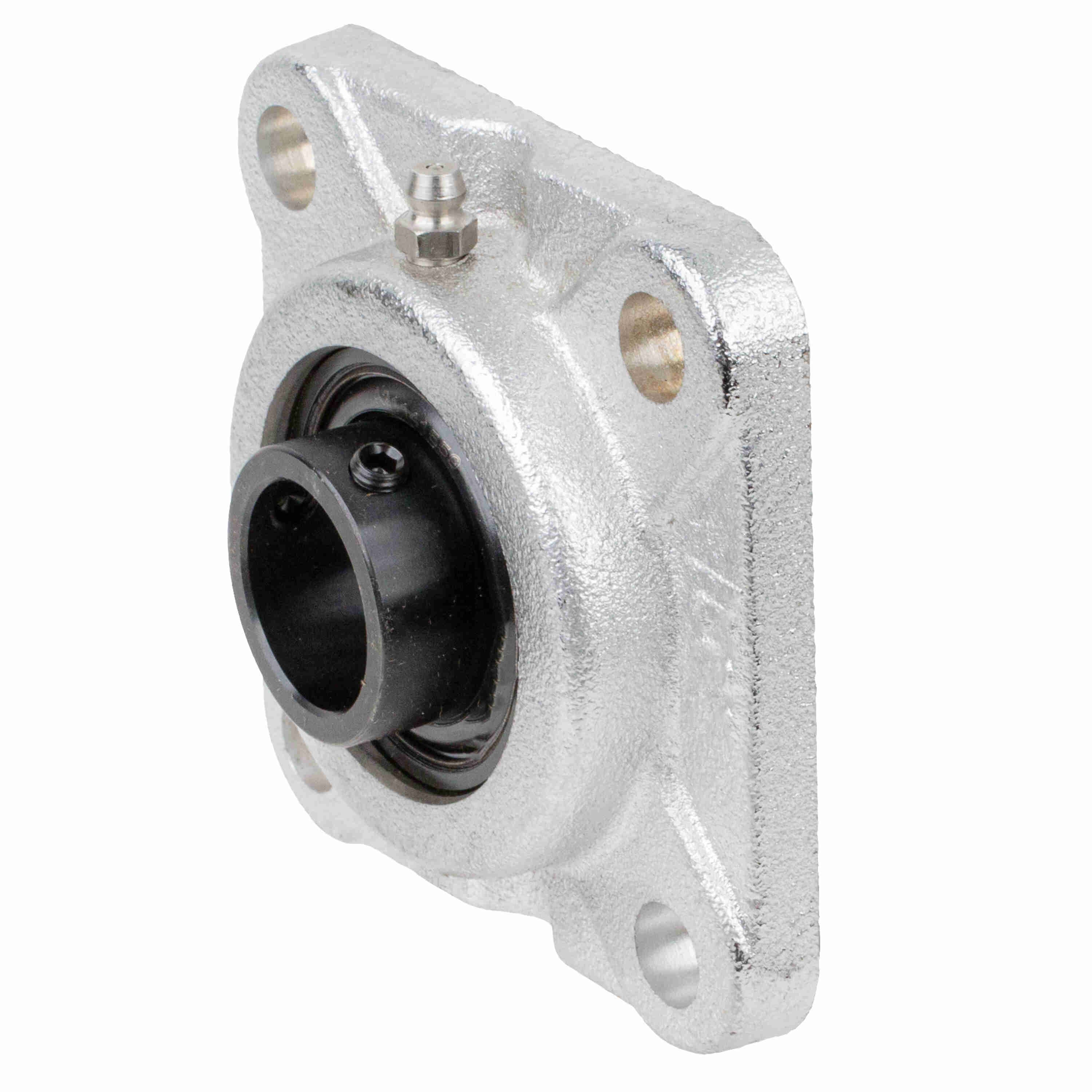

Link-Belt F3U239NK75 Flange Blocks Ball Bearings - F3U239NK75
Part #:10434877
Catalog #:F3U239NK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 2.504 in | Overall Height (in): | 2.844 in |
| Bolt Size (in): | 5/8 in | Foot Height (in): | 0.94 in |
| Overall Length (in): | 6.88 in | Overall Width (in): | 6.88 in |
| Bore Diameter (in): | 2.4375 in | Bolt Spacing (in): | 5.6250 in |
Technical Specifications
| Cage Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Housing Style: | Flange Block | Housing Construction: | One Piece |
| Bore Shape: | Straight | Housing Type: | Flange, Four Bolt |
| Pilot Configuration: | No Pilot | Misalignment Type: | Static Only |
| Options: | Housing Nickel Plated | Rolling Element: | Ball Bearing |
| Housing Color: | Silver | Seal Type: | Single Lip Contact Seal |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Size Code: | 212 | Housing Material: | Cast Iron |
| Vibration Frequency Roller Spin: | 0.0430 cps | Bearing Type: | Standard Duty |
| Cage Type: | Ball Riding Retainer | Static Load Rating (lb): | 8,080 lb |
| Fixed vs. Expansion: | Fixed | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Housing Coating: | Nickel Plated |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
| Max Operating Temperature (C): | 107 °C | Insert: | UG239NL |
| Inner Ring Outside Diameter (in): | 3.012 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Outer Ring Defect: | 0.0678 cps |
| Dynamic Load Rating (lb): | 11,840 lb | Maximum Speed (RPM): | 4000 rpm |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | End Cap Available: | No |
| Shaft Locking Type: | Set Screw | Vibration Frequency Inner Ring Defect: | 0.0988 cps |
| Bearing Insert Material: | 52100 Bearing Steel |
General Specifications
| UPC: | 662327717490 | Weight: | 12.00 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
