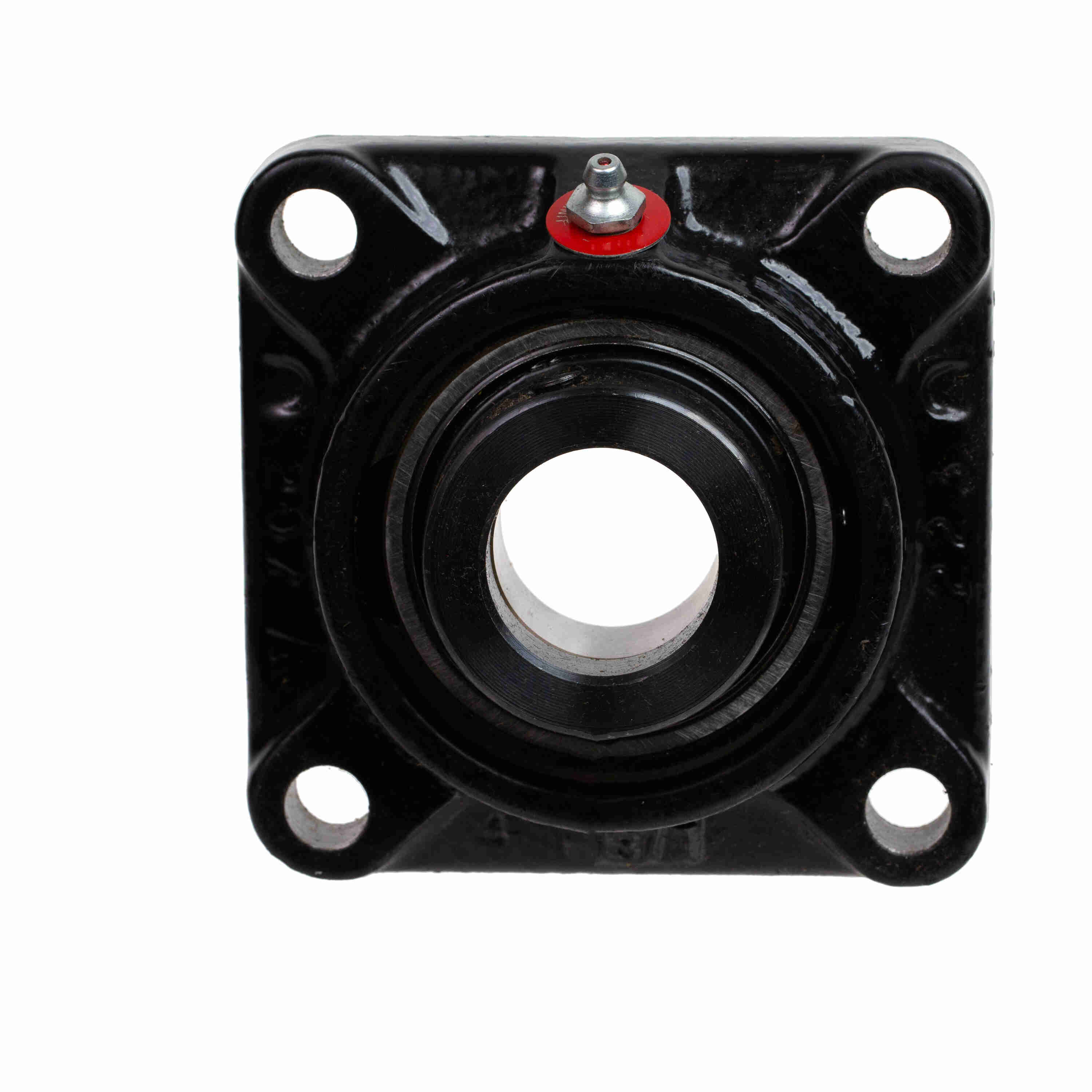

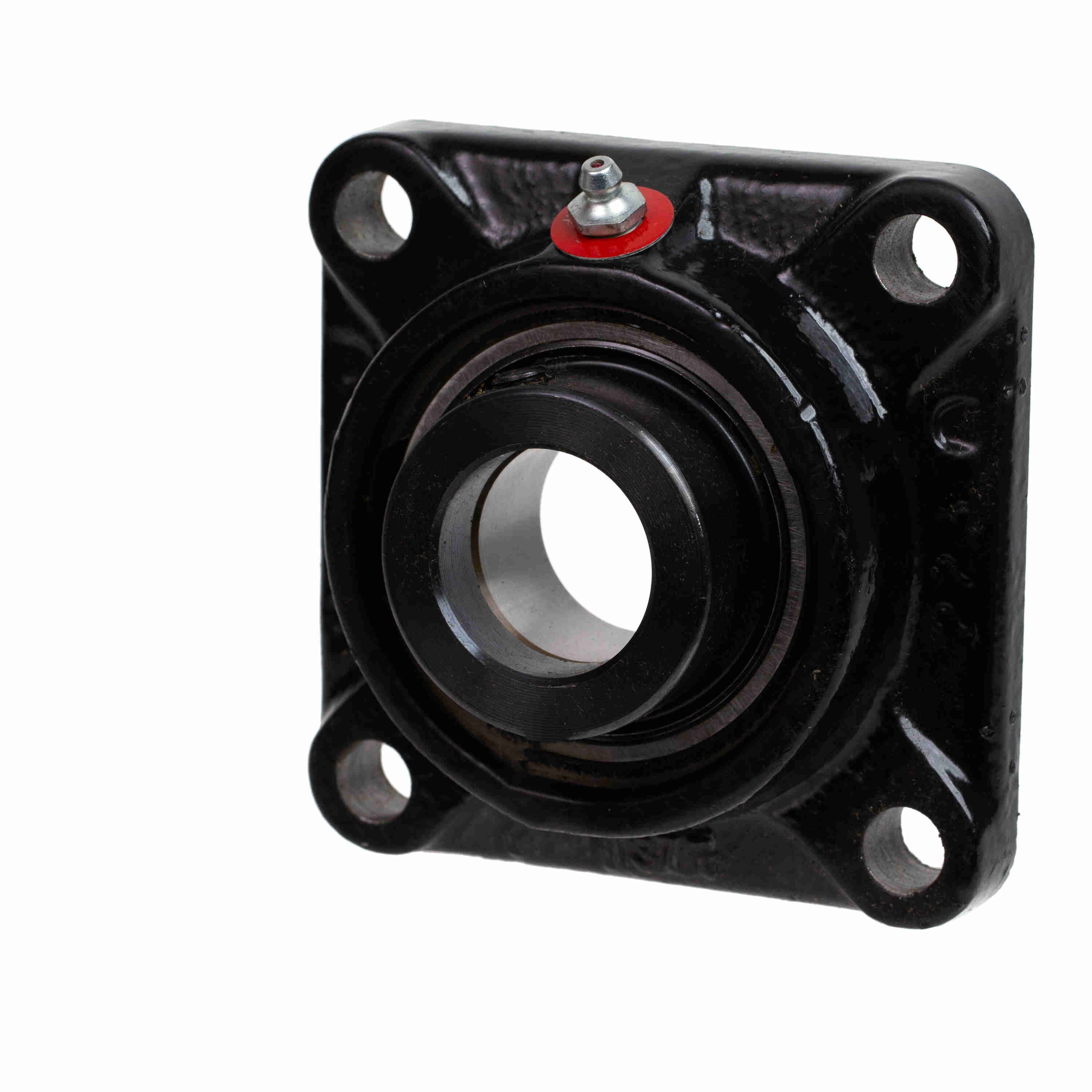

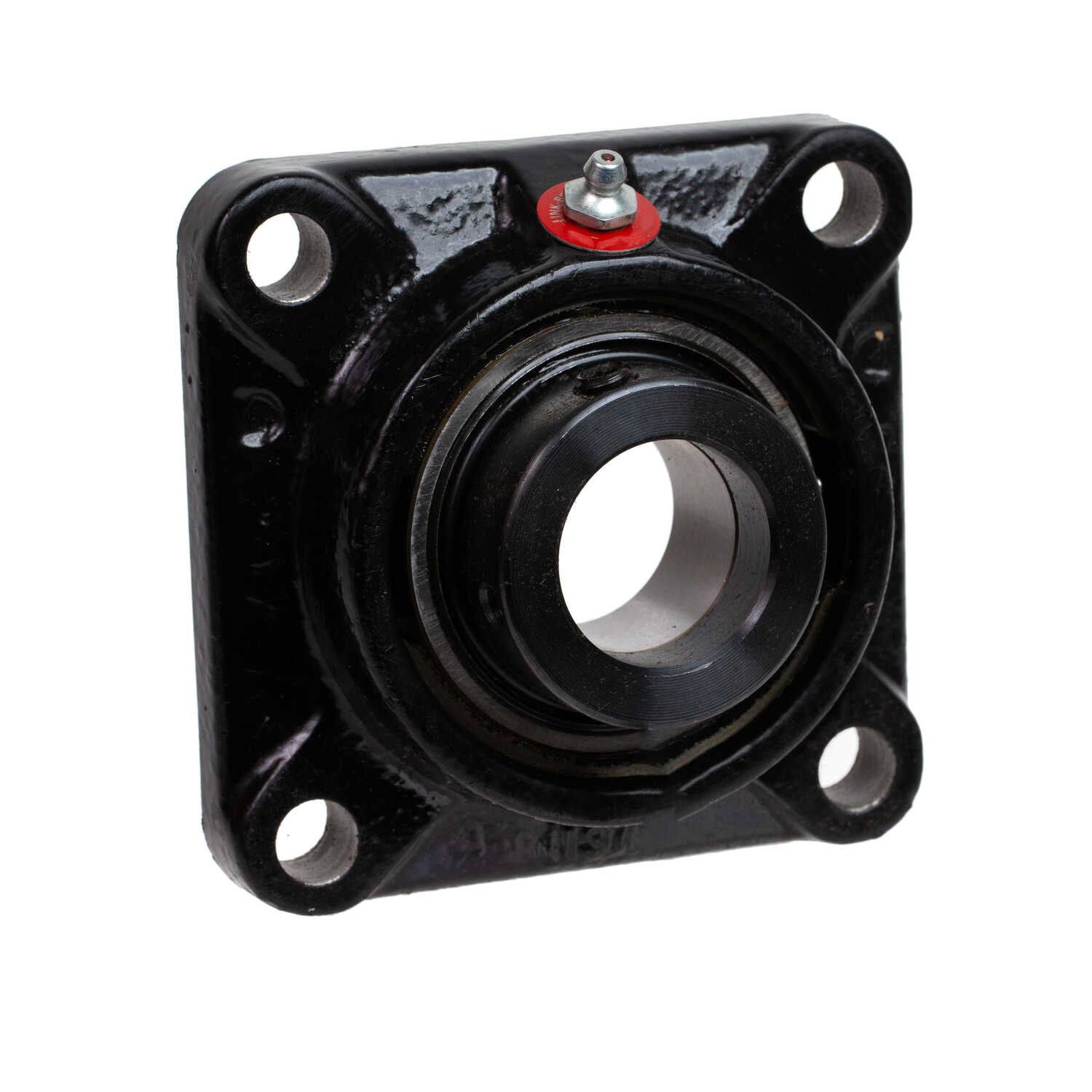

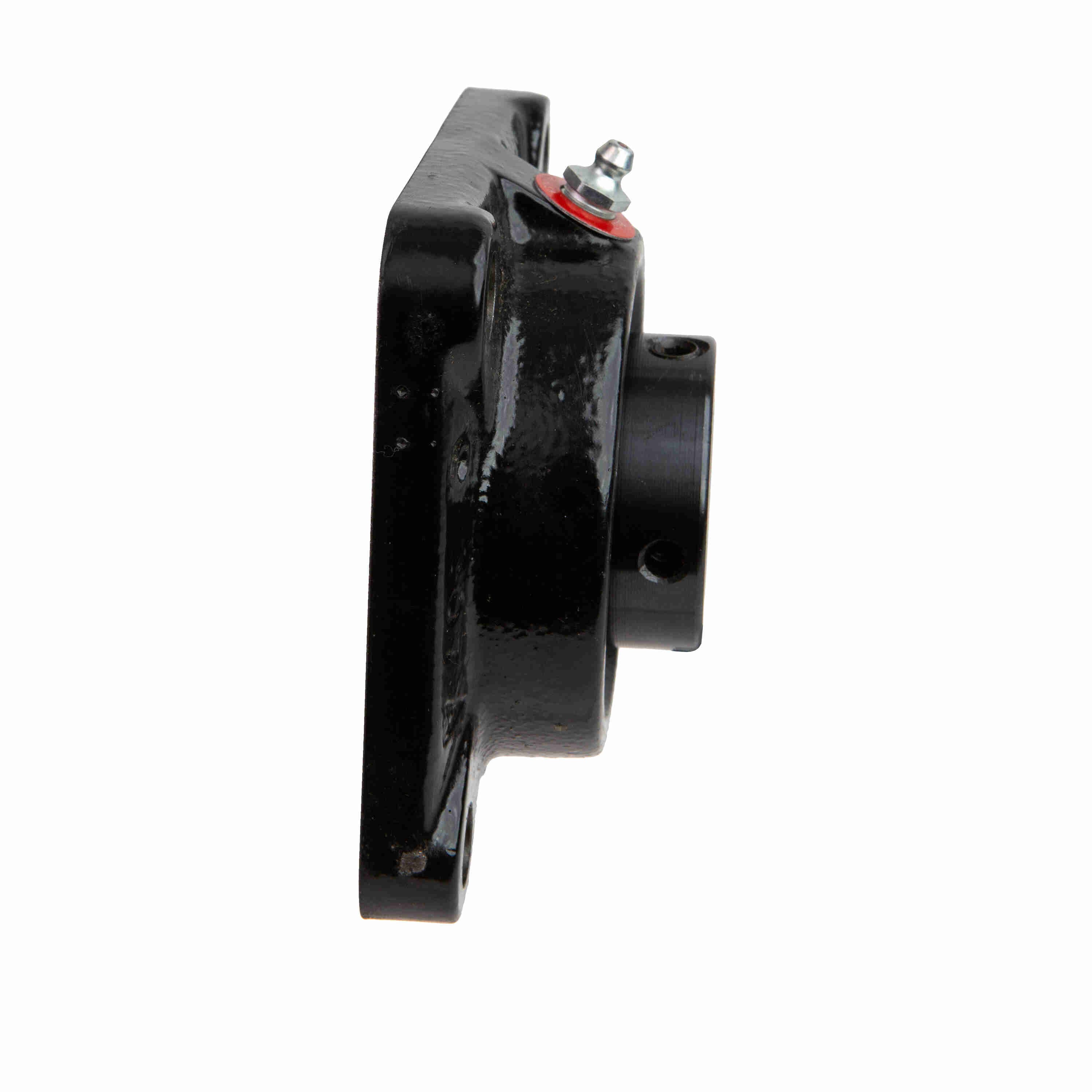

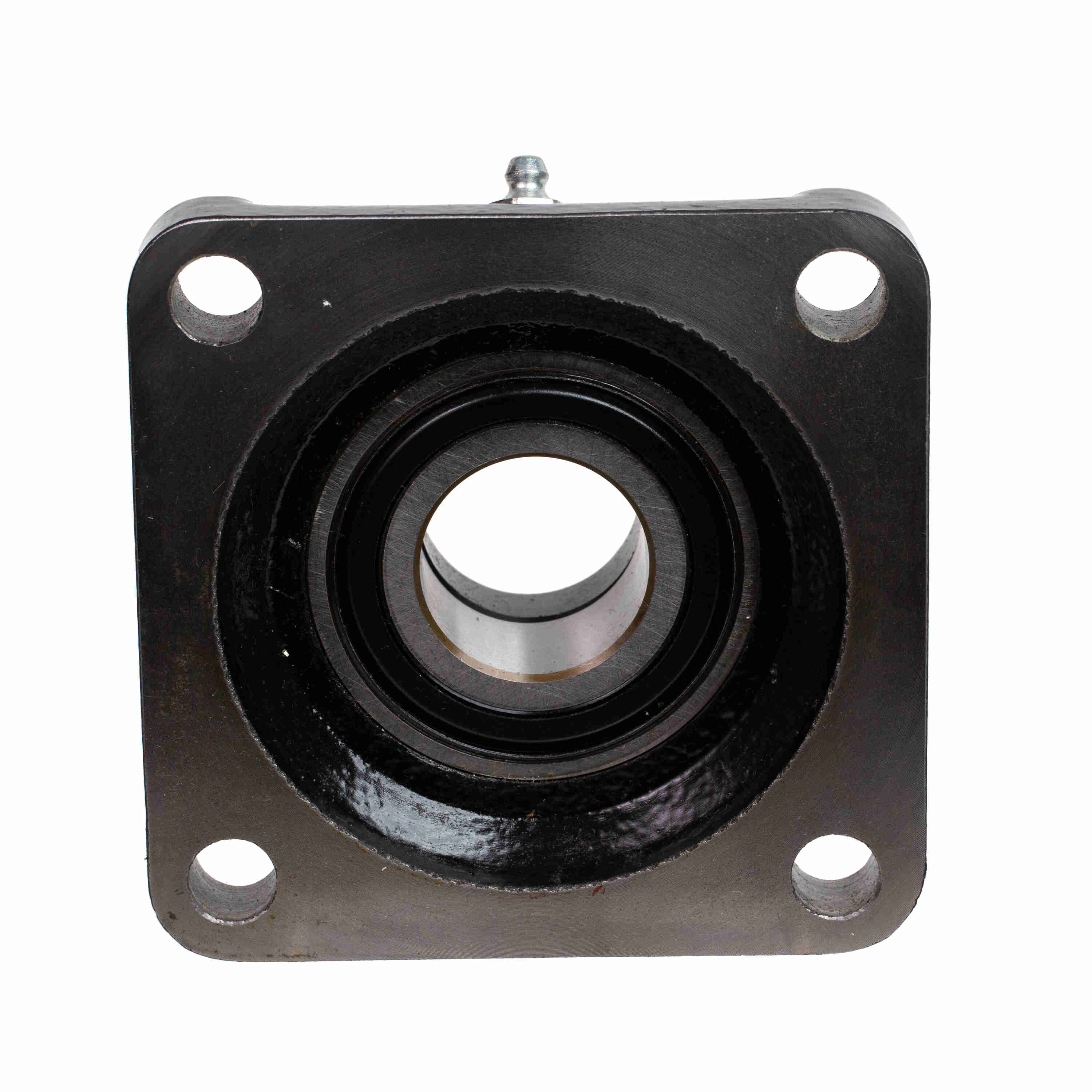

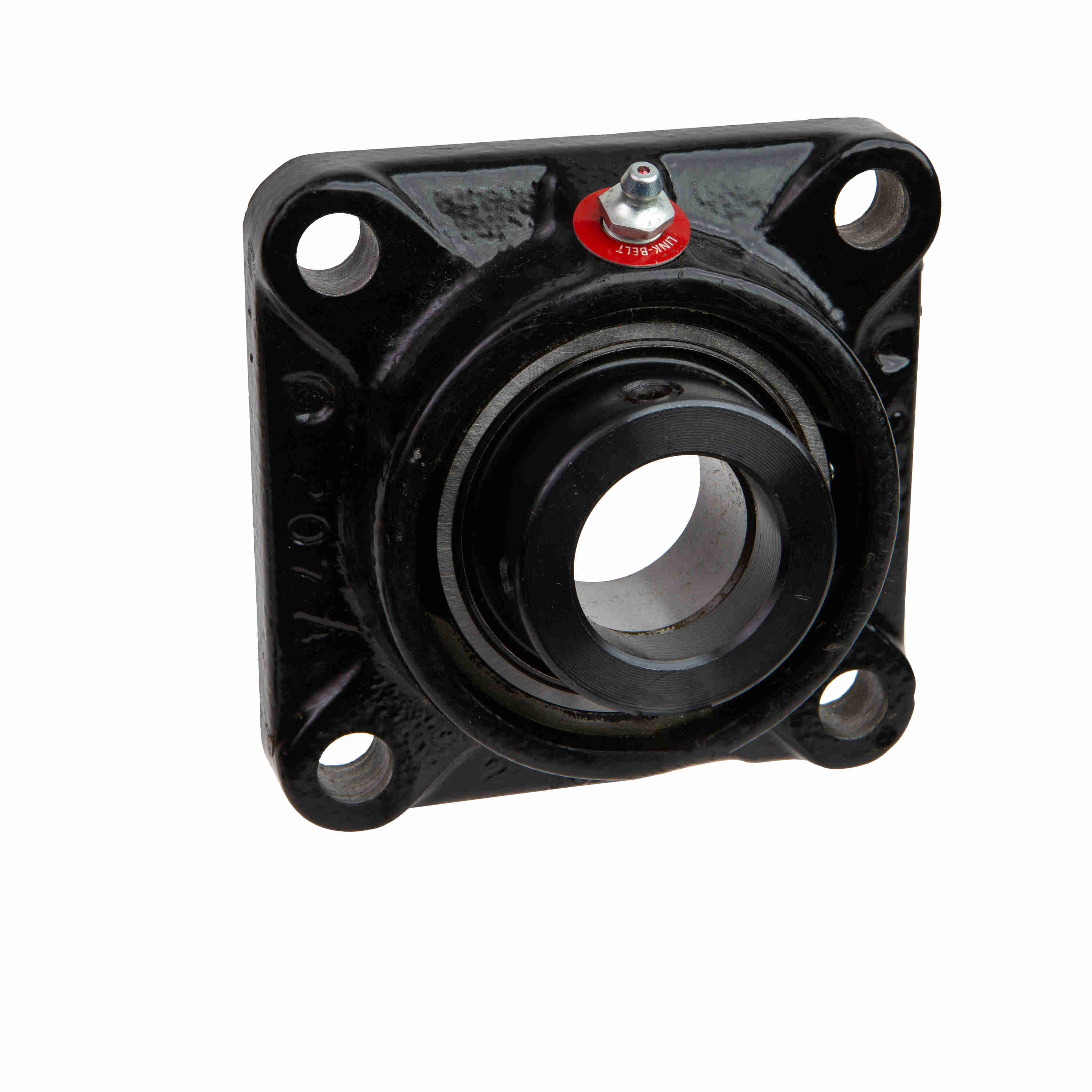

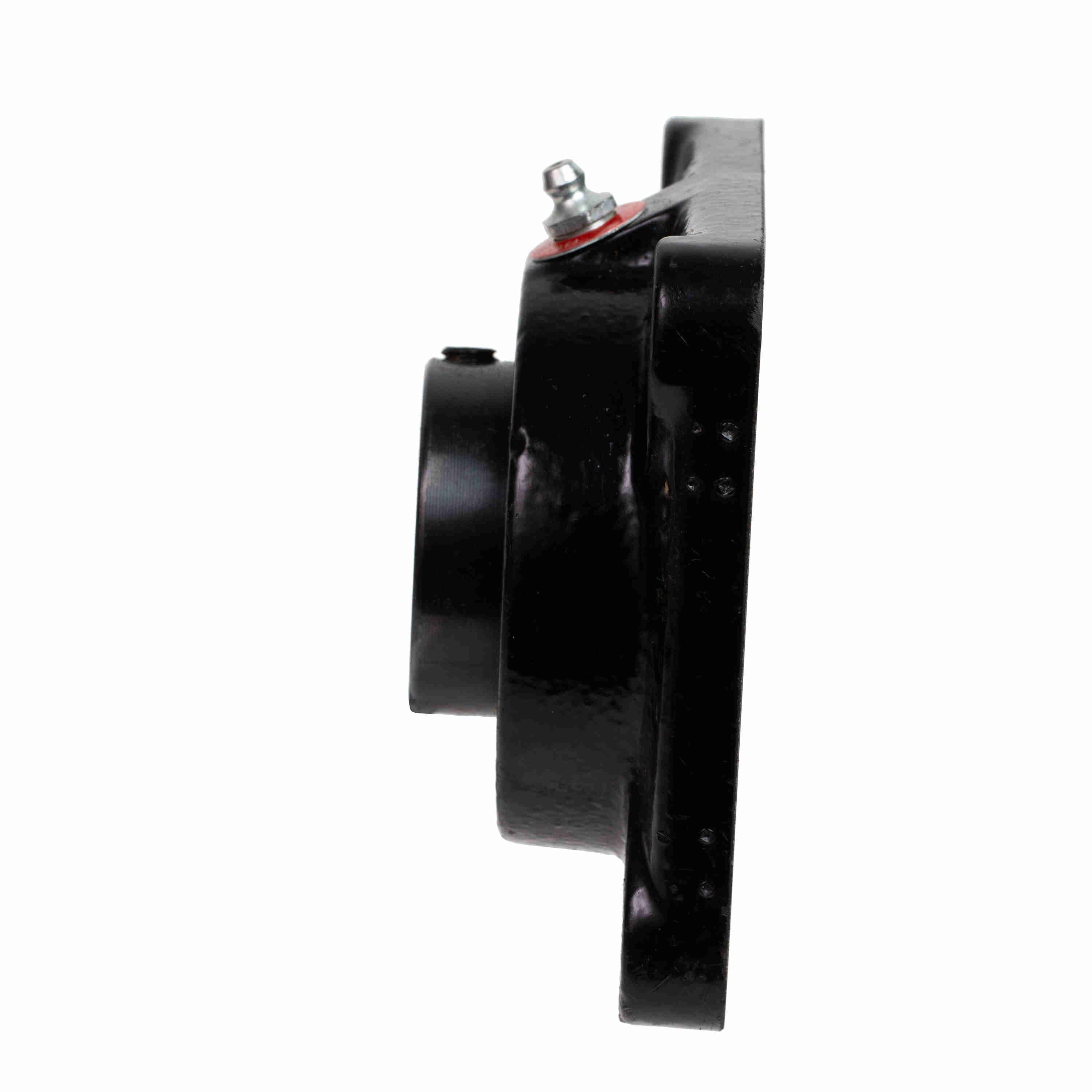

Link-Belt F3W222E Flange Blocks Ball Bearings - F3W222E
Part #:10405990
Catalog #:F3W222E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 1.53 in | Overall Height (in): | 1.97 in |
| Overall Width (in): | 4.63 in | Bore Diameter (in): | 1.375 in |
| Bolt Size (in): | 1/2 in | Foot Height (in): | 0.63 in |
| Overall Length (in): | 4.63 in | Bolt Spacing (in): | 3.6250 in |
Technical Specifications
| Housing Style: | Flange Block | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Cage Material: | Molded fiber glass reinforced nylon | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Housing Color: | Black |
| Pilot Configuration: | No Pilot | Housing Type: | Flange, Four Bolt |
| Misalignment Type: | Static Only | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 2.19 in | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Bearing Insert Material: | 52100 Bearing Steel | End Cap: | Y2236N |
| Housing Coating: | Powder Coated | Shaft Locking Type: | Eccentric |
| Bearing Type: | Intermediate Duty | Fixed vs. Expansion: | Fixed |
| Vibration Frequency Roller Spin: | 0.0383 cps | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Radial Clearance: | C3 STANDARD | Size Code: | 207 |
| Maximum Speed (RPM): | 4800 rpm | Locking Device Kit: | W2225S |
| Insert: | WG222EL | Static Load Rating (lb): | 3,440 lb |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Cage Type: | Ball Riding Retainer | Inner Ring Outside Diameter (in): | 1.847 in |
| Max Operating Temperature (F): | 225 °F | End Cap Available: | Yes |
| Max Operating Temperature (C): | 107 °C | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Housing Material: | Cast Iron | Dynamic Load Rating (lb): | 5,810 lb |
| Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 662327037420 | Weight: | 3.64 LB |
| Packaged Length: | 5.31 IN | Packaged Width: | 5.31 IN |
| Packaged Height: | 2.19 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
