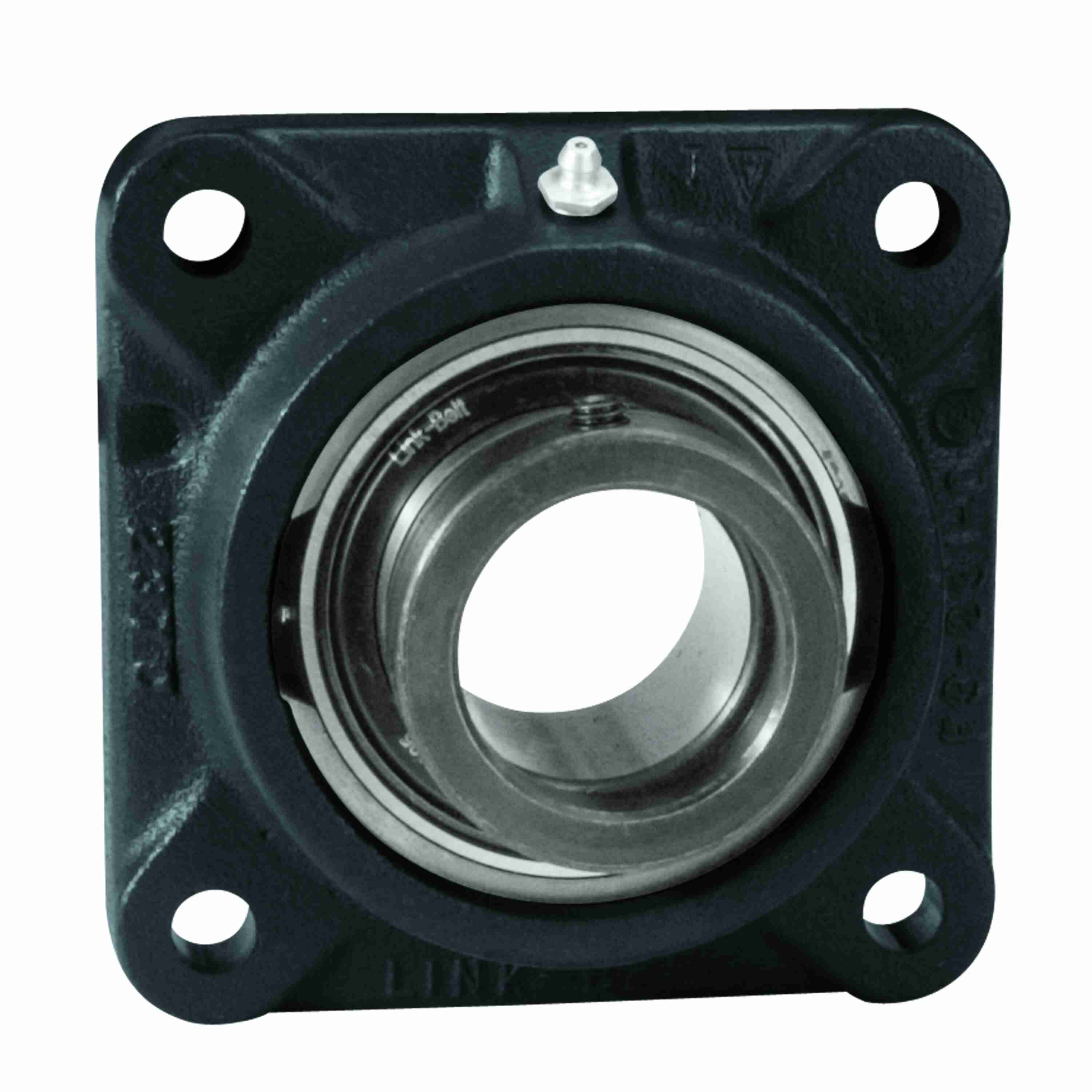

Link-Belt F3Y220E3 Flange Blocks Ball Bearings - F3Y220E3
Part #:10439423
Catalog #:F3Y220E3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.63 in | Overall Width (in): | 4.63 in |
| Bore Diameter (in): | 1.25 in | Bolt Size (in): | 1/2 in |
| Overall Height (in): | 2.08 in | Overall Length (in): | 4.63 in |
| Length Through Bore (in): | 2.02 in | Bolt Spacing (in): | 3.6250 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Construction: | One Piece | Pilot Configuration: | No Pilot |
| Outer Ring Land Profile: | Standard | Housing Style: | Flange Block |
| Housing Type: | Flange, Four Bolt | Misalignment Type: | Static Only |
| Seal Type: | Multi-Lip Contact Seal | Bore Shape: | Straight |
| Housing Color: | Black | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 2.19 in | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Insert: | YG220E3L | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Roller Spin: | 0.0383 cps | Radial Clearance: | C3 STANDARD |
| Housing Material: | Cast Iron | Locking Device Kit: | W2205S |
| End Cap Available: | Yes | Maximum Speed (RPM): | 700 rpm |
| Dynamic Load Rating (lb): | 5,810 lb | Max Operating Temperature (C): | 107 °C |
| Grease Fitting Thread Size: | 1/8 NPT | Bearing Insert Material: | 52100 Bearing Steel |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Inner Ring Outside Diameter (in): | 1.847 in |
| Housing Coating: | Powder Coated | Size Code: | 207 |
| Fixed vs. Expansion: | Fixed | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Cage Type: | Ball Riding Retainer | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Static Load Rating (lb): | 3,440 lb | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Shaft Locking Type: | Eccentric |
| Lubricant: | Lithium Complex NLGI 2 Grease | End Cap: | Y2236N |
| Bearing Type: | Standard Duty |
General Specifications
| UPC: | 662327037680 | Weight: | 4.06 LB |
| Packaged Length: | 5.31 IN | Packaged Width: | 5.31 IN |
| Packaged Height: | 2.19 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
