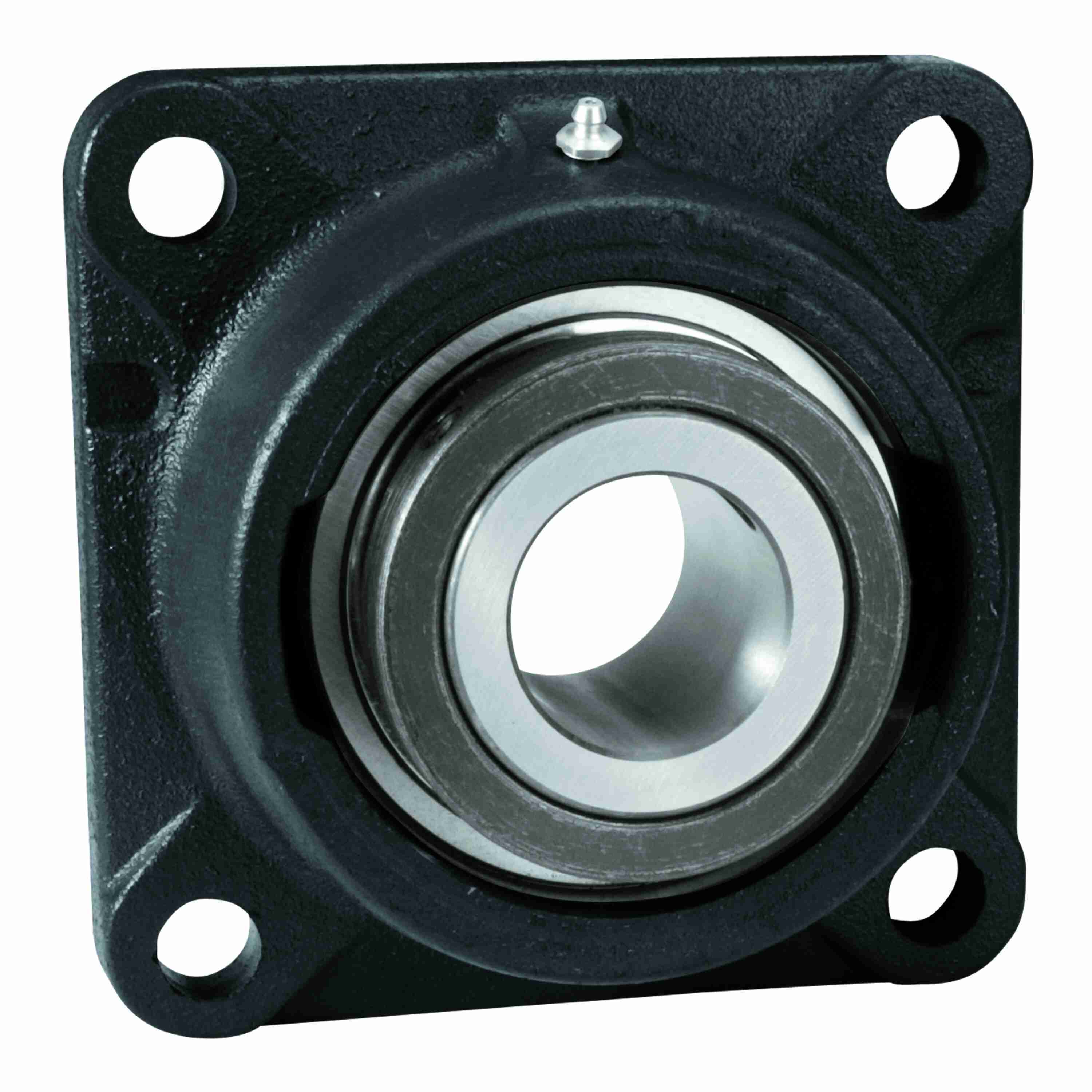

Link-Belt FA339N Flange Blocks Ball Bearings - FA339N
Part #:10489967
Catalog #:FA339N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.75 in | Overall Height (in): | 3.92 in |
| Length Through Bore (in): | 3.84 in | Overall Width (in): | 7.63 in |
| Overall Length (in): | 7.63 in | Bolt Size (in): | 3/4 in |
| Bore Diameter (in): | 2.4375 in | Bolt Spacing (in): | 6 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Housing Construction: | One Piece | Housing Type: | Flange, Four Bolt |
| Seal Type: | Double Lip Contact Seal with Flinger | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Style: | Flange Block | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Housing Color: | Black |
| Shaft Locking Collar Kit/Adapter Assembly: | AK86207 | Misalignment Type: | Static Only |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 3.59 in |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Housing Coating: | Powder Coated |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Roller Spin: | 0.0337 cps |
| Maximum Speed (RPM): | 3250 rpm | Max Operating Temperature (F): | 225 °F |
| Static Load Rating (lb): | 11,700 lb | End Cap Available: | No |
| Size Code: | 339 | Shaft Locking Type: | Tapered Adapter |
| Locking Device Kit: | AK86207 | Inner Ring Outside Diameter (in): | 3.216 in |
| Dynamic Load Rating (lb): | 18,390 lb | Grease Fitting Thread Size: | 1/8 NPT |
| Bearing Insert Material: | 52100 Bearing Steel | Housing Material: | Cast Iron |
| Vibration Frequency Inner Ring Defect: | 0.0823 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Insert: | AG339NL | Fixed vs. Expansion: | Fixed |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Bearing Type: | Heavy Duty |
| Impact Style Shurlok Install Tool: | 105-90425-31 | Vibration Frequency Outer Ring Defect: | 0.0510 cps |
| Cage Type: | Ball Riding Retainer |
General Specifications
| UPC: | 782934918582 | Weight: | 19.00 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
