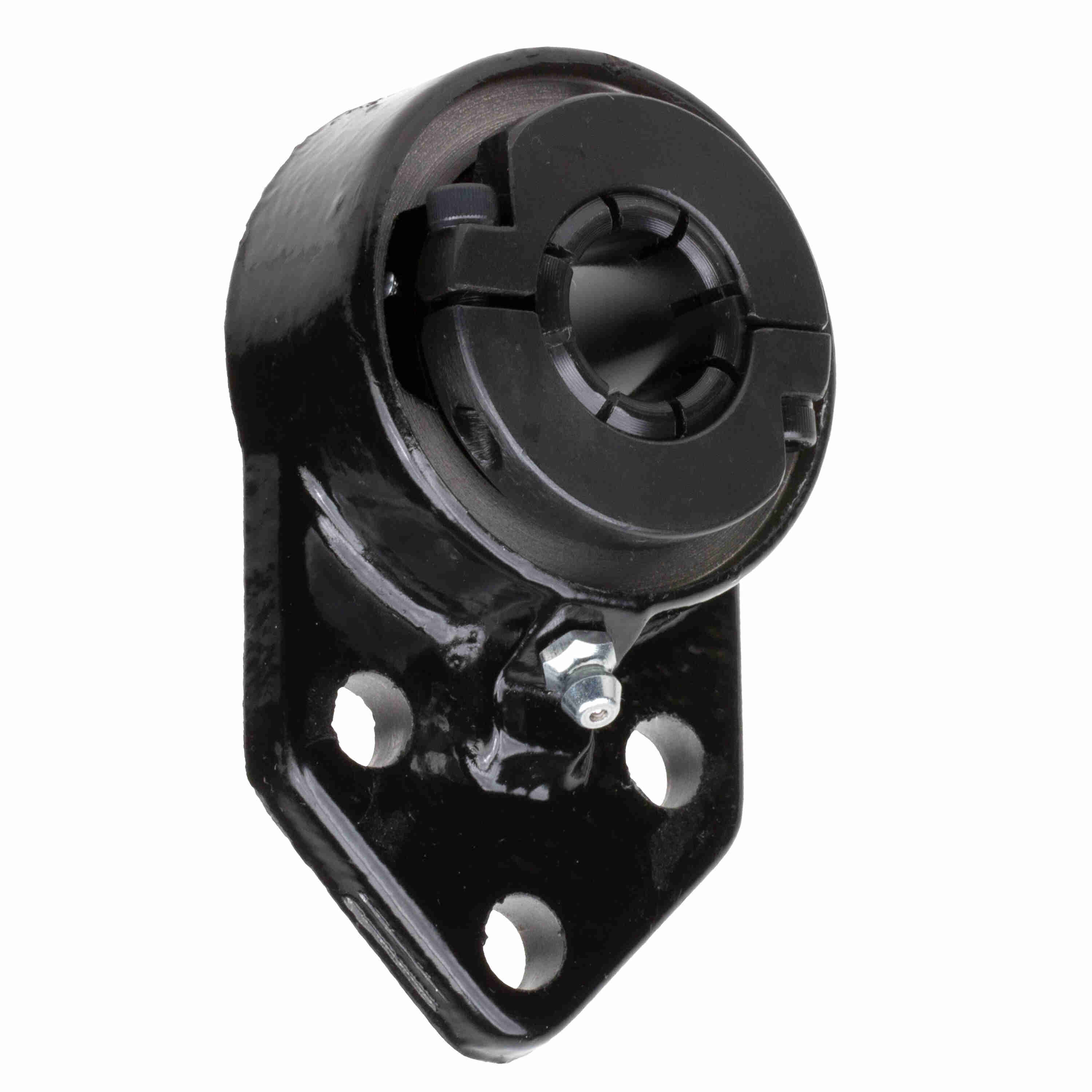

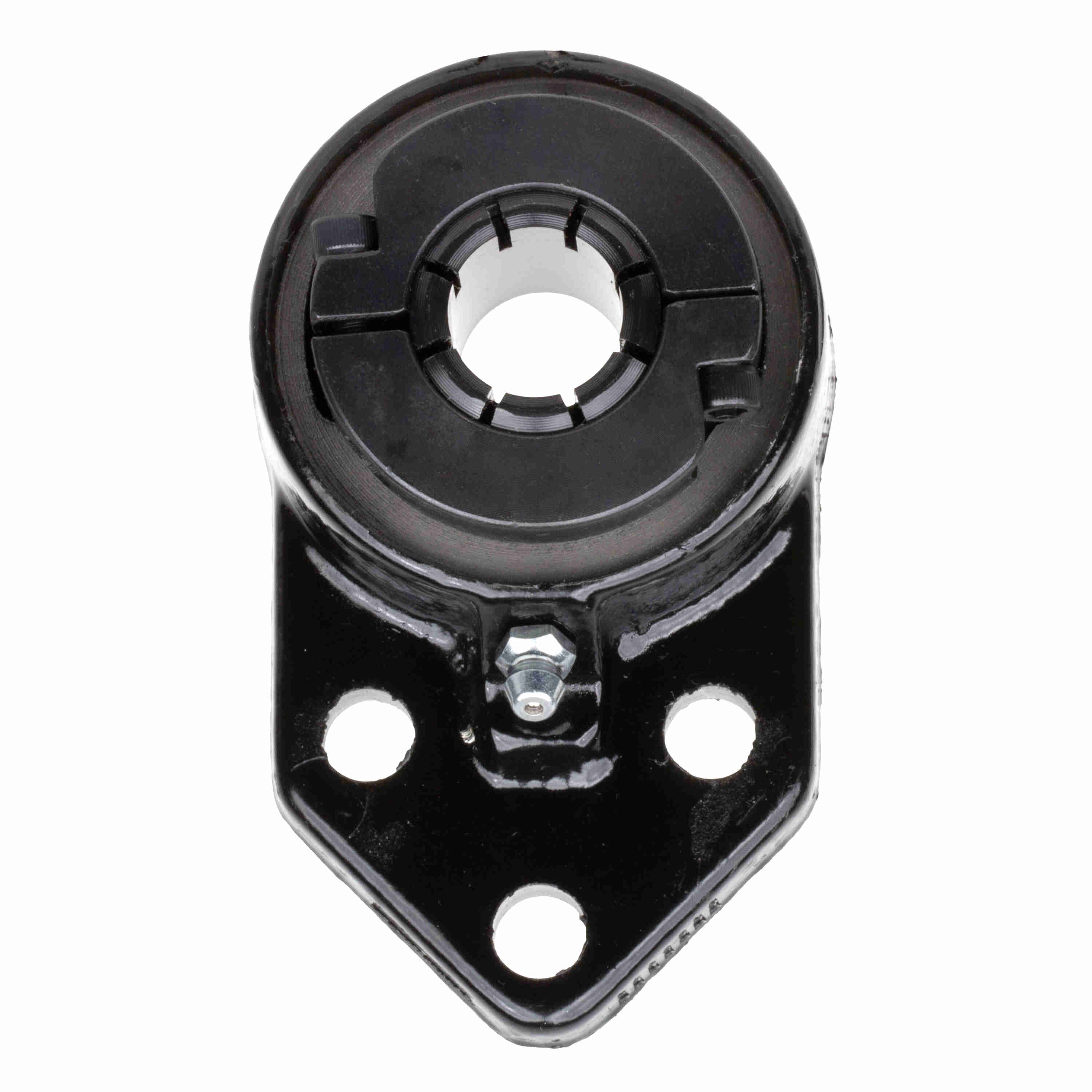

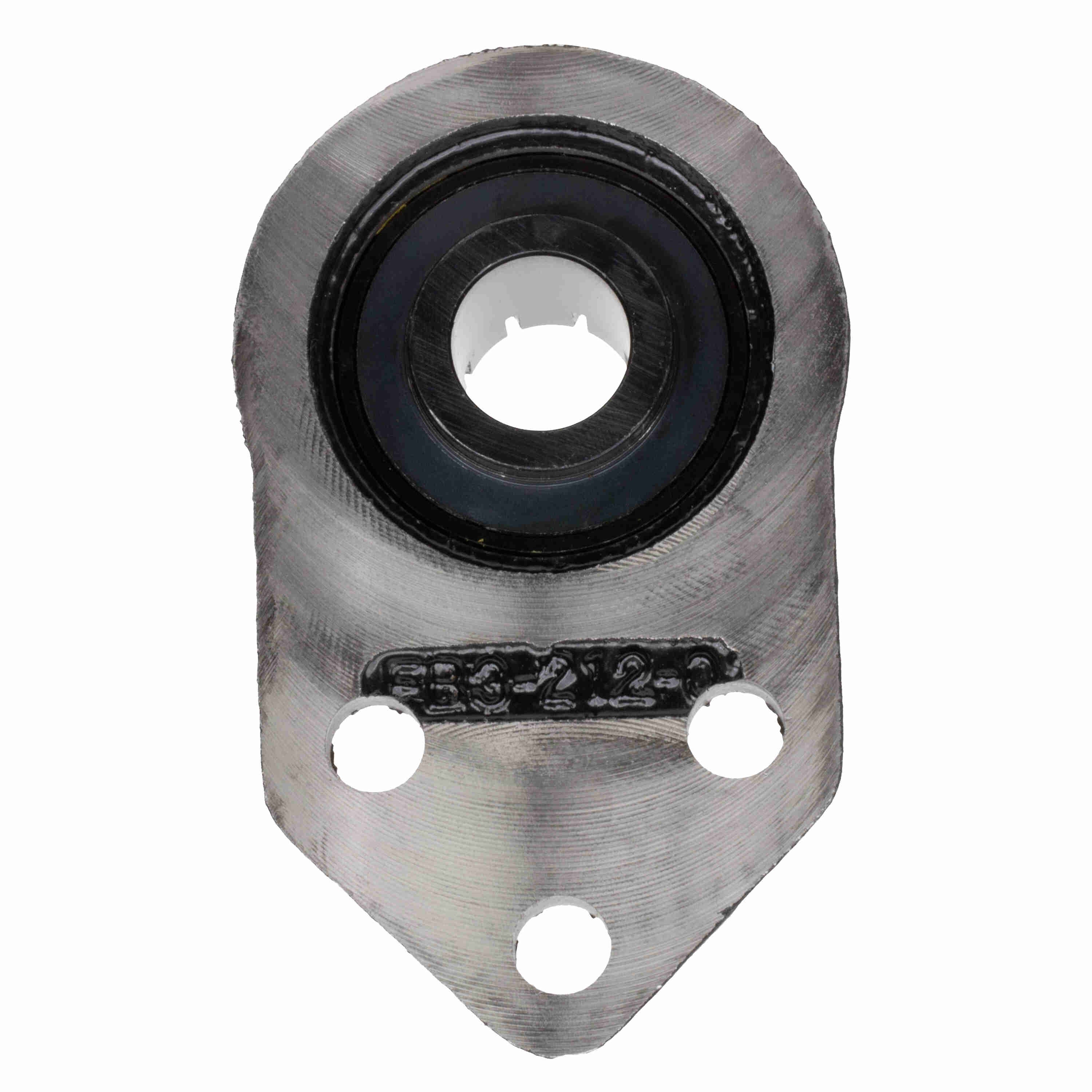

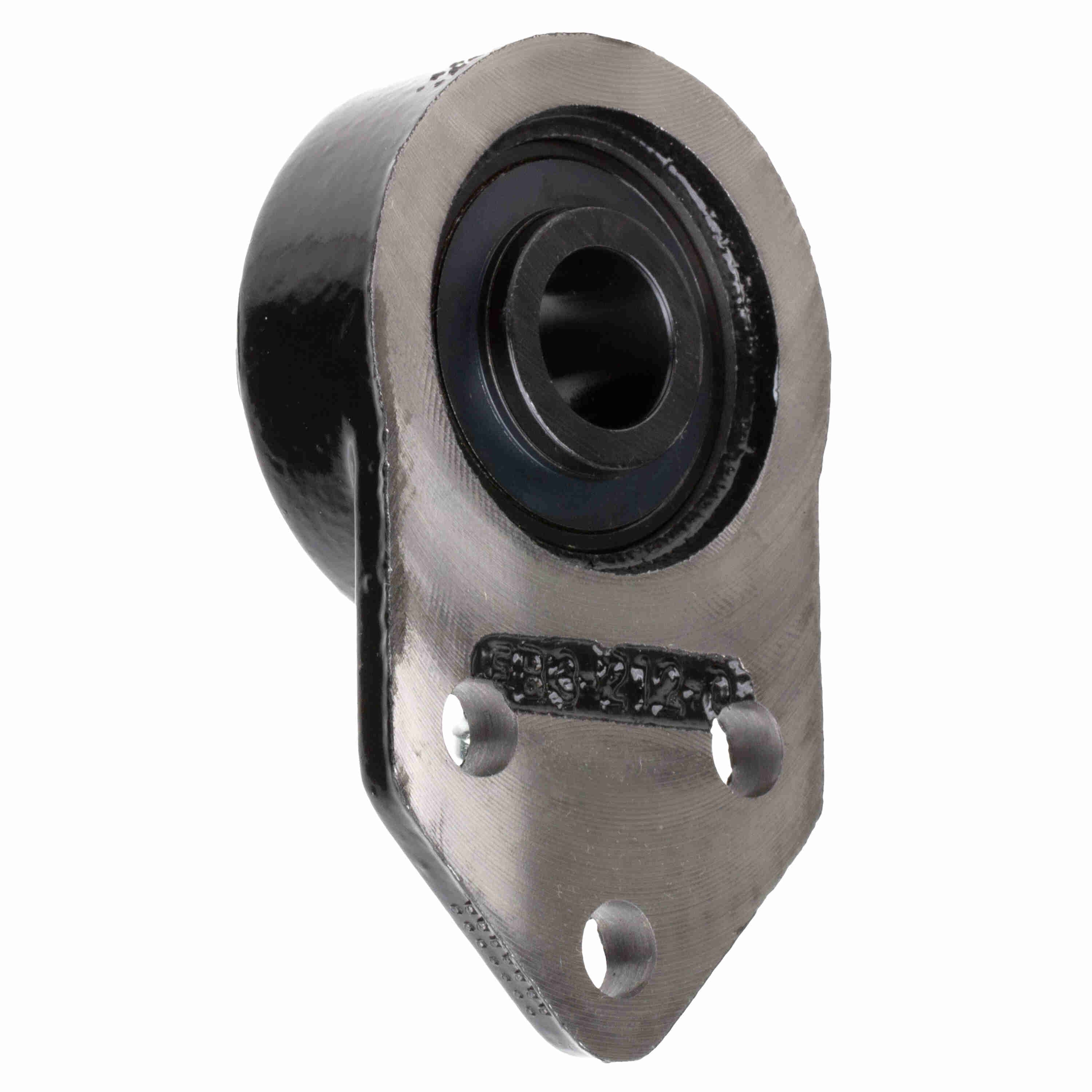

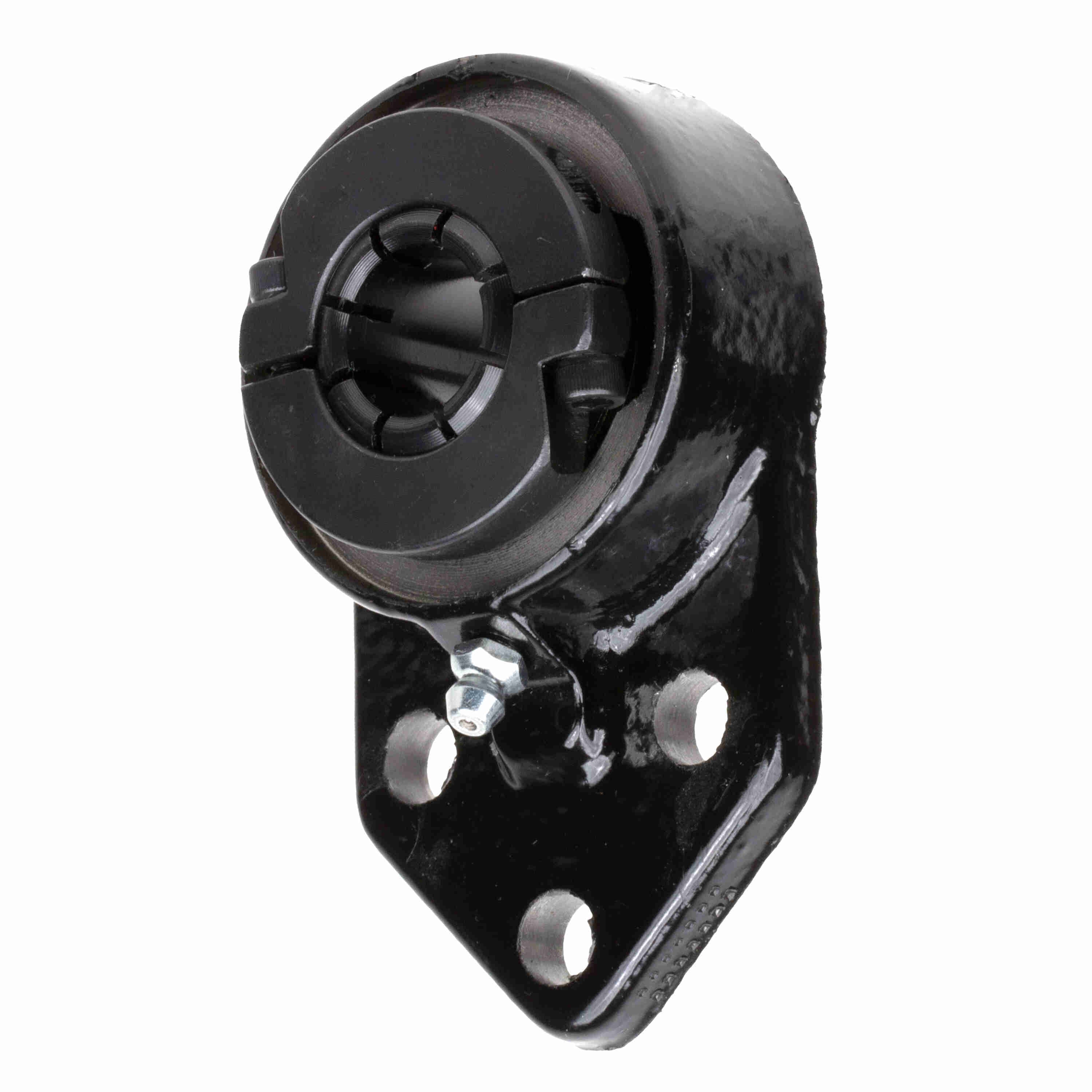

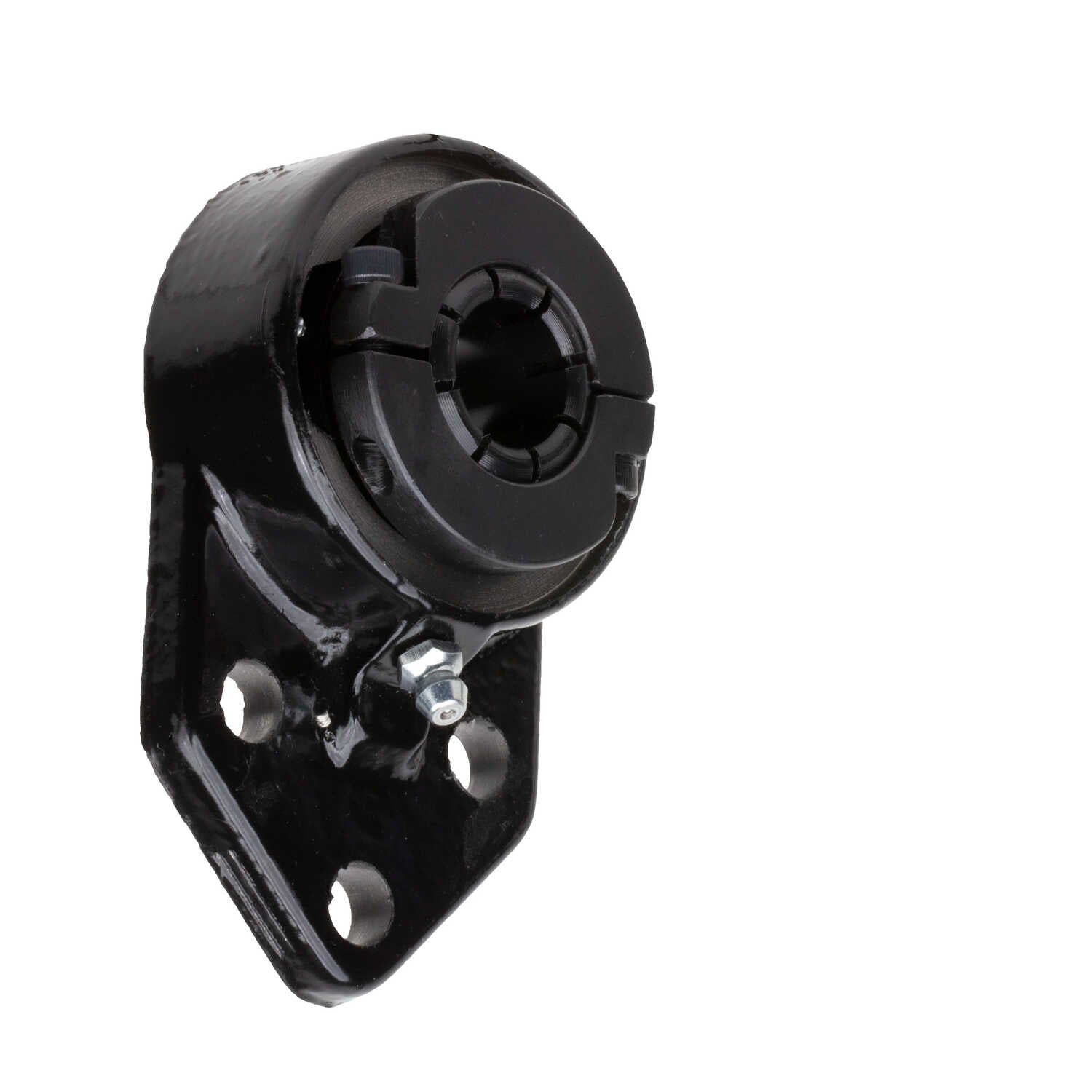

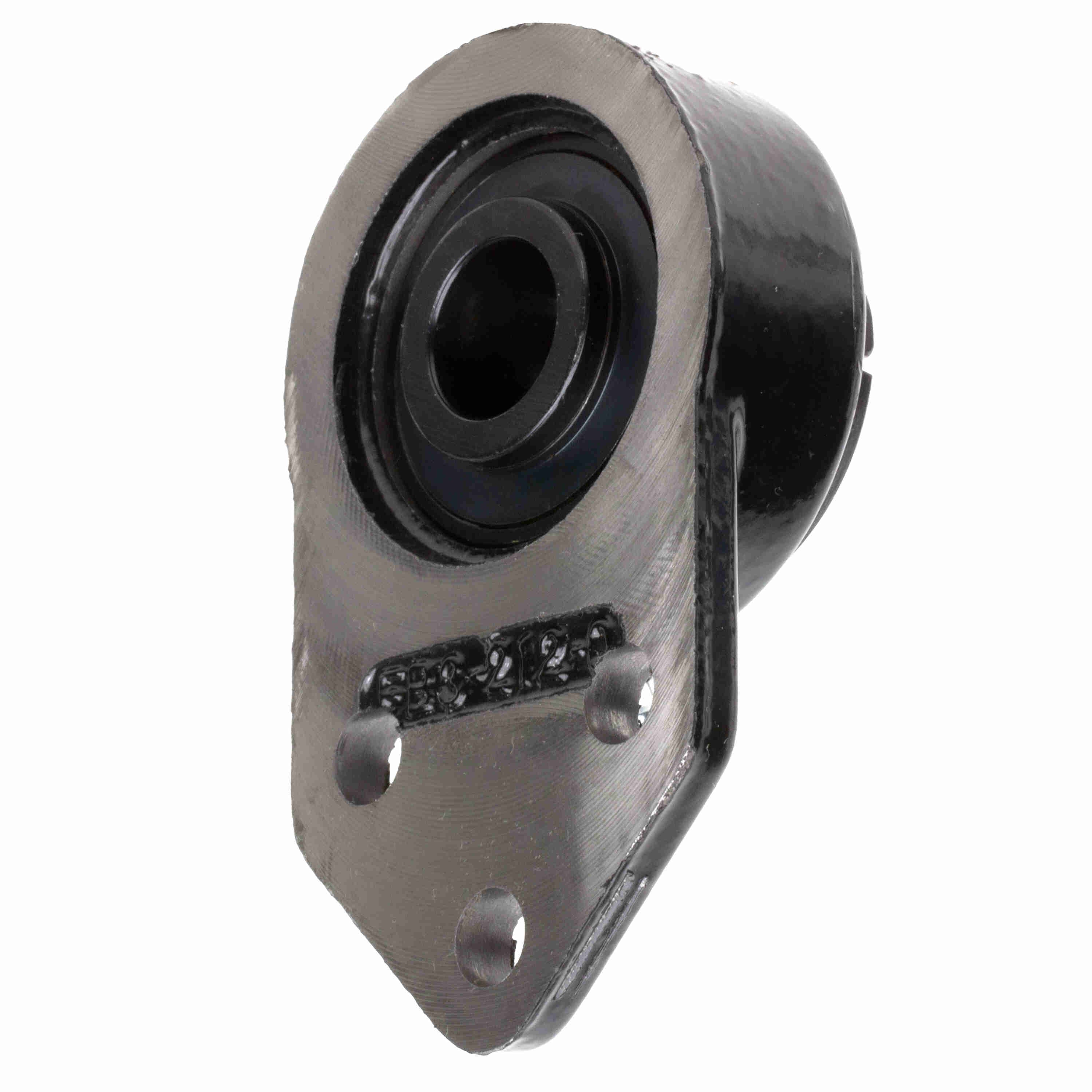

Link-Belt FB3CL212N Flange Blocks Ball Bearings - FB3CL212N
Part #:10429934
Catalog #:FB3CL212N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 3/8 in | Length Through Bore (in): | 1.28 in |
| Foot Height (in): | 0.31 in | Base to Center Height (in): | 3 in |
| Overall Length (in): | 4.25 in | Bore Diameter (in): | 0.75 in |
| Overall Width (in): | 2.5 in | Overall Height (in): | 1.45 in |
| Bolt Spacing (in): | 1.5 in |
Technical Specifications
| Housing Color: | Black | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Housing Style: | Flange Block |
| Housing Type: | Flange, Bracket, Three Bolt | Cage Material: | Molded fiber glass reinforced nylon |
| Pilot Configuration: | No Pilot | Bore Shape: | Straight |
| Outer Ring Land Profile: | Standard | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 65-72 in/lbs | Locking Collar Outside Diameter (in): | 1.75 in |
| Housing Material: | Cast Iron | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Bolt Spacing Height Direction (in): | 0.875 in | Size Code: | 204 |
| Vibration Frequency Outer Ring Defect: | 0.0508 cps | Inner Ring Outside Diameter (in): | 1.121 in |
| Lubricant: | Lithium Complex NLGI 2 Grease | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0332 cps | Fixed vs. Expansion: | Fixed |
| Cage Type: | Ball Riding Retainer | Bearing Insert Finish: | Black Oxide |
| Dynamic Load Rating (lb): | 2,870 lb | Locking Device Kit: | CL2125S |
| End Cap Available: | Yes | Bearing Centerline to Bolt Hole Center (in): | 1.6875 in |
| Vibration Frequency Inner Ring Defect: | 0.0825 cps | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Bearing Type: | Standard Duty | Bearing Insert Material: | 52100 Bearing Steel |
| Grease Fitting Thread Size: | 1/4-28 | Housing Coating: | Powder Coated |
| Insert: | CLG212NL | End Cap: | CL2126 |
| Radial Clearance: | C3 STANDARD | Shaft Locking Type: | Concentric |
| Max Operating Temperature (F): | 225 °F | Static Load Rating (lb): | 1,480 lb |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Maximum Speed (RPM): | 10000 rpm |
| Housing Width (in): | 2.38 in |
General Specifications
| UPC: | 662864875561 | Weight: | 1.31 LB |
| Packaged Length: | 3.69 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 2.13 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
