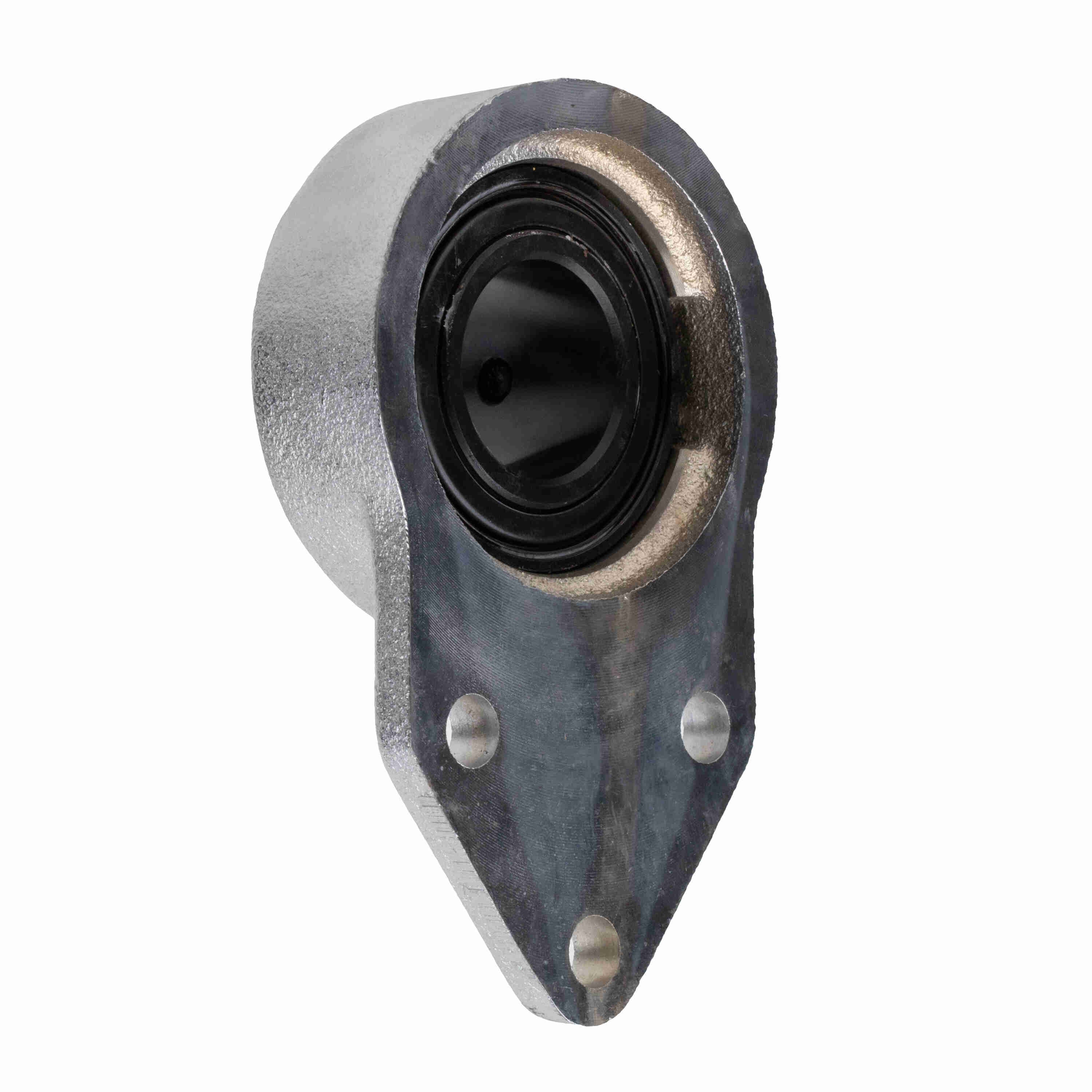

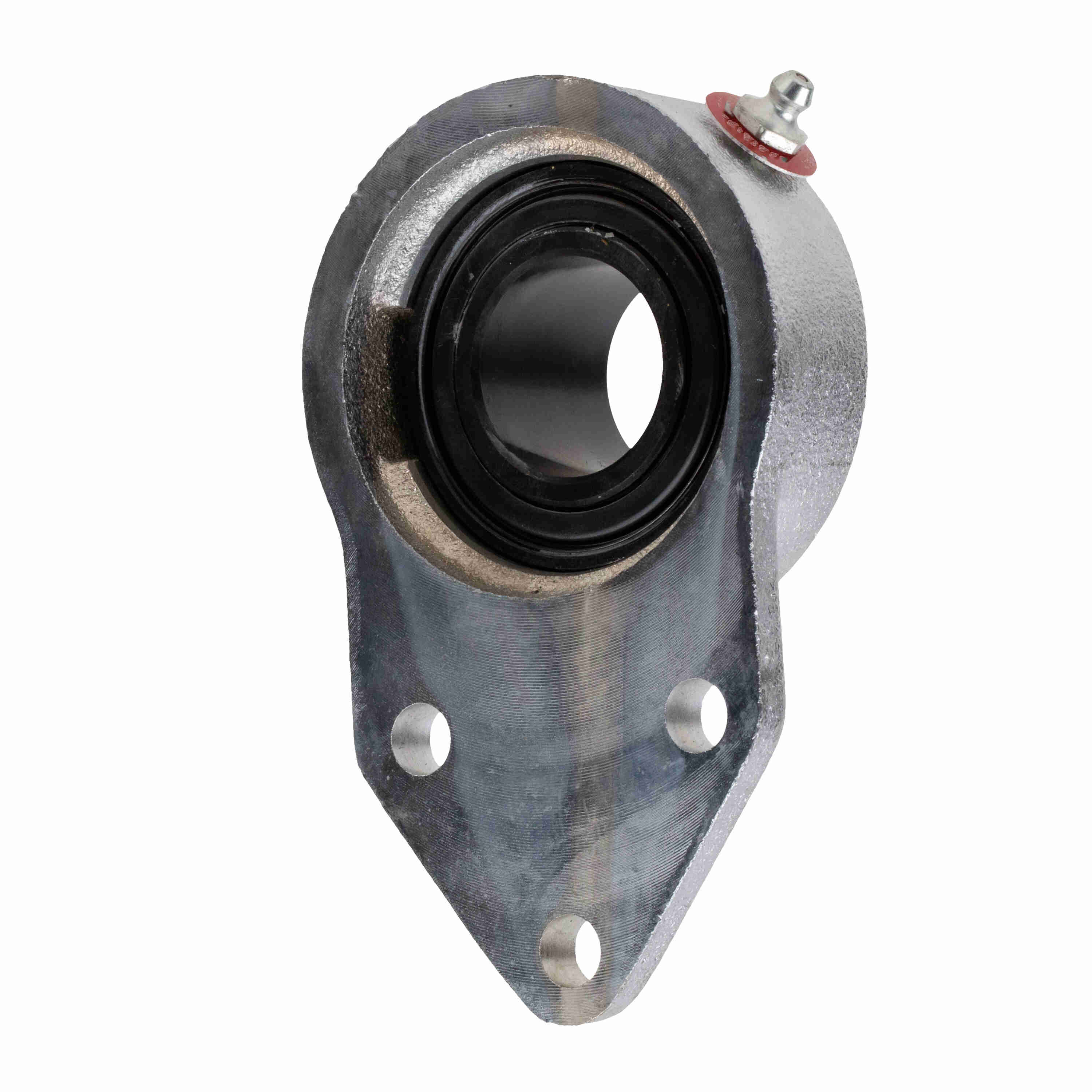

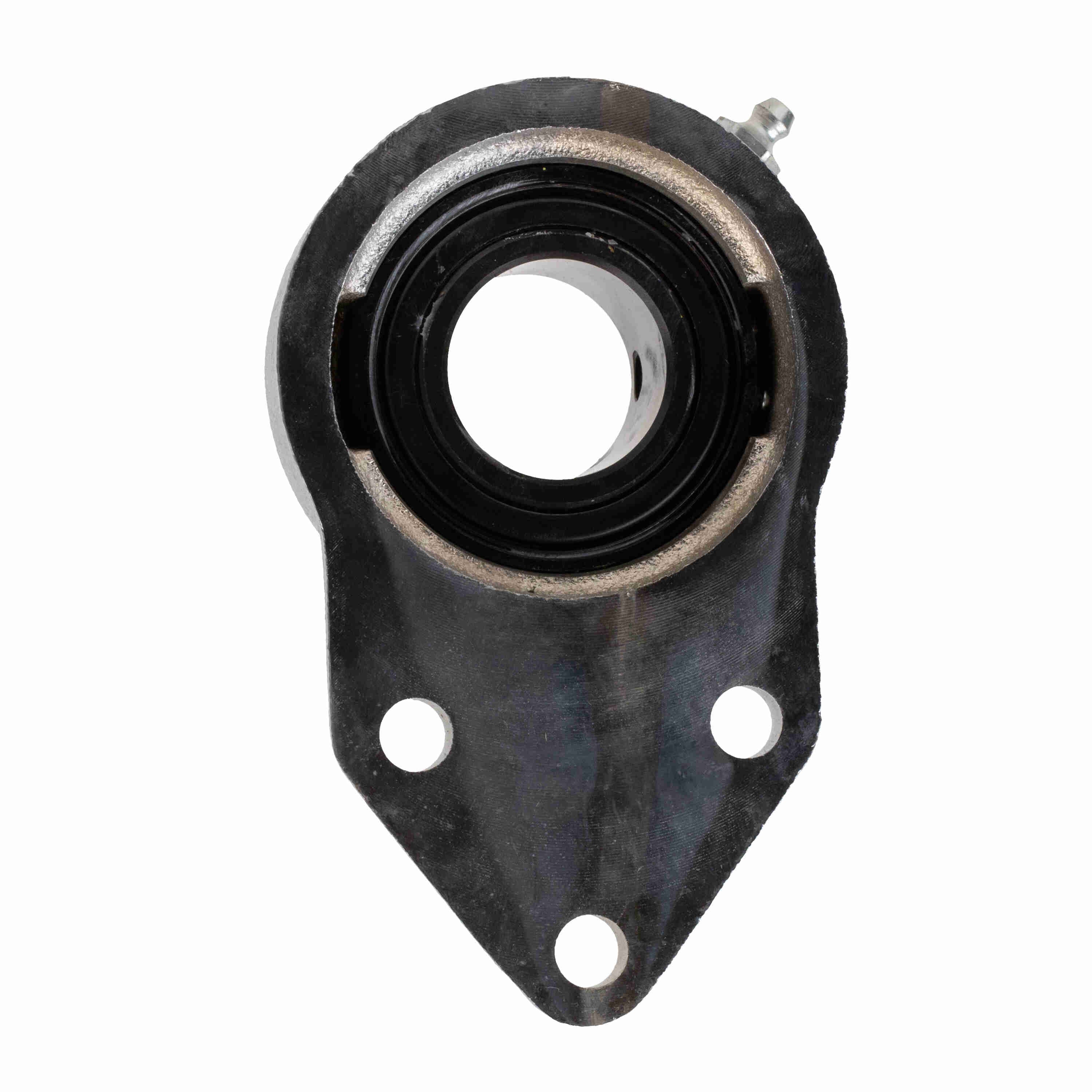

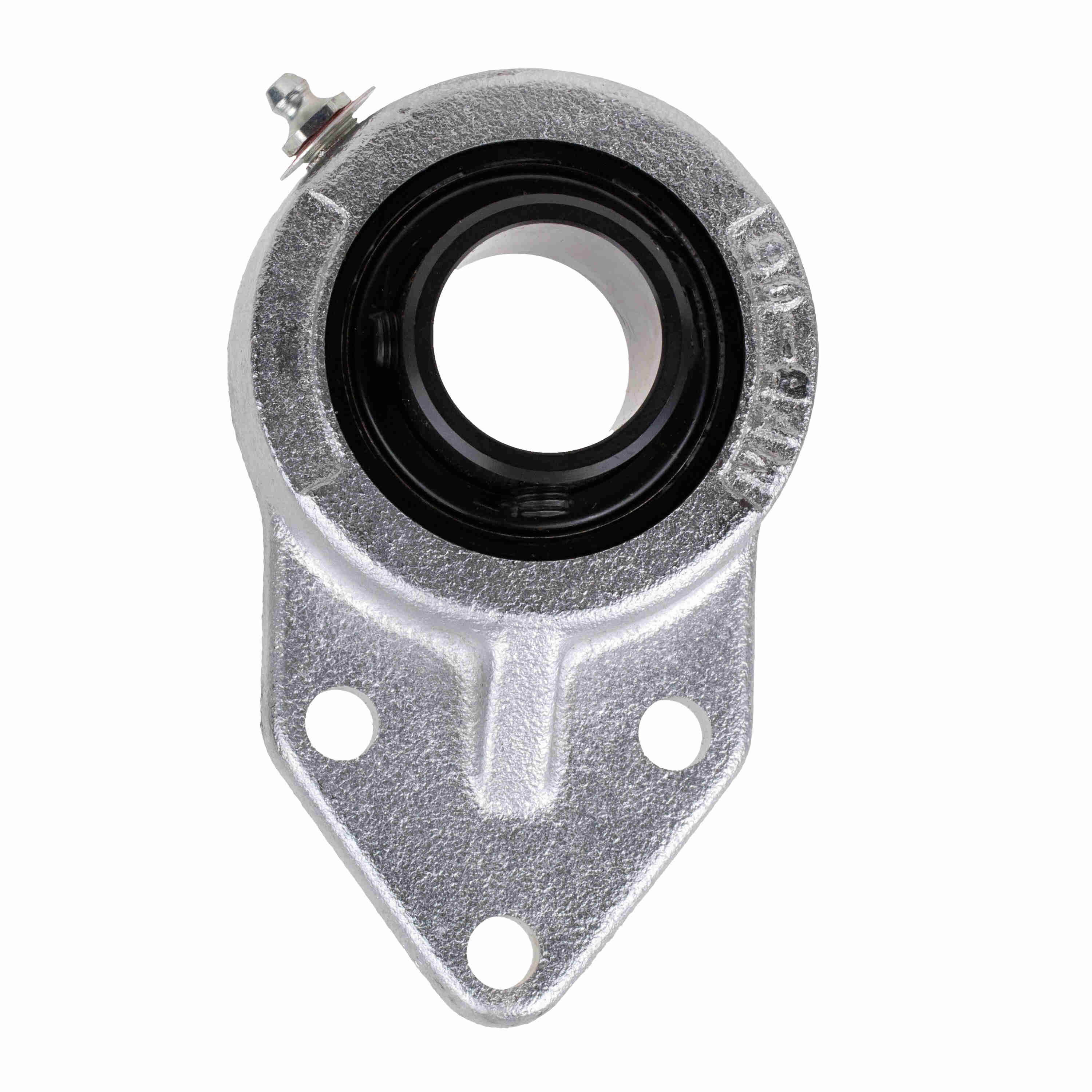

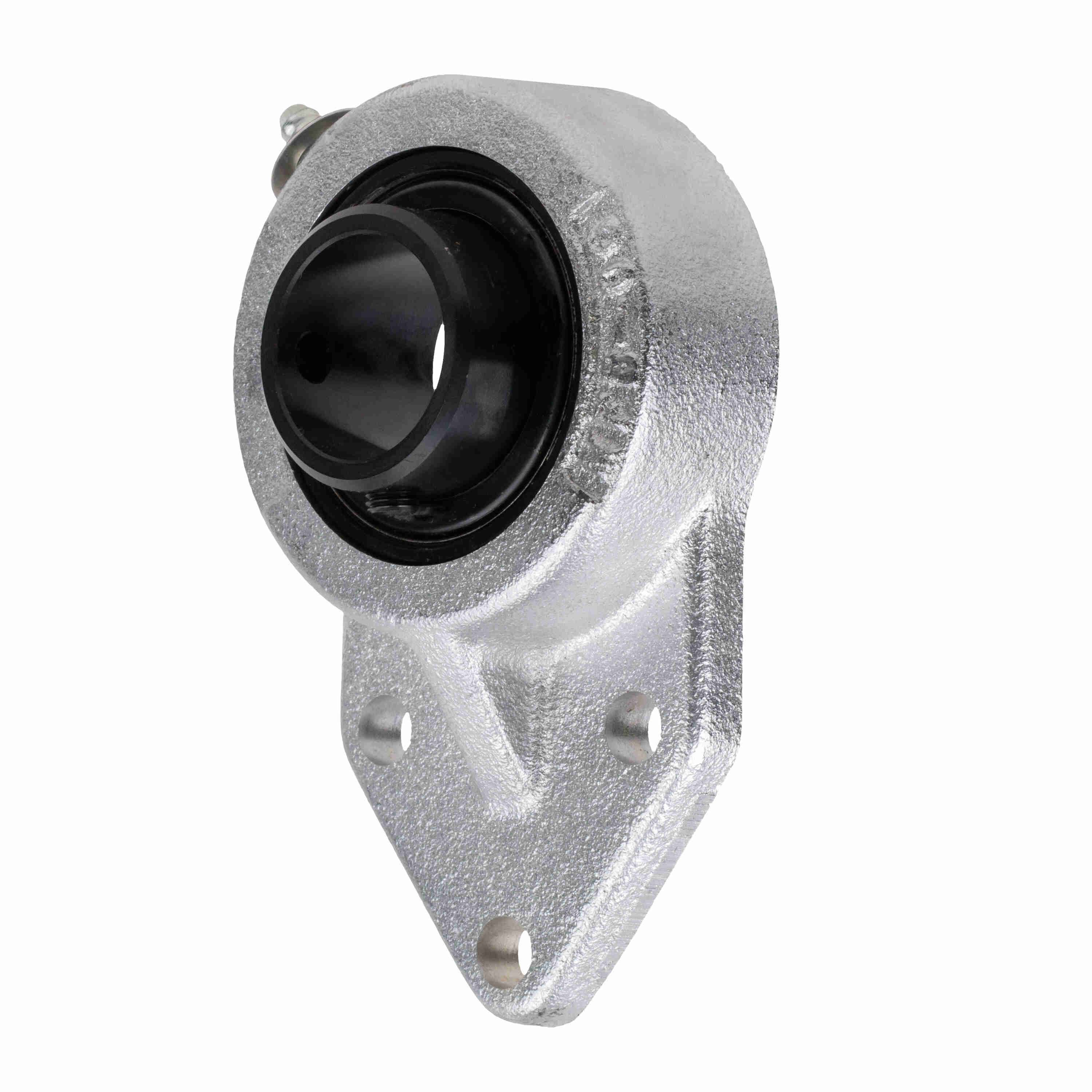

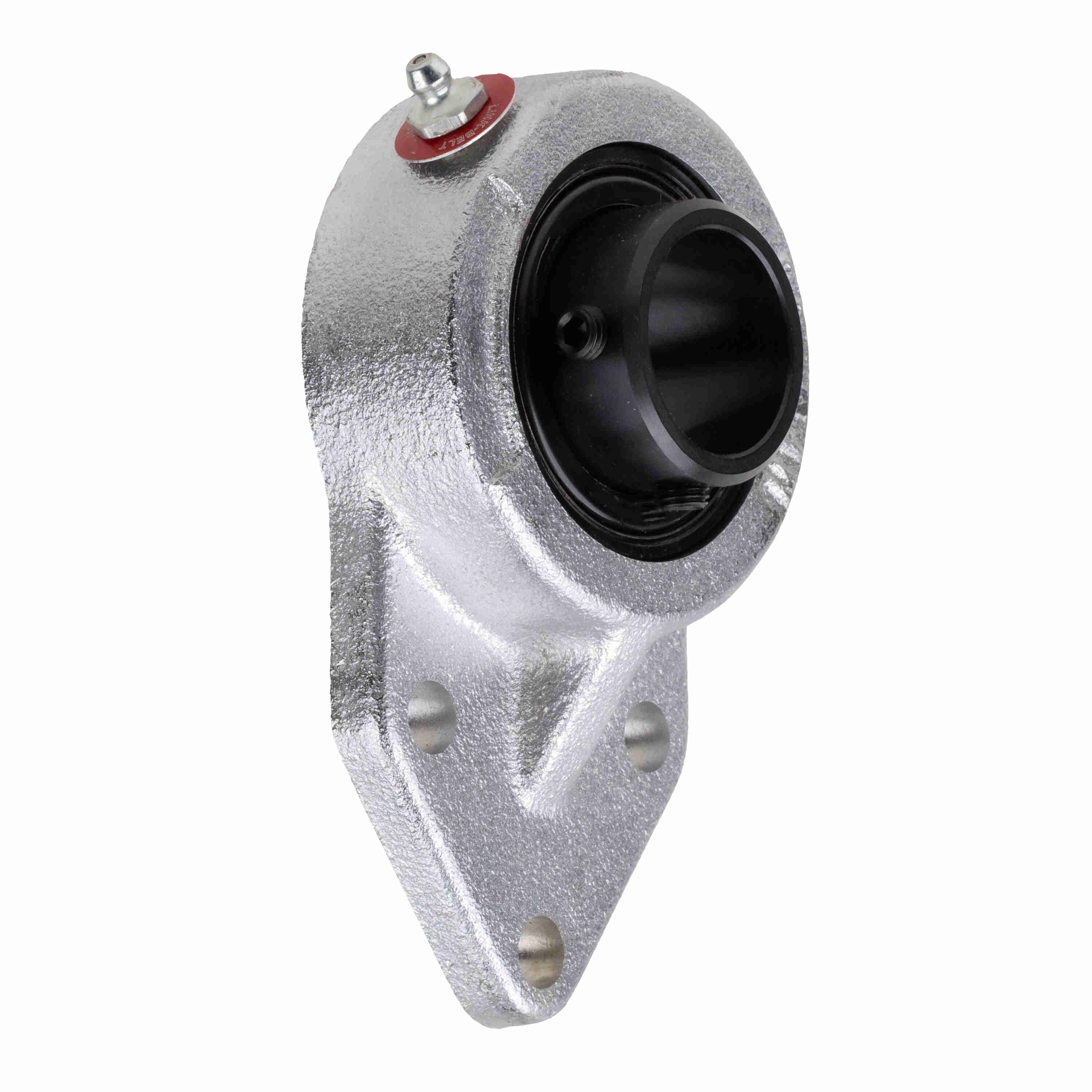

Link-Belt FB3S218EK75 Flange Blocks Ball Bearings - FB3S218EK75
Part #:10410584
Catalog #:FB3S218EK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 1.67 in | Foot Height (in): | 0.38 in |
| Overall Length (in): | 5.38 in | Bore Diameter (in): | 1.125 in |
| Base to Center Height (in): | 3.75 in | Overall Width (in): | 3.25 in |
| Bolt Size (in): | 3/8 in | Length Through Bore (in): | 1.35 in |
| Bolt Spacing (in): | 1.8750 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Seal Type: | Single Lip Contact Seal | Misalignment Type: | Static Only |
| Housing Construction: | One Piece | Housing Type: | Flange, Bracket, Three Bolt |
| Housing Style: | Flange Block | Bore Shape: | Straight |
| Pilot Configuration: | No Pilot | Outer Ring Land Profile: | Standard |
| Housing Color: | Silver | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 165 in/lbs | Bearing Type: | Intermediate Duty |
| Bolt Spacing Height Direction (in): | 1.25 in | Fixed vs. Expansion: | Fixed |
| Vibration Frequency Roller Spin: | 0.0385 cps | Max Operating Temperature (F): | 225 °F |
| Lubricant: | MOBIL FM222 FOOD GRADE H1 | Bearing Insert Finish: | Black Oxide |
| Housing Coating: | Nickel Plated | Grease Fitting Thread Size: | 1/8 NPT |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Bearing Insert Material: | 52100 Bearing Steel |
| Dynamic Load Rating (lb): | 4,390 lb | Radial Clearance: | C3 STANDARD |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Max Operating Temperature (C): | 107 °C |
| Shaft Locking Type: | Set Screw | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Size Code: | 206 | Static Load Rating (lb): | 2,530 lb |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Bearing Centerline to Bolt Hole Center (in): | 2.0625 in | End Cap Available: | No |
| Housing Material: | Cast Iron | Insert: | SG218ELPAK8299A |
| Cage Type: | Ball Riding Retainer | Inner Ring Outside Diameter (in): | 1.587 in |
| Maximum Speed (RPM): | 5600 rpm | Housing Width (in): | 3.25 in |
General Specifications
| UPC: | 662327725556 | Weight: | 2.50 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
