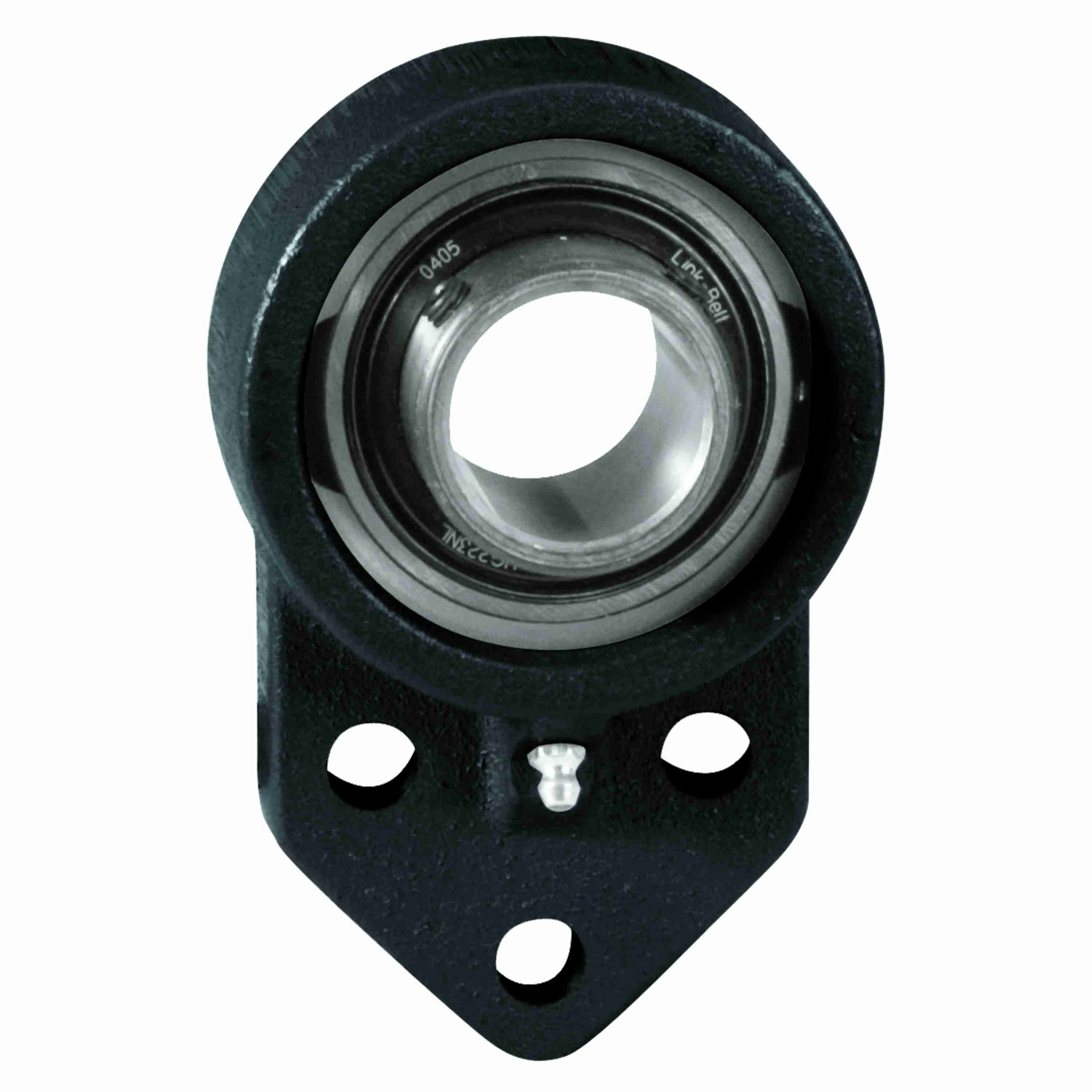

Link-Belt FB3U212H Flange Blocks Ball Bearings - FB3U212H
Part #:10424037
Catalog #:FB3U212H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 0.75 in | Foot Height (in): | 0.31 in |
| Base to Center Height (in): | 3 in | Overall Width (in): | 2.5 in |
| Overall Length (in): | 4.25 in | Bolt Size (in): | 3/8 in |
| Length Through Bore (in): | 1.281 in | Overall Height (in): | 1.34 in |
| Bolt Spacing (in): | 1.5 in |
Technical Specifications
| Housing Type: | Flange, Bracket, Three Bolt | Housing Style: | Flange Block |
| Seal Type: | Clearance Seal | Rolling Element: | Ball Bearing |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Color: | Black |
| Housing Construction: | One Piece | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Ability to Relubricate: | Yes | Bearing Type: | Standard Duty |
| Cage Type: | Ball Riding Retainer | Bolt Spacing Height Direction (in): | 0.875 in |
| Inner Ring Outside Diameter (in): | 1.121 in | Bearing Centerline to Bolt Hole Center (in): | 1.6875 in |
| Grease Fitting Thread Size: | 1/4-28 | Insert: | UG212HL |
| Shaft Locking Type: | Set Screw | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Maximum Speed (RPM): | 10000 rpm | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (C): | 107 °C | End Cap: | Y2126N |
| Size Code: | 204 | Max Operating Temperature (F): | 225 °F |
| Radial Clearance: | C3 STANDARD | Dynamic Load Rating (lb): | 2,870 lb |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Housing Coating: | Powder Coated |
| Fixed vs. Expansion: | Fixed | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Roller Spin: | 0.0332 cps | Vibration Frequency Outer Ring Defect: | 0.0508 cps |
| Vibration Frequency Inner Ring Defect: | 0.0825 cps | Static Load Rating (lb): | 1,480 lb |
| Lubricant: | Lithium Complex NLGI 2 Grease | End Cap Available: | Yes |
| Housing Material: | Cast Iron | Housing Width (in): | 2.38 in |
General Specifications
| UPC: | 662864177504 | Weight: | 1.27 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
