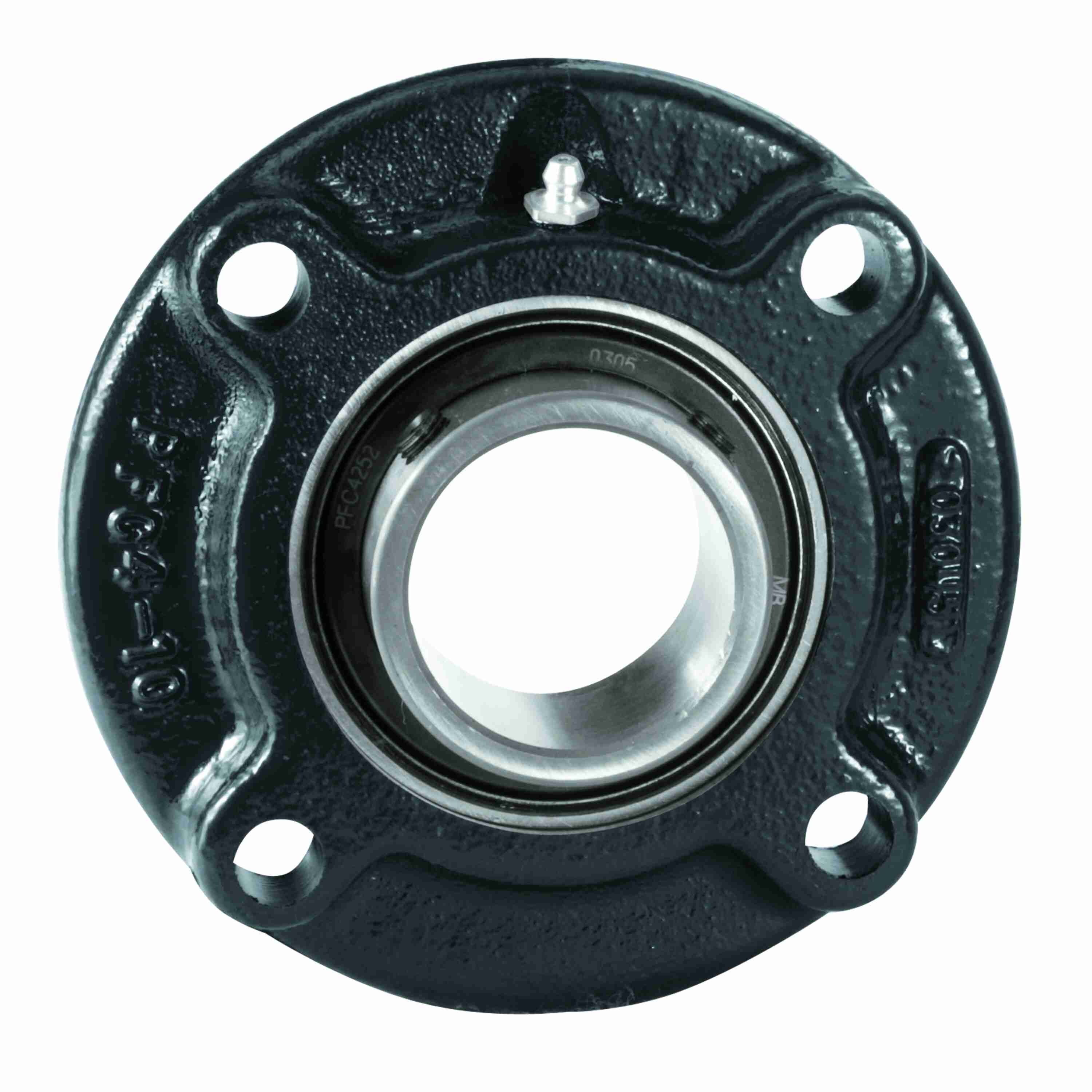

Link-Belt FC3S2E26E Flange Blocks Ball Bearings - FC3S2E26E
Part #:10415109
Catalog #:FC3S2E26E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.625 in | Overall Height (in): | 1.97 in |
| Overall Width (in): | 5.25 in | Length Through Bore (in): | 1.662 in |
| Pilot Diameter (in): | 3.625 in | Bolt Size (in): | 7/16 in |
| Overall Length (in): | 5.25 in | Foot Height (in): | 0.88 in |
| Housing Outside Diameter (in): | 5.25 in | Bolt Circle (in): | 4.375 in |
Technical Specifications
| Bore Shape: | Straight | Misalignment Type: | Static Only |
| Housing Construction: | One Piece | Rolling Element: | Ball Bearing |
| Housing Type: | Piloted Flange Cartridge | Cage Material: | Molded fiber glass reinforced nylon |
| Seal Type: | Single Lip Contact Seal | Pilot Configuration: | Piloted |
| Outer Ring Land Profile: | Standard | Housing Color: | Black |
| Housing Style: | Flange Block | Ability to Relubricate: | Yes |
| Pilot Depth (in): | 0.44 in | Setscrew Torque (in-lbs): | 165 in/lbs |
| Size Code: | 208 | Vibration Frequency Fundamental Train: | 0.0065 cps |
| Bearing Type: | Intermediate Duty | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Cage Type: | Ball Riding Retainer |
| Vibration Frequency Inner Ring Defect: | 0.0912 cps | Dynamic Load Rating (lb): | 7,330 lb |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Outer Ring Defect: | 0.0588 cps |
| Inner Ring Outside Diameter (in): | 2.084 in | Insert: | SG2E26ELPA |
| Shaft Locking Type: | Set Screw | Radial Clearance: | C3 STANDARD |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Maximum Speed (RPM): | 4500 rpm | Housing Material: | Cast Iron |
| Lubricant: | Lithium Complex NLGI 2 Grease | End Cap Available: | No |
| Housing Coating: | Powder Coated | Static Load Rating (lb): | 4,460 lb |
| Vibration Frequency Roller Spin: | 0.0367 cps | Fixed vs. Expansion: | Fixed |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 662864724319 | Weight: | 3.41 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
