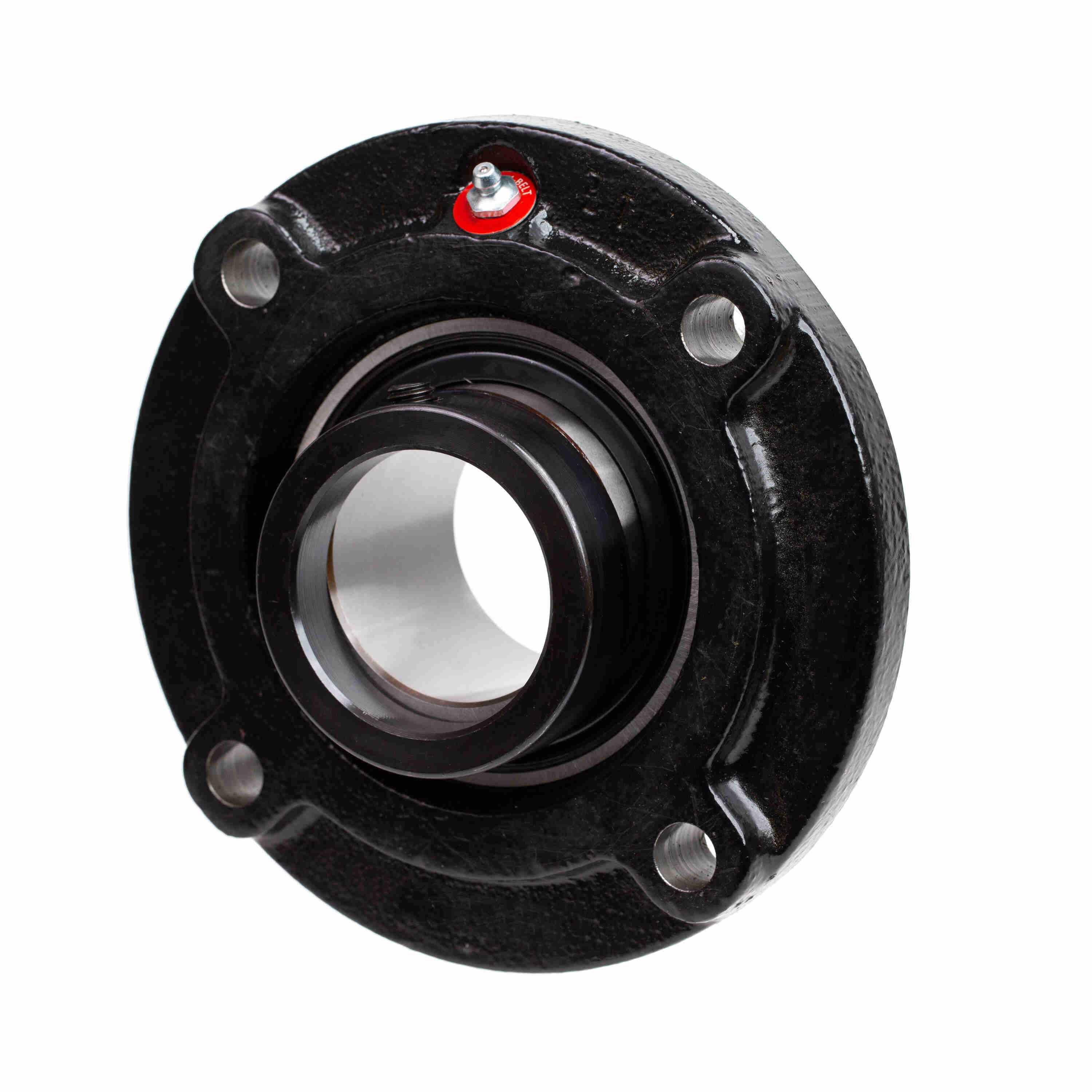

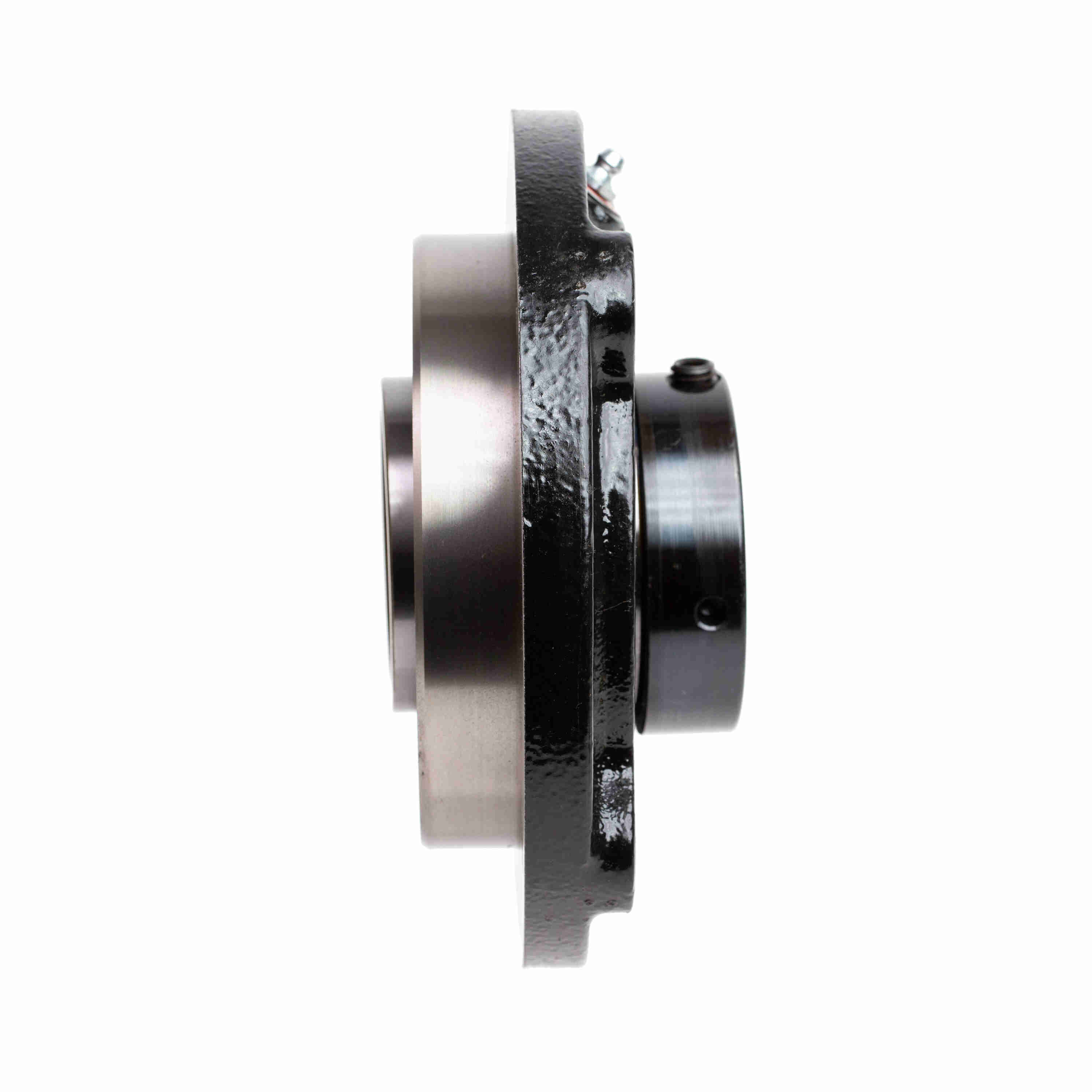

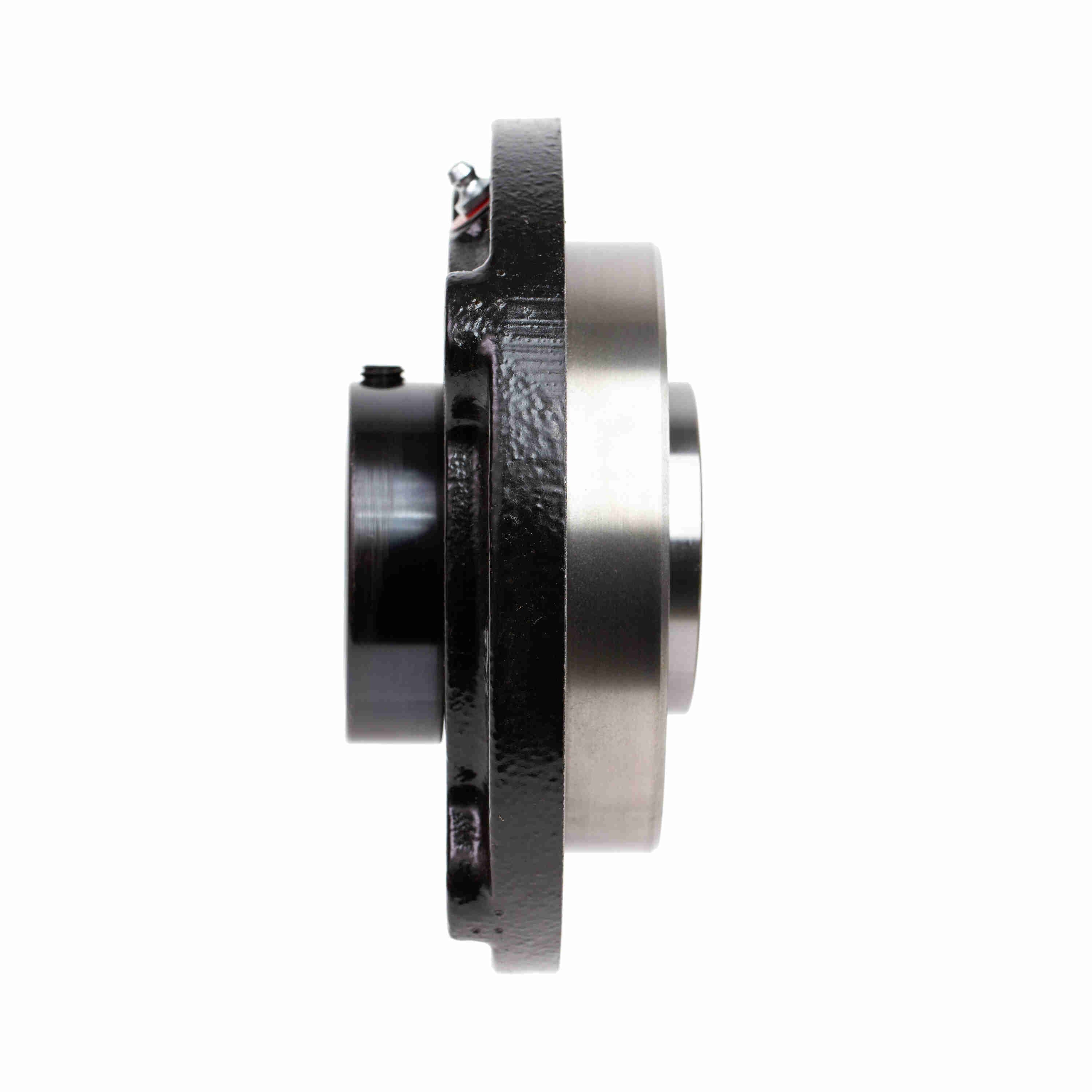

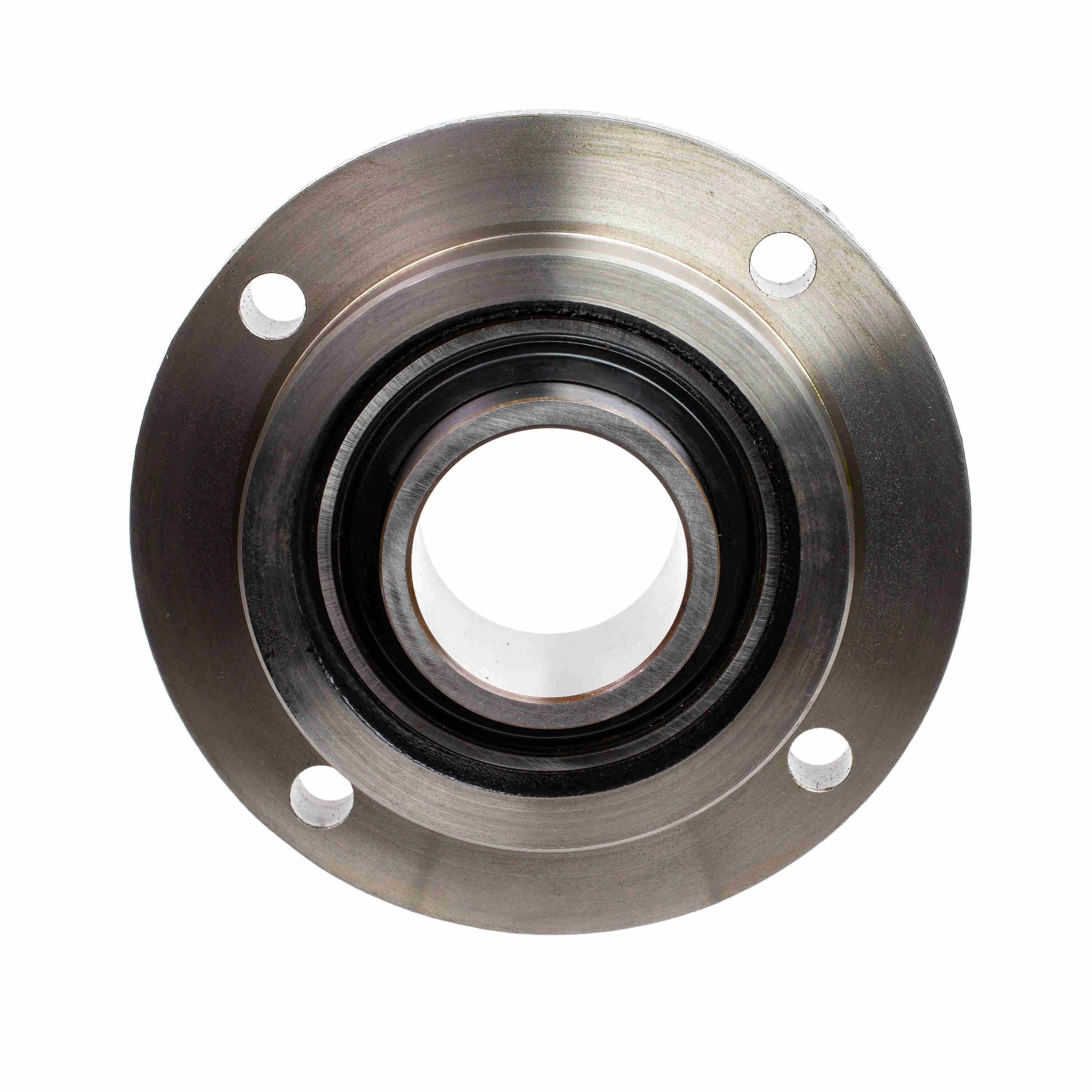

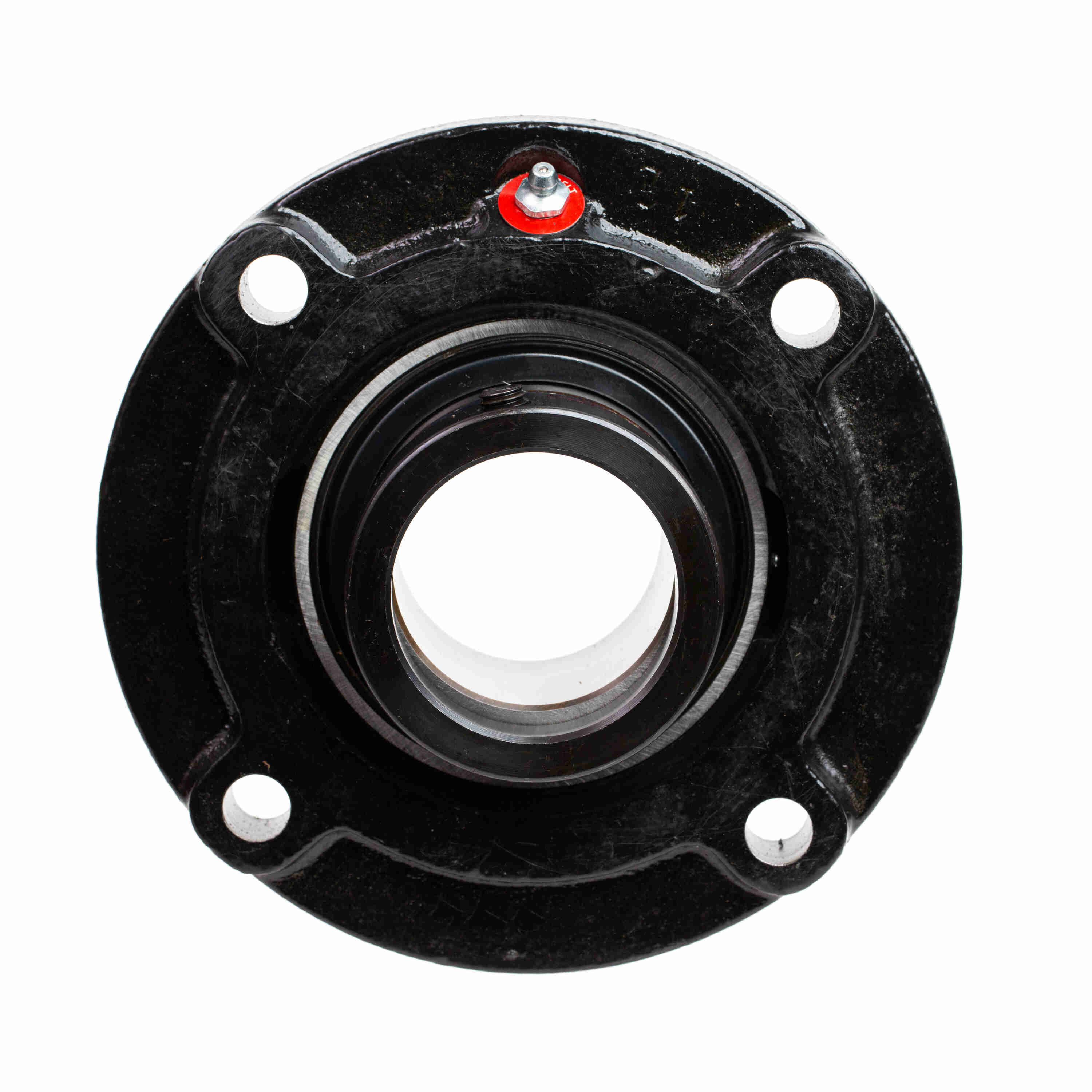

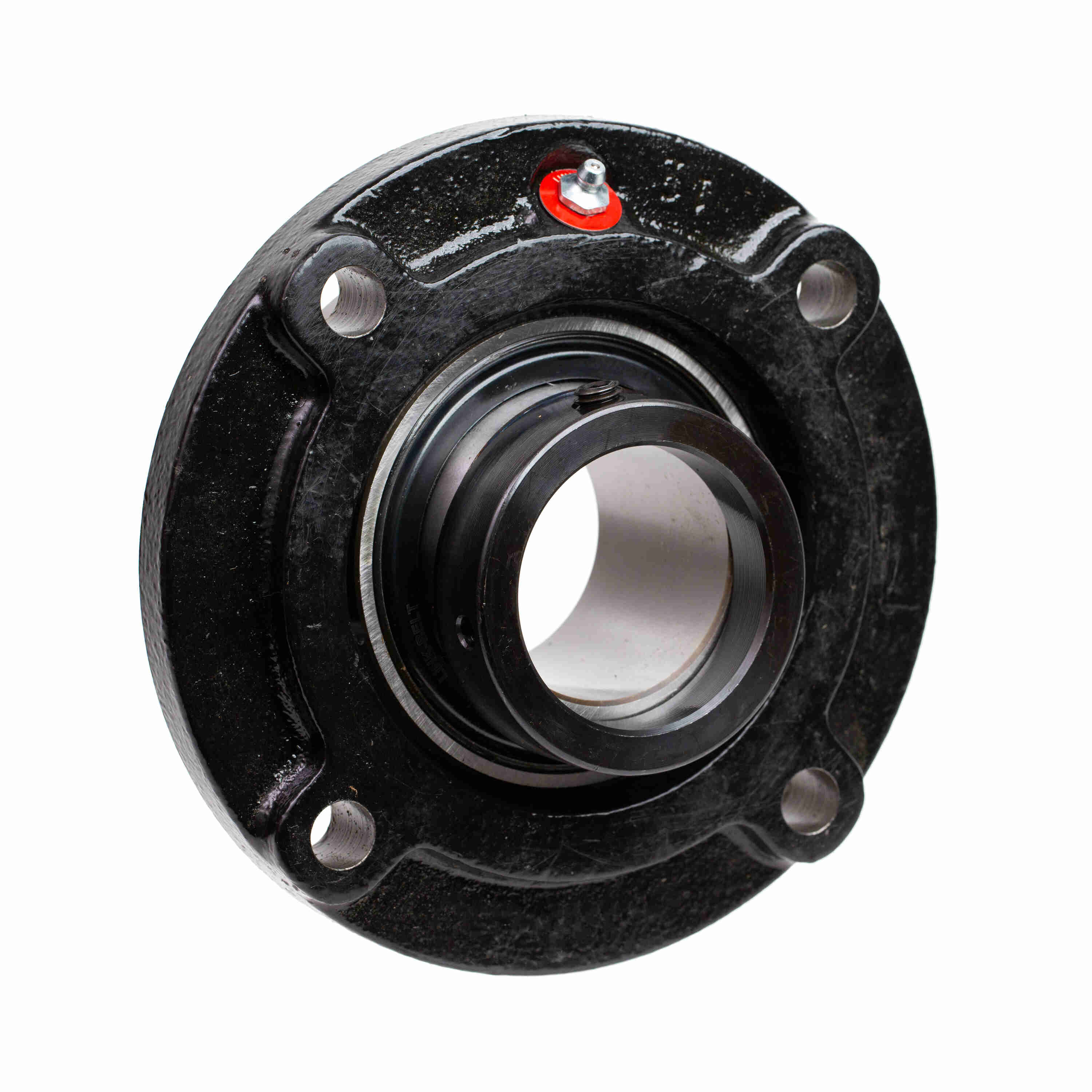

Link-Belt FC3Y239N Flange Blocks Ball Bearings - FC3Y239N
Part #:10434927
Catalog #:FC3Y239N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 2.78 in | Overall Width (in): | 7.63 in |
| Bore Diameter (in): | 2.4375 in | Foot Height (in): | 1 in |
| Length Through Bore (in): | 2.782 in | Bolt Size (in): | 9/16 in |
| Pilot Diameter (in): | 5.500 in | Overall Length (in): | 7.63 in |
| Housing Outside Diameter (in): | 7.625 in | Bolt Circle (in): | 6.5 in |
Technical Specifications
| Pilot Configuration: | Piloted | Seal Type: | Single Lip Contact Seal |
| Outer Ring Land Profile: | Standard | Housing Color: | Black |
| Housing Type: | Piloted Flange Cartridge | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Housing Style: | Flange Block |
| Housing Construction: | One Piece | Ability to Relubricate: | Yes |
| Pilot Depth (in): | 0.875 in | Setscrew Torque (in-lbs): | 430-460 in/lbs |
| Locking Collar Outside Diameter (in): | 3.26 in | Vibration Frequency Roller Spin: | 0.0430 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Shaft Locking Type: | Eccentric |
| Static Load Rating (lb): | 8,080 lb | Inner Ring Outside Diameter (in): | 3.012 in |
| Bearing Insert Material: | 52100 Bearing Steel | Housing Coating: | Powder Coated |
| Bearing Type: | Standard Duty | Max Operating Temperature (F): | 225 °F |
| Cage Type: | Ball Riding Retainer | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Vibration Frequency Inner Ring Defect: | 0.0988 cps | Size Code: | 212 |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Maximum Speed (RPM): | 4000 rpm |
| Grease Fitting Thread Size: | 1/8 NPT | Dynamic Load Rating (lb): | 11,840 lb |
| Insert: | YG239NL | Max Operating Temperature (C): | 107 °C |
| Fixed vs. Expansion: | Fixed | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Housing Material: | Cast Iron | End Cap Available: | No |
| Radial Clearance: | C3 STANDARD | Locking Device Kit: | W2395S |
| Vibration Frequency Outer Ring Defect: | 0.0678 cps |
General Specifications
| UPC: | 662327029036 | Weight: | 12.27 LB |
| Packaged Length: | 7.75 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 7.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
