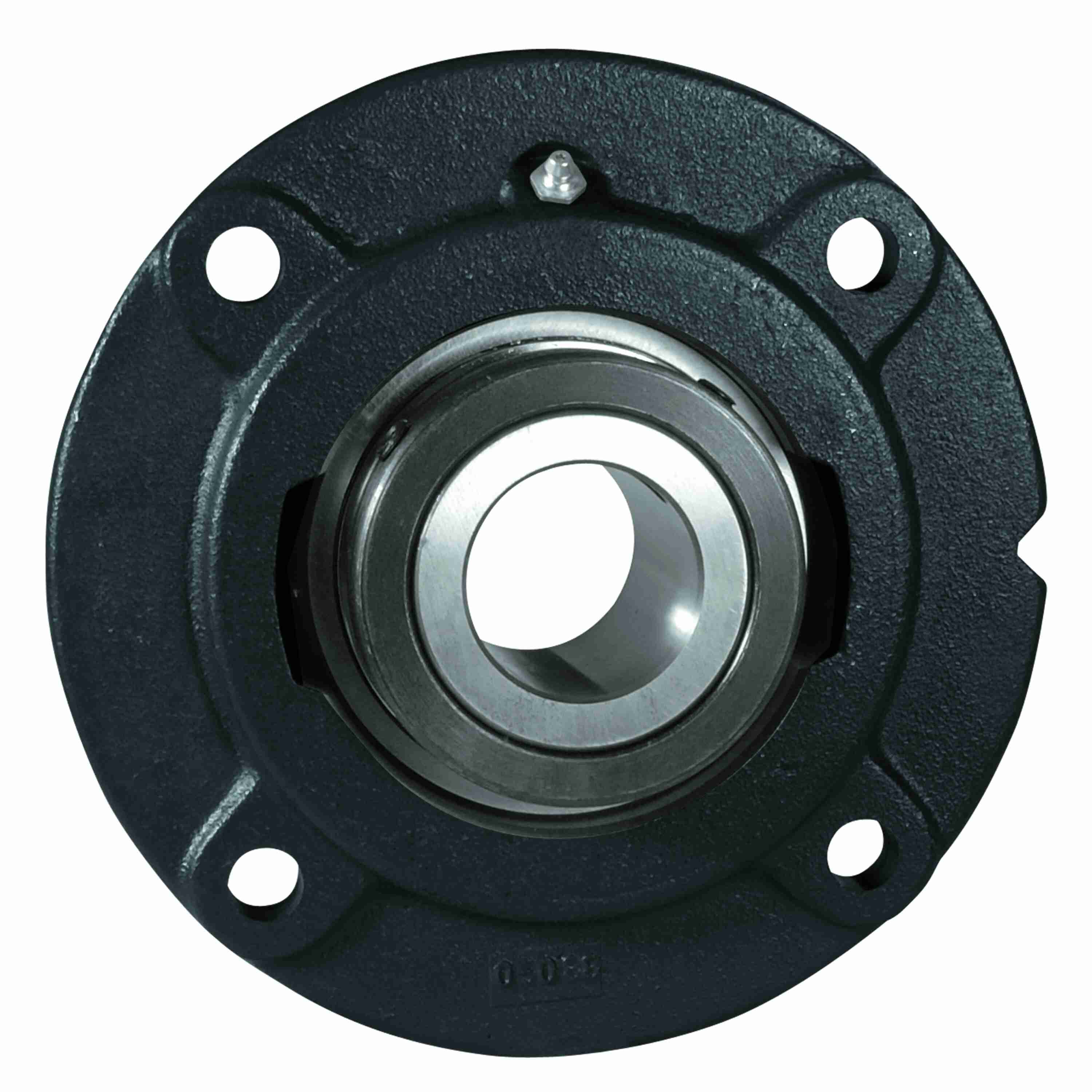

Link-Belt FCU335J Flange Blocks Ball Bearings - FCU335J
Part #:10436450
Catalog #:FCU335J
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 9 in | Bolt Size (in): | 5/8 in |
| Overall Height to End Cap (in): | 3.41 in | Bore Diameter (in): | 2.1875 in |
| Length Through Bore (in): | 3.063 in | Overall Height (in): | 3.06 in |
| Foot Height (in): | .625 in | Pilot Diameter (in): | 6.375 in |
| Overall Length (in): | 9 in | Housing Outside Diameter (in): | 9.000 in |
| Bolt Circle (in): | 7.625 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Rolling Element: | Ball Bearing |
| Housing Color: | Black | Housing Construction: | One Piece |
| Housing Type: | Piloted Flange Cartridge | Pilot Configuration: | Piloted |
| Bore Shape: | Straight | Misalignment Type: | Static Only |
| Cage Material: | Steel | Seal Type: | Flingers only |
| Housing Style: | Flange Block | Locking Collar Outside Diameter (in): | 3.938 in |
| Pilot Depth (in): | .938 in | Setscrew Torque (in-lbs): | 430-460 in/lbs |
| Ability to Relubricate: | Yes | Max Operating Temperature (F): | 225 °F |
| Locking Device Kit: | U3355S | Bearing Insert Material: | 52100 Bearing Steel |
| Maximum Speed (RPM): | 4950 rpm | Insert: | UG335JL |
| End Cap Available: | Yes | Vibration Frequency Roller Spin: | 0.0333 cps |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Bearing Type: | Heavy Duty |
| Radial Clearance: | C3 STANDARD | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Grease Fitting Thread Size: | 1/8 NPT | End Cap: | U3356C |
| Cage Type: | Ball Riding Retainer | Housing Material: | Cast Iron |
| Dynamic Load Rating (lb): | 16,070 lb | Fixed vs. Expansion: | Fixed |
| Inner Ring Outside Diameter (in): | 2.959 in | Shaft Locking Type: | Set Screw |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Vibration Frequency Outer Ring Defect: | 0.0510 cps |
| Vibration Frequency Inner Ring Defect: | 0.0823 cps | Housing Coating: | Powder Coated |
| Static Load Rating (lb): | 10,000 lb | Size Code: | 335 |
| Max Operating Temperature (C): | 107 °C | Mounting Surface to End of Housing (in): | 1.531 in |
| Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 793699002492 | Weight: | 18.48 LB |
| Packaged Length: | 9.13 IN | Packaged Width: | 3.25 IN |
| Packaged Height: | 9.13 IN | HTC: | 84833080 |
