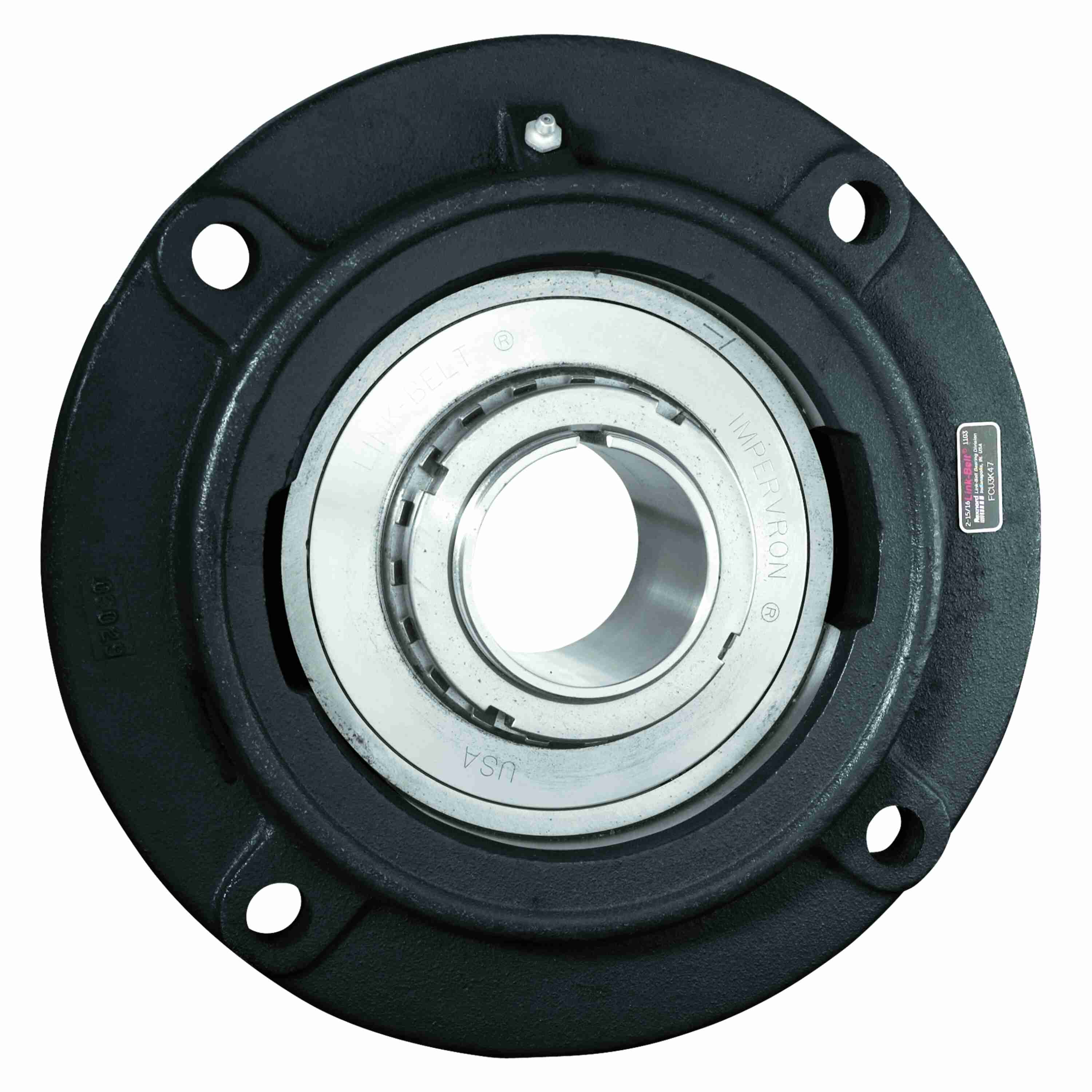

Link-Belt FCU3K47 Flange Blocks Ball Bearings - FCU3K47
Part #:10424080
Catalog #:FCU3K47
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Pilot Diameter (in): | 9.875 in | Bolt Size (in): | 3/4 in |
| Length Through Bore (in): | 4.094 in | Overall Length (in): | 12.88 in |
| Overall Height (in): | 4.1 in | Overall Width (in): | 12.88 in |
| Foot Height (in): | .875 in | Bore Diameter (in): | 2.9375 in |
| Housing Outside Diameter (in): | 12.875 in | Bolt Circle (in): | 11.375 in |
Technical Specifications
| Pilot Configuration: | Piloted | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Type: | Piloted Flange Cartridge | Bore Shape: | Straight |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| Housing Style: | Flange Block | Housing Color: | Black |
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Shaft Locking Collar Kit/Adapter Assembly: | H2317047 | Seal Type: | Clearance Seal with Flinger |
| Locking Collar Outside Diameter (in): | 4.41 in | Ability to Relubricate: | Yes |
| Pilot Depth (in): | 1.250 in | Housing Material: | Cast Iron |
| Vibration Frequency Fundamental Train: | 0.0065 cps | End Cap Available: | No |
| Max Operating Temperature (F): | 225 °F | Inner Ring Outside Diameter (in): | 4.763 in |
| Maximum Speed (RPM): | 3100 rpm | Insert: | UG3K47L |
| Dynamic Load Rating (lb): | 35,070 lb | Bearing Type: | Heavy Duty |
| Locking Device Kit: | H2317047 | Housing Coating: | Powder Coated |
| Size Code: | 356 | Static Load Rating (lb): | 24,100 lb |
| Bearing Insert Material: | 52100 Bearing Steel | Lubricant: | Lithium Complex NLGI 2 Grease |
| Shaft Locking Type: | Tapered Adapter | Vibration Frequency Outer Ring Defect: | 0.0315 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Roller Spin: | 0.0348 cps |
| Vibration Frequency Inner Ring Defect: | 0.0818 cps | Cage Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Fixed | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Max Operating Temperature (C): | 107 °C | Mounting Surface to End of Housing (in): | 1.906 in |
General Specifications
| UPC: | 793699161151 | Weight: | 55.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 6.50 IN |
| Packaged Height: | 14.13 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
