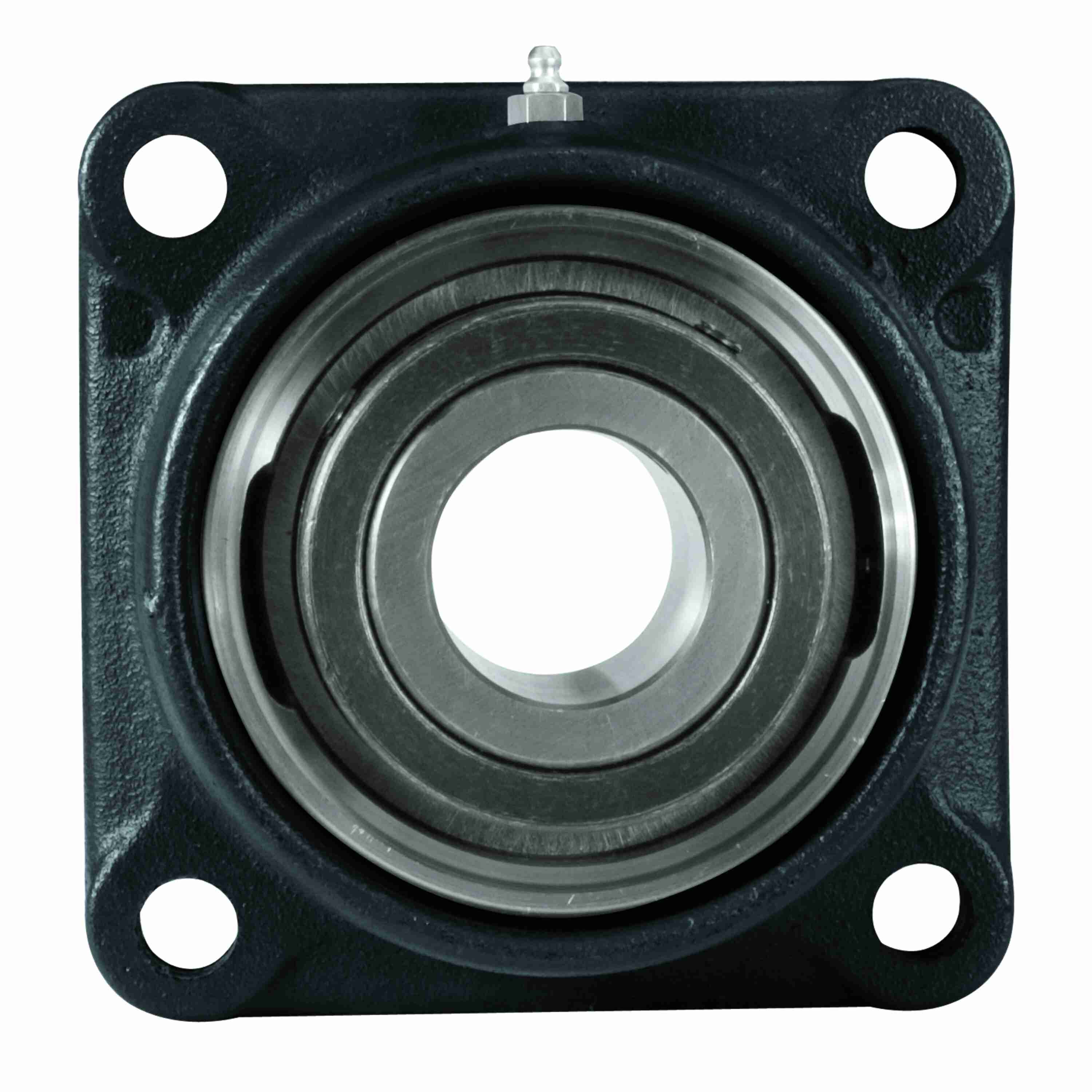

Link-Belt FEU326K5 Flange Blocks Ball Bearings - FEU326K5
Part #:10422695
Catalog #:FEU326K5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 2.6 in | Bore Diameter (in): | 1.625 in |
| Overall Width (in): | 6.25 in | Foot Height (in): | 0.69 in |
| Bolt Size (in): | 5/8 in | Overall Length (in): | 6.25 in |
| Overall Height (in): | 2.75 in | Bolt Spacing (in): | 4.875 in |
Technical Specifications
| Bore Shape: | Straight | Seal Type: | Clearance Seal with Flinger |
| Pilot Configuration: | No Pilot | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Housing Type: | Flange, Four Bolt |
| Housing Style: | Flange Block | Outer Ring Land Profile: | Standard |
| Rolling Element: | Ball Bearing | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 3.23 in | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Locking Device Kit: | U3285S | Inner Ring Outside Diameter (in): | 2.443 in |
| Max Operating Temperature (C): | 107 °C | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| End Cap: | U3286C | Max Operating Temperature (F): | 225 °F |
| Housing Material: | Cast Iron | End Cap Available: | Yes |
| Housing Coating: | Powder Coated | Grease Fitting Thread Size: | 1/4-28 |
| Bearing Type: | Heavy Duty | Lube Fill Percent: | 0% FILL |
| Vibration Frequency Roller Spin: | 0.0327 cps | Shaft Locking Type: | Set Screw |
| Dynamic Load Rating (lb): | 11,870 lb | Radial Clearance: | C3 STANDARD |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Inner Ring Defect: | 0.0827 cps |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Vibration Frequency Outer Ring Defect: | 0.0507 cps | Fixed vs. Expansion: | Expansion |
| Expansion Capability (in): | 0.19 in | Static Load Rating (lb): | 7,110 lb |
| Size Code: | 328 | Expansion Lock Plug: | 3398B |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Cage Type: | Ball Riding Retainer |
| Insert: | UG326LK5 | Maximum Speed (RPM): | 6200 rpm |
General Specifications
| UPC: | 662327888527 | Weight: | 11.70 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 3.13 IN |
| Packaged Height: | 6.50 IN | HTC: | 84833080 |
