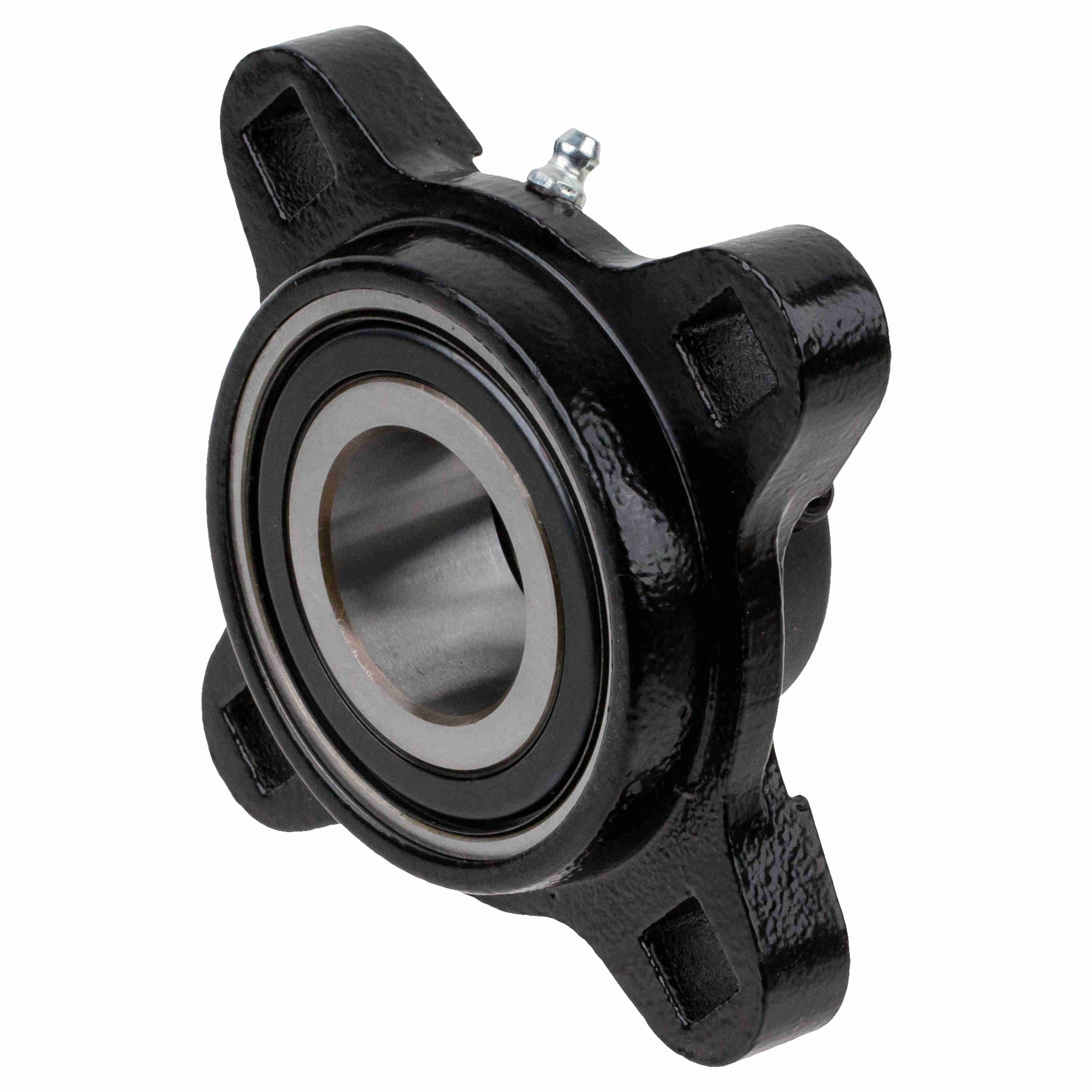

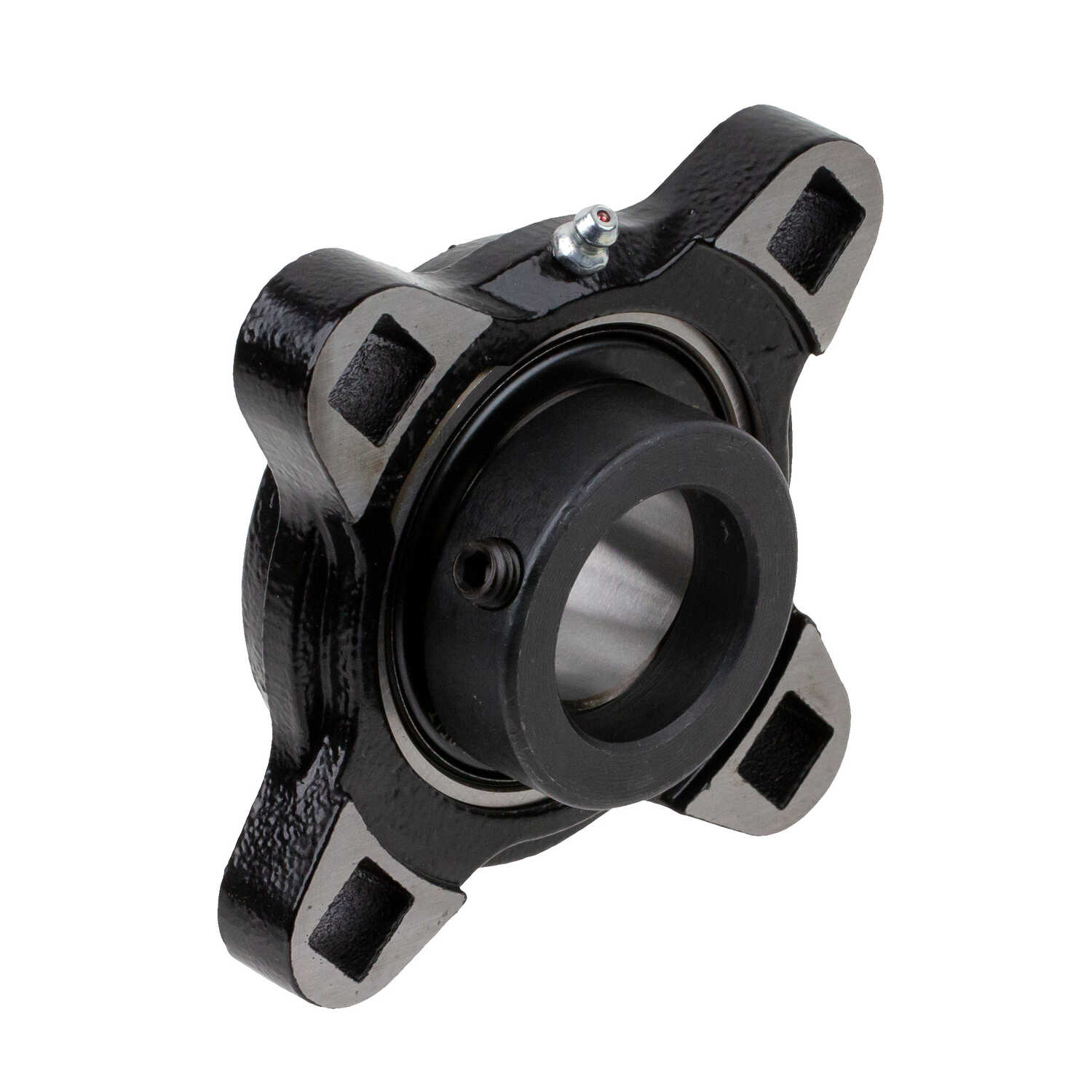

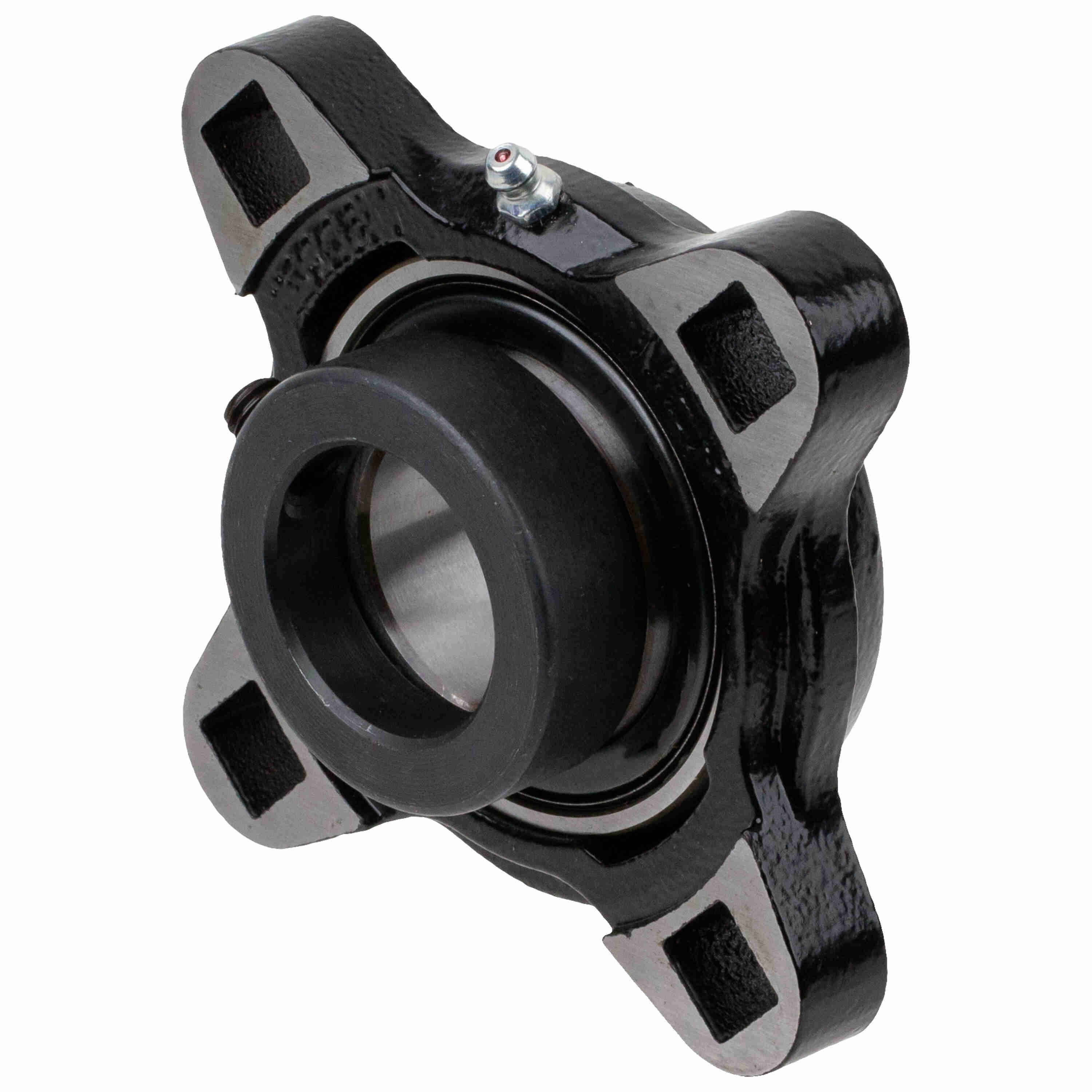

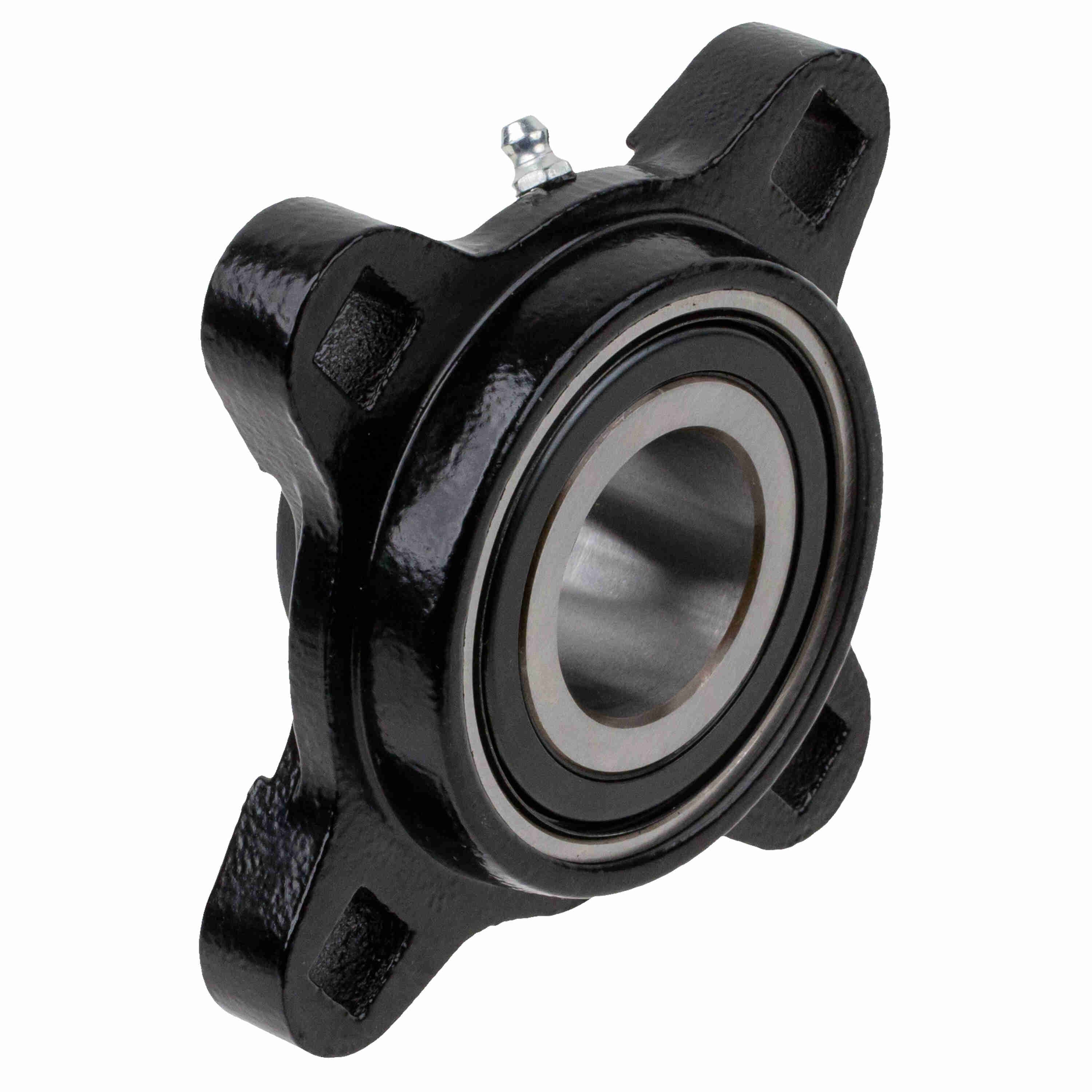

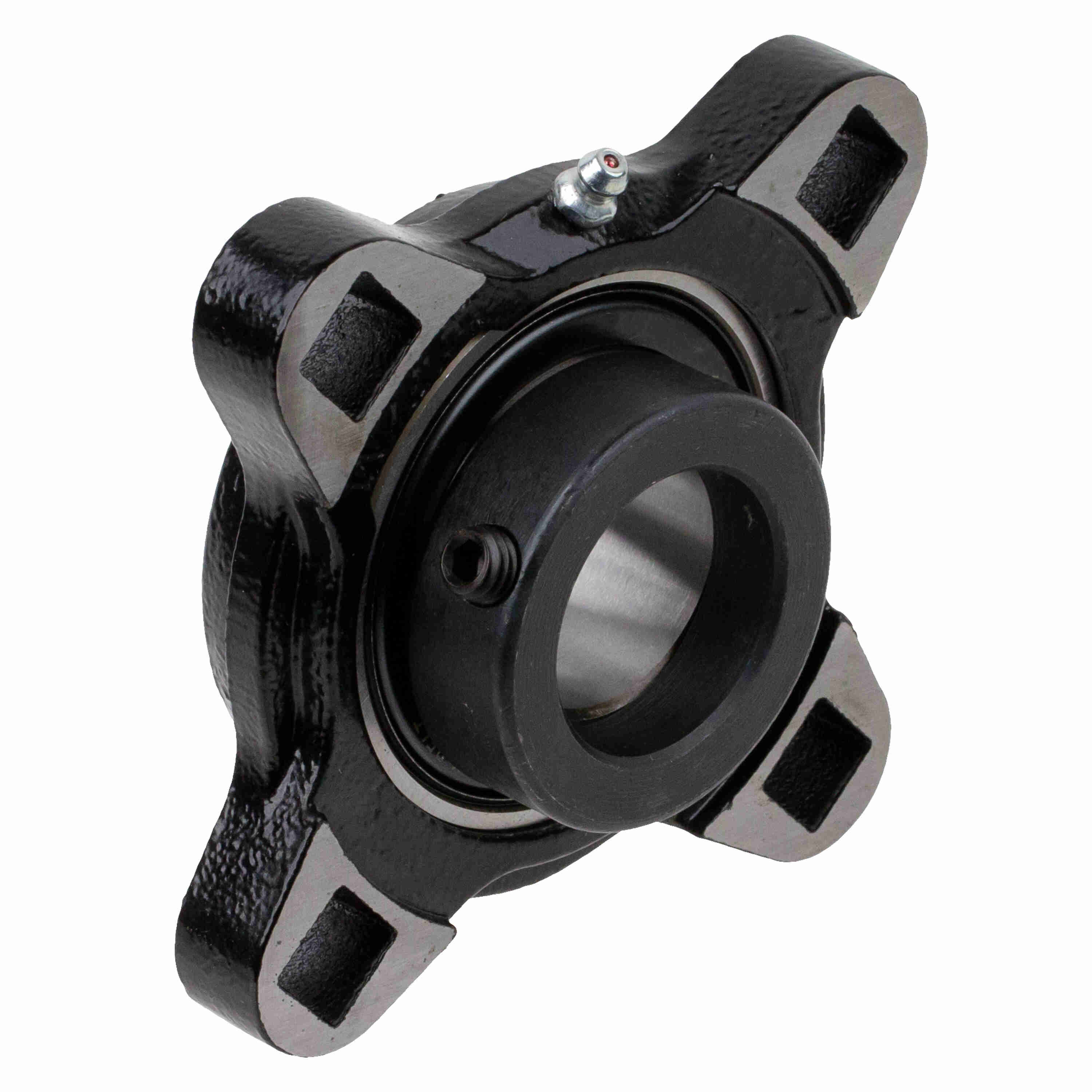

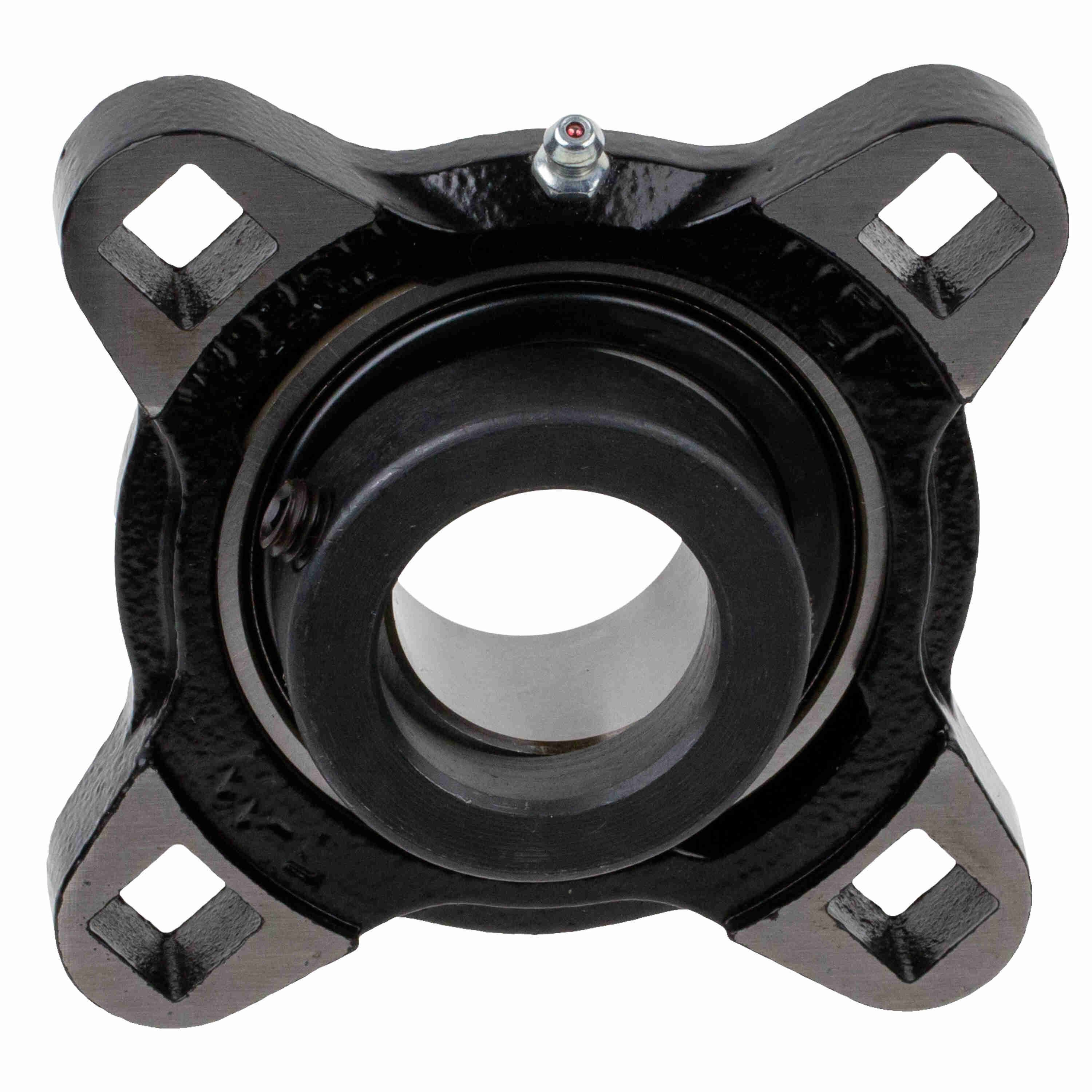

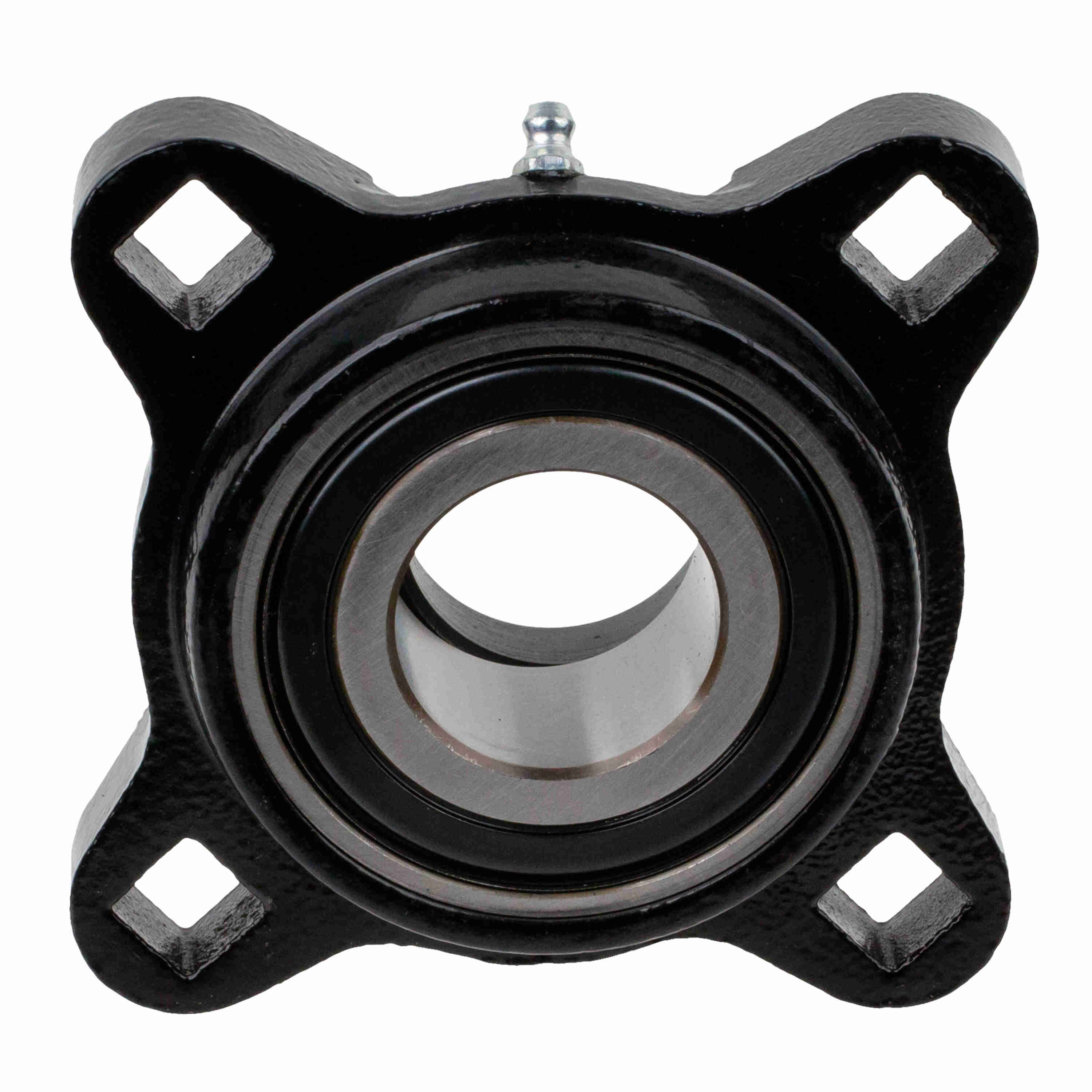

Link-Belt FRWG224EK27 Flange Blocks Ball Bearings - FRWG224EK27
Part #:10413661
Catalog #:FRWG224EK27
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.63 in | Overall Length (in): | 3.88 in |
| Bolt Size (in): | 1/2 in | Overall Height (in): | 1.281 in |
| Bore Diameter (in): | 1.5 in | Length Through Bore (in): | 1.72 in |
| Overall Width (in): | 3.88 in | Bolt Spacing (in): | 4.6875 in |
Technical Specifications
| Housing Color: | Black | Cage Material: | Molded fiber glass reinforced nylon |
| Bore Shape: | Straight | Housing Type: | Flange, Four Bolt |
| Pilot Configuration: | Pilot | Housing Style: | Flange Block |
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Construction: | One Piece | Locking Collar Outside Diameter (in): | 2.38 in |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Pilot Depth (in): | 0.5 in |
| Ability to Relubricate: | Yes | Housing Material: | Ductile Iron |
| Fixed vs. Expansion: | Fixed | Static Load Rating (lb): | 4,460 lb |
| Dynamic Load Rating (lb): | 7,330 lb | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Lubricant: | Lithium Complex NLGI 2 Grease | Radial Clearance: | C3 STANDARD |
| Maximum Speed (RPM): | 4500 rpm | Vibration Frequency Roller Spin: | 0.0367 cps |
| Grease Fitting Thread Size: | 1/4-28 | Shaft Locking Type: | Eccentric |
| Vibration Frequency Fundamental Train: | 0.0065 cps | Bearing Type: | Intermediate Duty |
| Cage Type: | Ball Riding Retainer | Max Operating Temperature (C): | 107 °C |
| Bearing Insert Material: | 52100 Bearing Steel | Size Code: | 208 |
| Max Operating Temperature (F): | 225 °F | End Cap Available: | No |
| Housing Coating: | Powder Coated | Locking Device Kit: | W2245S |
| Vibration Frequency Inner Ring Defect: | 0.0912 cps | Inner Ring Outside Diameter (in): | 2.084 in |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Vibration Frequency Outer Ring Defect: | 0.0588 cps |
General Specifications
| UPC: | 662327668372 | Weight: | 3.00 LB |
| Packaged Length: | 5.31 IN | Packaged Width: | 5.31 IN |
| Packaged Height: | 2.19 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
