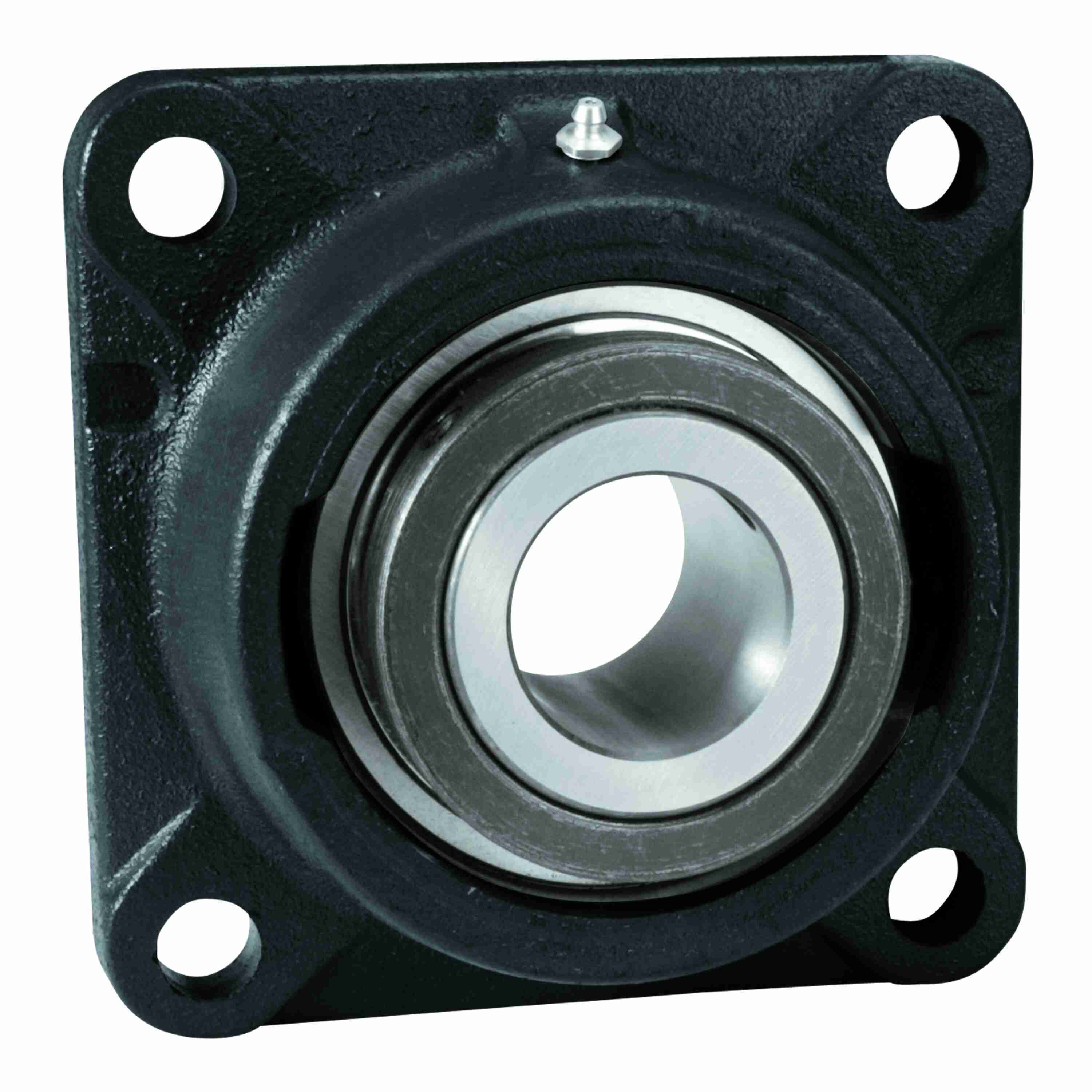

Link-Belt FU339K75 Flange Blocks Ball Bearings - FU339K75
Part #:10412857
Catalog #:FU339K75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.47 in | Length Through Bore (in): | 3.32 in |
| Bolt Size (in): | 3/4 in | Overall Length (in): | 7.63 in |
| Bore Diameter (in): | 2.4375 in | Foot Height (in): | 0.75 in |
| Overall Width (in): | 7.63 in | Bolt Spacing (in): | 6 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Housing Color: | Silver |
| Seal Type: | Flingers only | Housing Style: | Flange Block |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Type: | Flange, Four Bolt |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Pilot Configuration: | No Pilot | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 4.17 in | Setscrew Torque (in-lbs): | 430-460 in/lbs |
| Housing Coating: | Nickel Plated | Size Code: | 339 |
| Cage Type: | Ball Riding Retainer | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Vibration Frequency Outer Ring Defect: | 0.0510 cps | Fixed vs. Expansion: | Fixed |
| Inner Ring Outside Diameter (in): | 3.216 in | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Max Operating Temperature (F): | 225 °F | Static Load Rating (lb): | 11,700 lb |
| Insert: | UG339NL | Bearing Insert Material: | 52100 Bearing Steel |
| Shaft Locking Type: | Set Screw | Maximum Speed (RPM): | 4450 rpm |
| Lubricant: | Lithium Complex NLGI 2 Grease | Radial Clearance: | C3 STANDARD |
| Locking Device Kit: | U3395S | Vibration Frequency Inner Ring Defect: | 0.0823 cps |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Vibration Frequency Roller Spin: | 0.0337 cps |
| End Cap Available: | Yes | End Cap: | U3396C |
| Housing Material: | Cast Iron | Dynamic Load Rating (lb): | 18,390 lb |
| Bearing Type: | Heavy Duty |
General Specifications
| UPC: | 662327957582 | Weight: | 18.75 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
