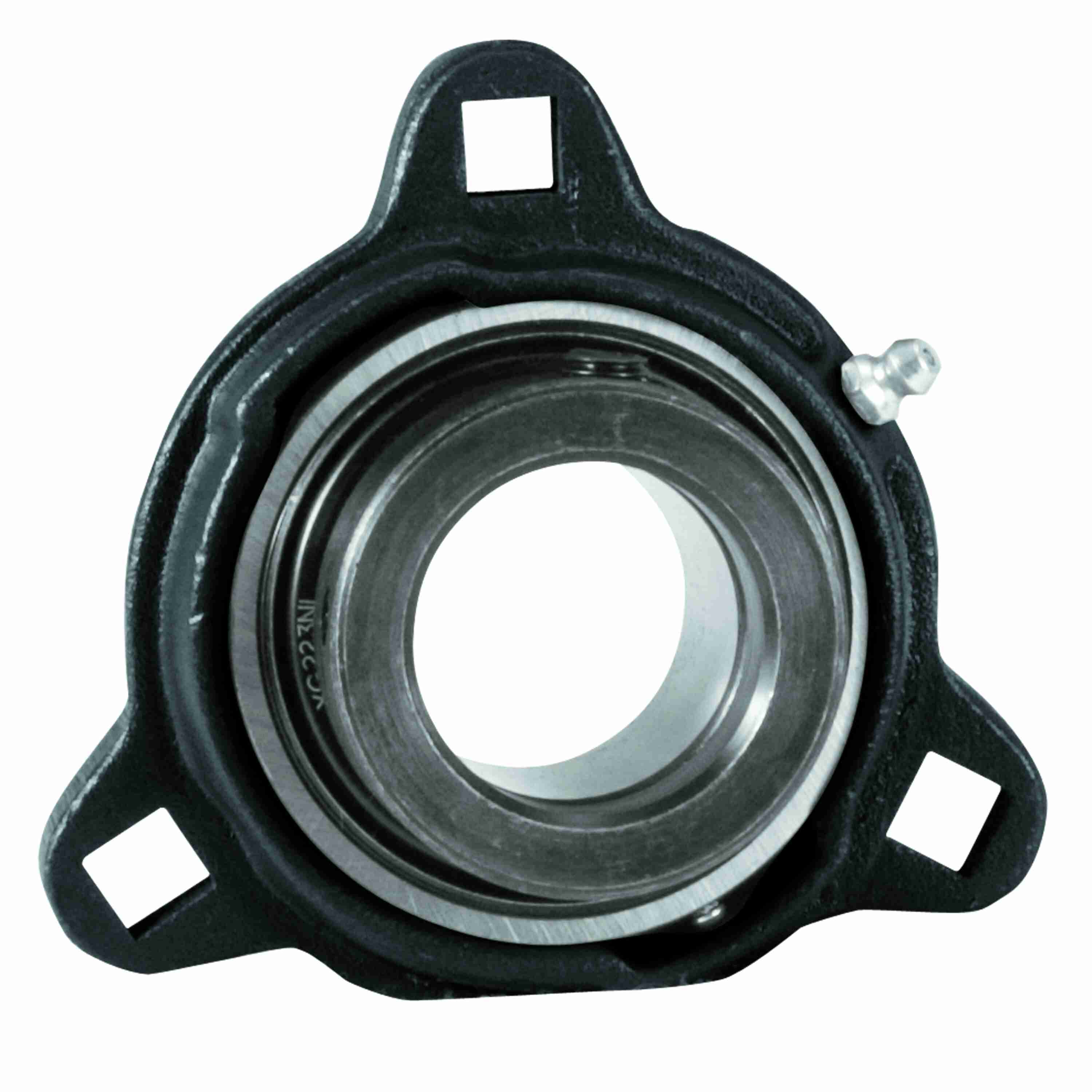

Link-Belt FWG228E Flange Blocks Ball Bearings - FWG228E
Part #:10434980
Catalog #:FWG228E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 1/2 in | Overall Length (in): | 5.38 in |
| Overall Height (in): | 1.906 in | Bore Diameter (in): | 1.75 in |
| Foot Height (in): | 0.63 in | Length Through Bore (in): | 1.72 in |
| Overall Width (in): | 5.38 in | Bolt Spacing (in): | 4.75 in |
Technical Specifications
| Misalignment Type: | Static Only | Seal Type: | Single Lip Contact Seal |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Construction: | One Piece | Pilot Configuration: | No Pilot |
| Housing Color: | Black | Outer Ring Land Profile: | Standard |
| Bore Shape: | Straight | Housing Style: | Flange Block |
| Housing Type: | Flange, Four Bolt | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 2.5 in | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Housing Material: | Ductile Iron | Bearing Type: | Intermediate Duty |
| Fixed vs. Expansion: | Fixed | Insert: | WG228EL |
| Shaft Locking Type: | Eccentric | Static Load Rating (lb): | 4,590 lb |
| Vibration Frequency Inner Ring Defect: | 0.0908 cps | Vibration Frequency Roller Spin: | 0.0377 cps |
| Vibration Frequency Outer Ring Defect: | 0.0592 cps | Vibration Frequency Fundamental Train: | 0.0065 cps |
| Grease Fitting Thread Size: | 1/4-28 | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Cage Type: | Ball Riding Retainer | Locking Device Kit: | W2285S |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Radial Clearance: | C3 STANDARD |
| End Cap Available: | No | Housing Coating: | Powder Coated |
| Size Code: | 209 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Bearing Insert Material: | 52100 Bearing Steel | Dynamic Load Rating (lb): | 7,370 lb |
| Max Operating Temperature (C): | 107 °C | Max Operating Temperature (F): | 225 °F |
| Inner Ring Outside Diameter (in): | 2.281 in | Maximum Speed (RPM): | 4000 rpm |
| Housing Height (in): | 1.13 in |
General Specifications
| UPC: | 793699311815 | Weight: | 3.00 LB |
| Packaged Length: | 5.31 IN | Packaged Width: | 5.31 IN |
| Packaged Height: | 2.19 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
