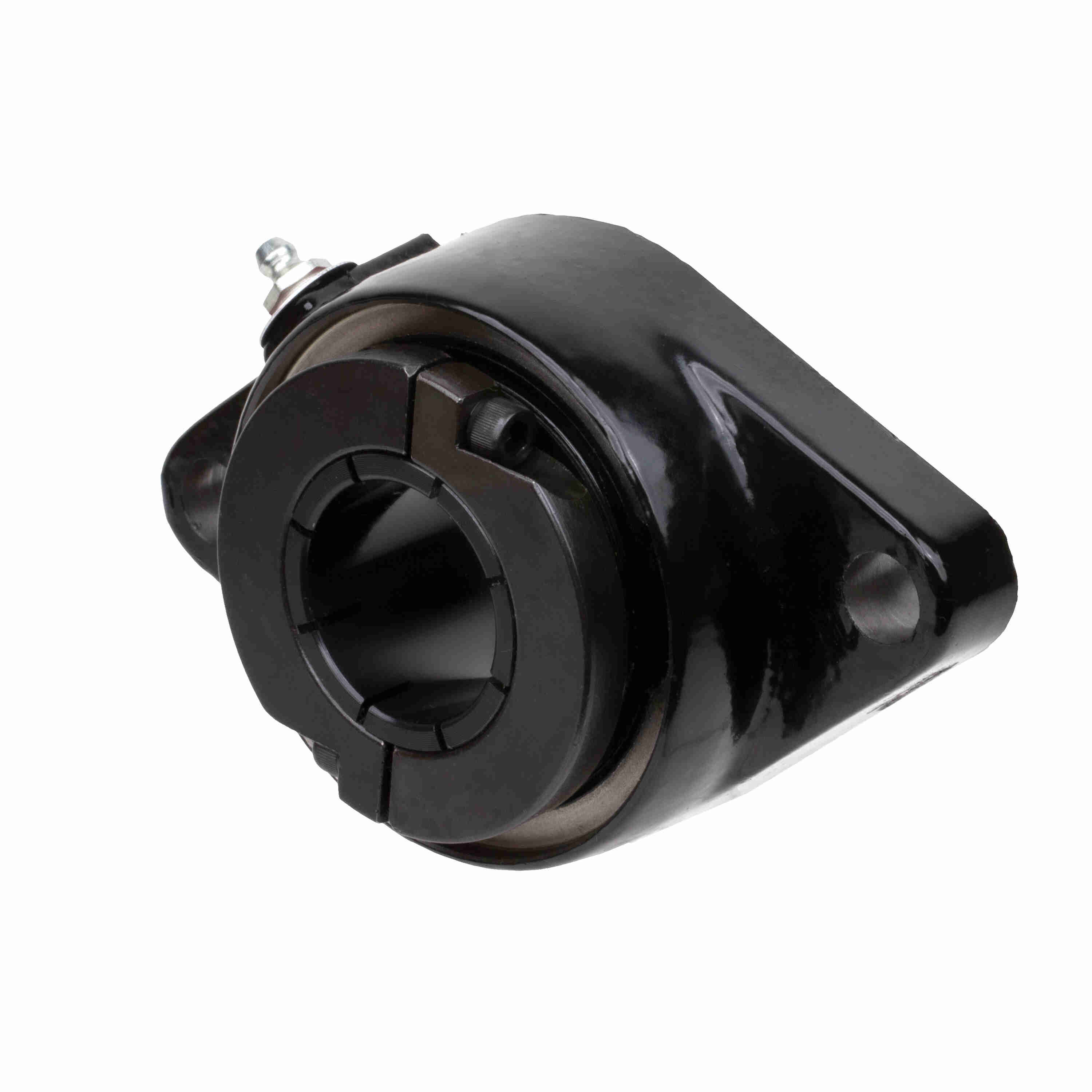

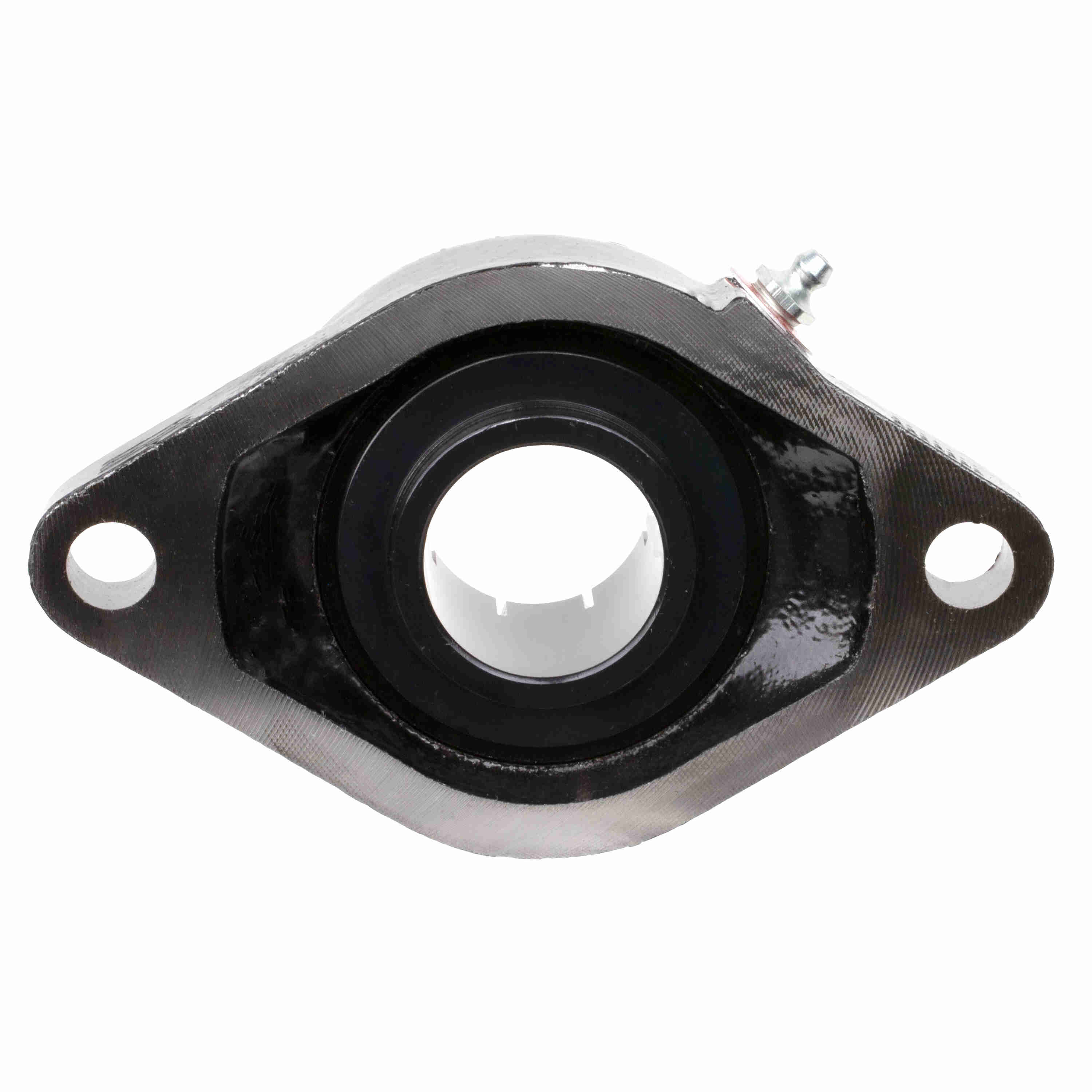

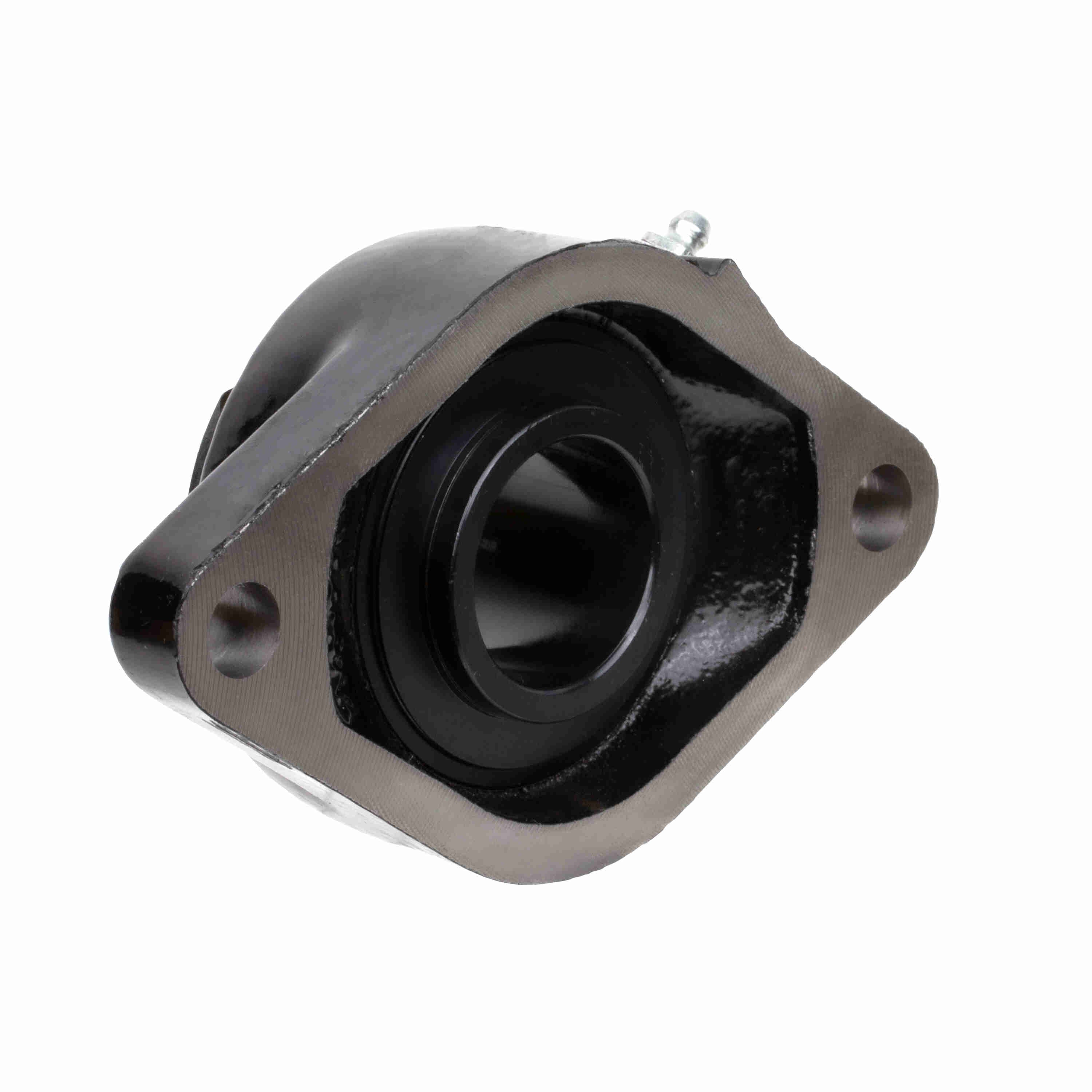

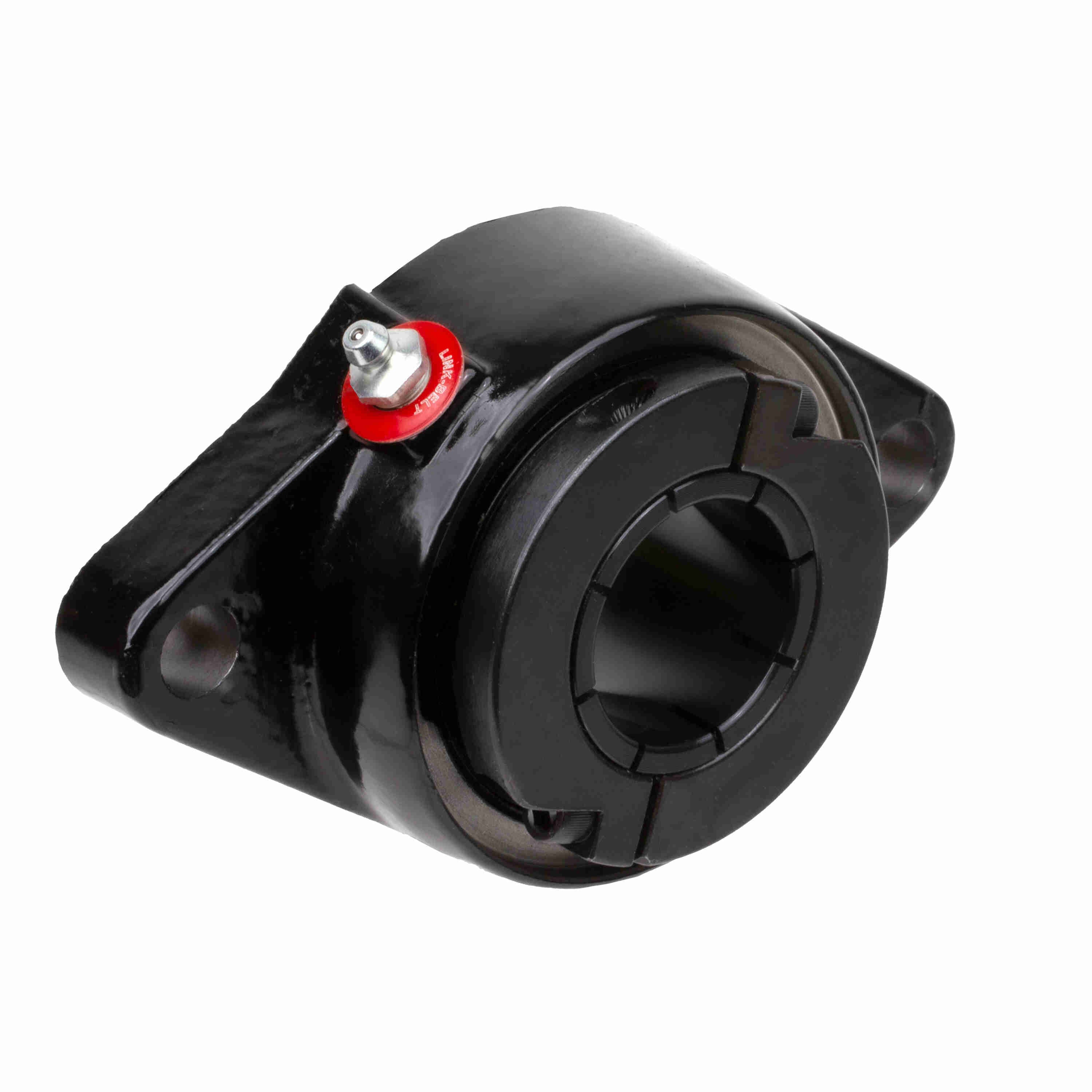

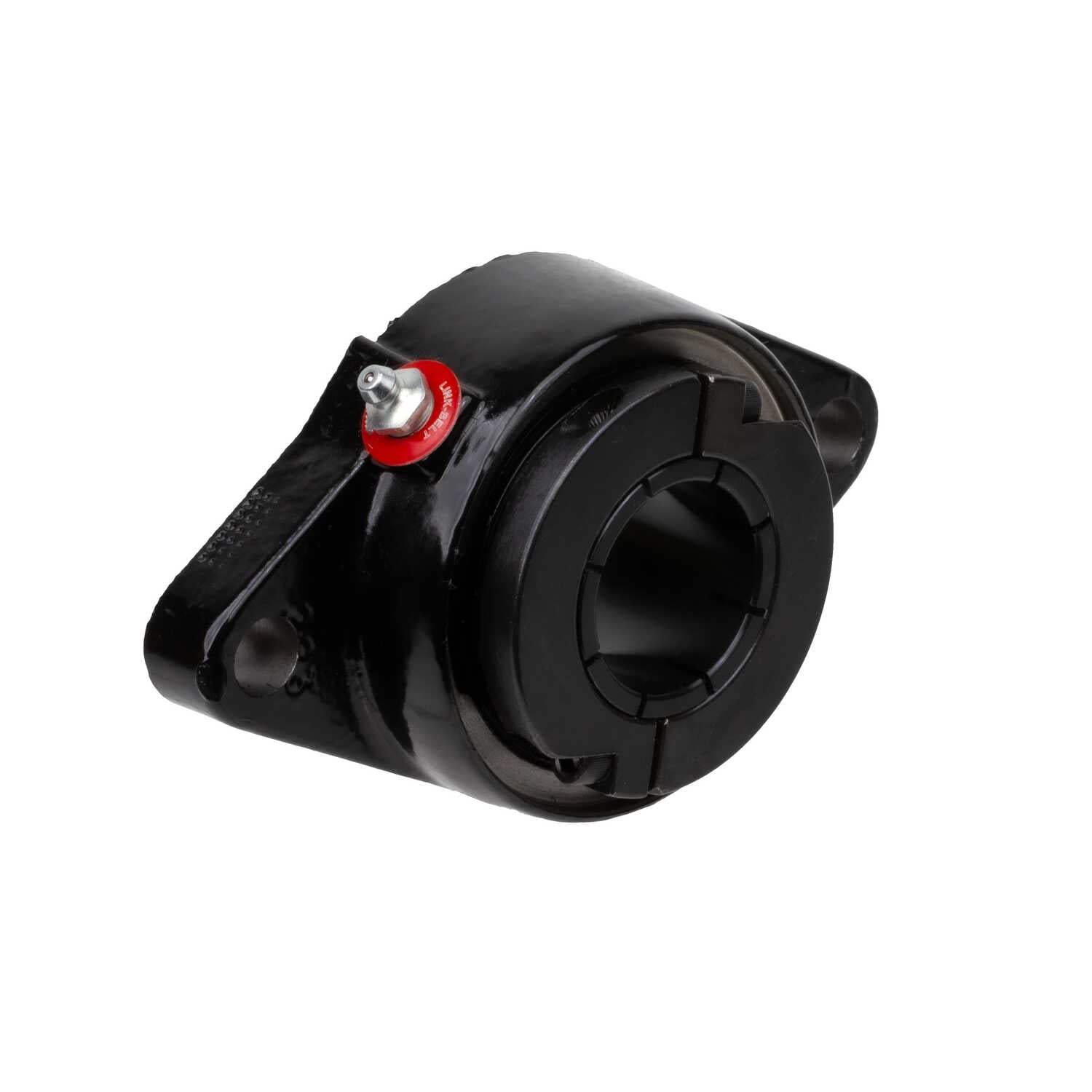

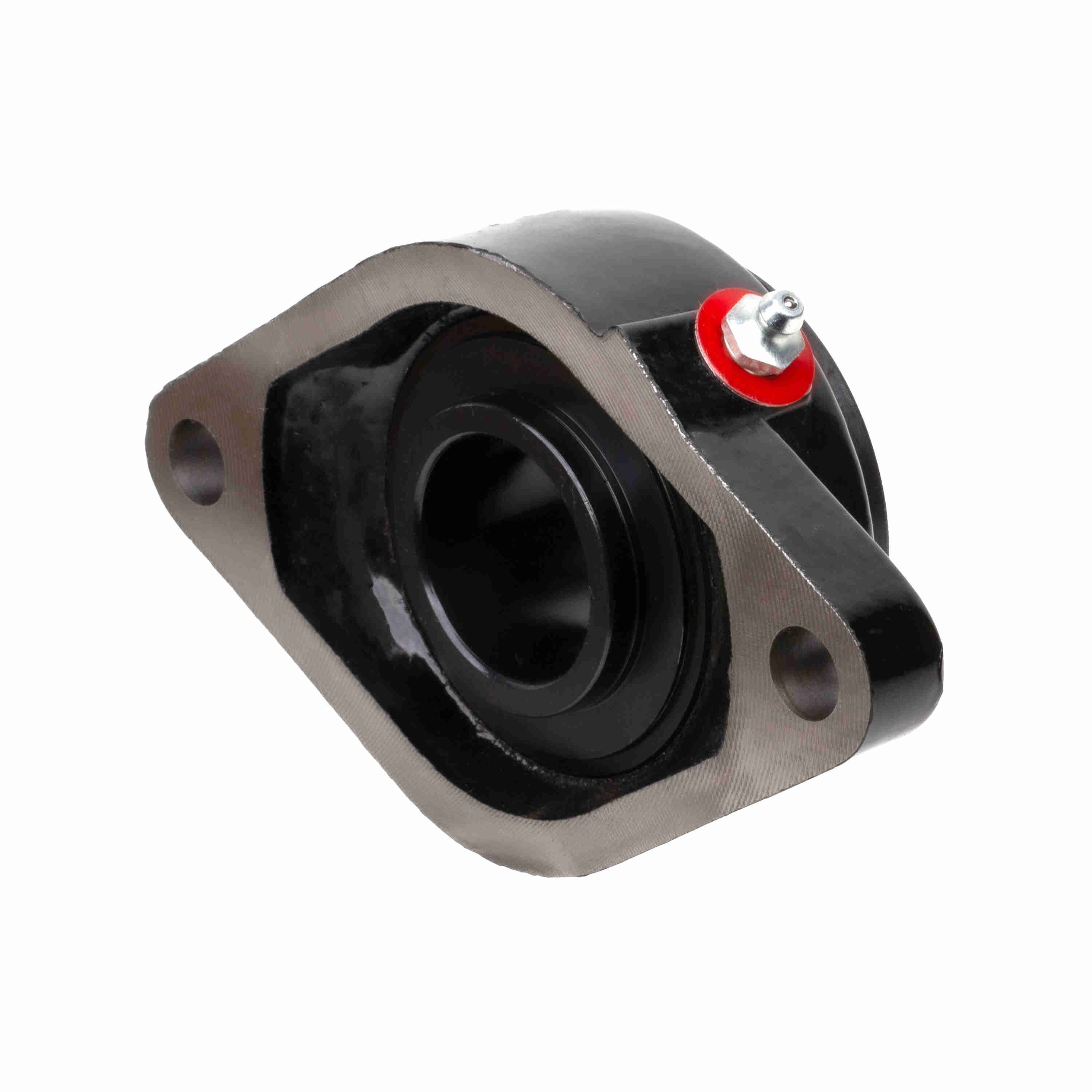

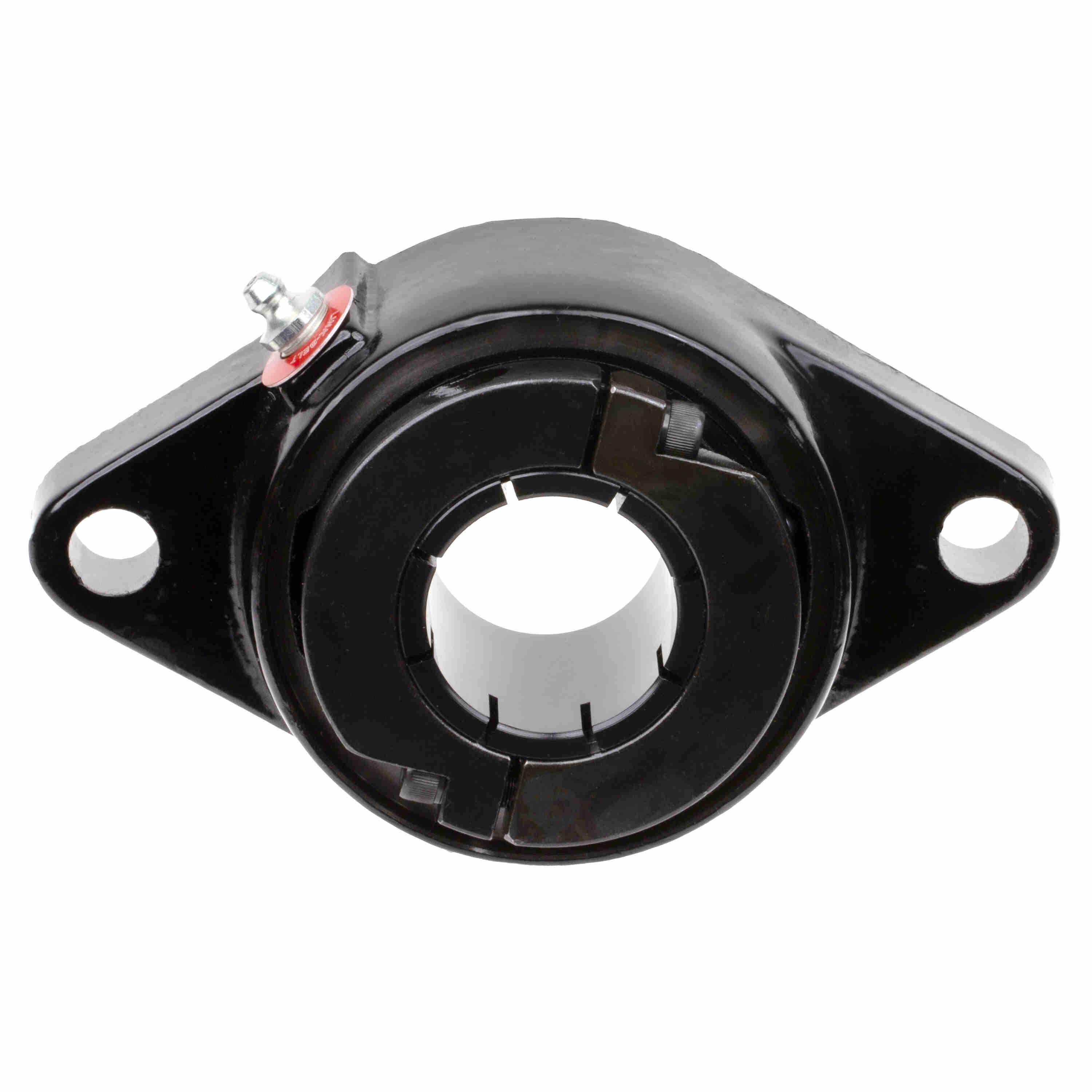

Link-Belt FX3CL223N Flange Blocks Ball Bearings - FX3CL223N
Part #:10410664
Catalog #:FX3CL223N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 3.63 in | Overall Length (in): | 6.13 in |
| Overall Height (in): | 1.81 in | Bolt Size (in): | 1/2 in |
| Bore Diameter (in): | 1.4375 in | Length Through Bore (in): | 1.81 in |
| Foot Height (in): | 0.63 in | Bolt Spacing (in): | 5.125 in |
Technical Specifications
| Cage Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Housing Style: | Flange Block | Seal Type: | Single Lip Contact Seal |
| Outer Ring Land Profile: | Standard | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Housing Color: | Black | Pilot Configuration: | No Pilot |
| Housing Type: | Flange, Two Bolt | Setscrew Torque (in-lbs): | 151-168 in/lbs |
| Locking Collar Outside Diameter (in): | 2.56 in | Ability to Relubricate: | Yes |
| Max Operating Temperature (F): | 225 °F | Size Code: | 207 |
| Insert: | CLG223NL | Max Operating Temperature (C): | 107 °C |
| Bearing Insert Finish: | BLACK OXIDE | Static Load Rating (lb): | 3,440 lb |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Locking Device Kit: | CL2235S |
| End Cap Available: | Yes | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Shaft Locking Type: | Concentric | Radial Clearance: | C3 STANDARD |
| Inner Ring Outside Diameter (in): | 1.847 in | Cage Type: | Ball Riding Retainer |
| Dynamic Load Rating (lb): | 5,810 lb | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Housing Material: | Cast Iron | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Fixed vs. Expansion: | Fixed | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Bearing Type: | Standard Duty |
| Vibration Frequency Roller Spin: | 0.0383 cps | Maximum Speed (RPM): | 6850 rpm |
| Lubricant: | Lithium Complex NLGI 2 Grease | Housing Coating: | Powder Coated |
| Bearing Insert Material: | 52100 Bearing Steel | End Cap: | CL2236 |
General Specifications
| UPC: | 662864289801 | Weight: | 3.10 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
