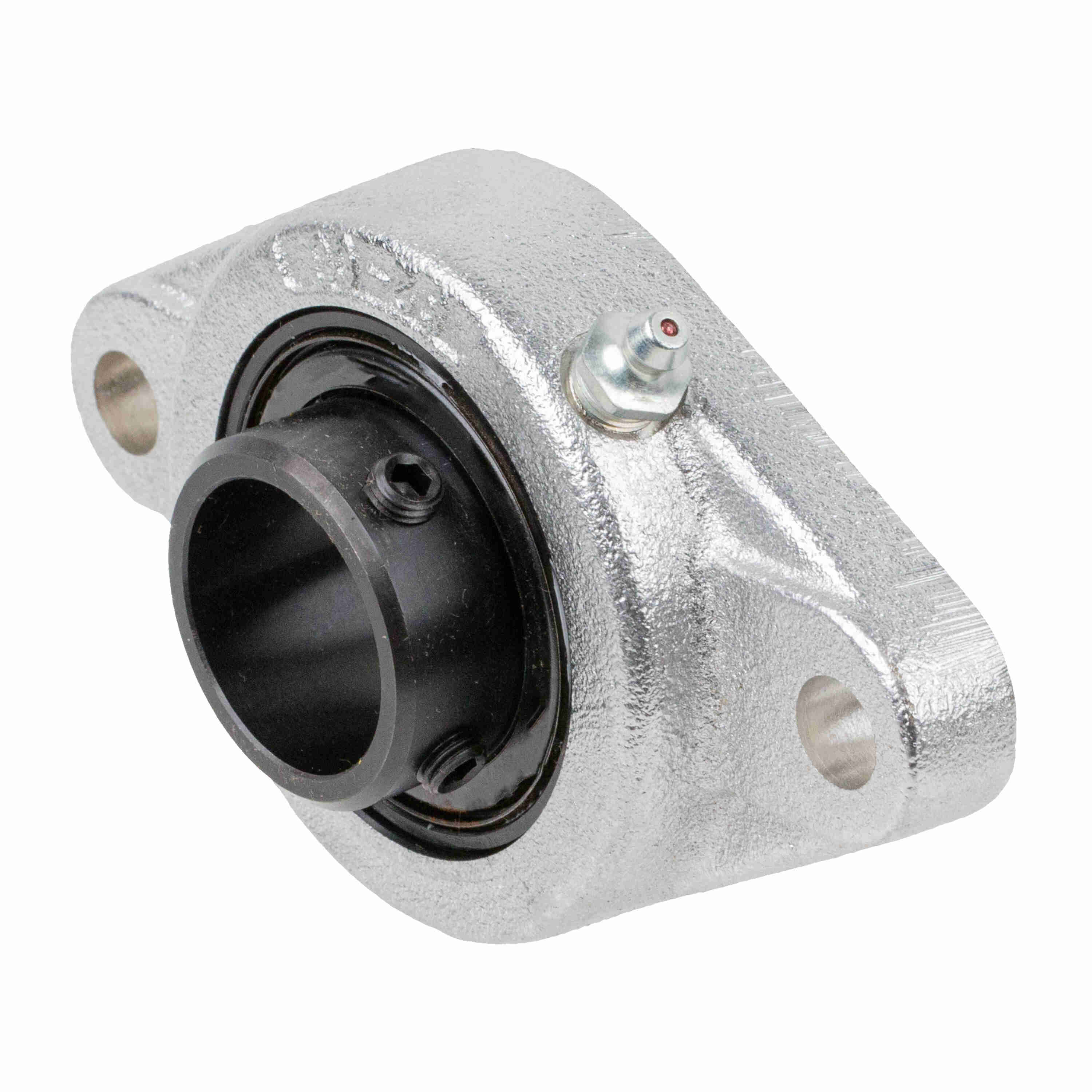

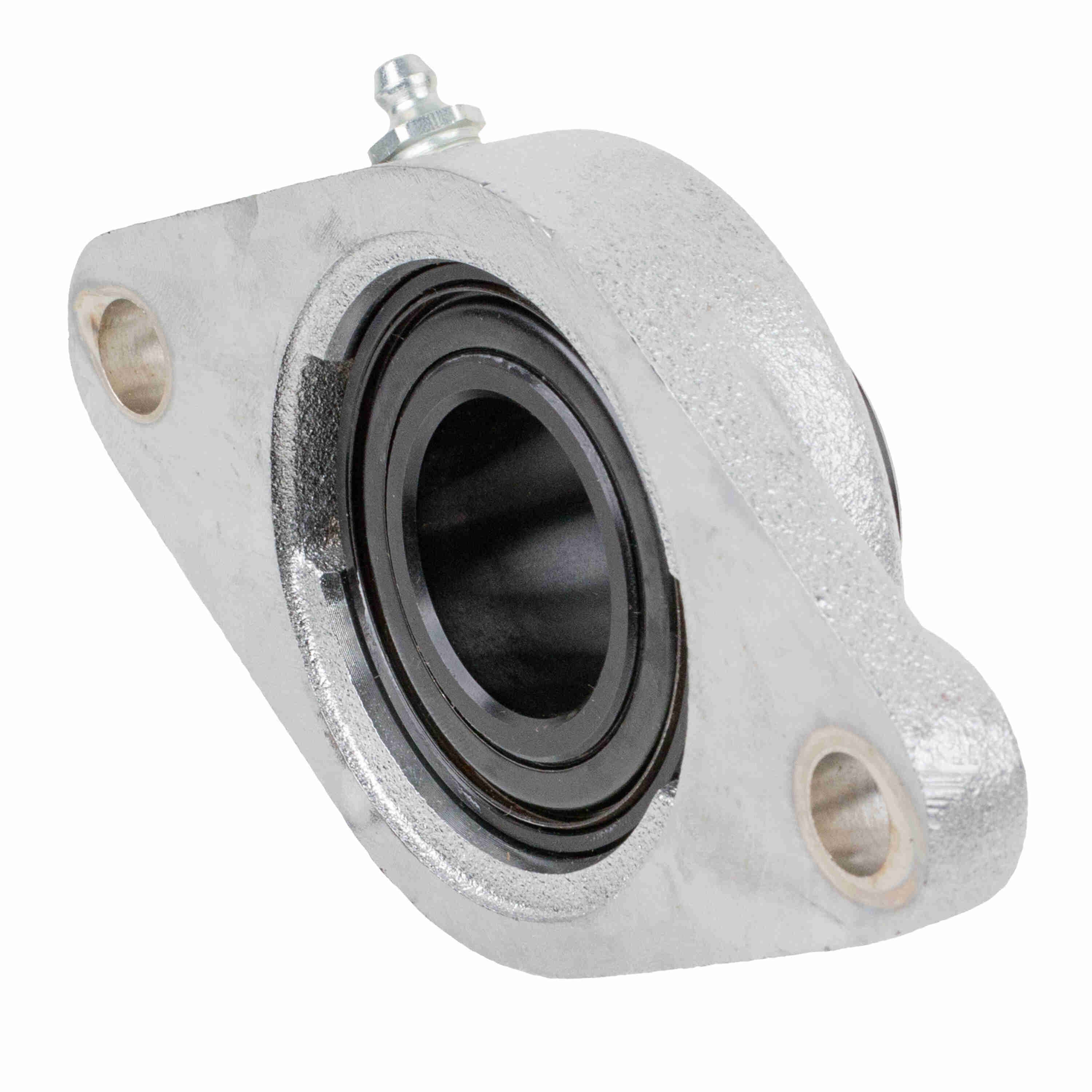

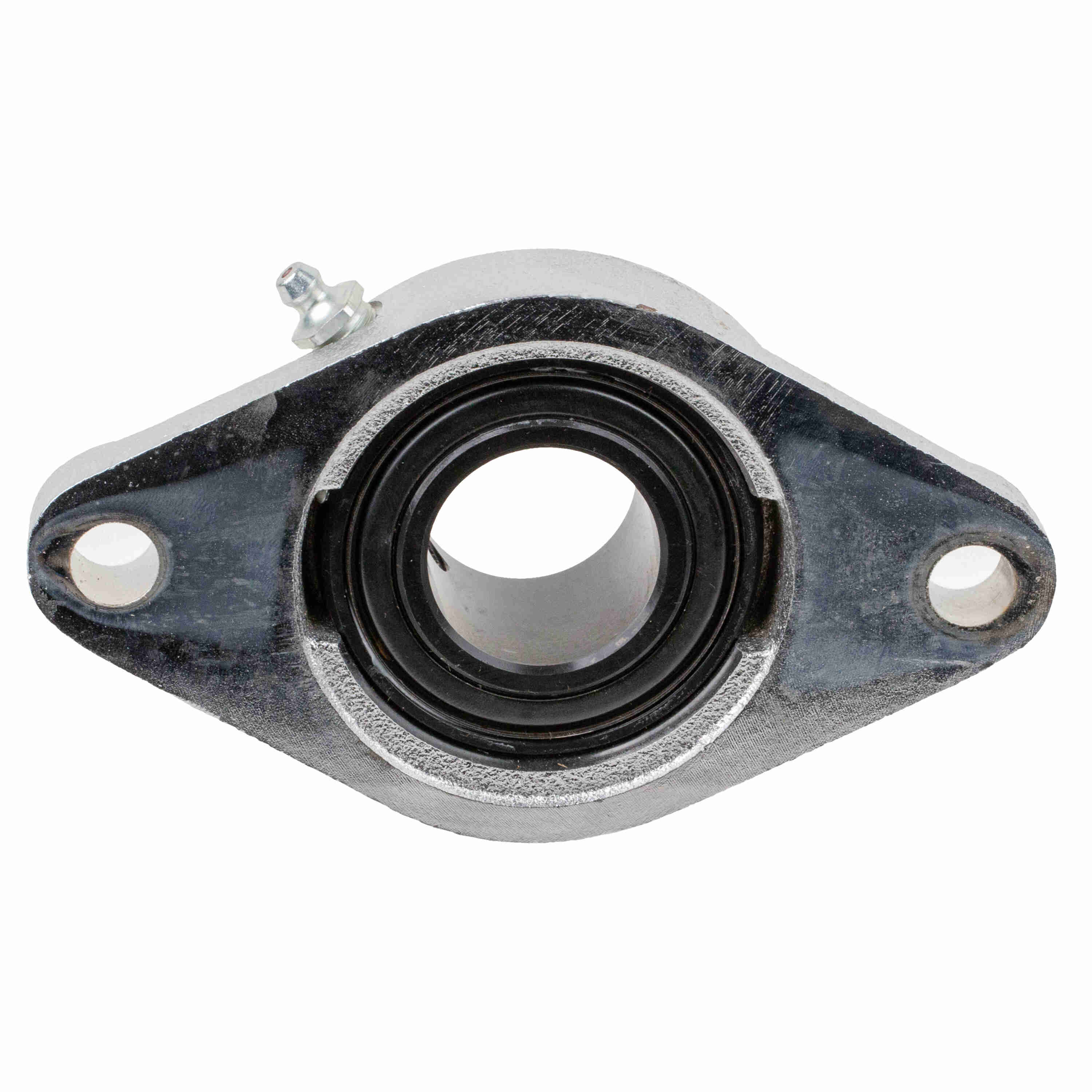

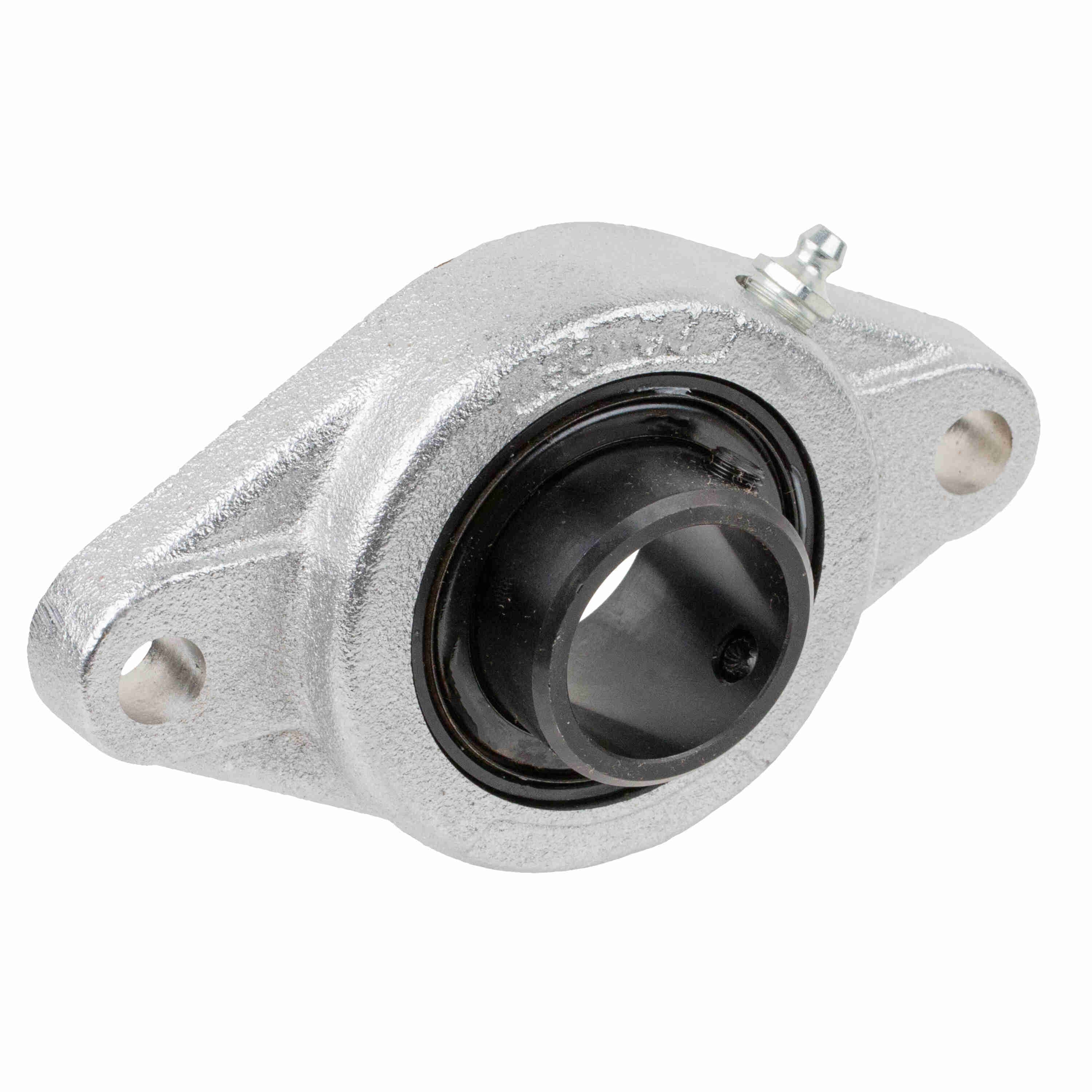

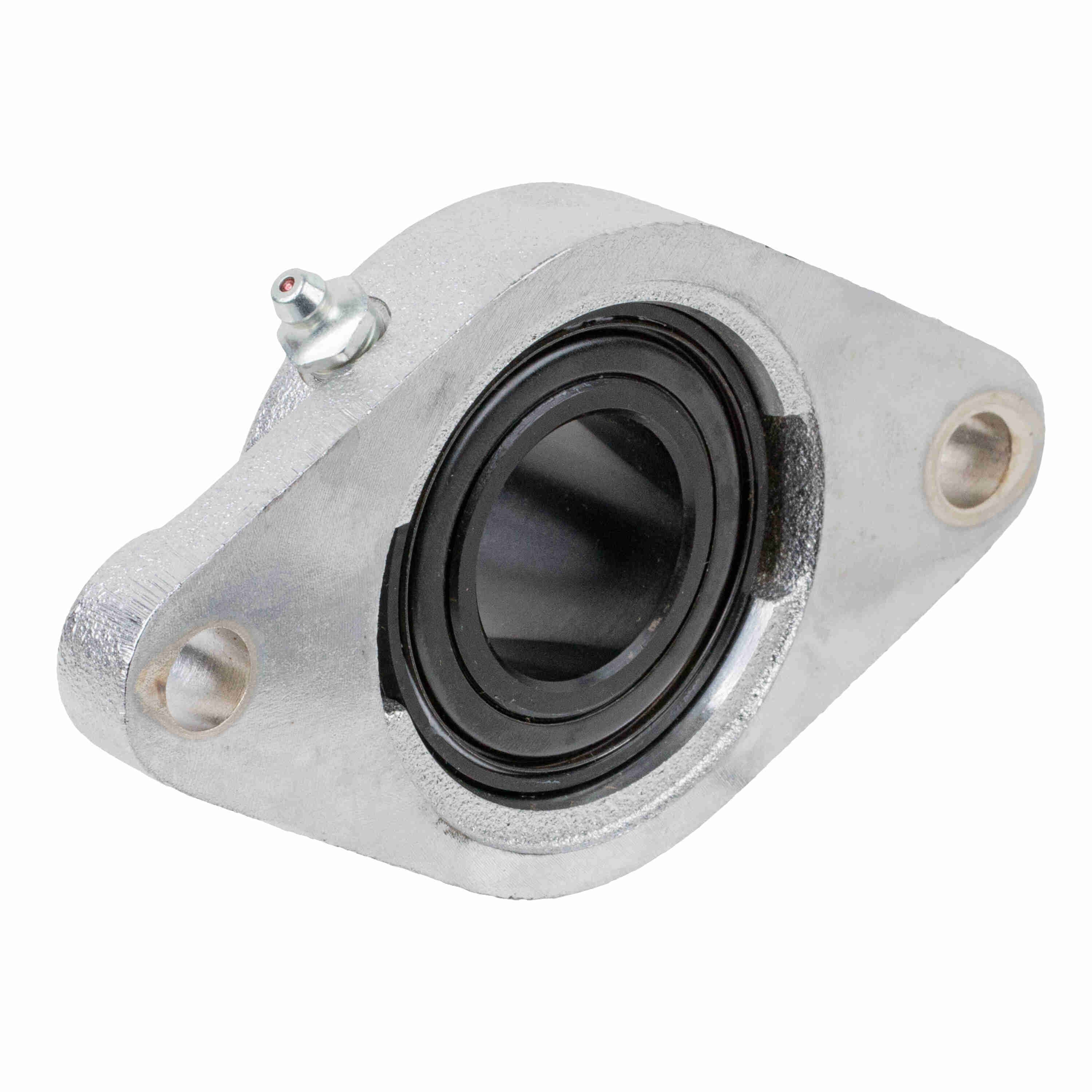

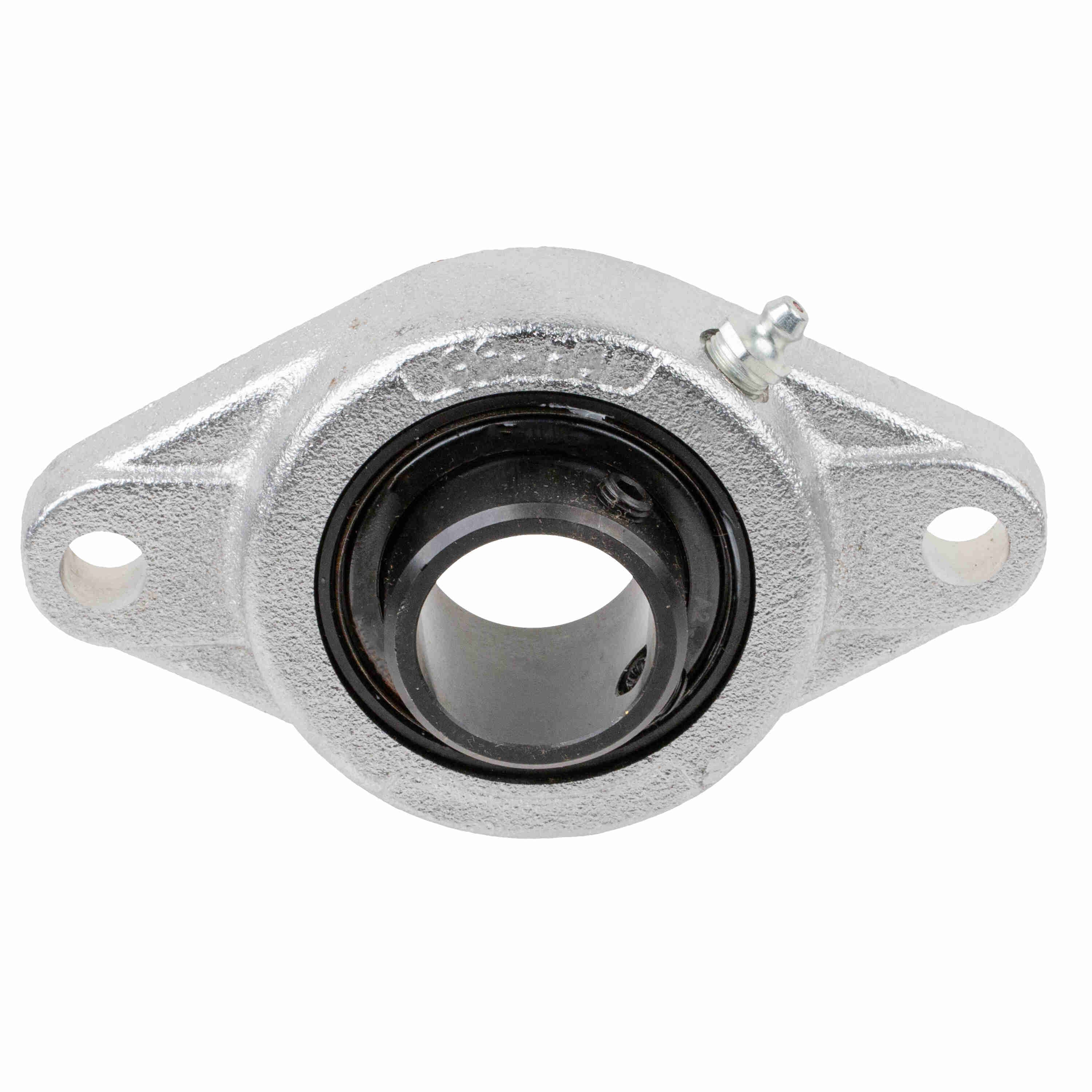

Link-Belt FX3S223E1K75 Flange Blocks Ball Bearings - FX3S223E1K75
Part #:10425711
Catalog #:FX3S223E1K75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.4375 in | Bolt Size (in): | 1/2 in |
| Overall Length (in): | 6.13 in | Overall Width (in): | 3.69 in |
| Foot Height (in): | 0.56 in | Overall Height (in): | 1.719 in |
| Length Through Bore (in): | 1.563 in | Bolt Spacing (in): | 5.125 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Seal Type: | Viton Single Lip Contact Seal |
| Misalignment Type: | Static Only | Housing Construction: | One Piece |
| Cage Material: | Steel | Bore Shape: | Straight |
| Pilot Configuration: | No Pilot | Housing Style: | Flange Block |
| Housing Color: | Silver | Outer Ring Land Profile: | Standard |
| Housing Type: | Flange, Two Bolt | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Ability to Relubricate: | Yes | Shaft Locking Type: | Set Screw |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | End Cap Available: | No |
| Housing Material: | Cast Iron | Fixed vs. Expansion: | Fixed |
| Vibration Frequency Roller Spin: | 0.0383 cps | Housing Coating: | Nickel Plated |
| Maximum Speed (RPM): | 4800 rpm | Static Load Rating (lb): | 3,440 lb |
| Radial Clearance: | C5 INCREASED | Bearing Type: | Intermediate Duty |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Max Operating Temperature (C): | 204 °C |
| Bearing Insert Material: | 52100 Bearing Steel | Dynamic Load Rating (lb): | 5,810 lb |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Lubricant: | ALMASOL 1250 HI-TEMP | Max Operating Temperature (F): | 400 °F |
| Inner Ring Outside Diameter (in): | 1.847 in | Cage Type: | Ball Riding Retainer |
| Insert: | SG223E1LPA | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Bearing Insert Finish: | BLACK OXIDE | Size Code: | 207 |
| Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 662864723930 | Weight: | 2.50 LB |
| Packaged Length: | 4.75 IN | Packaged Width: | 4.75 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
