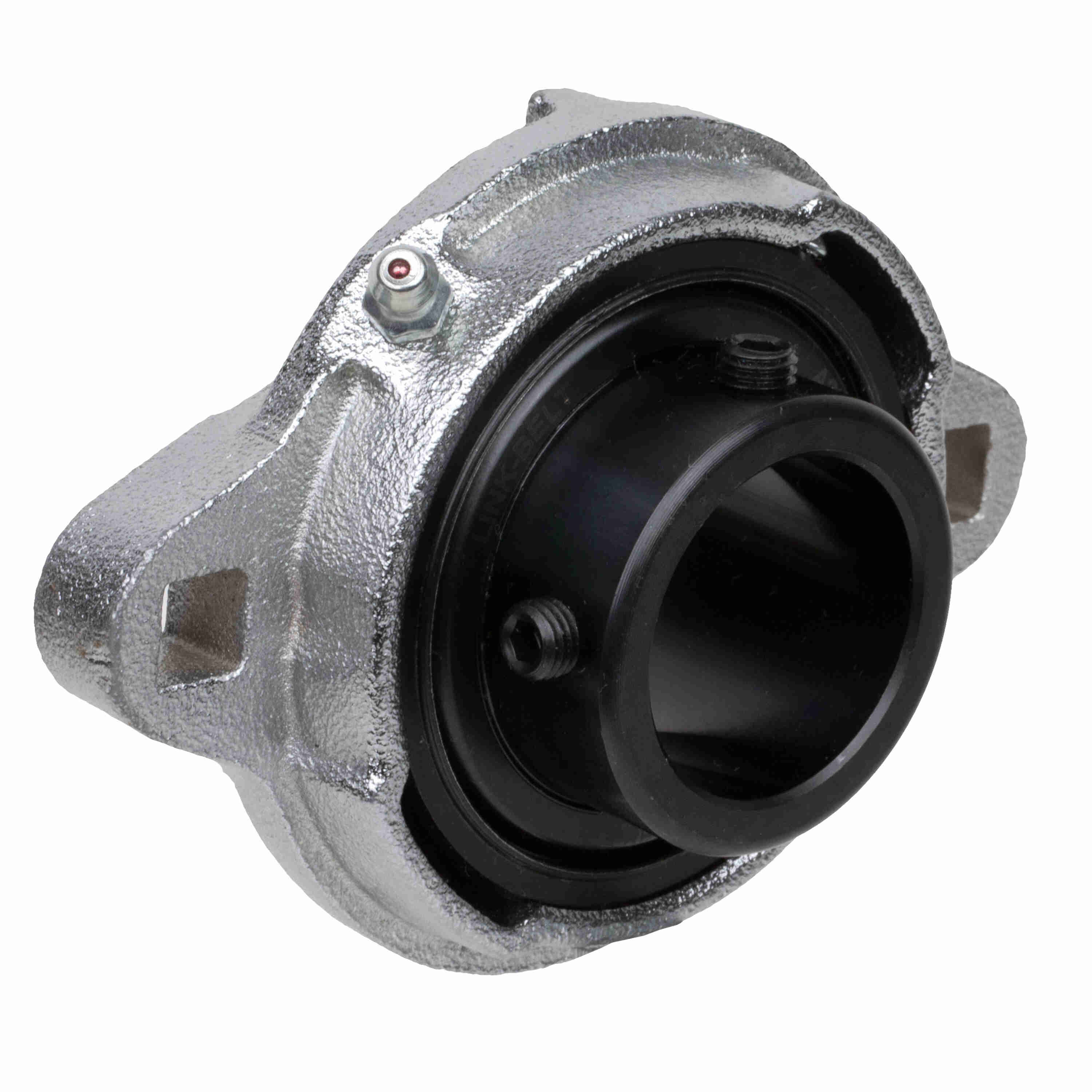

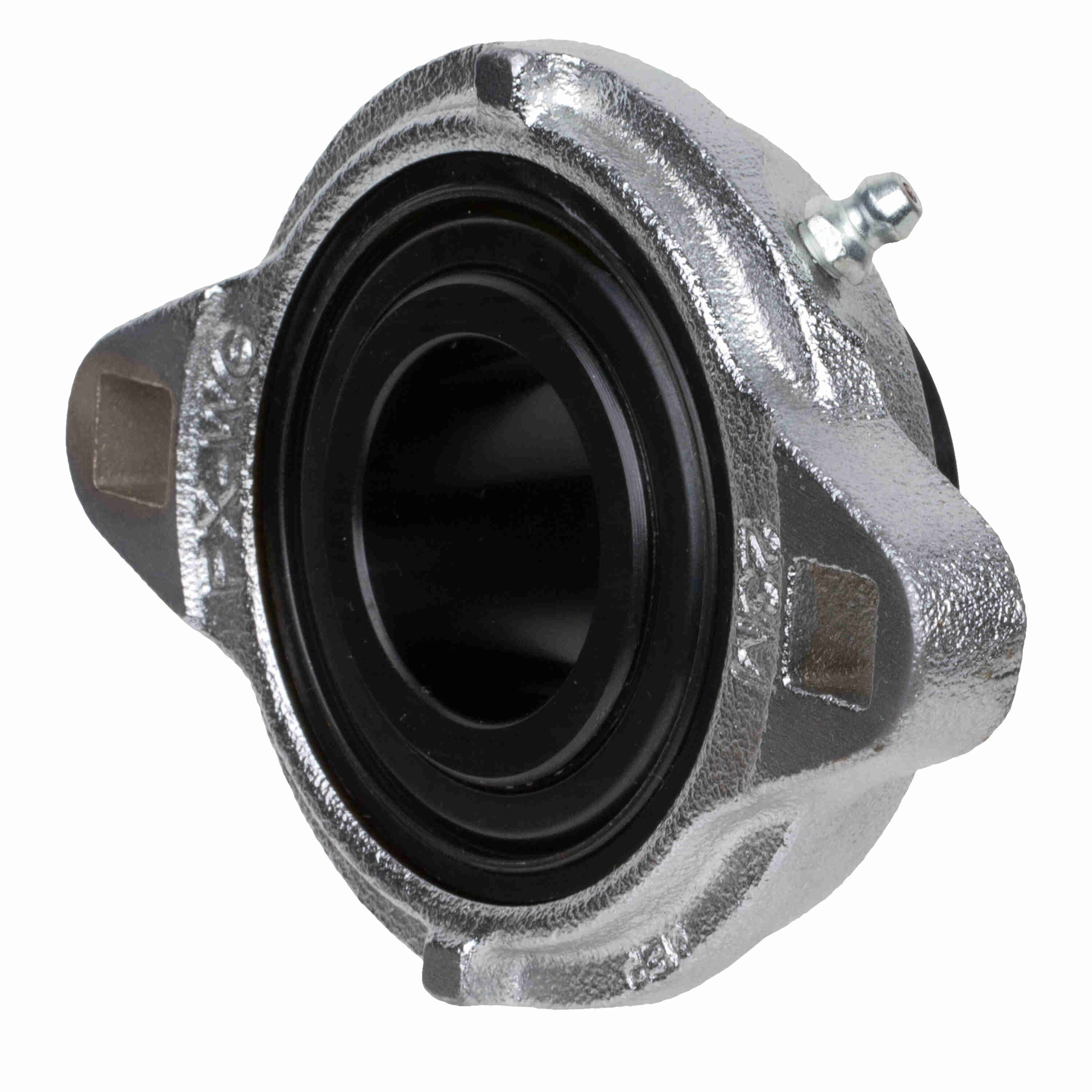

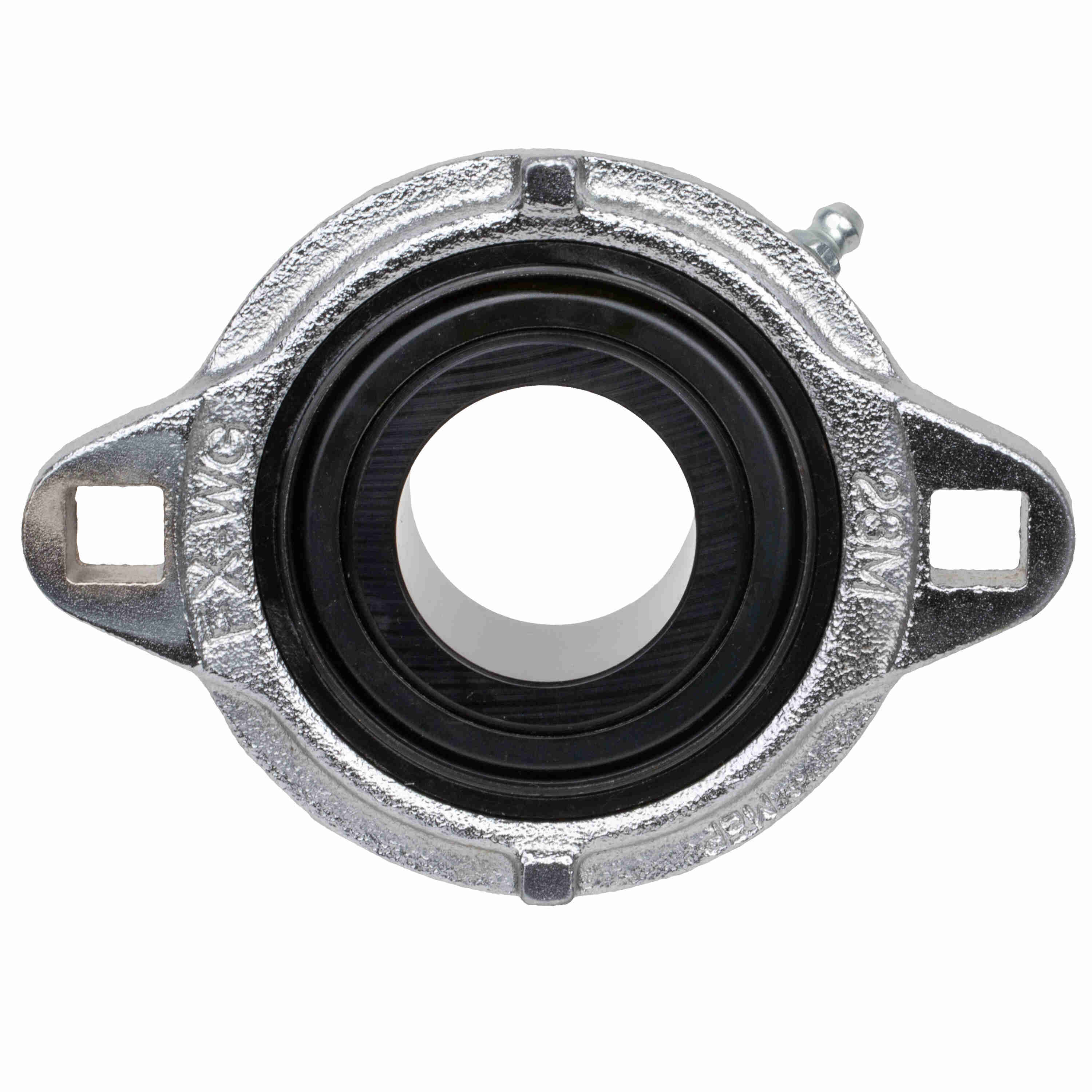

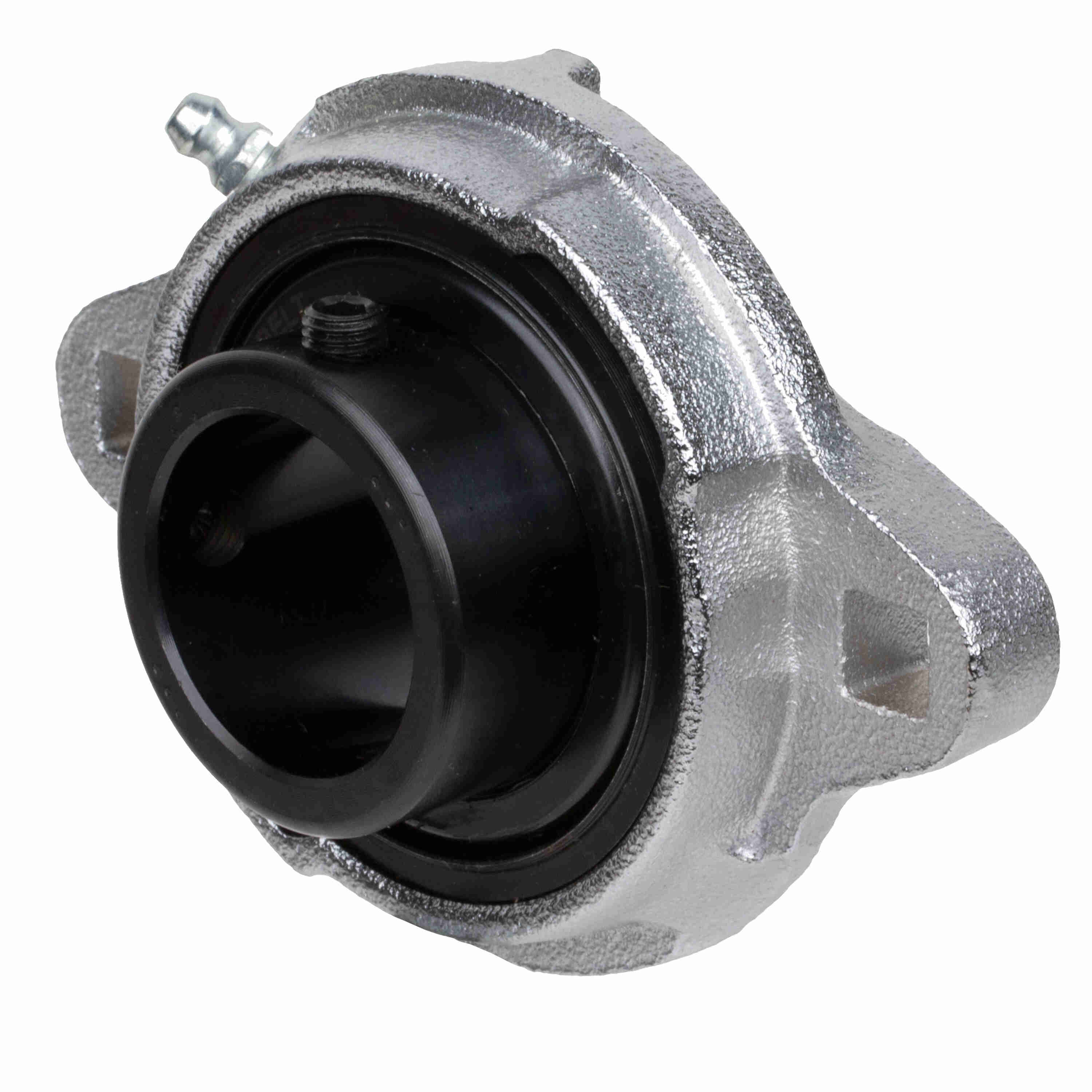

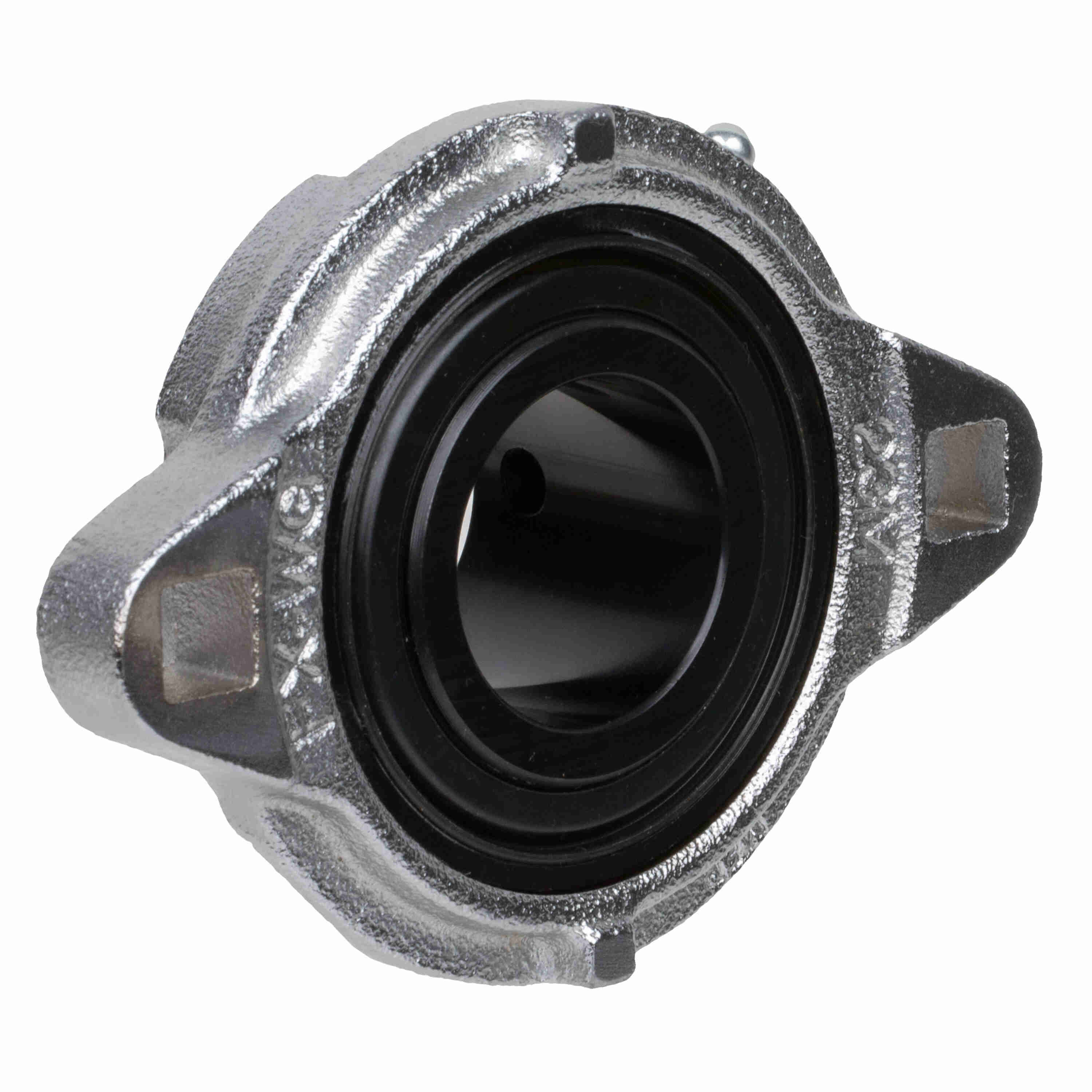

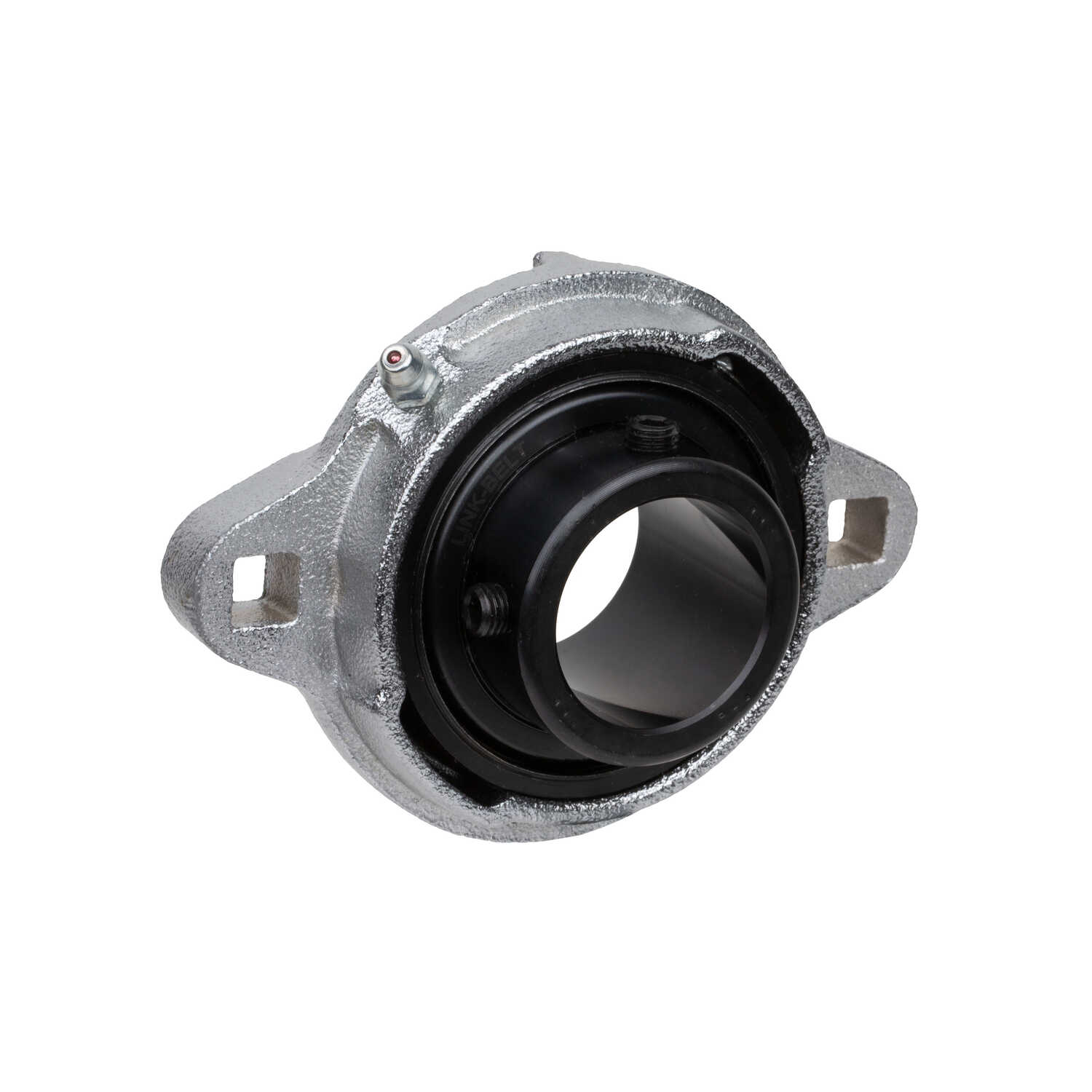

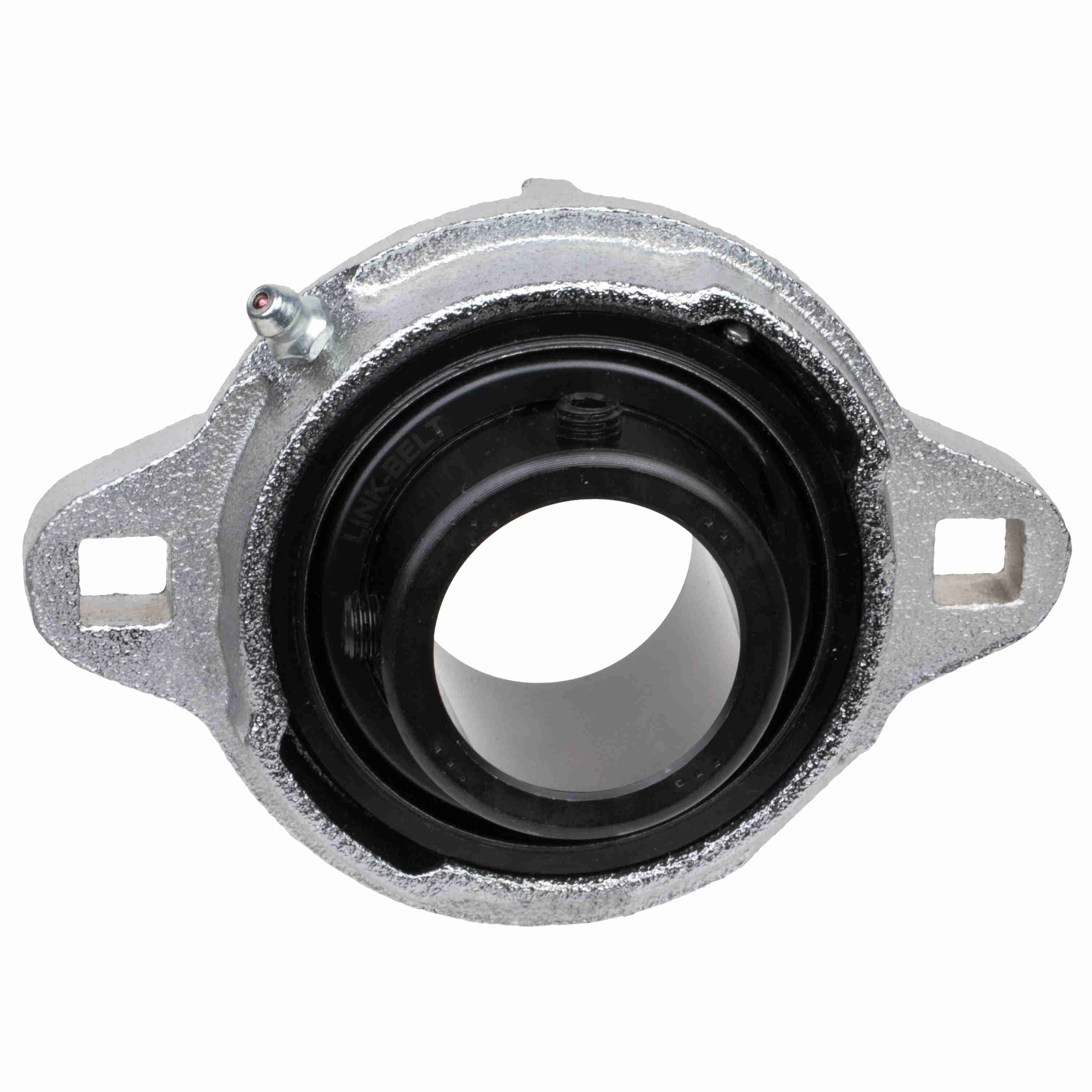

Link-Belt FXSG222EK75 Flange Blocks Ball Bearings - FXSG222EK75
Part #:10416700
Catalog #:FXSG222EK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 1.563 in | Overall Width (in): | 3.50 in |
| Bore Diameter (in): | 1.375 in | Foot Height (in): | 0.50 in |
| Bolt Size (in): | 3/8 in | Overall Length (in): | 4.81 in |
| Overall Height (in): | 1.61 in | Bolt Spacing (in): | 3.9375 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Seal Type: | Single Lip Contact Seal |
| Pilot Configuration: | No Pilot | Housing Type: | Flange, Two Bolt |
| Misalignment Type: | Static Only | Housing Style: | Flange Block |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Silver | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Max Operating Temperature (F): | 225 °F |
| Housing Material: | Ductile Iron | Bearing Insert Finish: | BLACK OXIDE |
| Bearing Insert Material: | 52100 Bearing Steel | Maximum Speed (RPM): | 4800 rpm |
| Lubricant: | MOBIL FM222 FOOD GRADE H1 | Fixed vs. Expansion: | Fixed |
| Grease Fitting Thread Size: | 1/4-28 | End Cap Available: | No |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Vibration Frequency Roller Spin: | 0.0383 cps |
| Max Operating Temperature (C): | 107 °C | Static Load Rating (lb): | 3,440 lb |
| Cage Type: | Ball Riding Retainer | Size Code: | 207 |
| Inner Ring Outside Diameter (in): | 1.847 in | Dynamic Load Rating (lb): | 5,810 lb |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Radial Clearance: | C3 STANDARD |
| Housing Coating: | Nickel Plated | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Shaft Locking Type: | Set Screw |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Bearing Type: | Intermediate Duty |
General Specifications
| UPC: | 662327901035 | Weight: | 1.66 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
