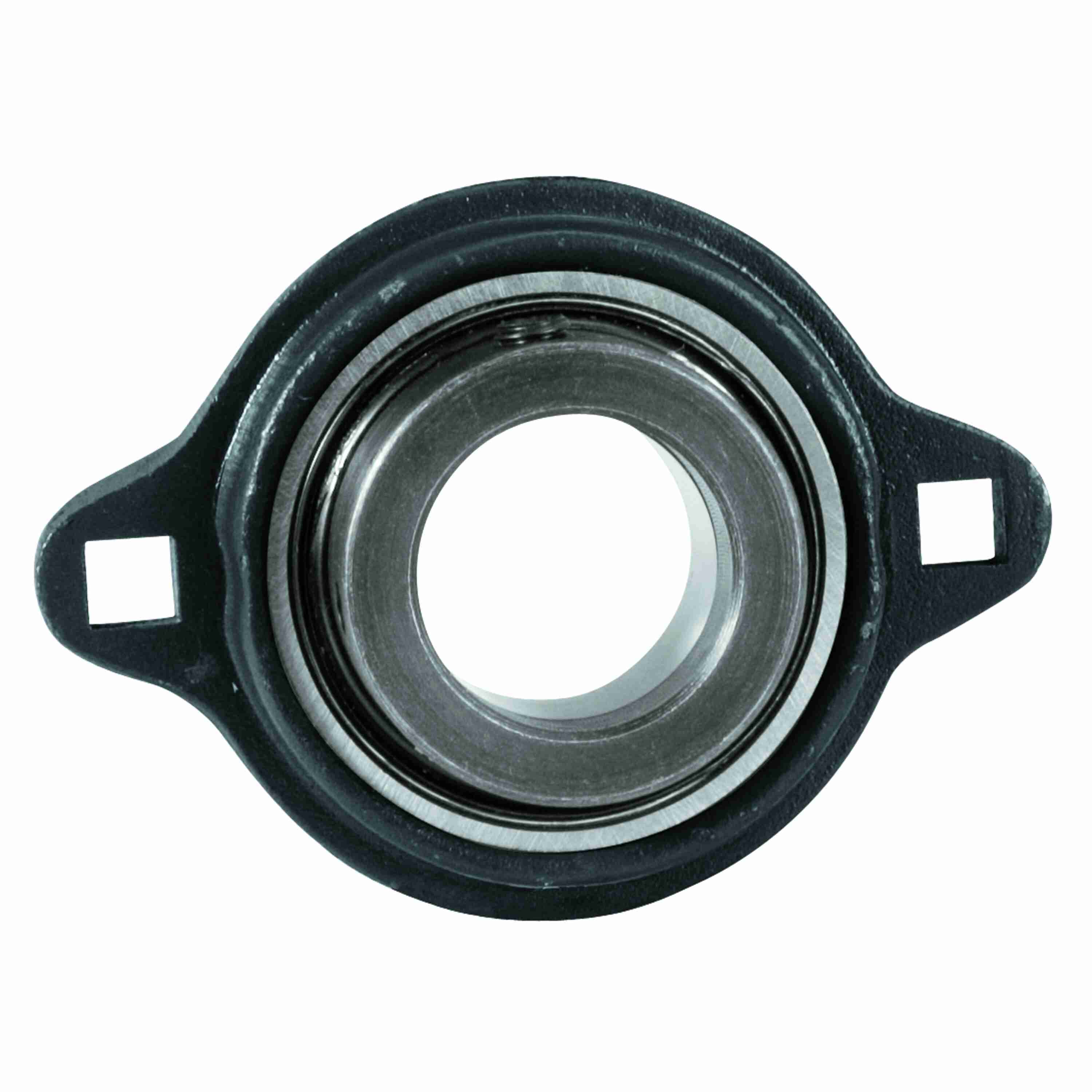

Link-Belt FXW223E Flange Blocks Ball Bearings - FXW223E
Part #:10418291
Catalog #:FXW223E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 1.656 in | Overall Length (in): | 4.81 in |
| Length Through Bore (in): | 1.53 in | Bore Diameter (in): | 1.4375 in |
| Bolt Size (in): | 3/8 in | Foot Height (in): | 0.50 in |
| Overall Width (in): | 3.50 in | Bolt Spacing (in): | 3.9375 in |
Technical Specifications
| Pilot Configuration: | No Pilot | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Housing Style: | Flange Block |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Seal Type: | Single Lip Contact Seal | Outer Ring Land Profile: | Standard |
| Bore Shape: | Straight | Housing Type: | Flange, Two Bolt |
| Housing Color: | Black | Locking Collar Outside Diameter (in): | 2.19 in |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Ability to Relubricate: | No |
| Insert: | W223EL | Max Operating Temperature (F): | 225 °F |
| Size Code: | 207 | Shaft Locking Type: | Eccentric |
| Dynamic Load Rating (lb): | 5,810 lb | Static Load Rating (lb): | 3,440 lb |
| End Cap Available: | No | Lubricant: | Lithium Complex NLGI 2 Grease |
| Cage Type: | Ball Riding Retainer | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | Powder Coated | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Maximum Speed (RPM): | 4800 rpm |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Vibration Frequency Roller Spin: | 0.0383 cps |
| Housing Material: | Ductile Iron | Inner Ring Outside Diameter (in): | 1.847 in |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Fixed vs. Expansion: | Fixed | Radial Clearance: | C3 STANDARD |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Locking Device Kit: | W2235S |
| Bearing Type: | Intermediate Duty | Housing Height (in): | 0.94 in |
General Specifications
| UPC: | 662327033705 | Weight: | 1.83 LB |
| Packaged Length: | 4.00 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
