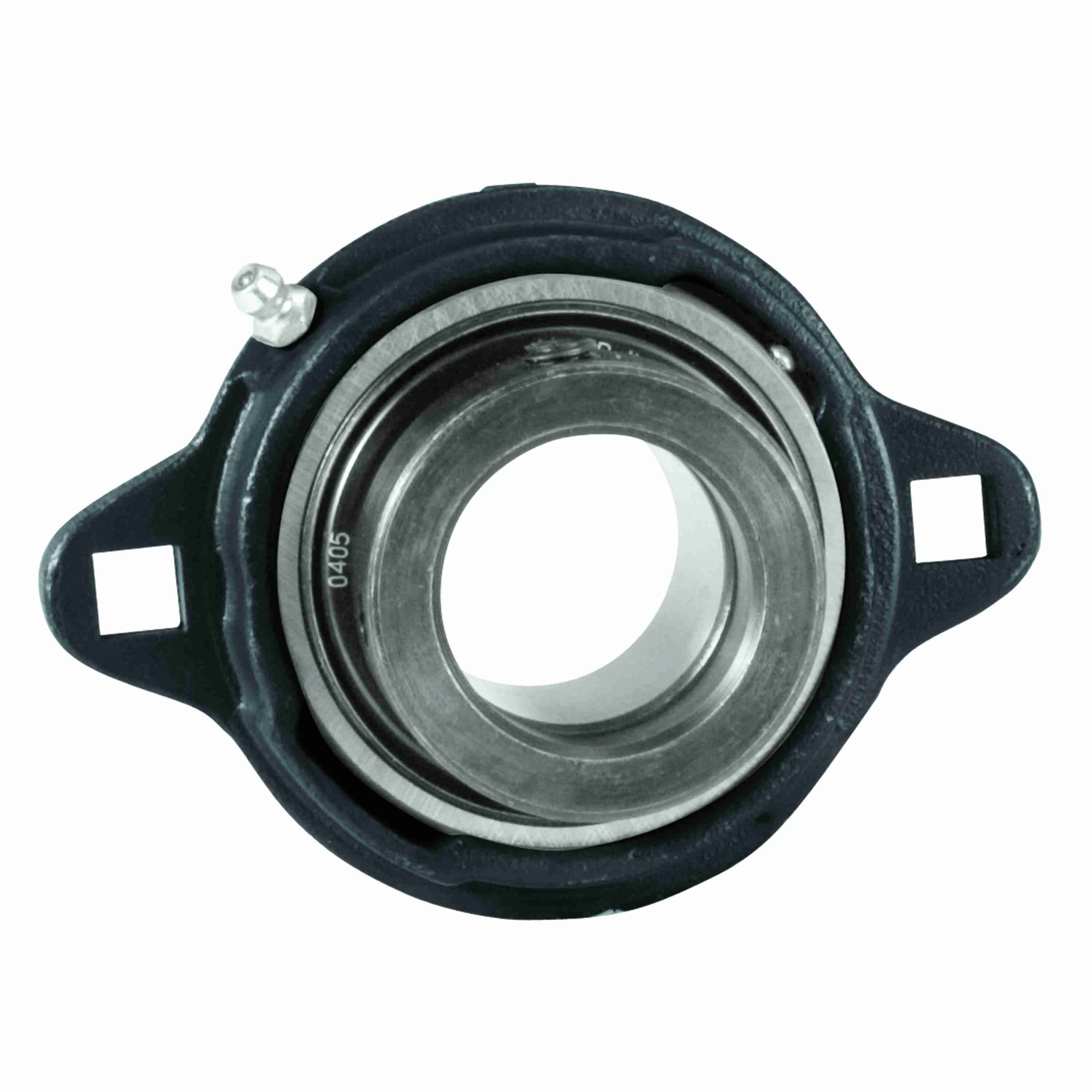

Link-Belt FXYG220N Flange Blocks Ball Bearings - FXYG220N
Part #:10413704
Catalog #:FXYG220N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.50 in | Bolt Size (in): | 3/8 in |
| Overall Width (in): | 3.50 in | Length Through Bore (in): | 2.02 in |
| Overall Height (in): | 1.781 in | Bore Diameter (in): | 1.25 in |
| Overall Length (in): | 4.81 in | Bolt Spacing (in): | 3.9375 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Housing Type: | Flange, Two Bolt |
| Housing Color: | Black | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Construction: | One Piece | Pilot Configuration: | No Pilot |
| Housing Style: | Flange Block | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Locking Collar Outside Diameter (in): | 2.19 in |
| Bearing Type: | Standard Duty | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Size Code: | 207 | Housing Material: | Ductile Iron |
| Insert: | YG220NL | Maximum Speed (RPM): | 6850 rpm |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Locking Device Kit: | W2205S |
| Max Operating Temperature (C): | 107 °C | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Static Load Rating (lb): | 3,440 lb |
| Vibration Frequency Roller Spin: | 0.0383 cps | Max Operating Temperature (F): | 225 °F |
| End Cap Available: | No | Dynamic Load Rating (lb): | 5,810 lb |
| Fixed vs. Expansion: | Fixed | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Bearing Insert Material: | 52100 Bearing Steel | Cage Type: | Ball Riding Retainer |
| Radial Clearance: | C3 STANDARD | Inner Ring Outside Diameter (in): | 1.847 in |
| Lubricant: | Lithium Complex NLGI 2 Grease | Shaft Locking Type: | Eccentric |
| Housing Coating: | Powder Coated | Grease Fitting Thread Size: | 1/4-28 |
| Housing Height (in): | 0.94 in |
General Specifications
| UPC: | 662327033828 | Weight: | 2.11 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
