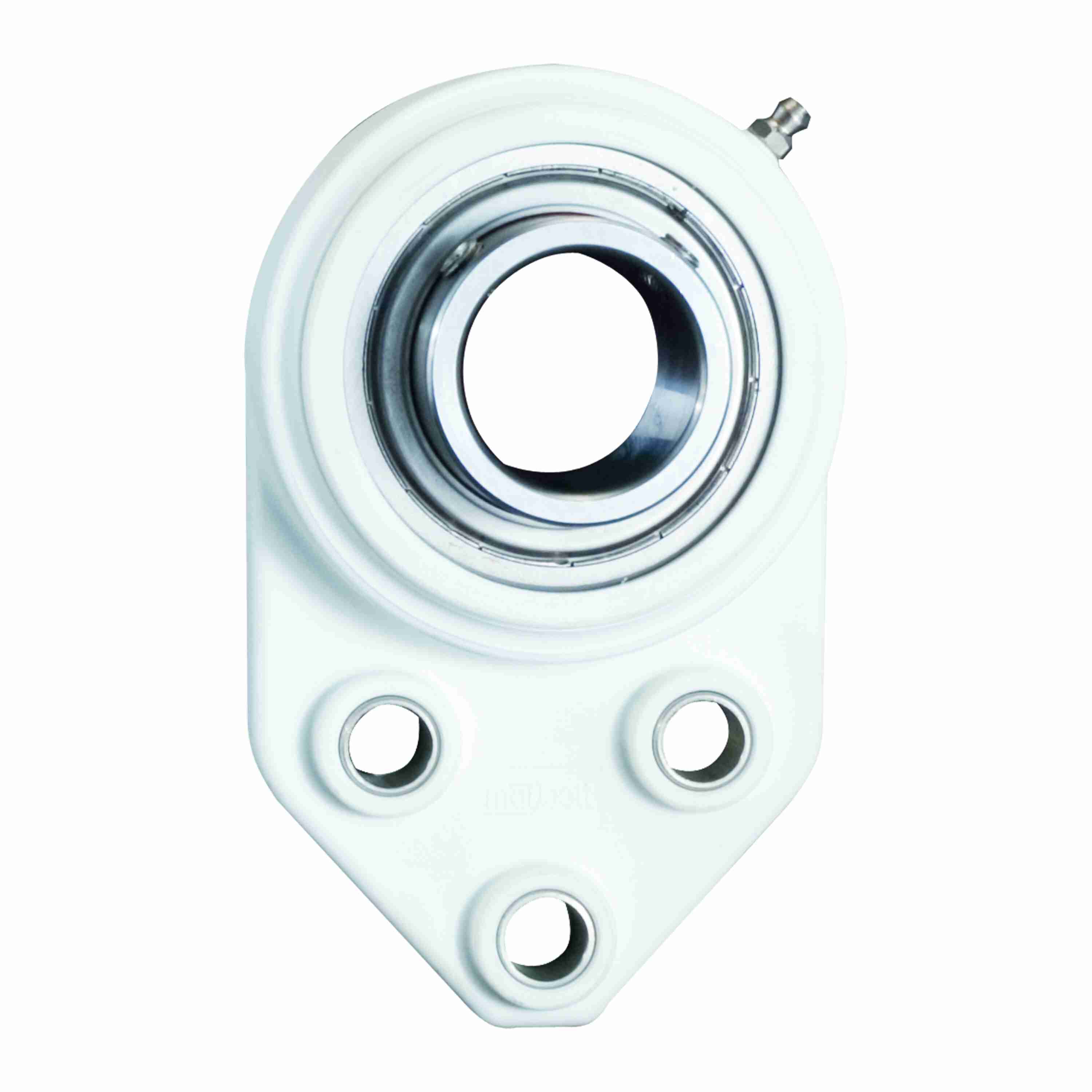

Link-Belt KLFBSS216 Flange Blocks Ball Bearings - KLFBSS216
Part #:10409261
Catalog #:KLFBSS216
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 1.53 in | Length Through Bore (in): | 1.178 in |
| Bolt Size (in): | 7/16 in | Overall Length (in): | 4.88 in |
| Bore Diameter (in): | 1 in | Foot Height (in): | 0.56 in |
| Base to Center Height (in): | 3.54 in | Overall Width (in): | 2.72 in |
| Bolt Spacing (in): | 1.6250 in |
Technical Specifications
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Pilot Configuration: | No Pilot | Housing Style: | Flange Block |
| Housing Type: | Flange, Bracket, Three Bolt | Housing Color: | White |
| Cage Material: | Stainless Steel | Seal Type: | Single Lip Contact Seal |
| Misalignment Type: | Static Only | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Ability to Relubricate: | Yes | Auxiliary Cap Kit: | K2166 (Closed); K2166D (Open) |
| Seal Kit: | K216E (back auxiliary seal) | Size Code: | 205 |
| Lube Fitting Type: | STD FITTING PLUS PLASTIC PLUG | Cage Type: | Ball Riding Retainer |
| Bearing Type: | Intermediate Duty | Inner Ring Outside Diameter (in): | 1.313 in |
| Bearing Insert Material: | 400 Series Stainless Steel | Bolt Spacing Height Direction (in): | 1.125 in |
| Max Operating Temperature (C): | 70 °C | Vibration Frequency Roller Spin: | 0.0387 cps |
| Maximum Speed (RPM): | 6800 rpm | Dynamic Load Rating (lb): | 3,150 lb |
| Grease Fitting Thread Size: | RP 1/8 PAR | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Insert: | SSG216L | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Bearing Brand: | LINK-BELT KLEAN-GARD | Bearing Centerline to Bolt Hole Center (in): | 1.8125 in |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Radial Clearance: | C3 STANDARD |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | End Cap Available: | Yes |
| Static Load Rating (lb): | 1,760 lb | Max Operating Temperature (F): | 158 °F |
| Fixed vs. Expansion: | Fixed | Housing Material: | Polypropylene |
| Lubricant: | MOBIL FM222 FOOD GRADE H1 | Shaft Locking Type: | Set Screw |
| Housing Width (in): | 2.72 in |
General Specifications
| UPC: | 793699513097 | Weight: | 0.60 LB |
| Packaged Length: | 5.31 IN | Packaged Width: | 5.31 IN |
| Packaged Height: | 2.19 IN | HTC: | 8483204040 |
| Country of Origin: | China |
