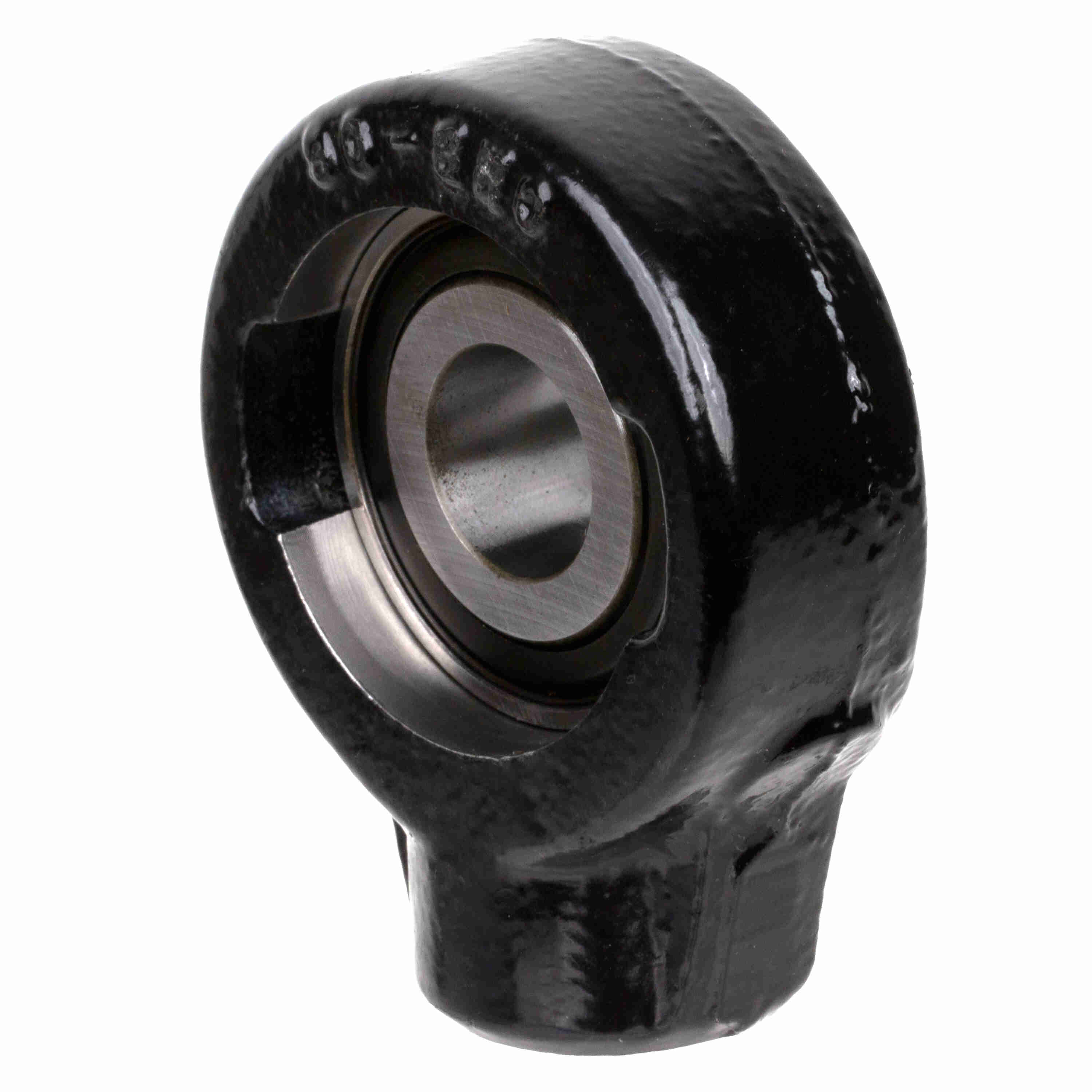

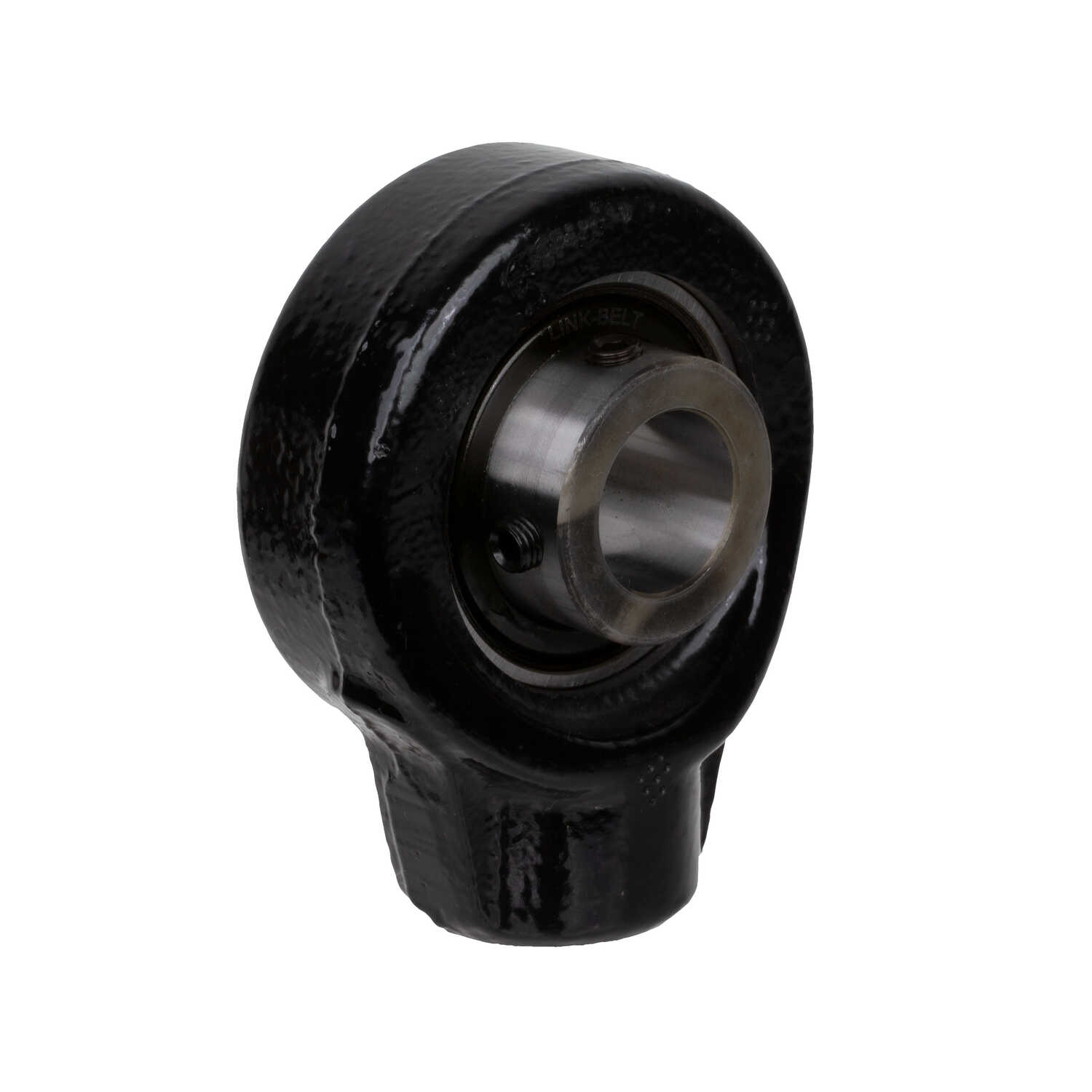

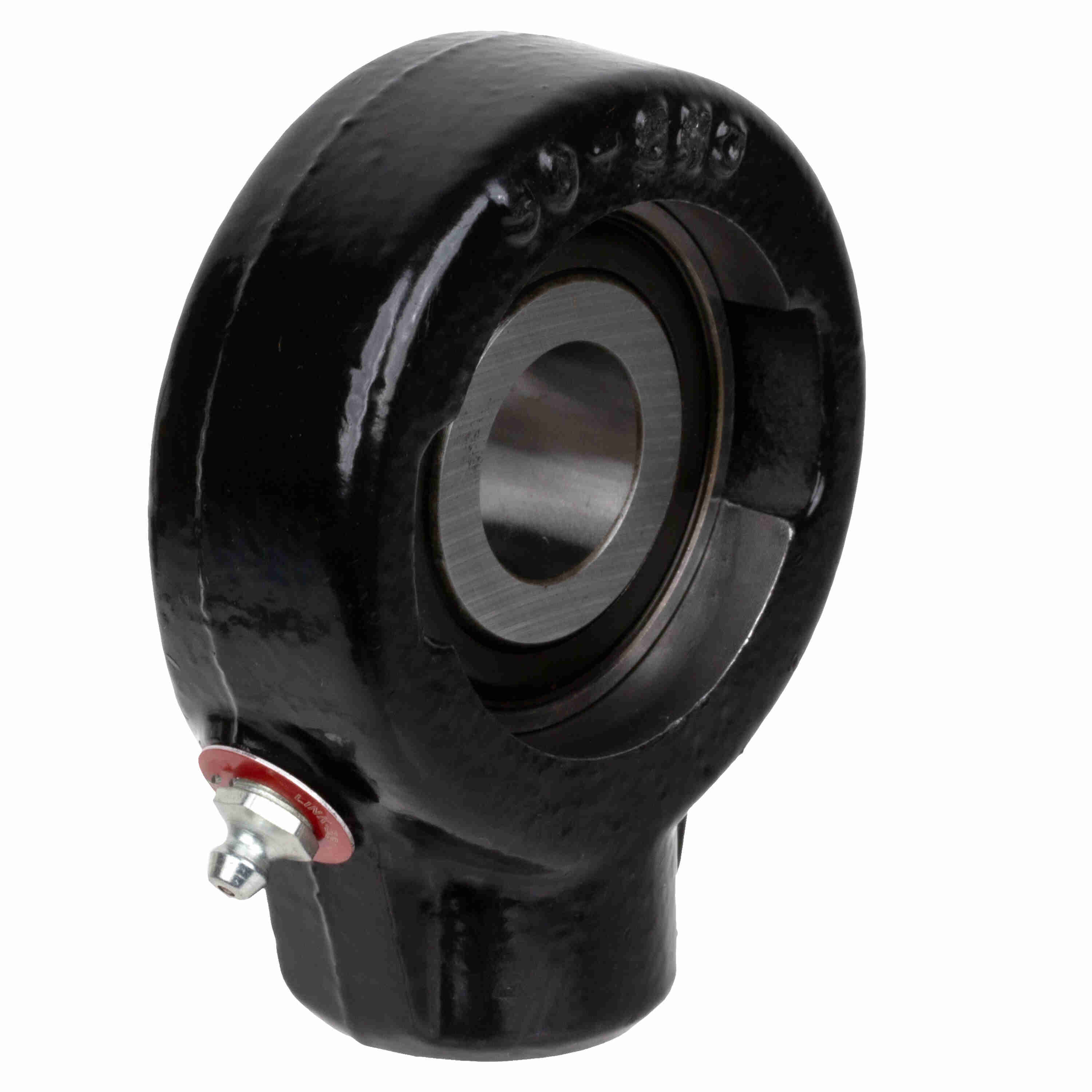

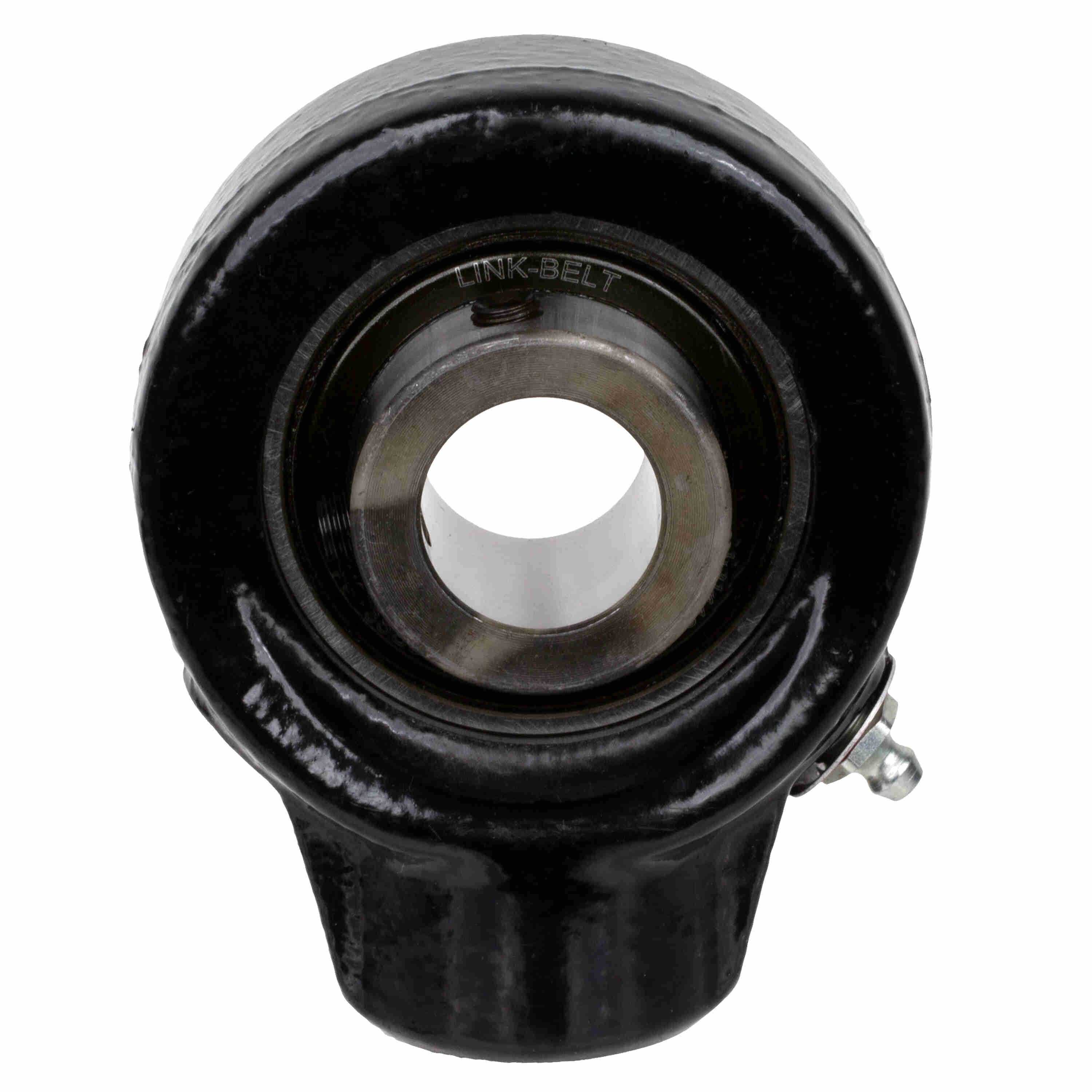

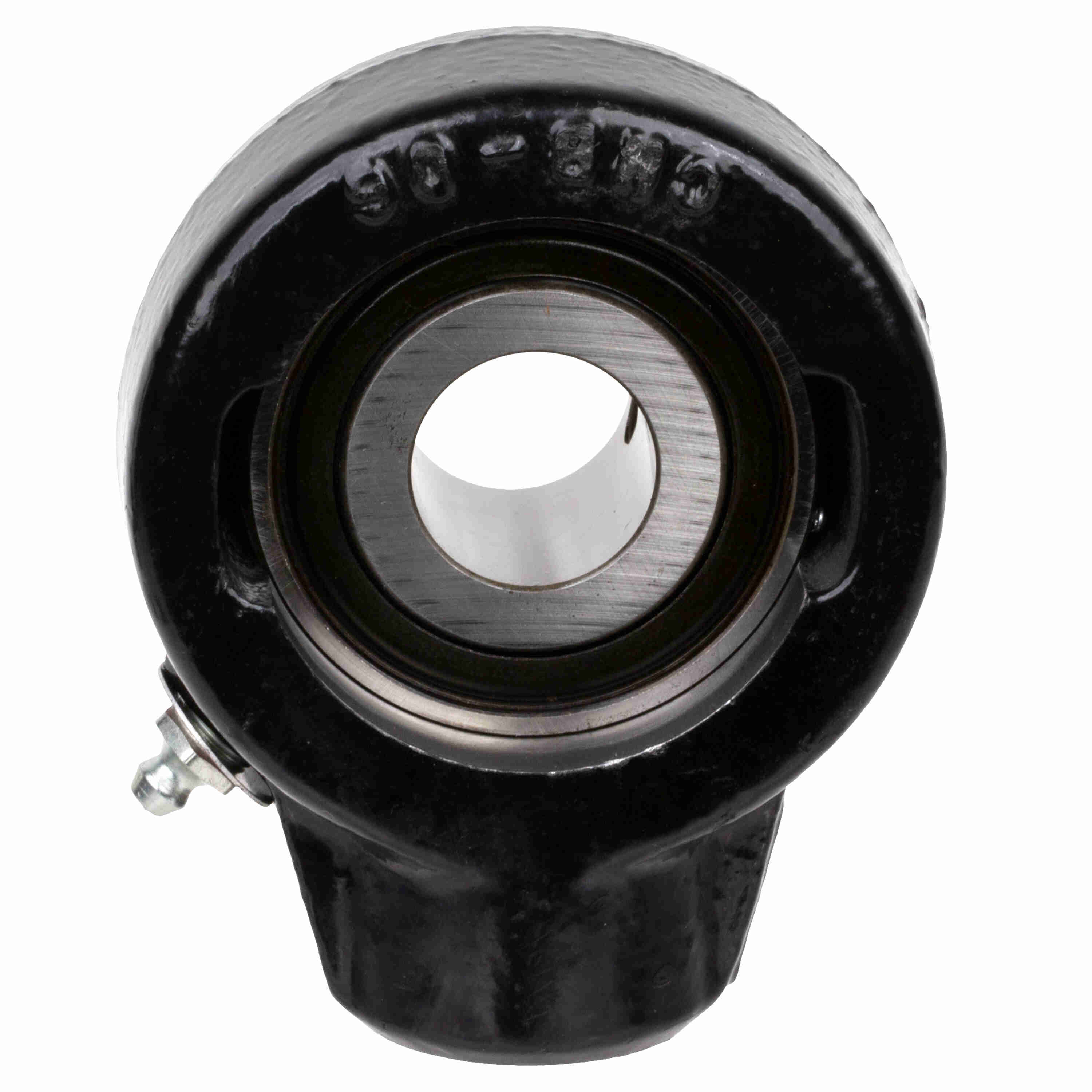

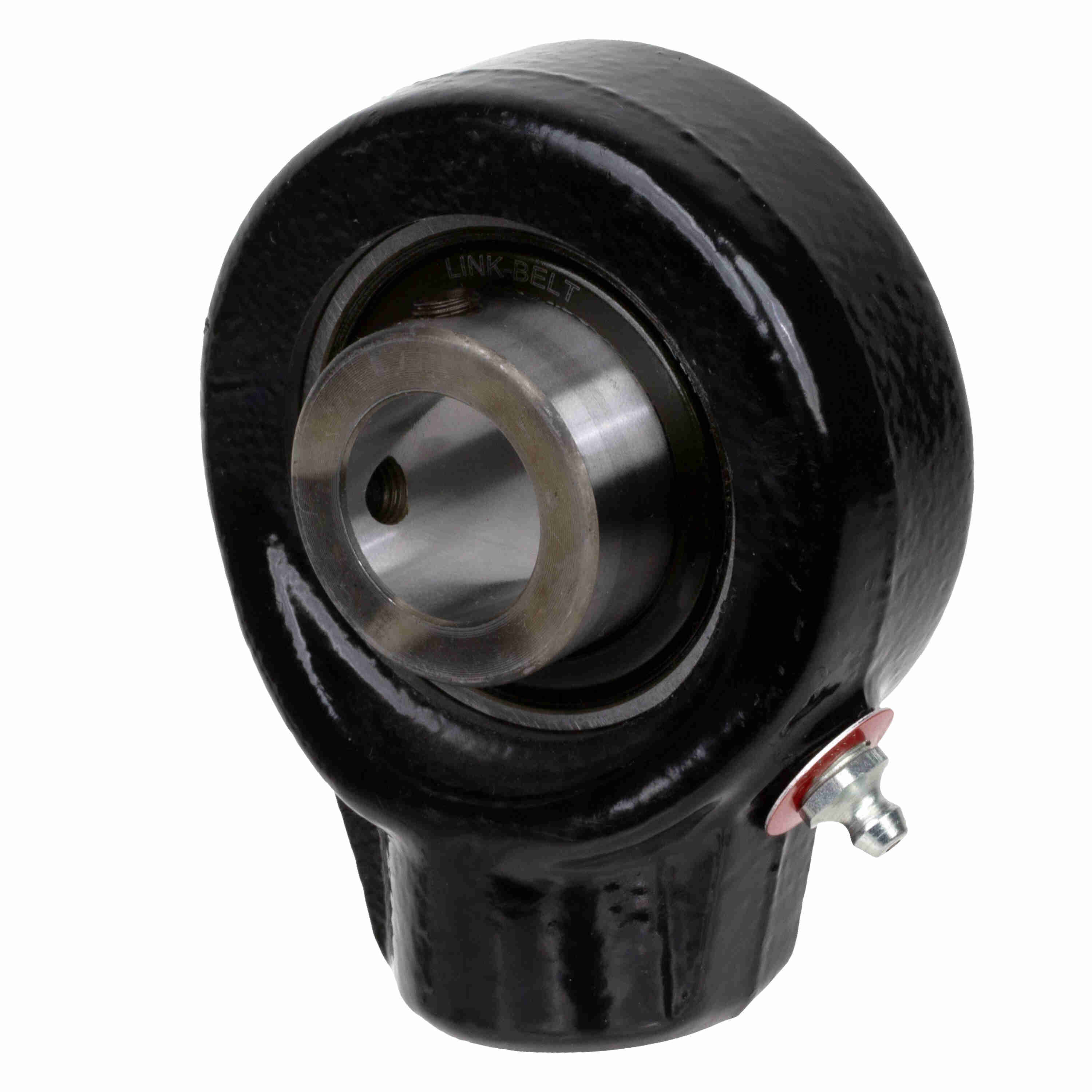

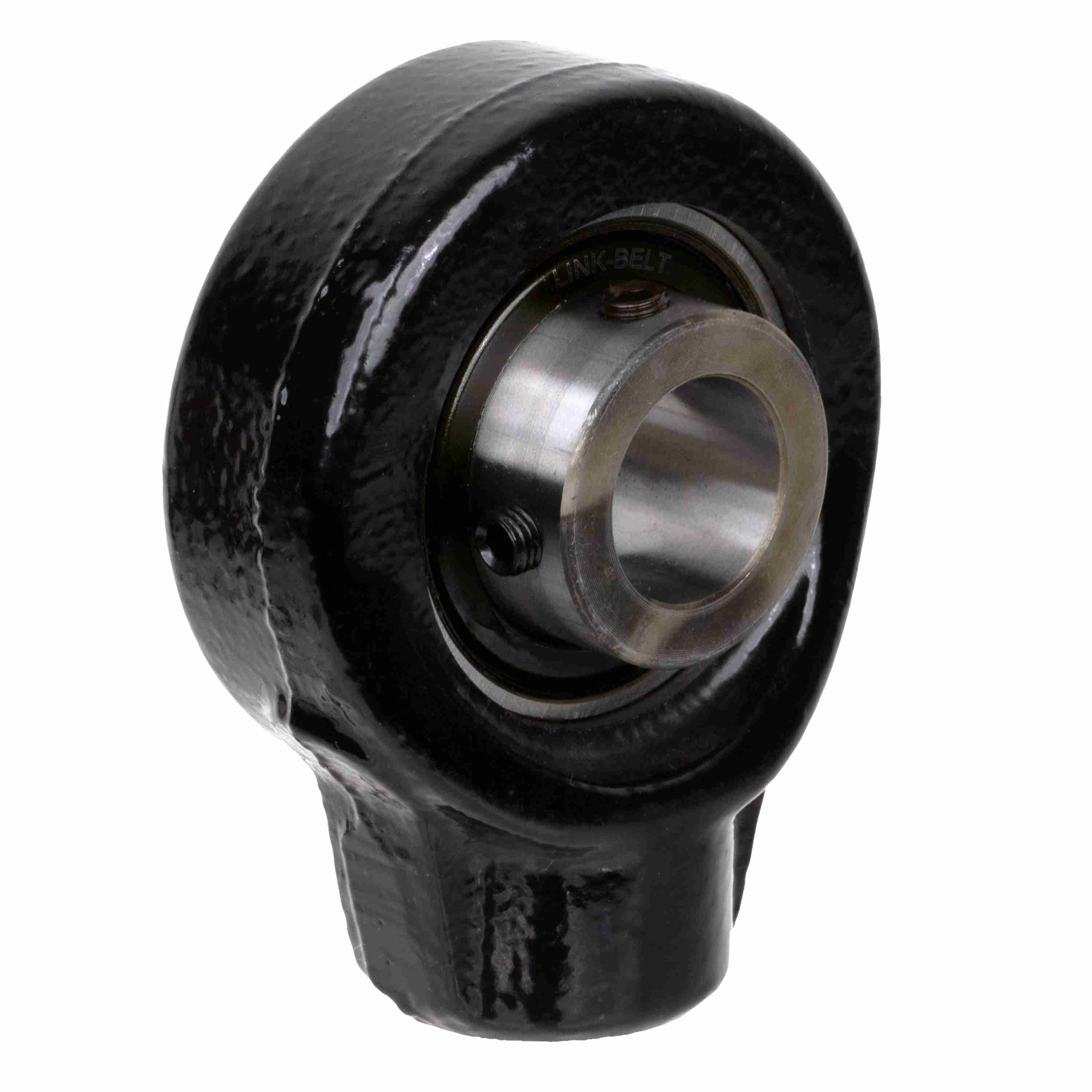

Link-Belt MEHBS216N Hanger Units Ball Bearings - MEHBS216N
Part #:10422895
Catalog #:MEHBS216N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.66 in | Base to Center Height (in): | 2.5 in |
| Thread Depth (in): | 0.63 in | Overall Height (in): | 4.19 in |
| Overall Length (in): | 3.38 in | Bore Diameter (in): | 1 in |
| Thread Size: | 3/4-14 | Length Through Bore (in): | 1.343 in |
| Base Width (in): | 1.66 in | Centerline to Outermost Bearing Face (in): | 0.95 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Housing Type: | Hanger Unit | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Housing Style: | Hanger Block | Misalignment Type: | Static Only |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Ability to Relubricate: | Yes |
| Housing Material: | Cast Iron | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Bearing Insert Material: | 52100 Bearing Steel | Fixed vs. Expansion: | Fixed |
| Max Operating Temperature (F): | 225 °F | Static Load Rating (lb): | 2,530 lb |
| Shaft Locking Type: | Set Screw | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Maximum Speed (RPM): | 8000 rpm |
| Grease Fitting Thread Size: | 1/8 NPT | Dynamic Load Rating (lb): | 4,390 lb |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Roller Spin: | 0.0385 cps |
| Cage Type: | Ball Riding Retainer | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 206 | Inner Ring Outside Diameter (in): | 1.587 in |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Insert: | MSG216NLPA |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Housing Coating: | Powder Coated |
| End Cap Available: | No | Max Operating Temperature (C): | 107 °C |
| Bearing Type: | Medium Duty | Housing Width (in): | 1.22 in |
General Specifications
| UPC: | 662864874632 | Weight: | 2.23 LB |
| Packaged Length: | 4.75 IN | Packaged Width: | 4.75 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
