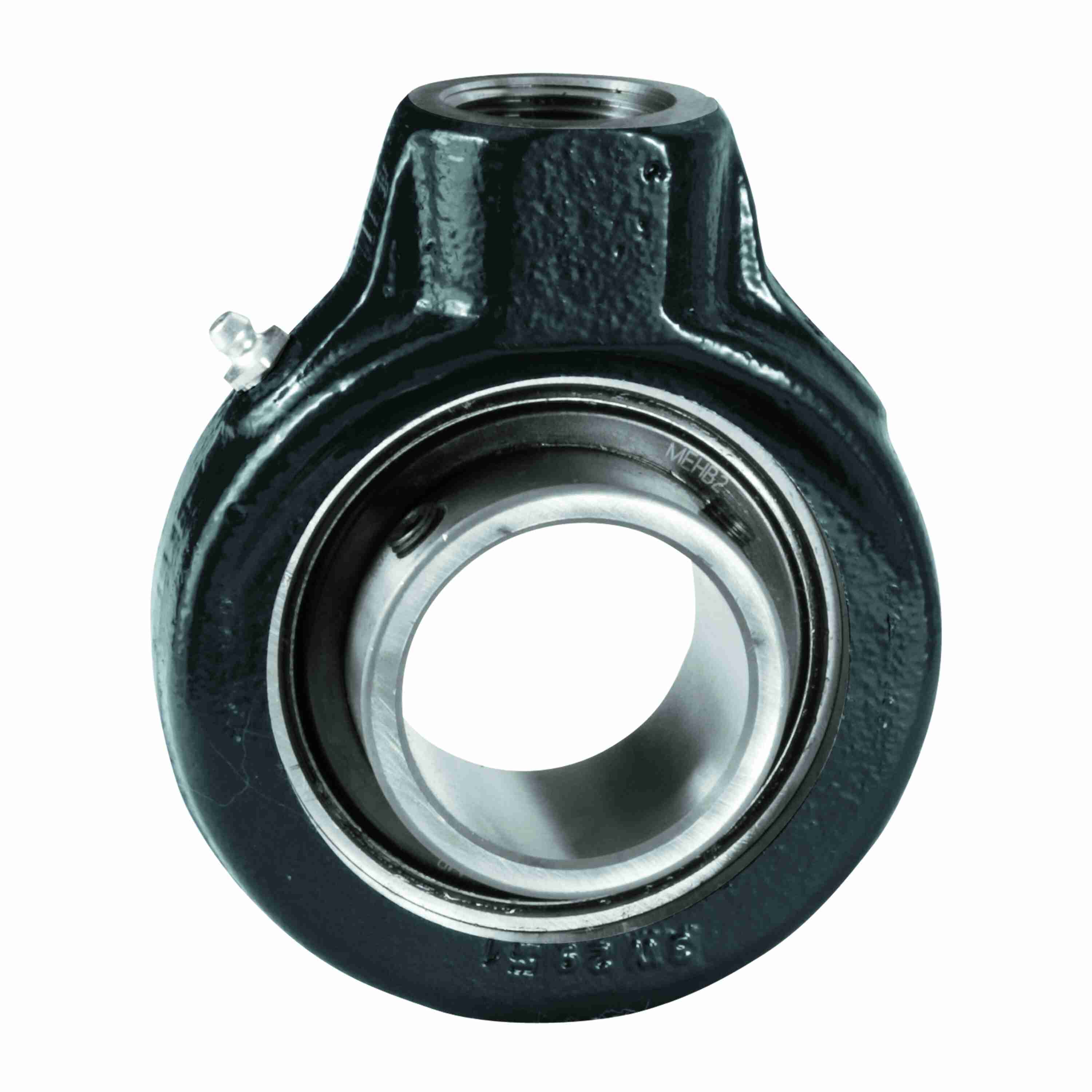

Link-Belt MEHBS228N Hanger Units Ball Bearings - MEHBS228N
Part #:10413864
Catalog #:MEHBS228N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.88 in | Overall Height (in): | 5.56 in |
| Overall Length (in): | 4.63 in | Thread Depth (in): | 0.81 in |
| Base Width (in): | 1.88 in | Thread Size: | 1-11 1/2 |
| Length Through Bore (in): | 1.803 in | Bore Diameter (in): | 1.75 in |
| Base to Center Height (in): | 3.25 in | Centerline to Outermost Bearing Face (in): | 1.266 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Housing Type: | Hanger Unit |
| Housing Style: | Hanger Block | Housing Color: | Black |
| Housing Construction: | One Piece | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal | Misalignment Type: | Static Only |
| Cage Material: | Molded fiber glass reinforced nylon | Bore Shape: | Straight |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Ability to Relubricate: | Yes |
| Insert: | MSGS228NLPA | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Cage Type: | Ball Riding Retainer |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Shaft Locking Type: | Set Screw |
| Vibration Frequency Roller Spin: | 0.0445 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Maximum Speed (RPM): | 4800 rpm | Radial Clearance: | C3 STANDARD |
| Size Code: | 210 | Dynamic Load Rating (lb): | 7,920 lb |
| Static Load Rating (lb): | 5,220 lb | End Cap Available: | No |
| Inner Ring Outside Diameter (in): | 2.475 in | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Outer Ring Defect: | 0.0682 cps | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Fixed vs. Expansion: | Fixed | Housing Coating: | Powder Coated |
| Vibration Frequency Inner Ring Defect: | 0.0985 cps | Housing Material: | Cast Iron |
| Bearing Type: | Medium Duty | Housing Width (in): | 1.41 in |
General Specifications
| UPC: | 662864875073 | Weight: | 4.98 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 2.38 IN |
| Packaged Height: | 7.88 IN | HTC: | 84833080 |
