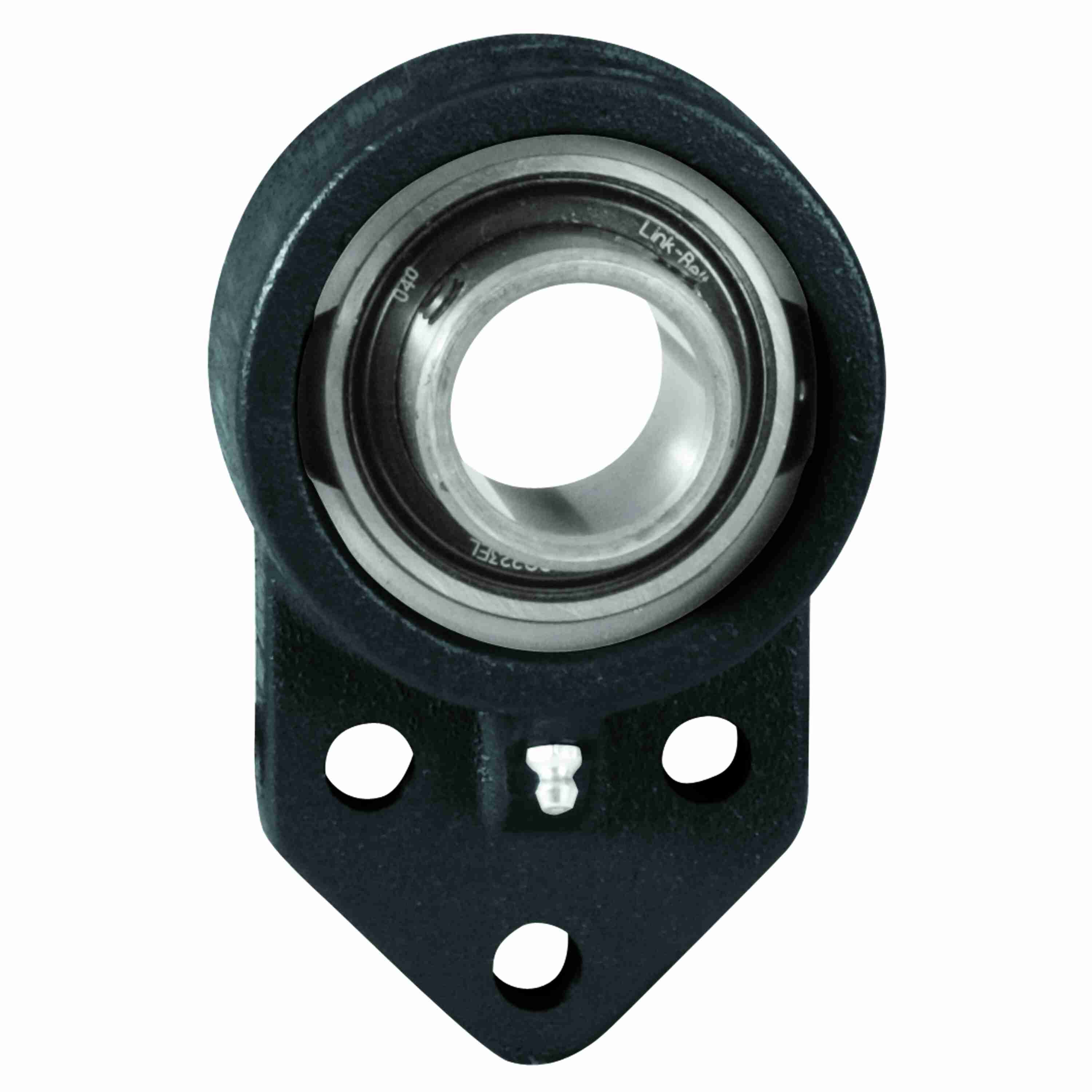

Link-Belt MFB503-2 Flange Blocks Ball Bearings - MFB503-2
Part #:10441274
Catalog #:MFB503-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 2.75 in | Bolt Size (in): | 3/8 in |
| Overall Length (in): | 4.88 in | Overall Height (in): | 1.5 in |
| Base to Center Height (in): | 3.5 in | Bore Diameter (mm): | 25 mm |
| Length Through Bore (in): | 1.178 in | Foot Height (in): | 0.38 in |
| Bolt Spacing (in): | 1.6250 in |
Technical Specifications
| Housing Style: | Flange Block | Misalignment Type: | Static Only |
| Housing Type: | Flange, Bracket, Three Bolt | Housing Color: | Black |
| Bore Shape: | Straight | Pilot Configuration: | No Pilot |
| Cage Material: | Molded fiber glass reinforced nylon | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Rolling Element: | Ball Bearing | Setscrew Torque (in-lbs): | 85 in/lbs |
| Ability to Relubricate: | Yes | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| End Cap Available: | No | Max Operating Temperature (F): | 225 °F |
| Bearing Brand: | LINK-BELT MB | Shaft Locking Type: | Set Screw |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Cage Type: | Ball Riding Retainer |
| Bolt Spacing Height Direction (in): | 1.125 in | Vibration Frequency Roller Spin: | 0.0387 cps |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Housing Coating: | Powder Coated |
| Dynamic Load Rating (lb): | 3,150 lb | Fixed vs. Expansion: | Fixed |
| Housing Material: | Cast Iron | Radial Clearance: | C3 STANDARD |
| Grease Fitting Thread Size: | 1/4-28 | Size Code: | 205 |
| Static Load Rating (lb): | 1,760 lb | Insert: | MB25-25-PA |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Max Operating Temperature (C): | 107 °C |
| Lubricant: | Lithium Complex NLGI 2 Grease | Maximum Speed (RPM): | 9600 rpm |
| Bearing Insert Material: | 52100 Bearing Steel | Bearing Type: | Standard Duty |
| Inner Ring Outside Diameter (in): | 1.313 in | Bearing Centerline to Bolt Hole Center (in): | 1.8125 in |
| Housing Width (in): | 2.75 in |
General Specifications
| UPC: | 662864009270 | Weight: | 0.75 KG |
| Packaged Length: | 5.63 IN | Packaged Width: | 3.19 IN |
| Packaged Height: | 1.81 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
