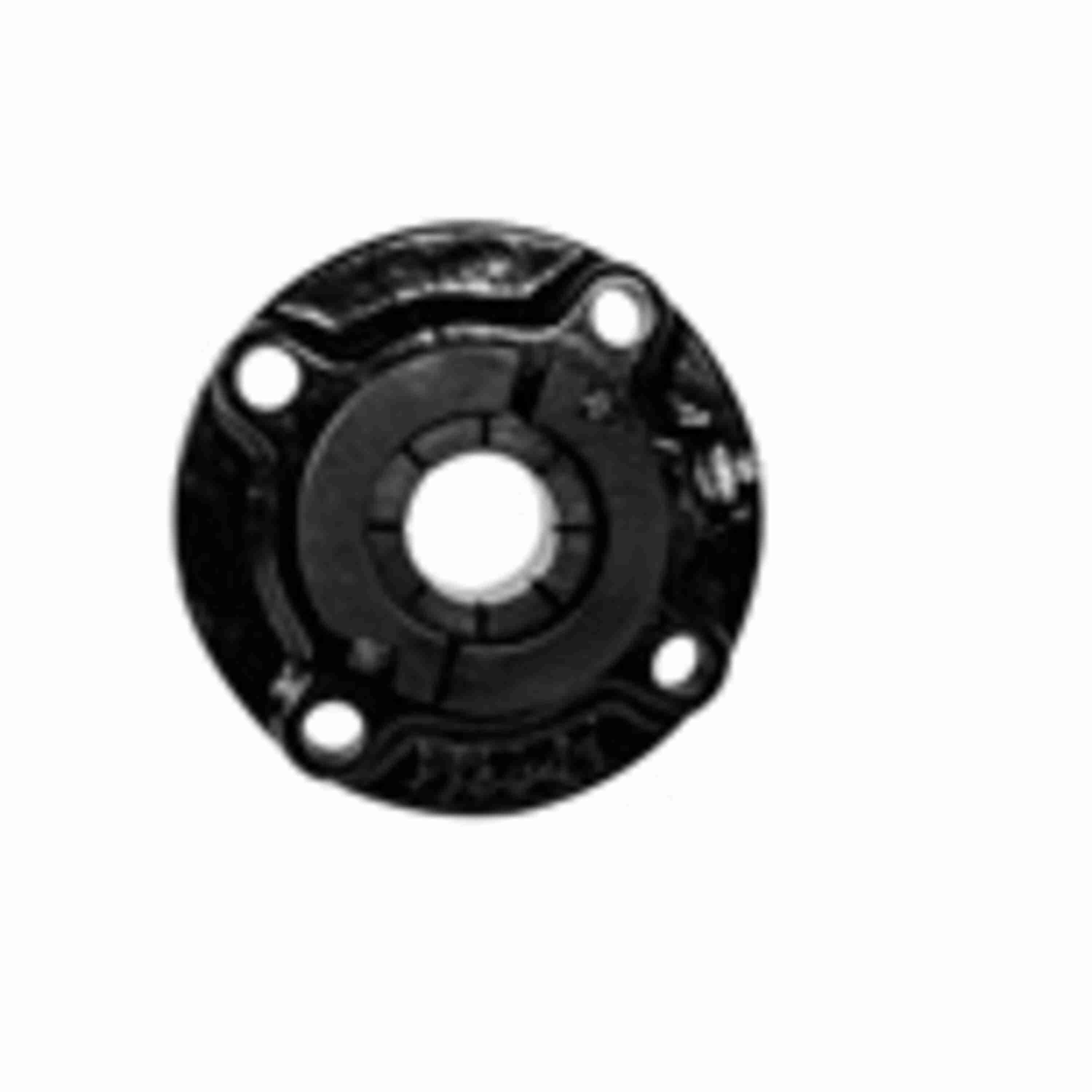

Link-Belt MFCCL228N Flange Blocks Ball Bearings - MFCCL228N
Part #:10427349
Catalog #:MFCCL228N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 1/2 in | Foot Height (in): | 0.88 in |
| Overall Length (in): | 6.13 in | Pilot Diameter (in): | 4.250 in |
| Length Through Bore (in): | 2.17 in | Overall Height (in): | 2.17 in |
| Overall Width (in): | 6.13 in | Bore Diameter (in): | 1.75 in |
| Housing Outside Diameter (in): | 6.13 in | Bolt Circle (in): | 5.375 in |
Technical Specifications
| Bore Shape: | Straight | Cage Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Housing Type: | Piloted Flange Cartridge |
| Pilot Configuration: | Piloted | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal | Housing Color: | Black |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Housing Style: | Flange Block | Pilot Depth (in): | 0.47 in |
| Setscrew Torque (in-lbs): | 313-348 in/lbs | Locking Collar Outside Diameter (in): | 3.35 in |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.0985 cps |
| Max Operating Temperature (C): | 107 °C | Radial Clearance: | C3 STANDARD |
| Lubricant: | Lithium Complex NLGI 2 Grease | Shaft Locking Type: | Concentric |
| Cage Type: | Ball Riding Retainer | Vibration Frequency Outer Ring Defect: | 0.0682 cps |
| Maximum Speed (RPM): | 4800 rpm | Vibration Frequency Roller Spin: | 0.0445 cps |
| Dynamic Load Rating (lb): | 7,920 lb | Bearing Type: | Medium Duty |
| Grease Fitting Thread Size: | 1/8 NPT | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Max Operating Temperature (F): | 225 °F | Fixed vs. Expansion: | Fixed |
| Housing Coating: | Powder Coated | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Inner Ring Outside Diameter (in): | 2.478 in |
| Locking Device Kit: | CL2315S | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| End Cap Available: | No | Bearing Insert Finish: | Black Oxide |
| Housing Material: | Cast Iron | Insert: | MCLG228NLPA |
| Size Code: | 210 | Static Load Rating (lb): | 5,220 lb |
General Specifications
| UPC: | 662864810913 | Weight: | 6.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 2.75 IN |
| Packaged Height: | 7.00 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
