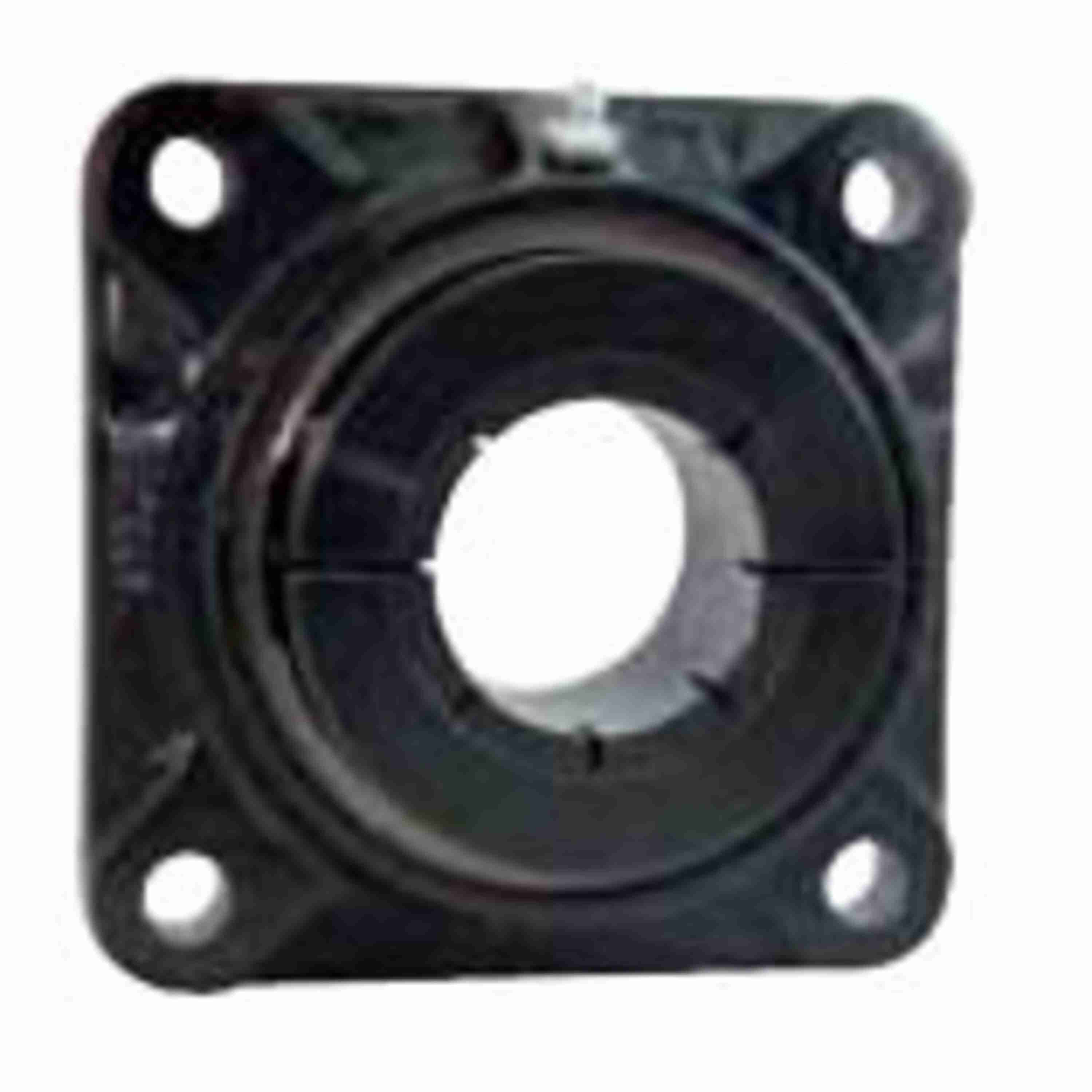

Link-Belt MFCL248MHFF Flange Blocks Ball Bearings - MFCL248MHFF
Part #:10419866
Catalog #:MFCL248MHFF
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.11 in | Overall Length (in): | 7.75 in |
| Foot Height (in): | 0.81 in | Bolt Size (in): | 3/4 in |
| Overall Width (in): | 7.75 in | Bore Diameter (in): | 3 in |
| Bolt Spacing (in): | 6 in |
Technical Specifications
| Seal Type: | Flingers Only | Bore Shape: | Straight |
| Housing Style: | Flange Block | Housing Type: | Flange, Four Bolt |
| Outer Ring Land Profile: | Standard | Cage Material: | Molded fiber glass reinforced nylon |
| Pilot Configuration: | No Pilot | Misalignment Type: | Static Only |
| Rolling Element: | Ball Bearing | Housing Color: | Black |
| Housing Construction: | One Piece | Locking Collar Outside Diameter (in): | 5.62 in |
| Setscrew Torque (in-lbs): | 540-600 in/lbs | Ability to Relubricate: | Yes |
| Housing Material: | Cast Iron | Radial Clearance: | C3 STANDARD |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | Powder Coated |
| Shaft Locking Type: | Concentric | Dynamic Load Rating (lb): | 17,420 lb |
| Locking Device Kit: | CL2565S | Lubricant: | Lithium Complex NLGI 2 Grease |
| End Cap Available: | No | Cage Type: | Ball Riding Retainer |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Outer Ring Defect: | 0.0759 cps |
| Inner Ring Outside Diameter (in): | 3.92 in | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Inner Ring Defect: | 0.1074 cps | Vibration Frequency Roller Spin: | 0.0470 cps |
| Fixed vs. Expansion: | Fixed | Grease Fitting Thread Size: | 1/8 NPT |
| Static Load Rating (lb): | 11,400 lb | Bearing Type: | Medium Duty |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Insert: | MCLG248MHFFLPA |
| Size Code: | 216 | Lube Fill Percent: | 10% GREASE FILL |
| Bearing Brand: | LINK-BELT MEDIUM DUTY BALL | Vibration Frequency Fundamental Train: | 0.0069 cps |
| Bearing Insert Finish: | Black Oxide | Maximum Speed (RPM): | 4050 rpm |
General Specifications
| UPC: | 662864875004 | Weight: | 15.07 LB |
| Packaged Length: | 7.63 IN | Packaged Width: | 2.69 IN |
| Packaged Height: | 7.63 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
