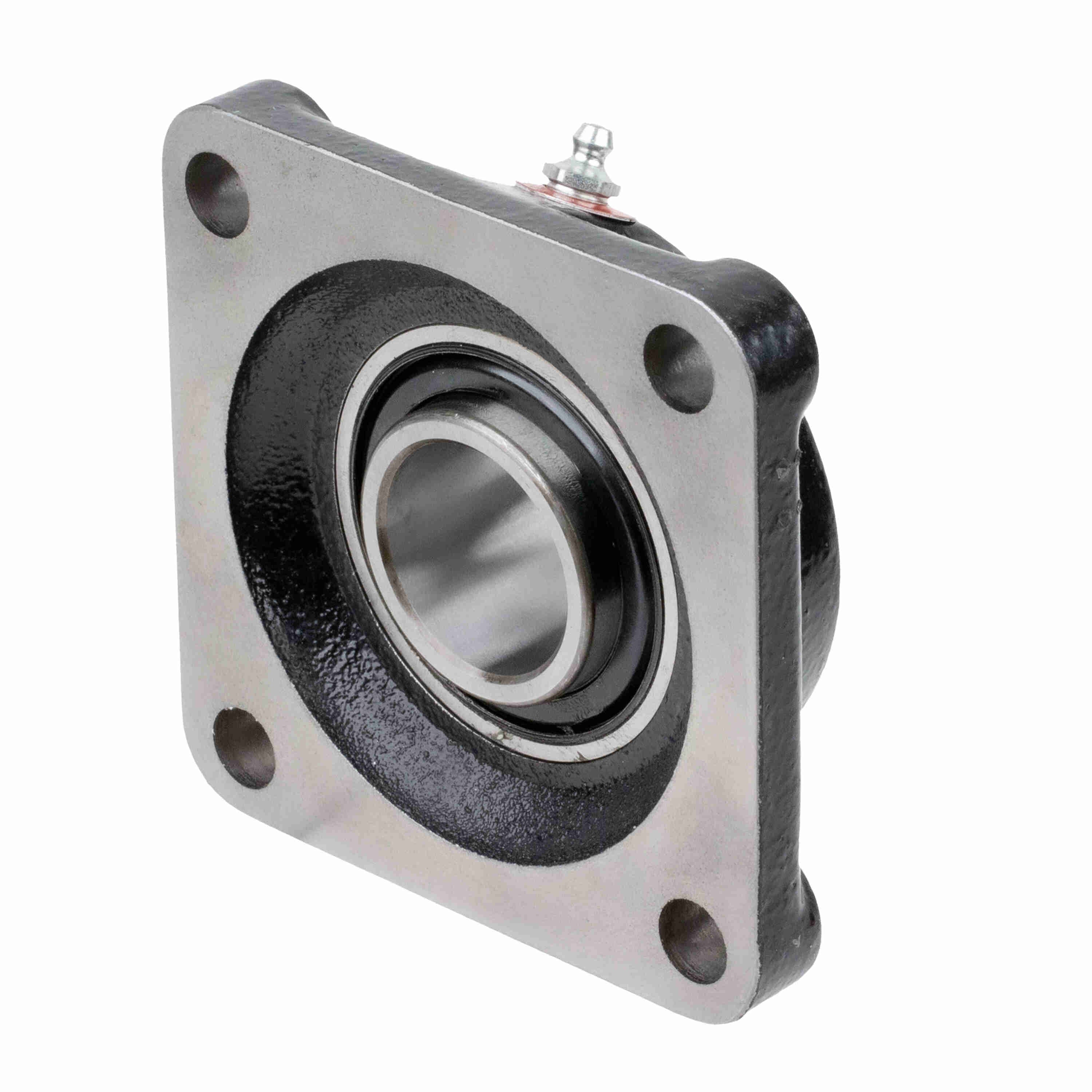

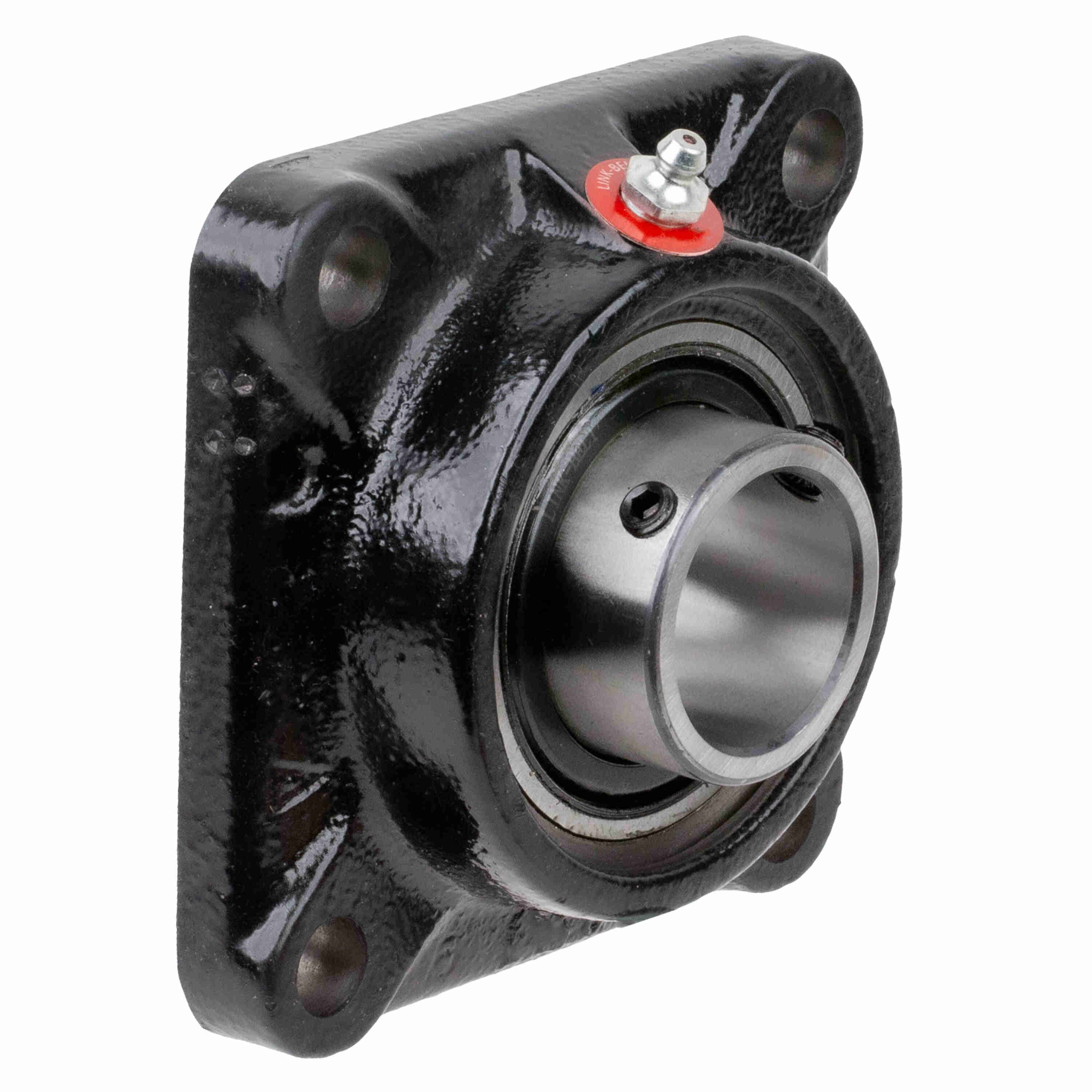

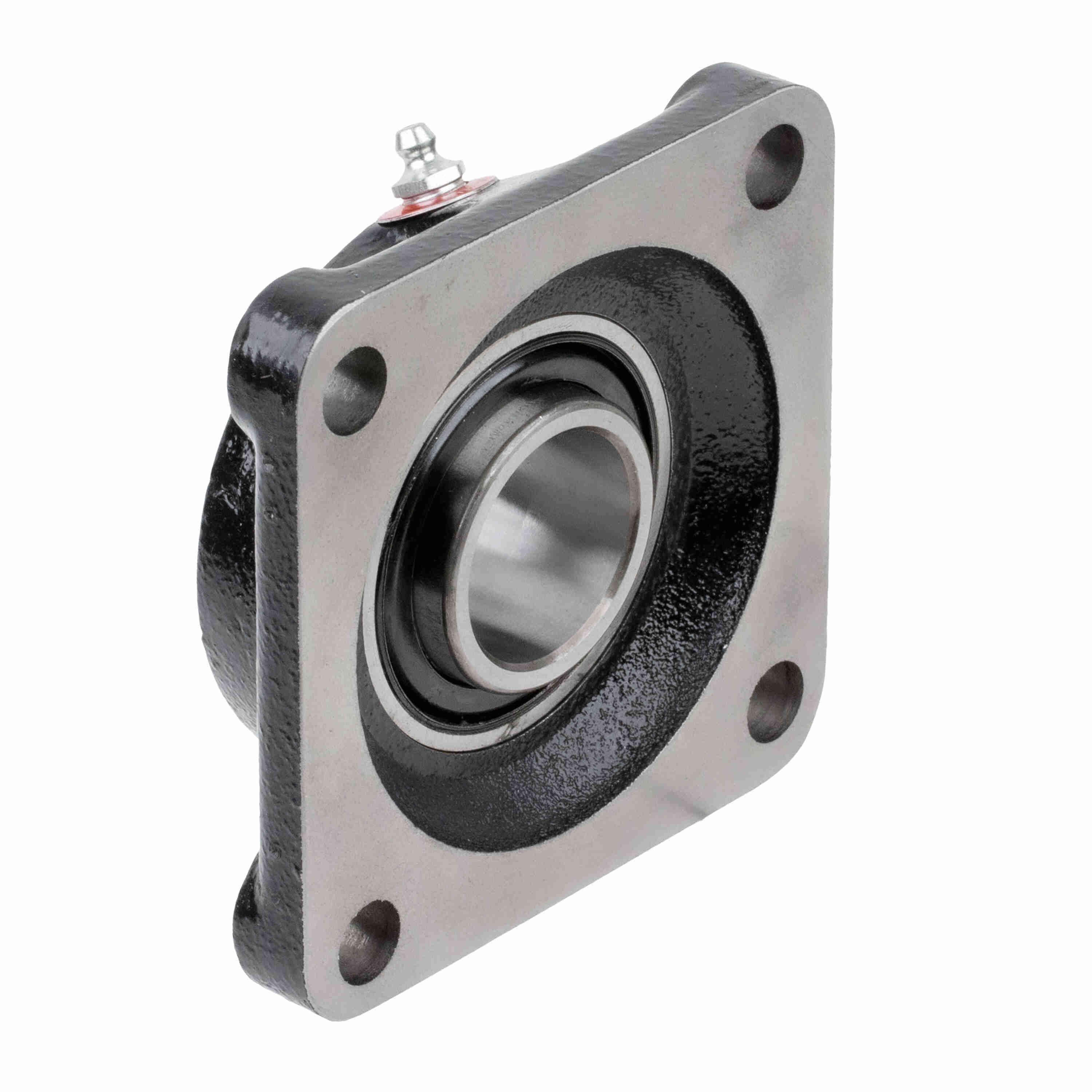

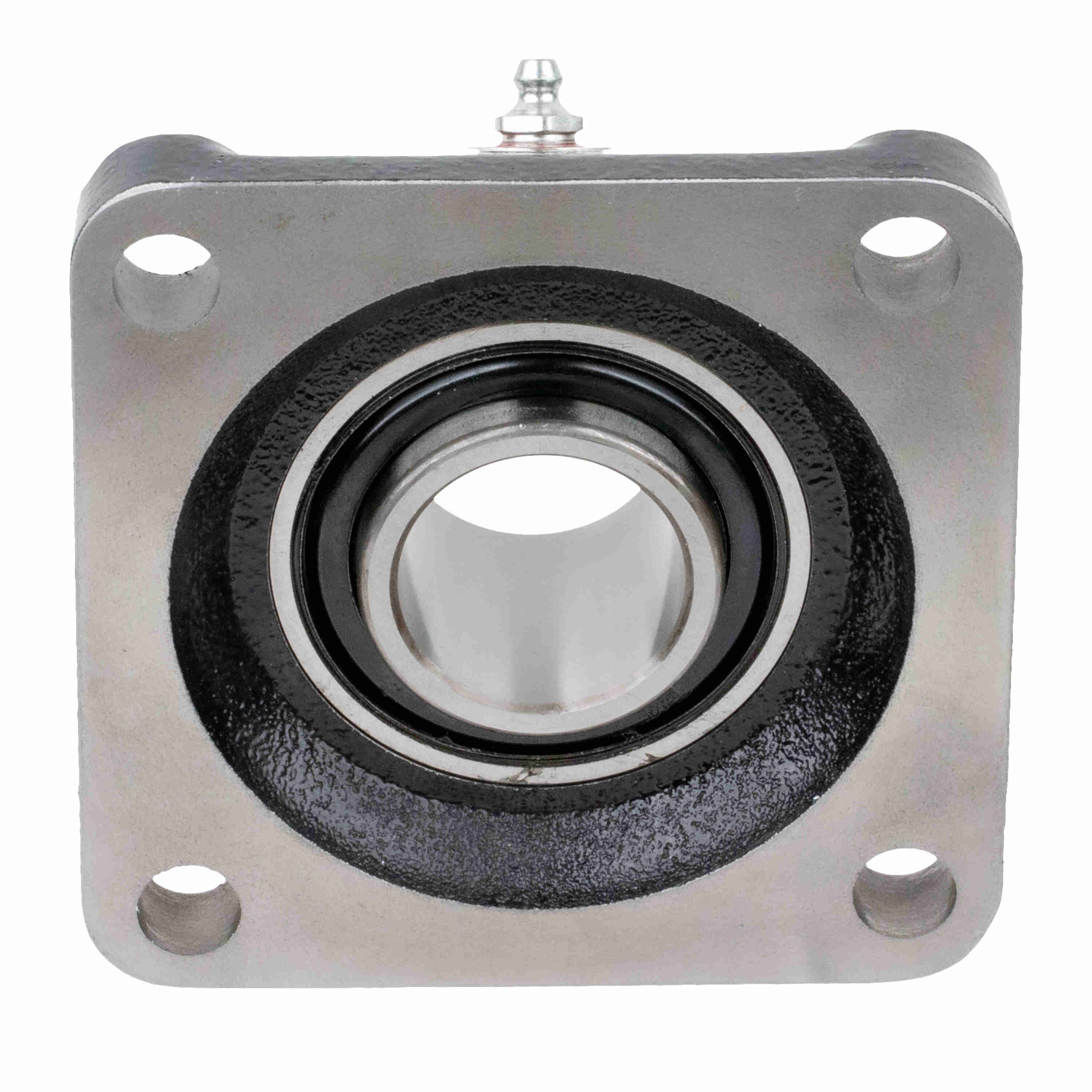

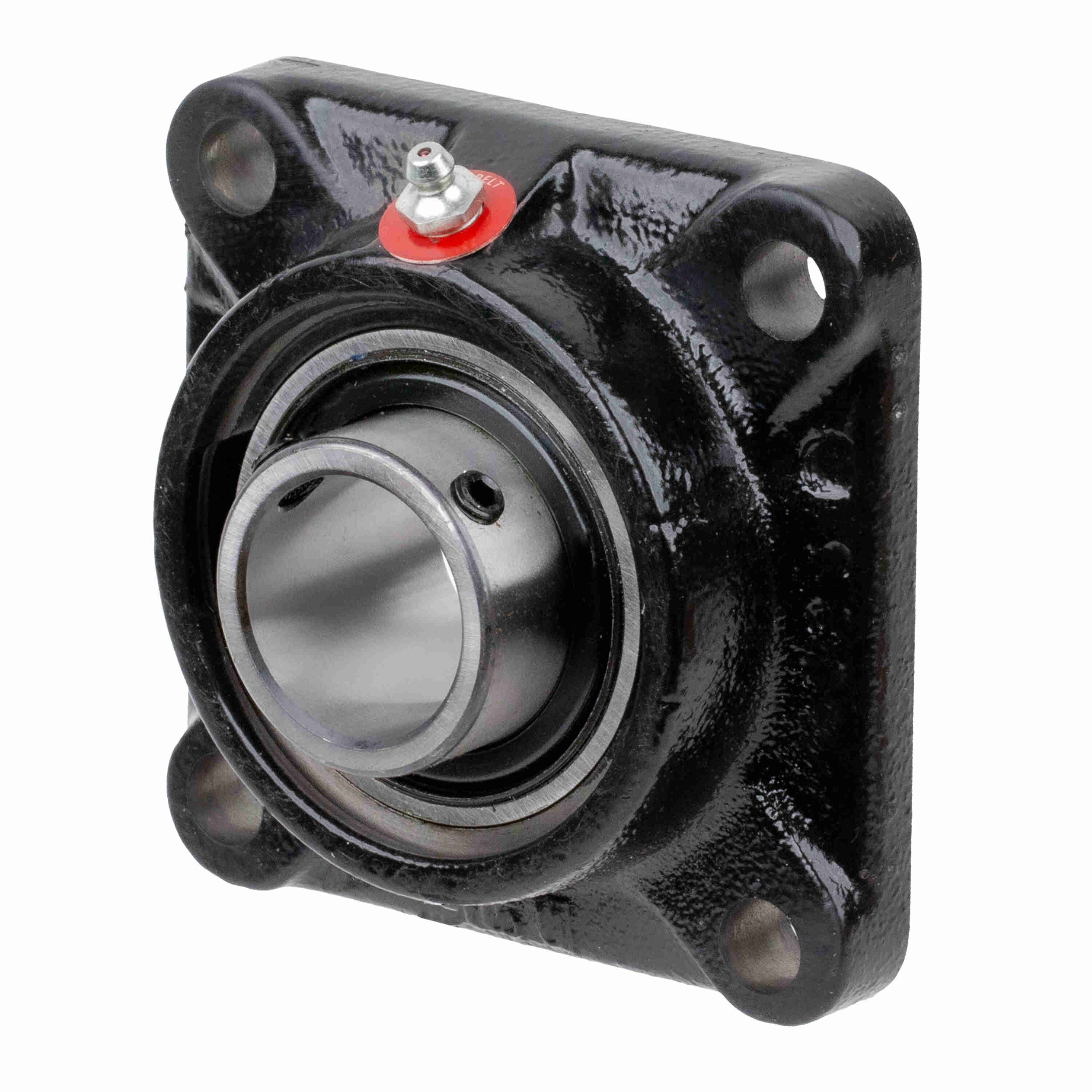

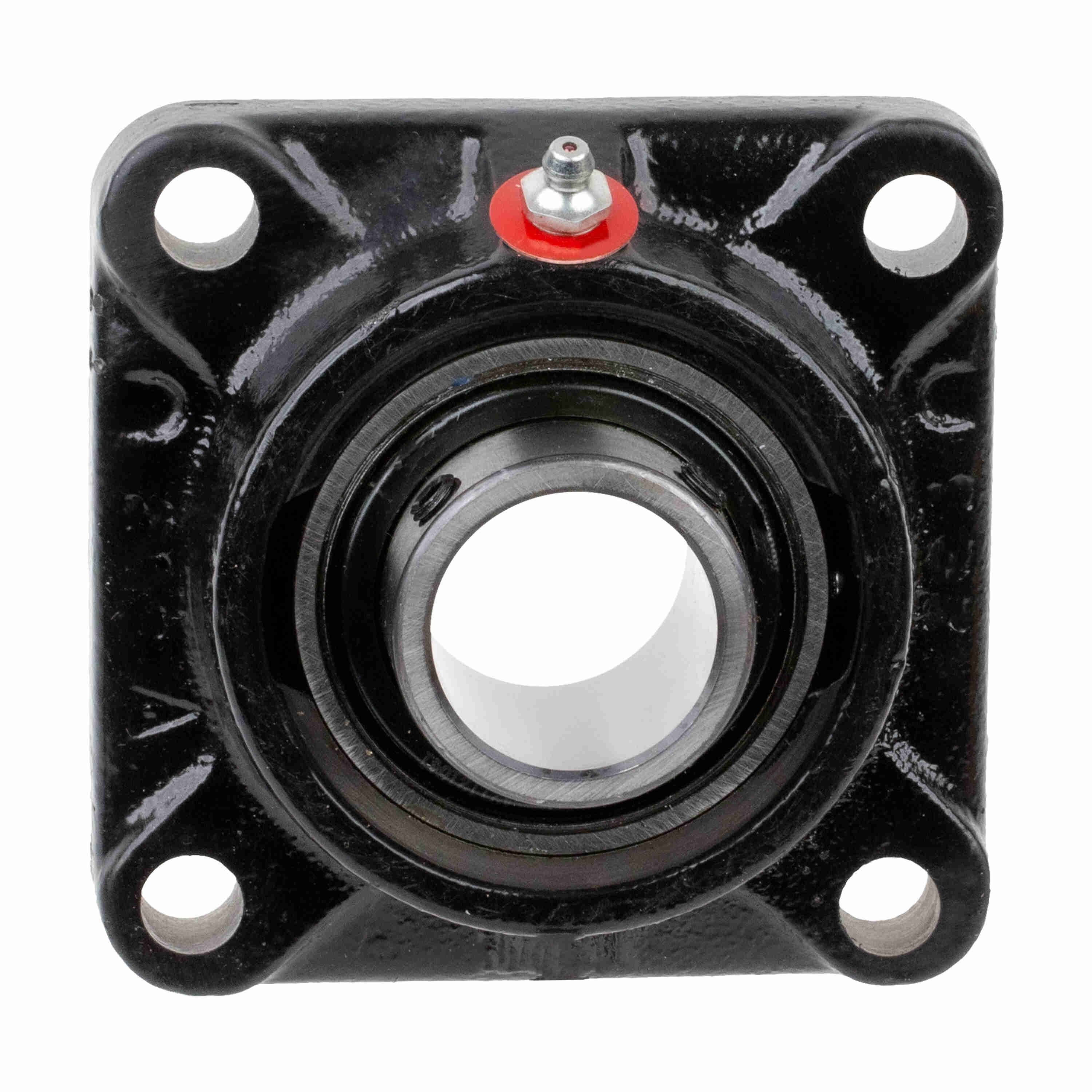

Link-Belt MFS240N Flange Blocks Ball Bearings - MFS240N
Part #:10430260
Catalog #:MFS240N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 7.38 in | Bolt Size (in): | 5/8 in |
| Bore Diameter (in): | 2.5 in | Overall Height (in): | 2.375 in |
| Length Through Bore (in): | 2.241 in | Foot Height (in): | 0.69 in |
| Overall Width (in): | 7.38 in | Bolt Spacing (in): | 5.8750 in |
Technical Specifications
| Bore Shape: | Straight | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Housing Color: | Black |
| Misalignment Type: | Static Only | Seal Type: | Single Lip Contact Seal |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Housing Style: | Flange Block |
| Housing Type: | Flange, Four Bolt | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Max Operating Temperature (F): | 225 °F |
| End Cap Available: | No | Cage Type: | Ball Riding Retainer |
| Bearing Type: | Medium Duty | Dynamic Load Rating (lb): | 14,040 lb |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Housing Material: | Cast Iron |
| Bearing Insert Material: | 52100 Bearing Steel | Lubricant: | Lithium Complex NLGI 2 Grease |
| Maximum Speed (RPM): | 3050 rpm | Fixed vs. Expansion: | Fixed |
| Grease Fitting Thread Size: | 1/8 NPT | Housing Coating: | Powder Coated |
| Insert: | MSG240NLPA | Static Load Rating (lb): | 8,620 lb |
| Vibration Frequency Inner Ring Defect: | 0.0983 cps | Vibration Frequency Roller Spin: | 0.0447 cps |
| Size Code: | 214 | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Vibration Frequency Outer Ring Defect: | 0.0683 cps | Shaft Locking Type: | Set Screw |
| Inner Ring Outside Diameter (in): | 3.433 in | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Radial Clearance: | C3 STANDARD | Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 662864806978 | Weight: | 11.72 LB |
| Packaged Length: | 7.63 IN | Packaged Width: | 2.69 IN |
| Packaged Height: | 7.63 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
