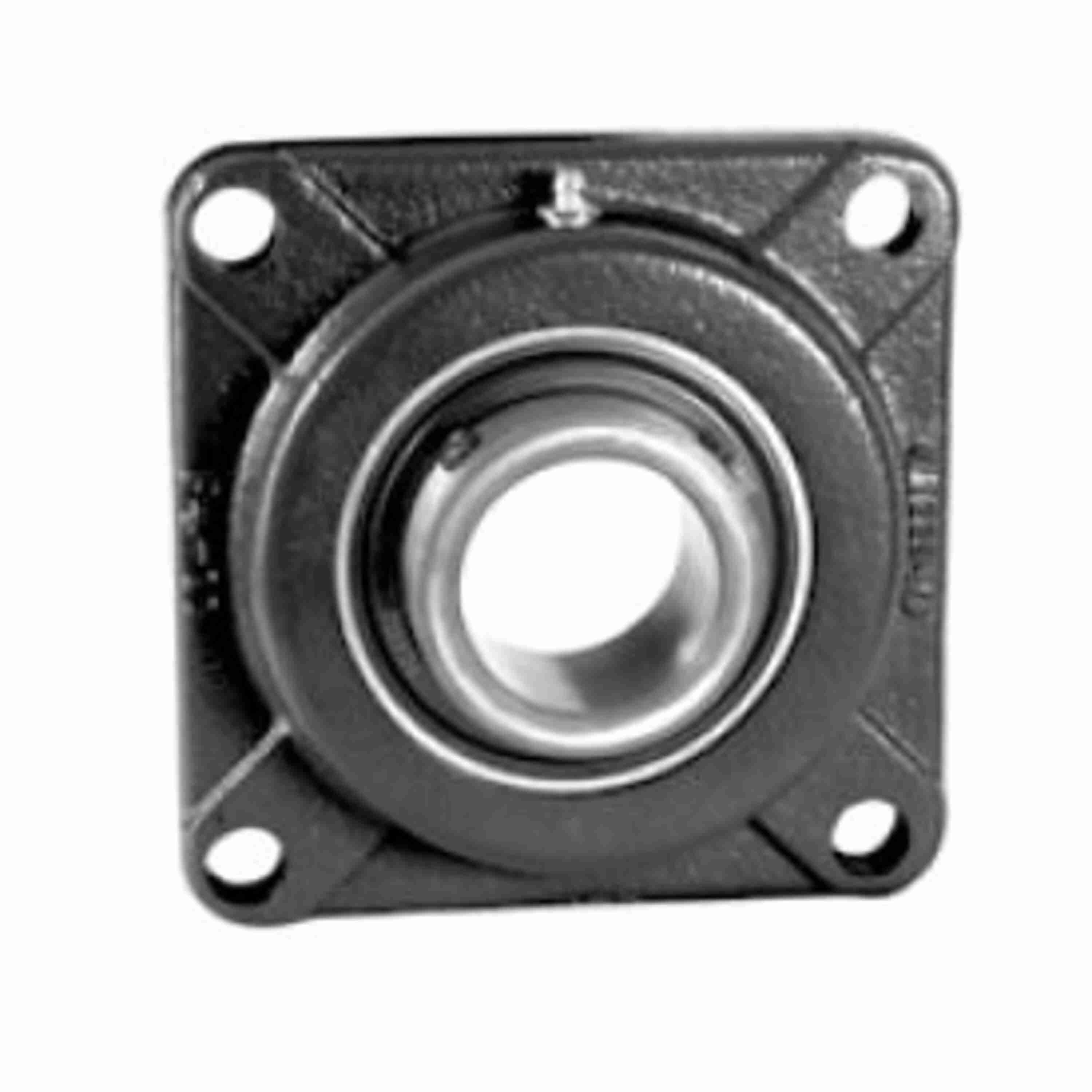

Link-Belt MFS251N Flange Blocks Ball Bearings - MFS251N
Part #:10441282
Catalog #:MFS251N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 8.44 in | Overall Height (in): | 2.734 in |
| Overall Length (in): | 8.44 in | Length Through Bore (in): | 2.524 in |
| Bolt Size (in): | 3/4 in | Bore Diameter (in): | 3.1875 in |
| Foot Height (in): | 0.94 in | Bolt Spacing (in): | 6.75 in |
Technical Specifications
| Housing Construction: | One Piece | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
| Housing Style: | Flange Block | Housing Type: | Flange, Four Bolt |
| Outer Ring Land Profile: | Standard | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Outer Ring Defect: | 0.0685 cps | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Vibration Frequency Roller Spin: | 0.0454 cps | End Cap Available: | No |
| Max Operating Temperature (C): | 107 °C | Fixed vs. Expansion: | Fixed |
| Inner Ring Outside Diameter (in): | 4.397 in | Cage Type: | Ball Riding Retainer |
| Housing Coating: | Powder Coated | Size Code: | 218 |
| Max Operating Temperature (F): | 225 °F | Maximum Speed (RPM): | 2400 rpm |
| Static Load Rating (lb): | 14,400 lb | Shaft Locking Type: | Set Screw |
| Grease Fitting Thread Size: | 1/8 NPT | Dynamic Load Rating (lb): | 21,580 lb |
| Vibration Frequency Fundamental Train: | 0.0069 cps | Bearing Insert Material: | 52100 Bearing Steel |
| Bearing Type: | Medium Duty | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Inner Ring Defect: | 0.0981 cps |
| Insert: | MSG251NLPA | Housing Material: | Cast Iron |
General Specifications
| UPC: | 662864807104 | Weight: | 21.16 LB |
| Packaged Length: | 8.75 IN | Packaged Width: | 2.88 IN |
| Packaged Height: | 8.75 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
