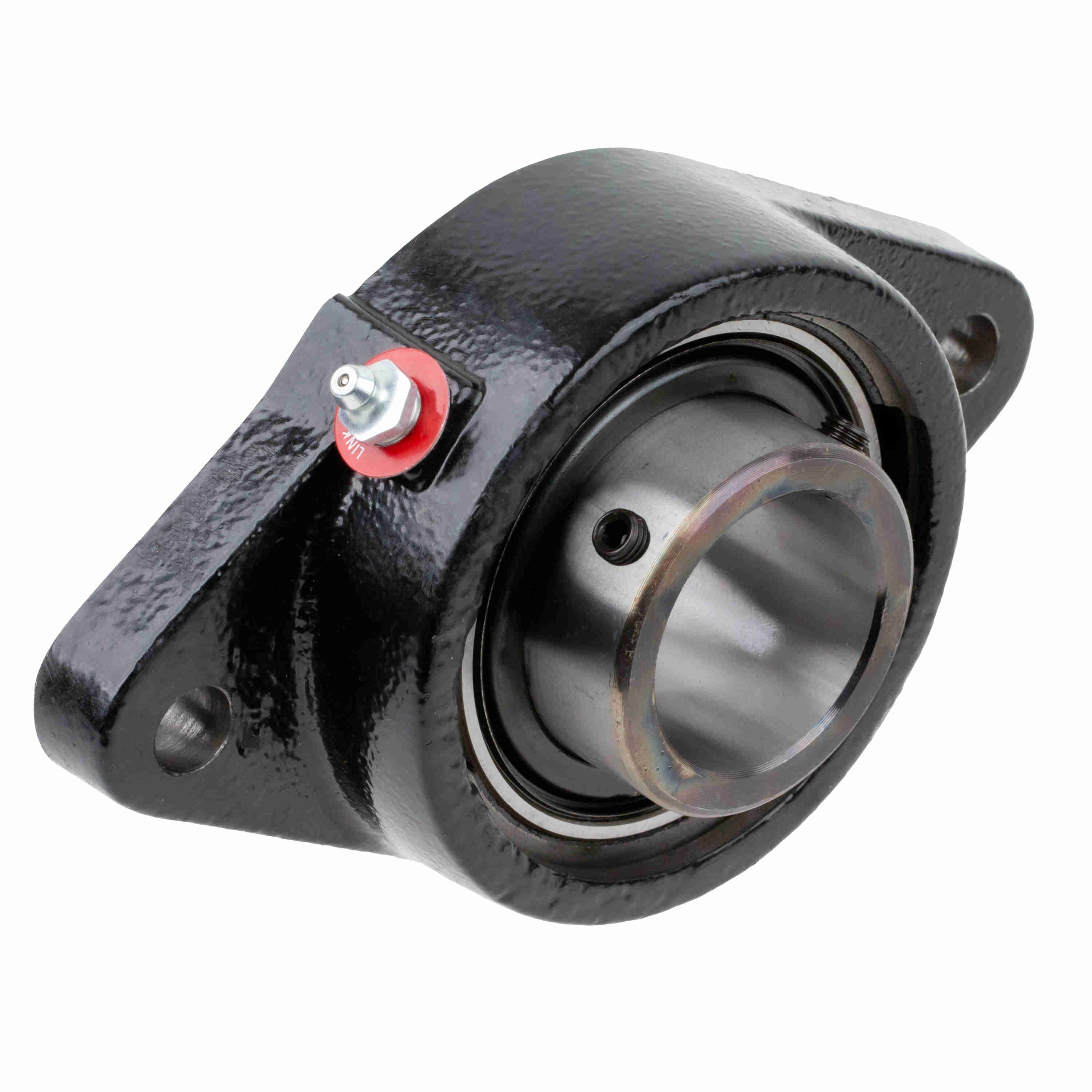

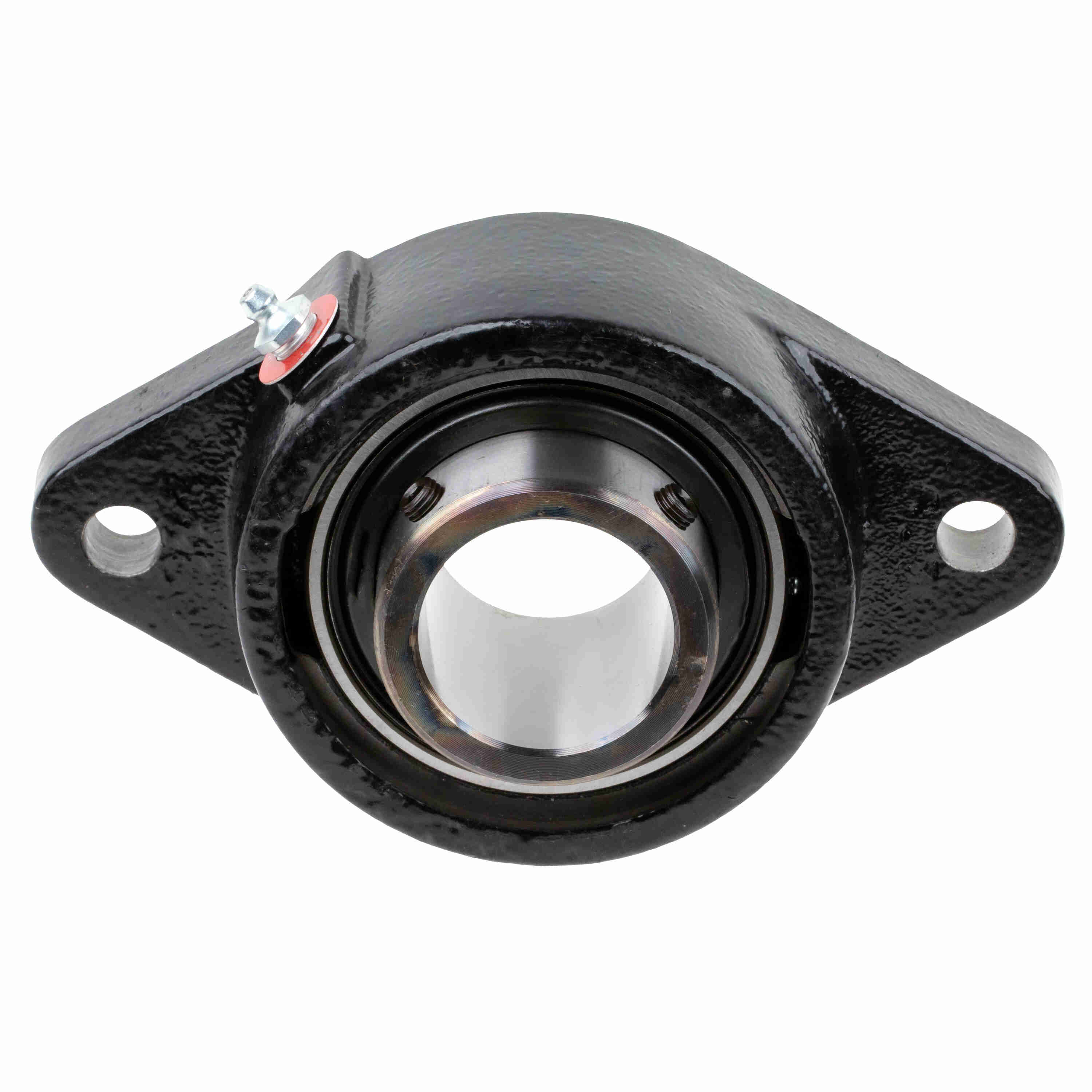

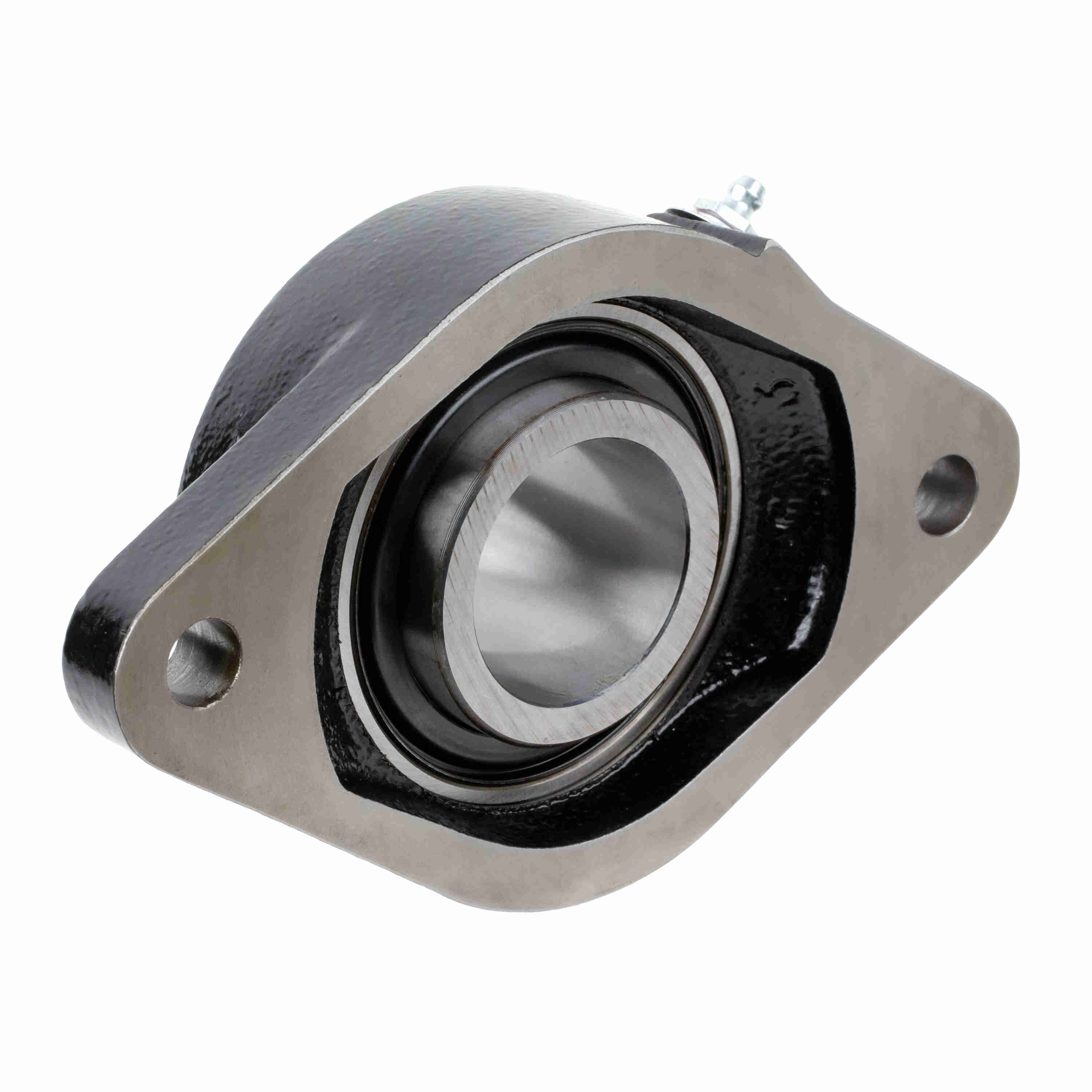

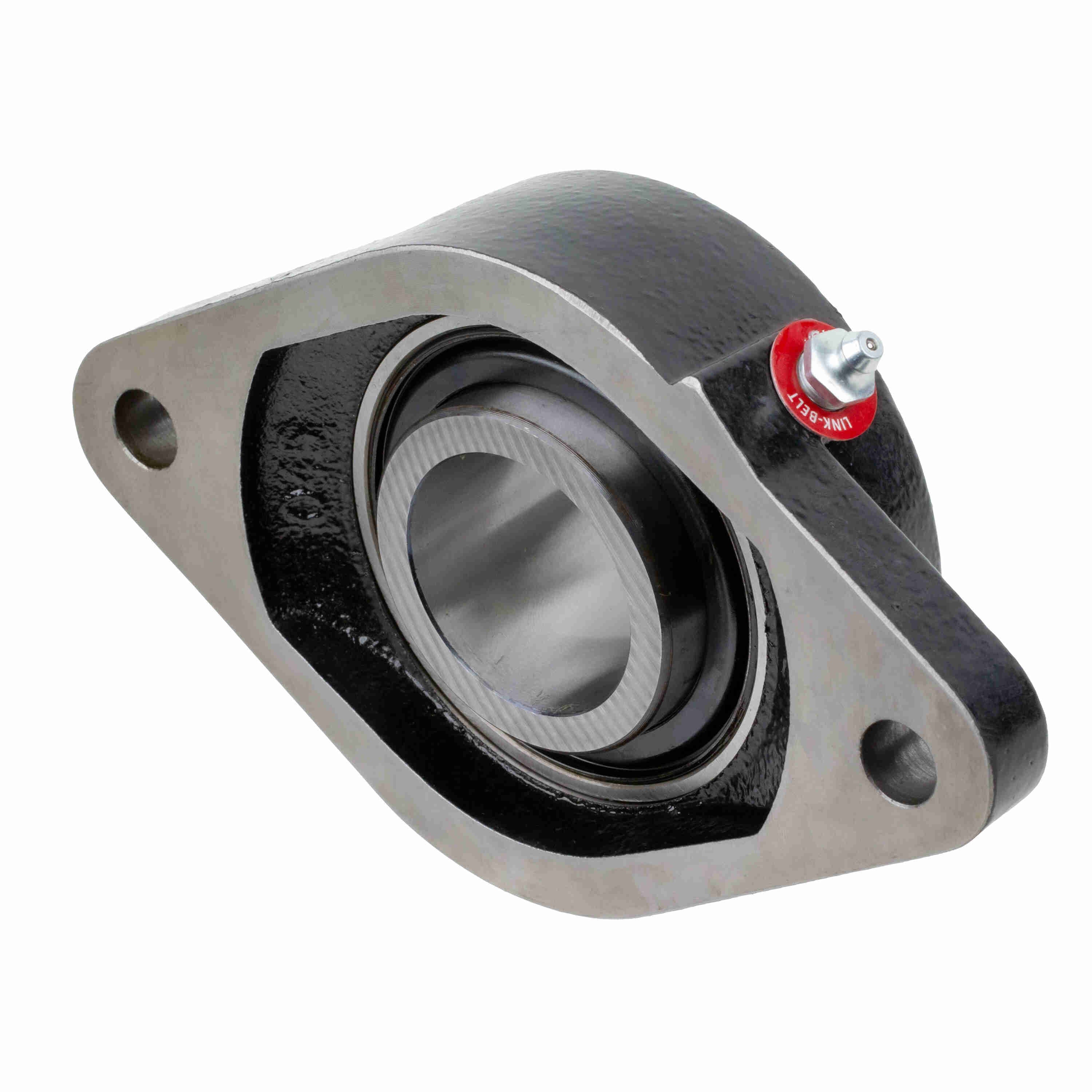

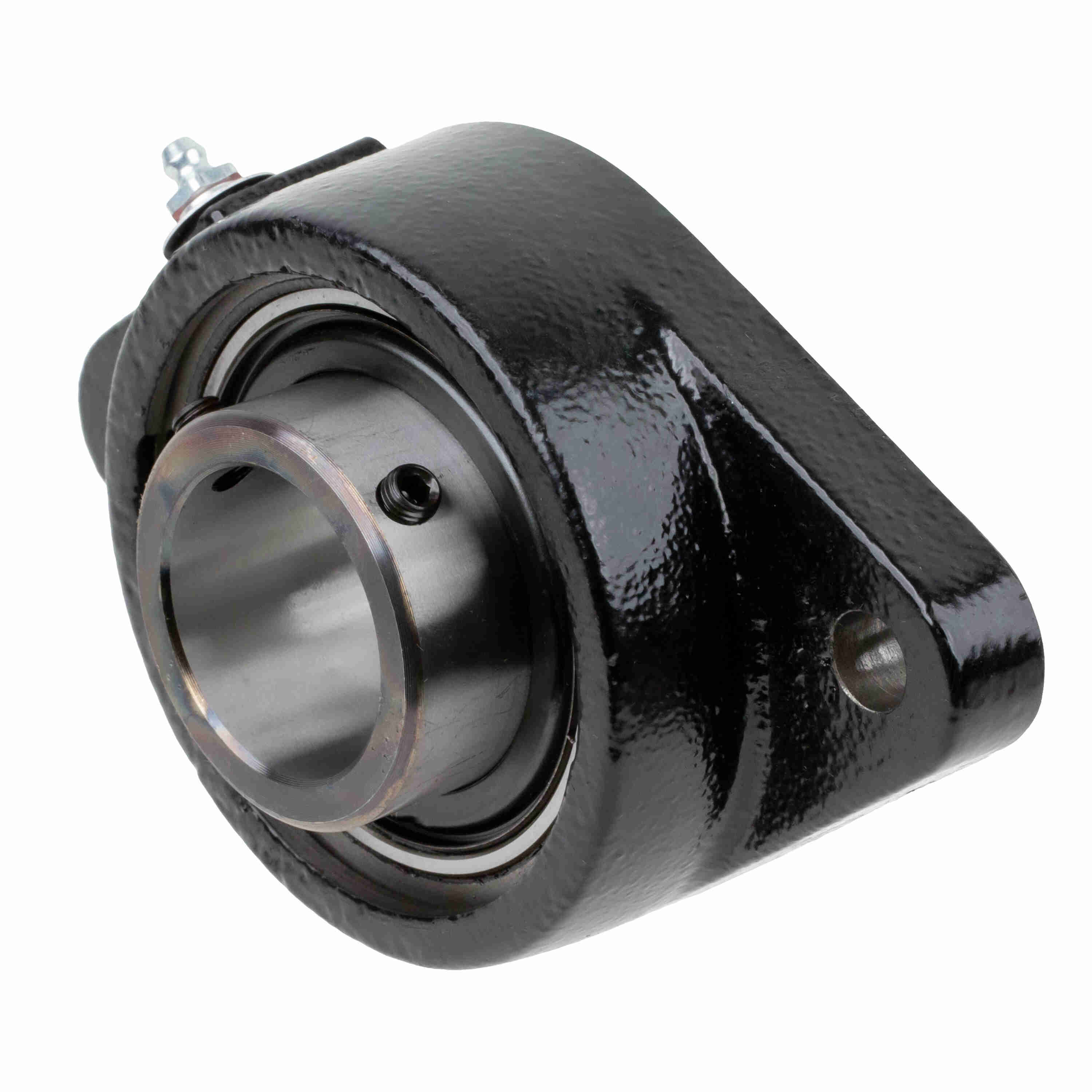

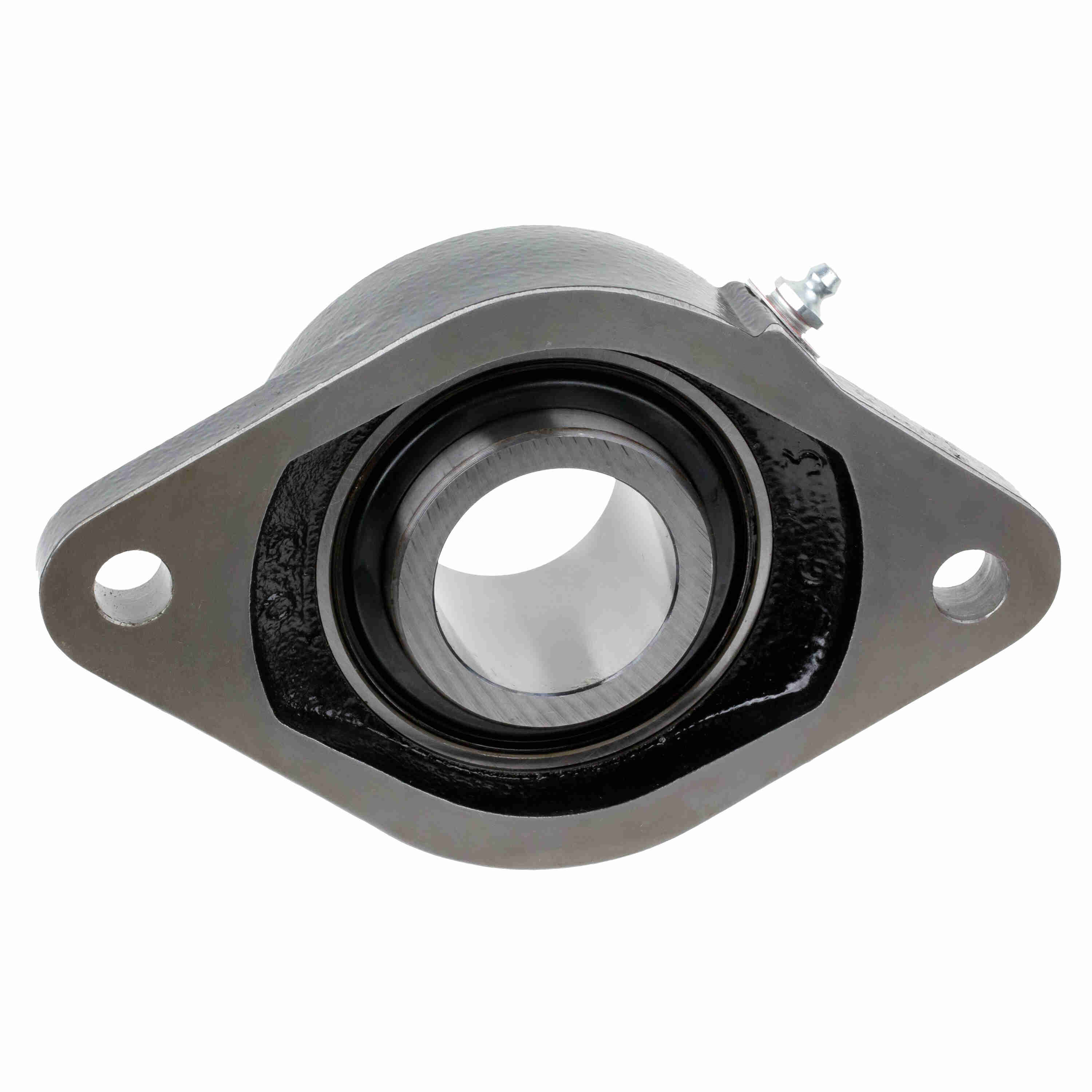

Link-Belt MFXS228N Flange Blocks Ball Bearings - MFXS228N
Part #:10419879
Catalog #:MFXS228N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.75 in | Length Through Bore (in): | 2.183 in |
| Overall Length (in): | 7.47 in | Overall Height (in): | 1.906 in |
| Foot Height (in): | 0.63 in | Bolt Size (in): | 9/16 in |
| Overall Width (in): | 4.56 in | Bolt Spacing (in): | 6.1875 in |
Technical Specifications
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Black | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Construction: | One Piece | Rolling Element: | Ball Bearing |
| Housing Style: | Flange Block | Bore Shape: | Straight |
| Housing Type: | Flange, Two Bolt | Seal Type: | Single Lip Contact Seal |
| Pilot Configuration: | No Pilot | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Insert: | MSG228NLPA | Grease Fitting Thread Size: | 1/8 NPT |
| Static Load Rating (lb): | 5,220 lb | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Vibration Frequency Outer Ring Defect: | 0.0682 cps | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Cage Type: | Ball Riding Retainer | Shaft Locking Type: | Set Screw |
| End Cap Available: | No | Maximum Speed (RPM): | 4800 rpm |
| Inner Ring Outside Diameter (in): | 2.475 in | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.0985 cps | Housing Material: | Cast Iron |
| Bearing Type: | Medium Duty | Housing Coating: | Powder Coated |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Roller Spin: | 0.0445 cps |
| Fixed vs. Expansion: | Fixed | Max Operating Temperature (F): | 225 °F |
| Dynamic Load Rating (lb): | 7,920 lb | Size Code: | 210 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Bearing Insert Material: | 52100 Bearing Steel |
General Specifications
| UPC: | 662864805452 | Weight: | 3.15 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
