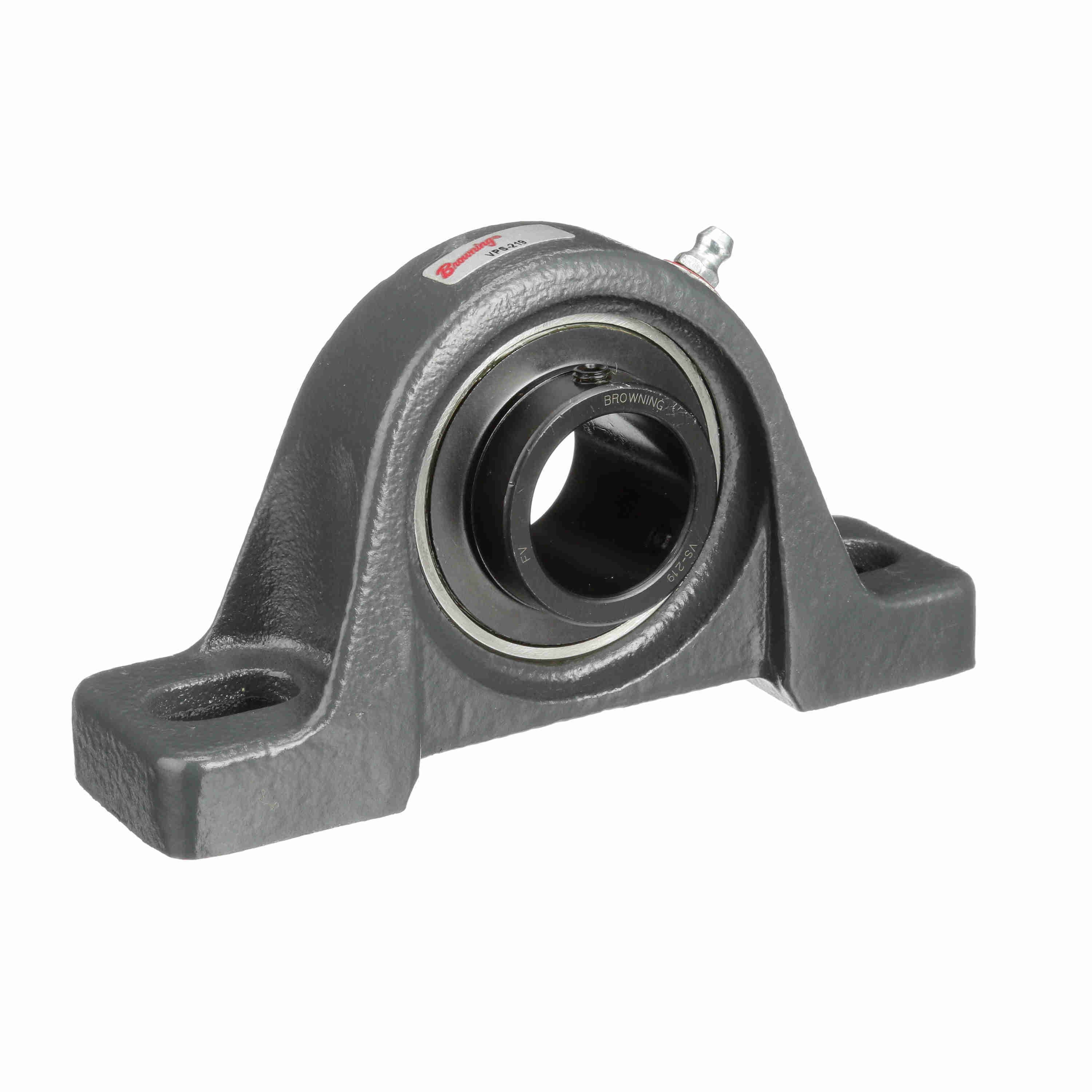

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Setscrew Lock - VPDS-224 CTY
Part #:764875
Catalog #:VPDS-224 CTY
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 1/2 in | Foot Height (in): | 0.81 in |
| Bore Diameter (in): | 1.5 in | Overall Length (in): | 7.25 in |
| Base Width (in): | 2 in | Overall Width (in): | 2 in |
| Length Through Bore (in): | 1.935 in | Overall Height (in): | 4.19 in |
| Base to Center Height (in): | 2.125 in | Bolt Spacing (in): | 5.53 in |
| Bolt Spacing Min (in): | 5.13 in | Centerline to Outermost Bearing Face (in): | 1.185 in |
| Bolt Spacing Max (in): | 5.94 in |
Technical Specifications
| Housing Type: | Pillow Block, Two Bolt | Bore Shape: | Straight |
| Housing Color: | Black | Cage Material: | Molded fiber glass reinforced nylon |
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| Housing Base: | Semi-Solid | Series: | VPDS-200 |
| Outer Ring Land Profile: | Standard | Housing Style: | Pillow Block |
| Inner Race Heat Treat Method: | Zone-Hardened | Setscrew Torque (in-lbs): | 165 in/lbs |
| Ability to Relubricate: | No | Vibration Frequency Outer Ring Defect: | 0.0591 cps |
| Radial Clearance: | Standard | Base Length (in): | 7.25 in |
| Vibration Frequency Inner Ring Defect: | 0.0909 cps | Size Code: | 208 |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Roller Spin: | 0.0376 cps |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Static Load Rating (lb): | 4,467 lb |
| Max Operating Temperature (C): | 107 °C | End Cap Available: | No |
| Max Operating Temperature (F): | 225 °F | Housing Coating: | Powder Coated |
| Cage Type: | Ball Riding Retainer | Dynamic Load Rating (lb): | 7,330 lb |
| Vibration Frequency Fundamental Train: | 0.0066 cps | Maximum Speed (RPM): | 4000 rpm |
| Lubricant: | Lithium Complex NLGI 2 Grease | Fixed vs. Expansion: | Fixed |
| Shaft Locking Type: | Set Screw | Inner Ring Outside Diameter (in): | 2.07 in |
| Bearing Type: | Standard Duty | Housing Material: | Cast Iron |
| Grease Fitting Thread Size: | 1/4-28 |
General Specifications
| UPC: | 662460567587 | Weight: | 5.13 LB |
| Packaged Length: | 4.80 IN | Packaged Width: | 7.80 IN |
| Packaged Height: | 2.40 IN | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
