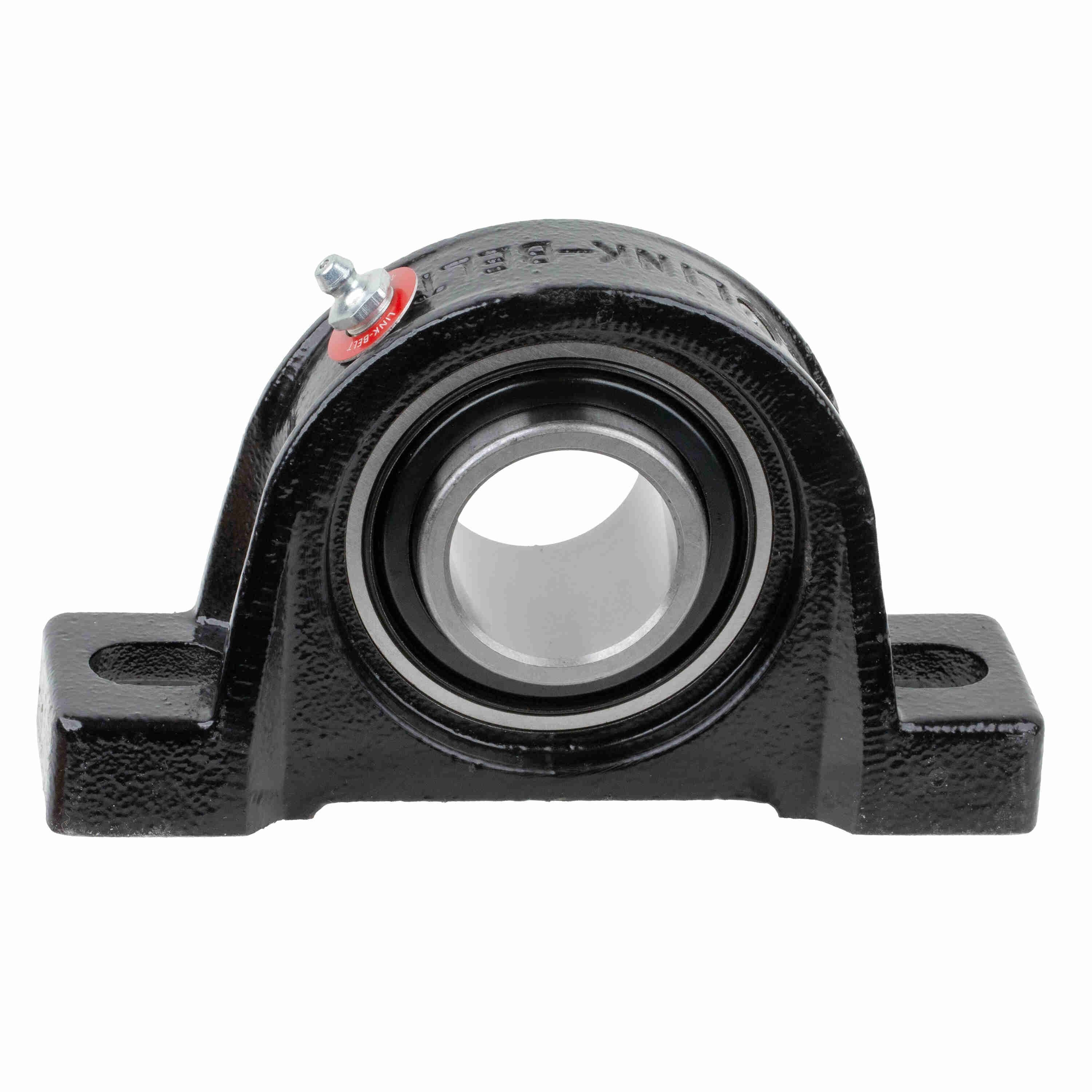

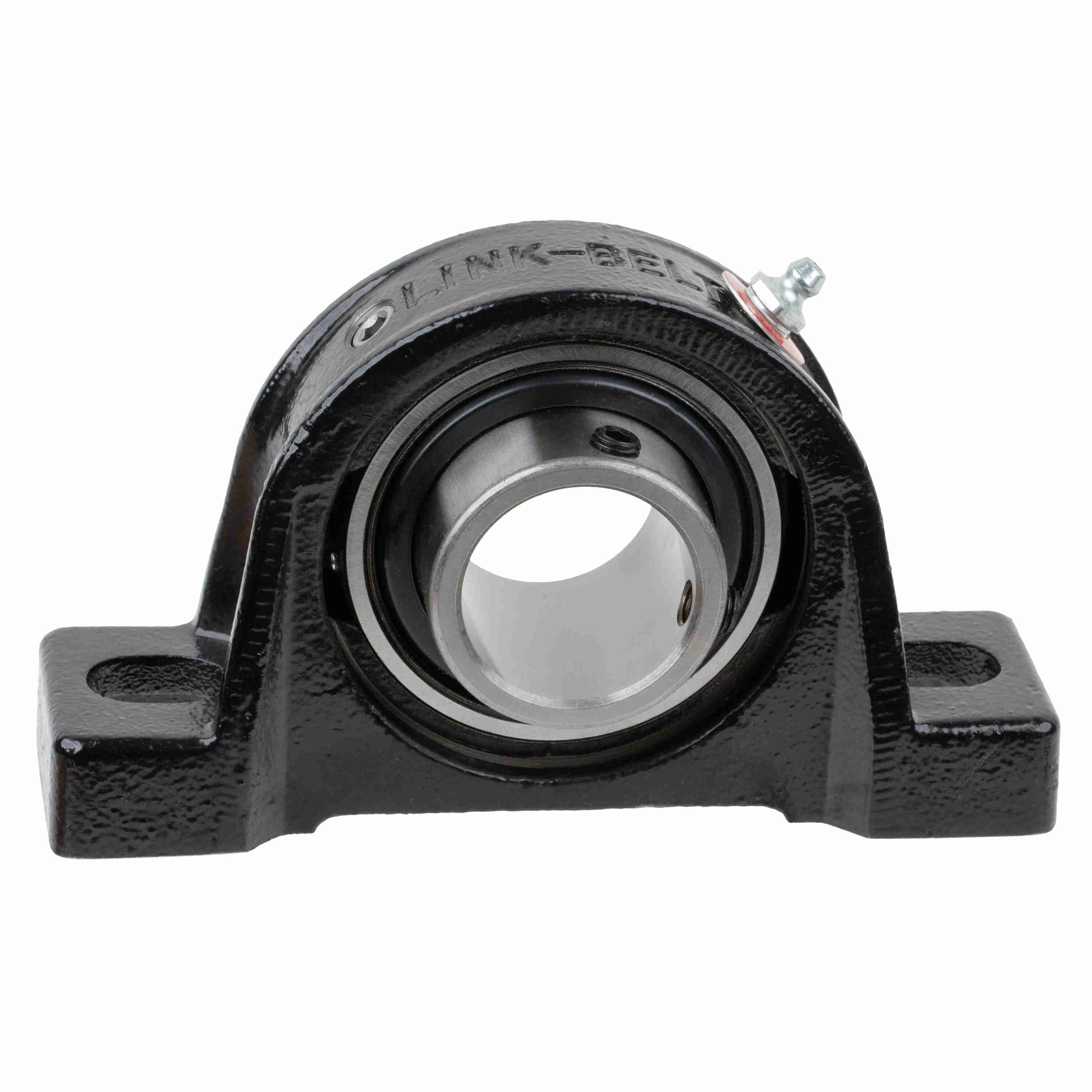

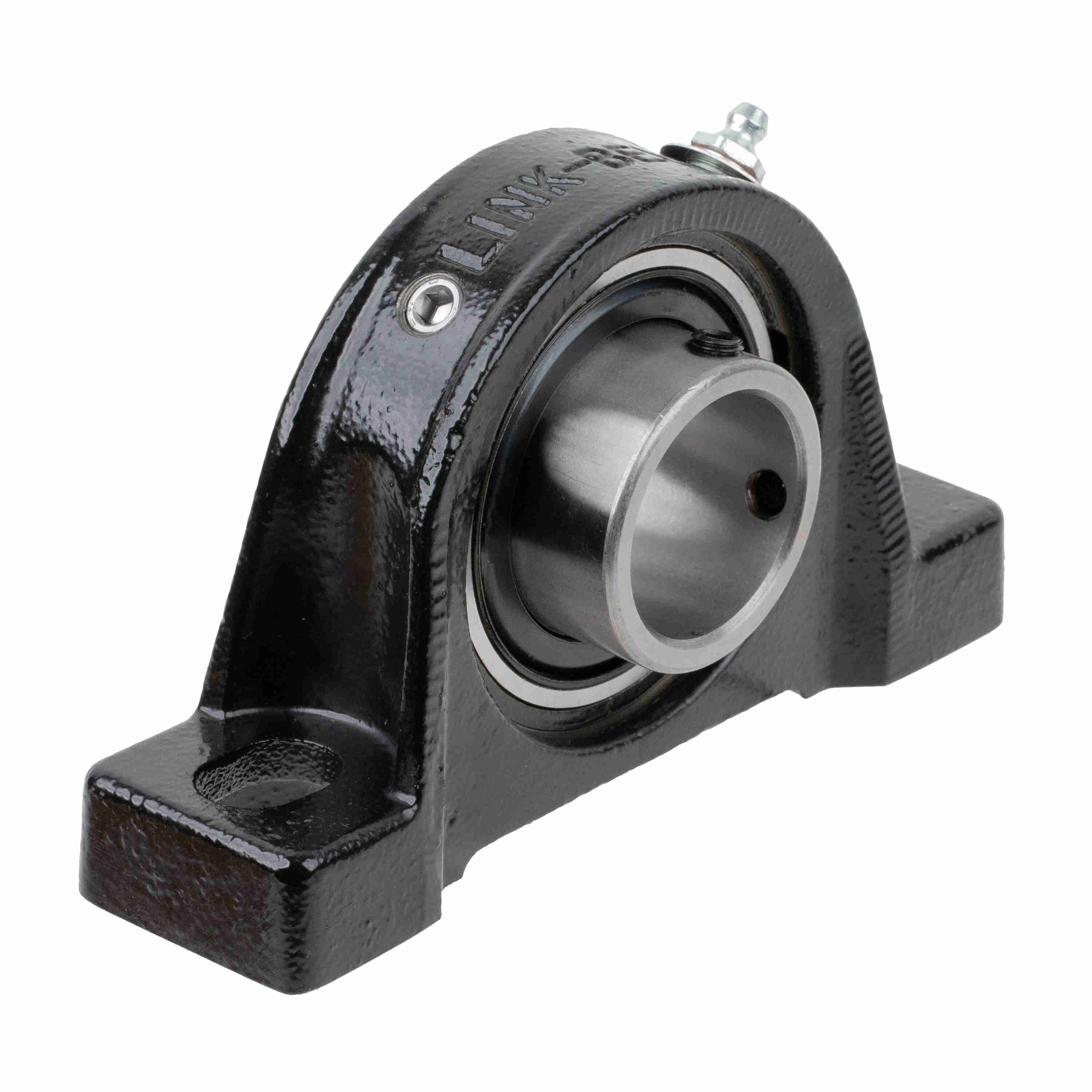

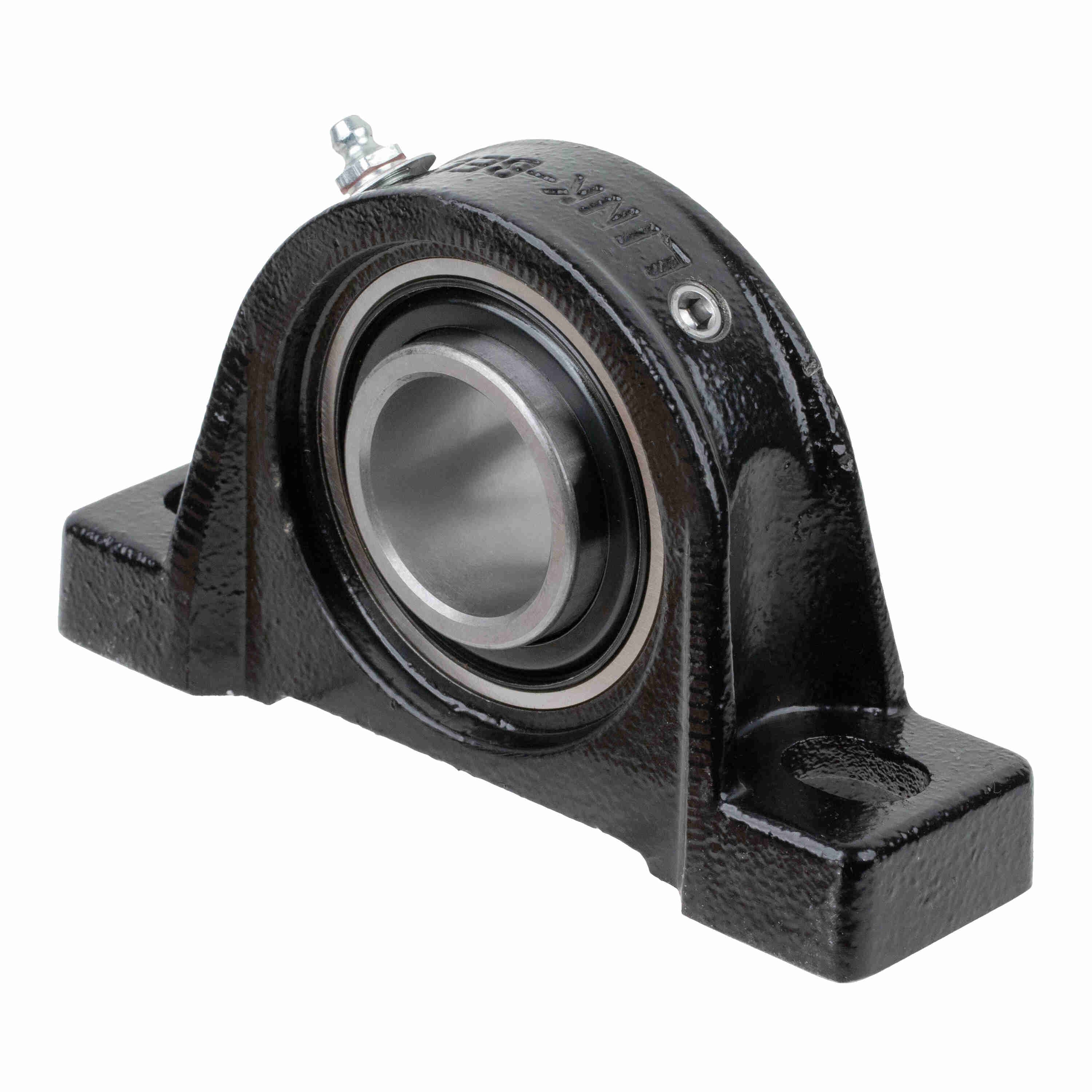

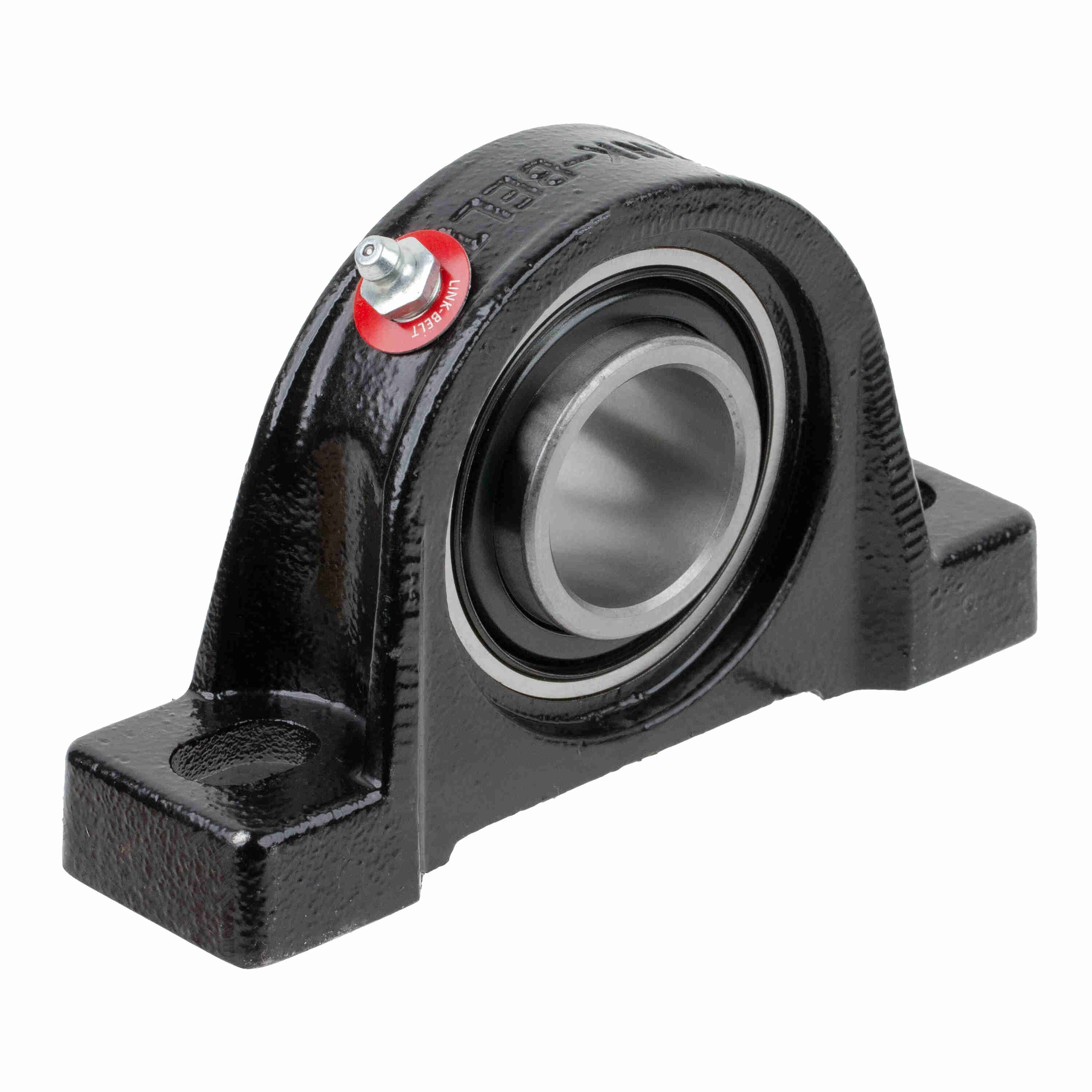

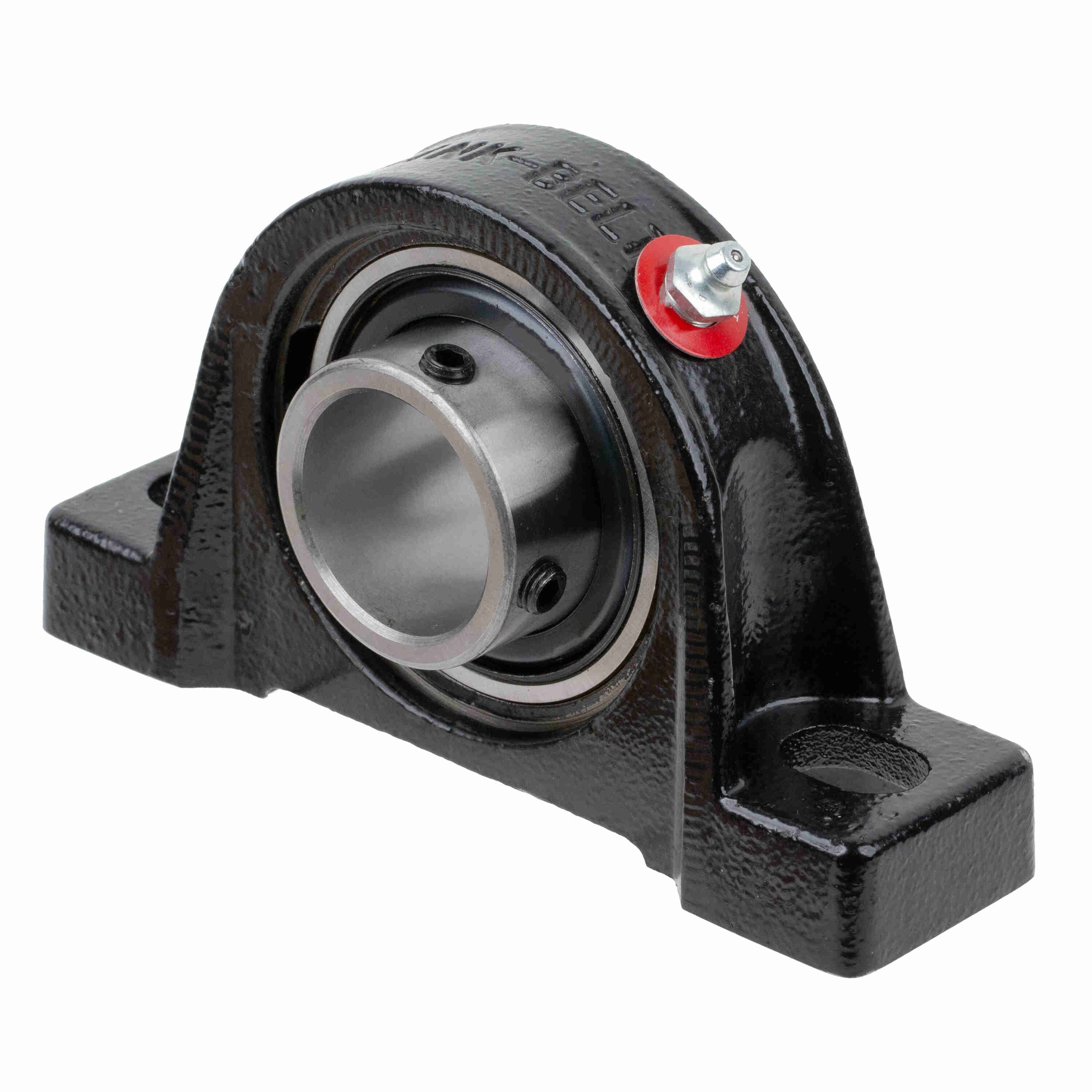

Link-Belt MPS231N Pillow Blocks Ball Bearings - MPS231N
Part #:10419903
Catalog #:MPS231N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1.00 in | Length Through Bore (in): | 1.891 in |
| Base to Center Height (in): | 2.5000 in | Bore Diameter (in): | 1.9375 in |
| Overall Width (in): | 2.94 in | Overall Height (in): | 5.00 in |
| Base Width (in): | 2.94 in | Overall Length (in): | 8.88 in |
| Bolt Size (in): | 5/8 in | Bolt Spacing (in): | 6.91 in |
| Centerline to Outermost Bearing Face (in): | 1.281 in |
Technical Specifications
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Housing Style: | Pillow Block | Misalignment Type: | Static Only |
| Housing Base: | Semi-Solid | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Housing Type: | Pillow Block, Two Bolt |
| Slot Length (in): | 1.22 in | Outer Ring Land Profile: | Standard |
| Rolling Element: | Ball Bearing | Housing Color: | Black |
| Setscrew Torque (in-lbs): | 165 in/lbs | Ability to Relubricate: | Yes |
| Maximum Speed (RPM): | 4360 rpm | Bearing Insert Material: | 52100 Bearing Steel |
| Cage Type: | Ball Riding Retainer | Base Length (in): | 8.88 in |
| Fixed vs. Expansion: | Fixed | Vibration Frequency Outer Ring Defect: | 0.0680 cps |
| Housing Coating: | Powder Coated | Vibration Frequency Roller Spin: | 0.0437 cps |
| Housing Material: | Cast Iron | Insert: | MSG231NLPA |
| Lubricant: | Lithium Complex NLGI 2 Grease | Size Code: | 211 |
| Grease Fitting Thread Size: | 1/8 NPT | Inner Ring Outside Diameter (in): | 2.749 in |
| Radial Clearance: | C3 STANDARD | Max Operating Temperature (F): | 225 °F |
| Bearing Type: | Medium Duty | Dynamic Load Rating (lb): | 9,800 lb |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | End Cap Available: | No |
| Bearing Brand: | LINK-BELT MEDIUM DUTY BALL | Static Load Rating (lb): | 6,570 lb |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Shaft Locking Type: | Set Screw | Vibration Frequency Inner Ring Defect: | 0.0987 cps |
General Specifications
| UPC: | 662864805667 | Weight: | 7.90 LB |
| Packaged Length: | 5.13 IN | Packaged Width: | 2.63 IN |
| Packaged Height: | 9.00 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
